Description
HIGH-TIG PLUS 182 AC/DC
Ultra-compact, high-performance TIG inverter with state-of-the-art design and revolutionary operating concept. TIG welding easy and safe as never before!
Polish Menu
- High-efficiency inverter technology
- High range of features as standard
- State-of-the-art technology guarantees perfect tacking and welding
- Works with PFC: this allows for use with all types of generators
- Versatile use thanks to multi-voltage capability

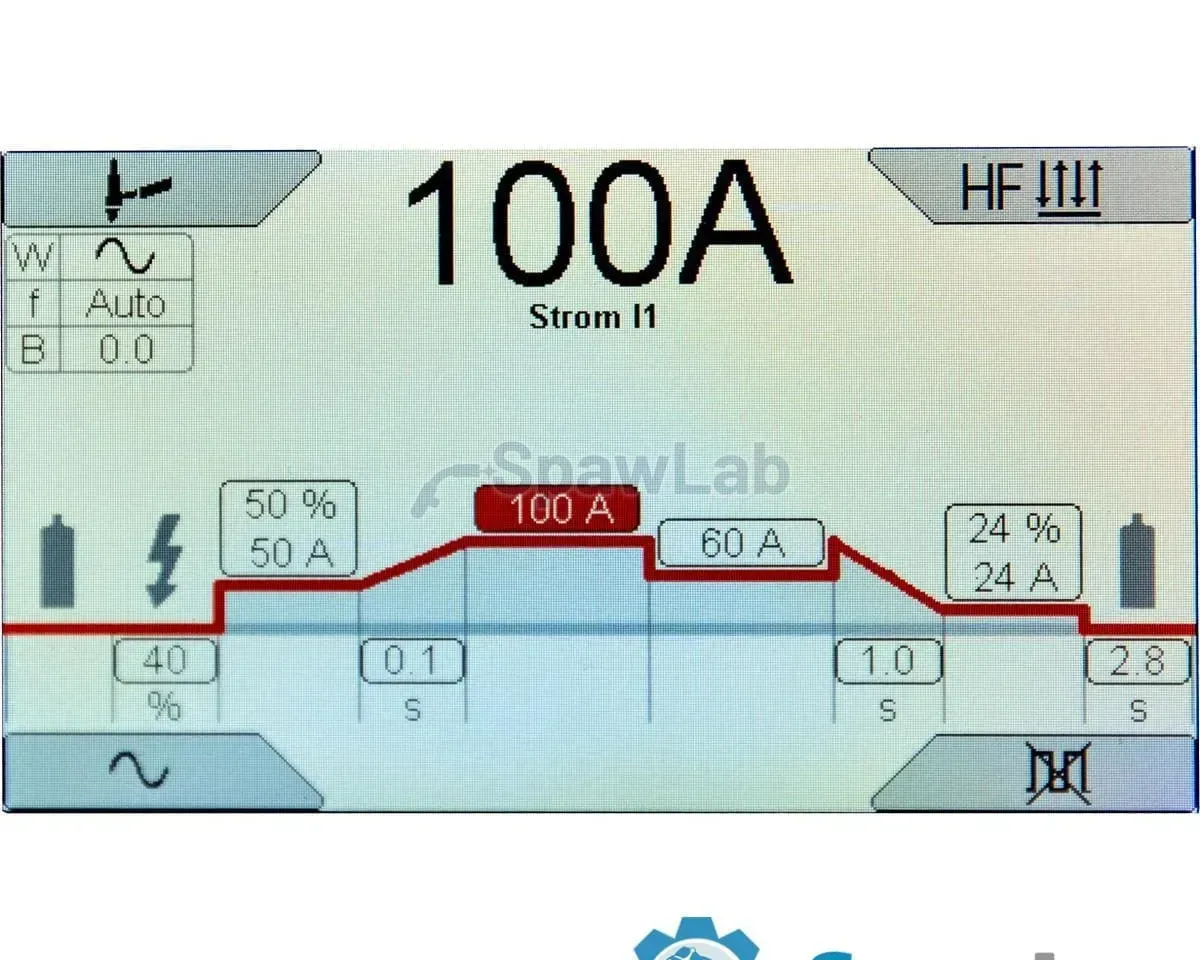

- Easiest operation with unique high-resolution graphic dynamic display
- Built for practical use: the device can withstand falls of up to 90 cm without damage
- Dust-protected electronics: Cooling air ducts in a special duct for optimal cooling and protection of electronics from contamination
- Three-year Schweißkraft warranty
- Quality – Made in Germany
SPECIFICATIONS
Dimensions and weights
Length (product) approx.
480mm
Width/depth (product) approx.
160mm
Height (product) approx.
320mm
Weight (net) approx.
7,3kg
Duty cycle at max current 40°C TIG
40%
Electrical data
Supply voltage
230V
Network frequency
50/60Hz
Power factor
0,98cos phi
Device data
Flashlight cooling
Gas / water
Energy consumption
TIG energy consumption
6,1kVA
EQUIPMENT
Equipment
Power factor correction
✔
LC display
✔
Hyperpulse
17500Hz
DUAL.WAVE
✔
Point function
from 0.1 s
Ignition energy
adjustable
End current
adjustable
Starting current
adjustable
AC delta wave
✔
AC square wave
✔
AC frequency
✔
Display welding voltage
✔
Programs storable
✔
pressure regulator
3m grounding cable 25 mm² with grounding clamp
