HIGHER PRODUCTIVITY THROUGH MODERN DESIGN.
1400 x 1400 x 200mm (octagonal)
- CAST IRON ENGJL-300
The table top is cast from high-strength EN-GJL-300 cast iron, which offers high wear resistance.
- TABLE TOP 25MM
The 25mm thick tops make the table durable and resistant to mechanical damage
- MILLIMETRE SCALE
The marked millimetre scale helps you position the workpiece precisely during work
- 3D SIDE
Extends the working surface and lets you join tables into larger setups
- D28 SYSTEM
Drilled and milled holes, 28mm in diameter

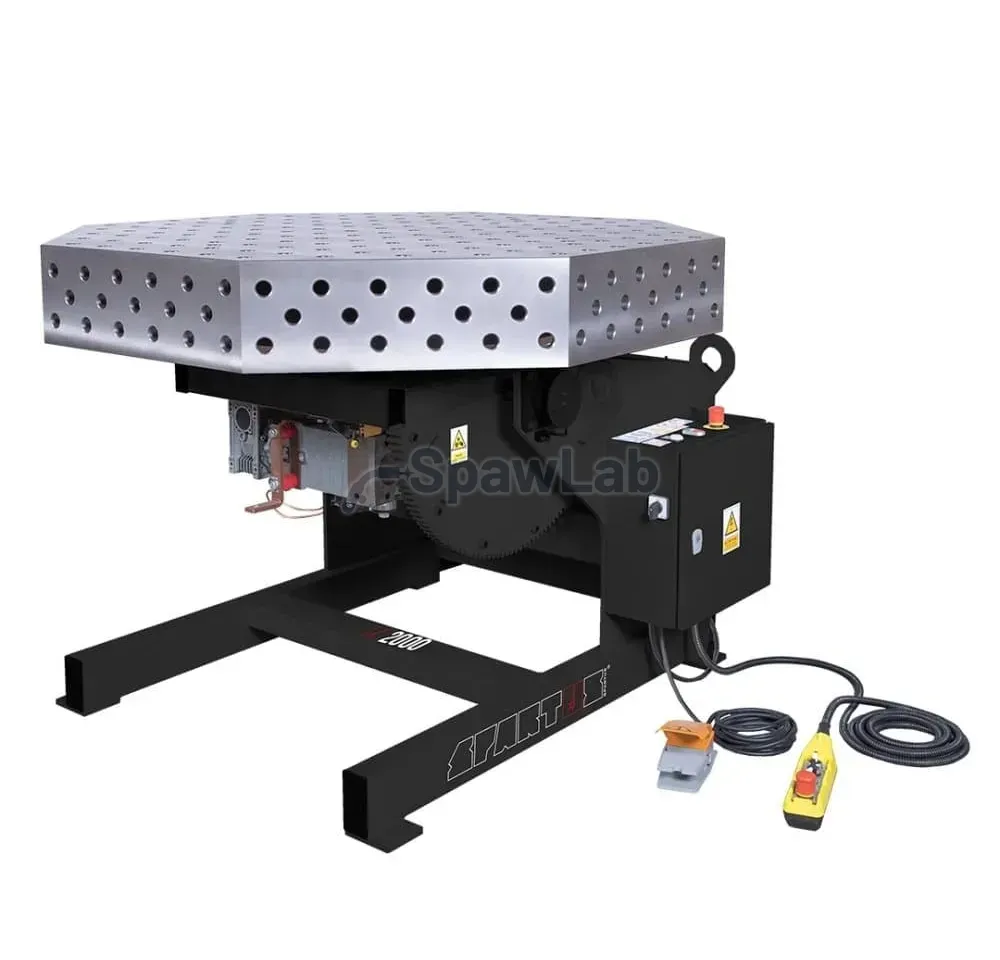

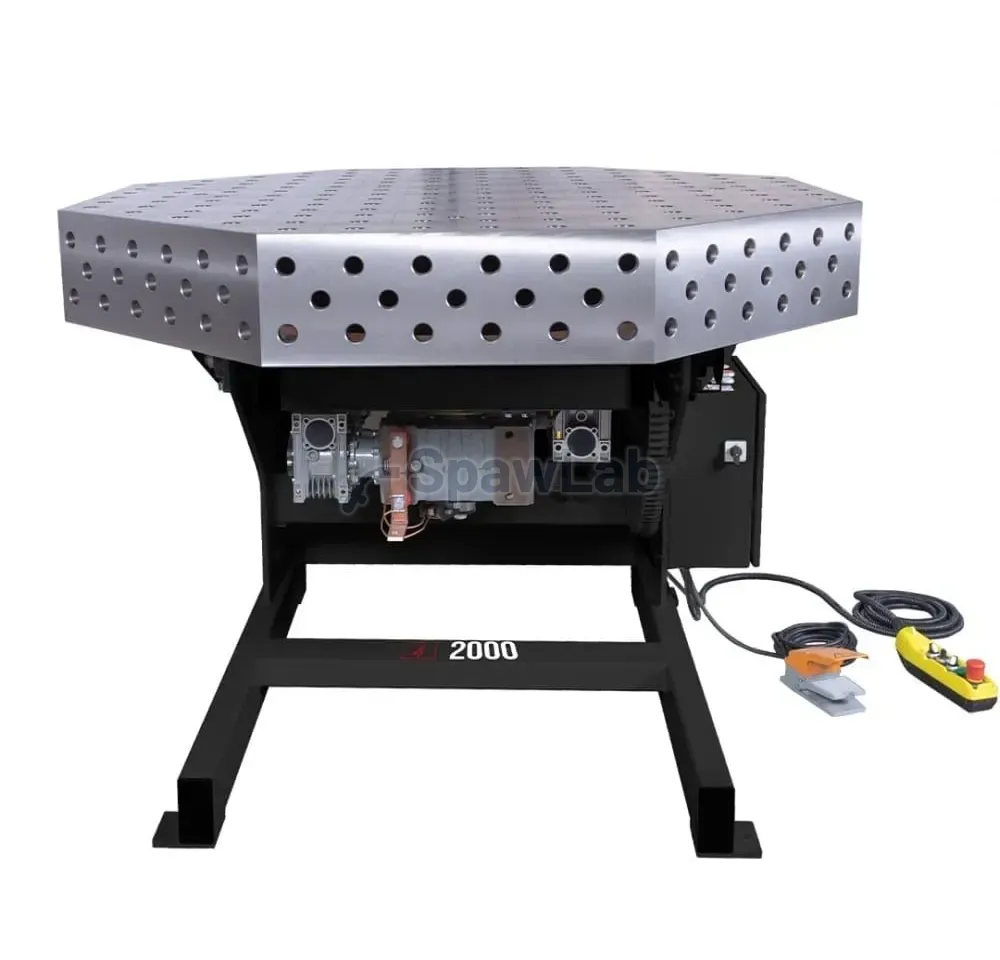

SPARTUS® ROTARY POSITIONERS with a 1400 x 1400 x 200 table top

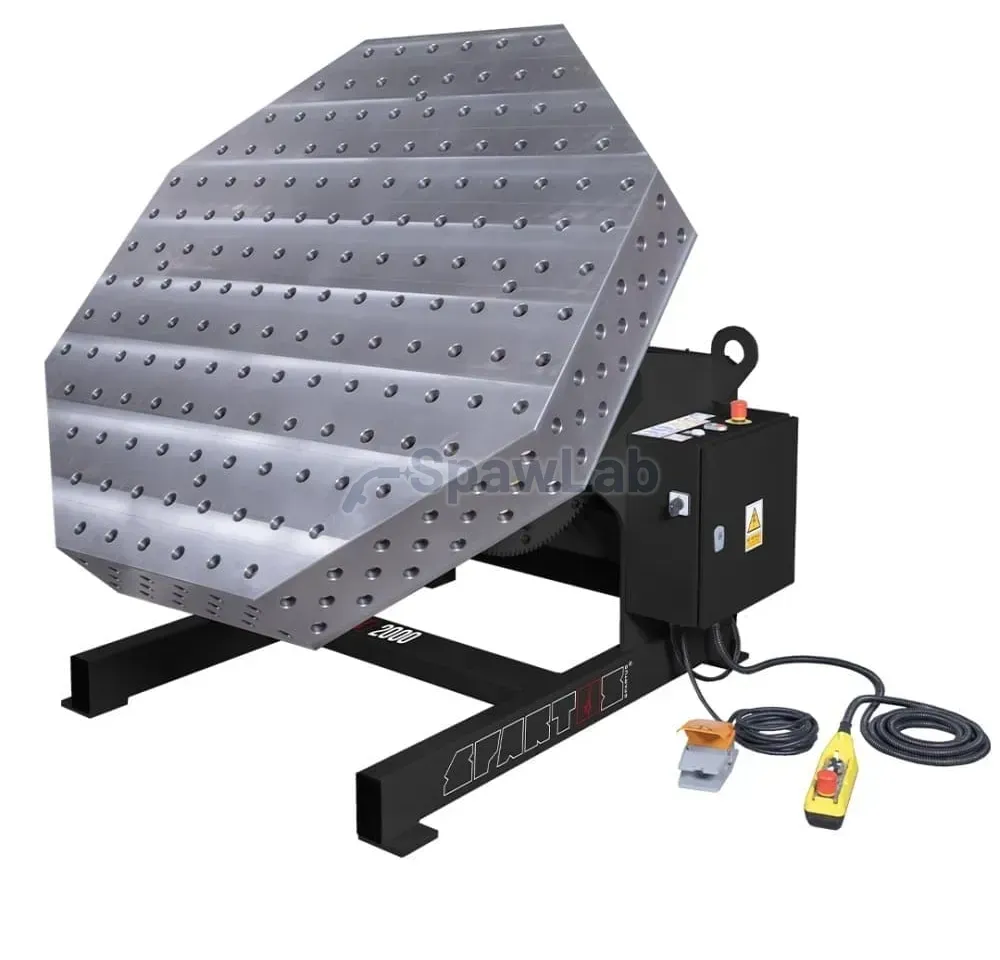

With the positioner, you can adapt the working position to the operator. It rotates the table top in both directions at variable speed and changes the tilt angle of the main frame. The self-locking drive stops the turntable in any position. The positioner mechanism turns the table about its own axis and tilts the rotary unit up to 140° from horizontal; with the table top fitted, the tilt angle is 90°. Controls: hand panel + foot switch (on separate cables).
Advantages:
- rotating table top (both directions)
- adjustable tilt angle
- stepless speed control
- intuitive, convenient controls
ACCESSORY SETS
|
Accessory set SET1 includes: SP010-30-005 Square 175x50x75 mm, hole/slot 8 pcs SP010-50-002 Universal stop 225x50x25 mm 4 pcs SP010-70-001 180° clamp with handle 300x300 mm 6 pcs SP010-60-001 Quick-release clamping bolt Ø 28x50 mm 22 pcs SP010-90-003A Hex key 150 mm 1 pc SP010-90-004 Nylon brush Ø 30x80 mm 1 pc SP010-90-001 Cleaning stone 200x50x25 mm 1 pc SP010-90-002 Dispenser bottle 1 l 1 pc |
Accessory set SET2 includes: SP010-30-002 Square 175x50x175 mm, hole/slot 6 pcs SP010-30-005 Square 175x50x75 mm, hole/slot 2 pcs SP010-50-002 Universal stop 225x50x25 mm 4 pcs SP010-70-001 180° clamp with handle 300x300 mm 8 pcs SP010-60-001 Quick-release clamping bolt Ø 28x50 mm 20 pcs SP010-90-003A Hex key 150 mm 1 pc SP010-90-004 Nylon brush Ø 30x80 mm 1 pc SP010-90-001 Cleaning stone 200x50x25 mm 1 pc SP010-90-002 Dispenser bottle 1 l 1 pc |
Accessory set SET3 includes: SP010-23-300L Square 275x100x300 mm, left 1 pc SP010-23-300R Square 275x100x300 mm, right 1 pc SP010-23-600L Square 375x100x600 mm, left 1 pc SP010-23-600R Square 375x100x600 mm, right 1 pc SP010-30-002 Square 175x50x175 mm, hole/slot 4 pcs SP010-30-005 Square 175x50x75 mm, hole/slot 4 pcs SP010-50-002 Universal stop 225x50x25 mm 6 pcs SP010-70-001 180° clamp with handle 300x300 mm 10 pcs SP010-60-001 Quick-release clamping bolt Ø 28x50 mm 22 pcs SP010-90-003A Hex key 150 mm 1 pc SP010-90-004 Nylon brush Ø 30x80 mm 1 pc SP010-90-001 Cleaning stone 200x50x25 mm 1 pc SP010-90-002 Dispenser bottle 1 l 1 pc |
|
Accessory set SET4 includes: SP010-23-600L Square 375x100x600 mm, left 2 pcs SP010-23-600R Square 375x100x600 mm, right 2 pcs SP010-30-005 Square 175x50x75 mm, hole/slot 4 pcs SP010-30-013 Square 175x50x275 mm, hole/slot 6 pcs SP010-50-002 Universal stop 225x50x25 mm 4 pcs SP010-65-001A Prism Ø 60 90° 4 pcs SP010-70-001 180° clamp with handle 300x300 mm 10 pcs SP010-60-001 Quick-release clamping bolt Ø 28x50 mm 28 pcs SP010-90-003A Hex key 150 mm 1 pc SP010-90-004 Nylon brush Ø 30x80 mm 1 pc SP010-90-001 Cleaning stone 200x50x25 mm 1 pc SP010-90-002 Dispenser bottle 1 l 1 pc |
Accessory set SET5 includes: SP010-23-300L Square 275x100x300 mm, left 1 pc SP010-23-300R Square 275x100x300 mm, right 1 pc SP010-23-600L Square 375x100x600 mm, left 1 pc SP010-23-600R Square 375x100x600 mm, right 1 pc SP010-23-800L Square 375x100x800 mm, left 1 pc SP010-23-800R Square 375x100x800 mm, right 1 pc SP010-30-002 Square 175x50x175 mm, hole/slot 6 pcs SP010-30-005 Square 175x50x75 mm, hole/slot 4 pcs SP010-50-002 Universal stop 225x50x25 mm 6 pcs SP010-50-014 Universal stop 500x100x25 mm, hole/slot 4 pcs SP010-70-001 180° clamp with handle 300x300 mm 12 pcs SP010-60-001 Quick-release clamping bolt Ø 28x50 mm 40 pcs SP010-90-003A Hex key 150 mm 1 pc SP010-90-004 Nylon brush Ø 30x80 mm 1 pc SP010-90-001 Cleaning stone 200x50x25 mm 1 pc SP010-90-002 Dispenser bottle 1 l 1 pc |
Accessory set SET6 includes: SP010-20-050 U clamping block 500x200x200 mm 2 pcs SP010-20-100 U clamping block 1000x200x200 mm 2 pcs SP010-23-300L Square 275x100x300 mm, left 2 pcs SP010-23-300R Square 275x100x300 mm, right 2 pcs SP010-23-600L Square 375x100x600 mm, left 2 pcs SP010-23-600R Square 375x100x600 mm, right 2 pcs SP010-30-002 Square 175x50x175 mm, hole/slot 8 pcs SP010-30-005 Square 175x50x75 mm, hole/slot 8 pcs SP010-30-013 Square 175x50x275 mm, hole/slot 4 pcs SP010-50-002 Universal stop 225x50x25 mm 8 pcs SP010-50-014 Universal stop 500x100x25 mm, hole/slot 4 pcs SP010-70-001 180° clamp with handle 300x300 mm 20 pcs SP010-60-001 Quick-release clamping bolt Ø 28x50 mm 46 pcs SP010-90-003A Hex key 150 mm 1 pc SP010-90-004 Nylon brush Ø 30x80 mm 1 pc SP010-90-001 Cleaning stone 200x50x25 mm 1 pc SP010-90-002 Dispenser bottle 1 l 1 pc |
