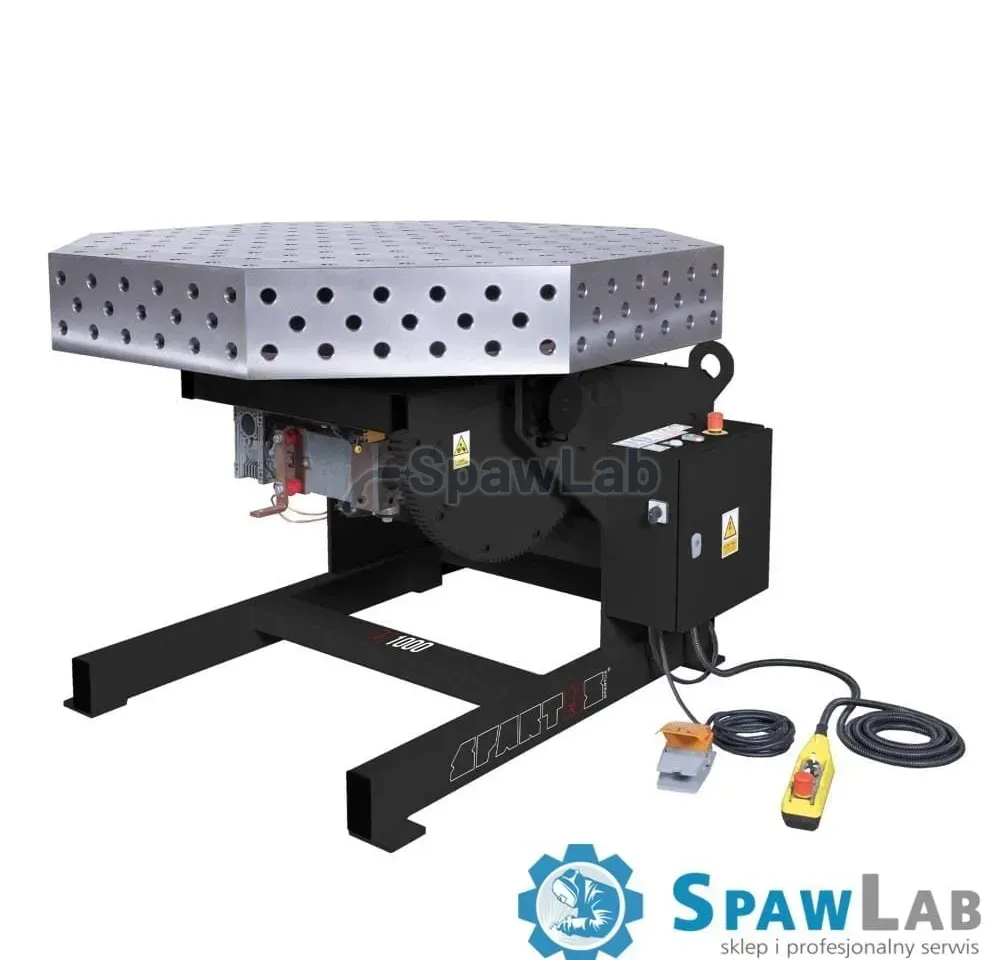

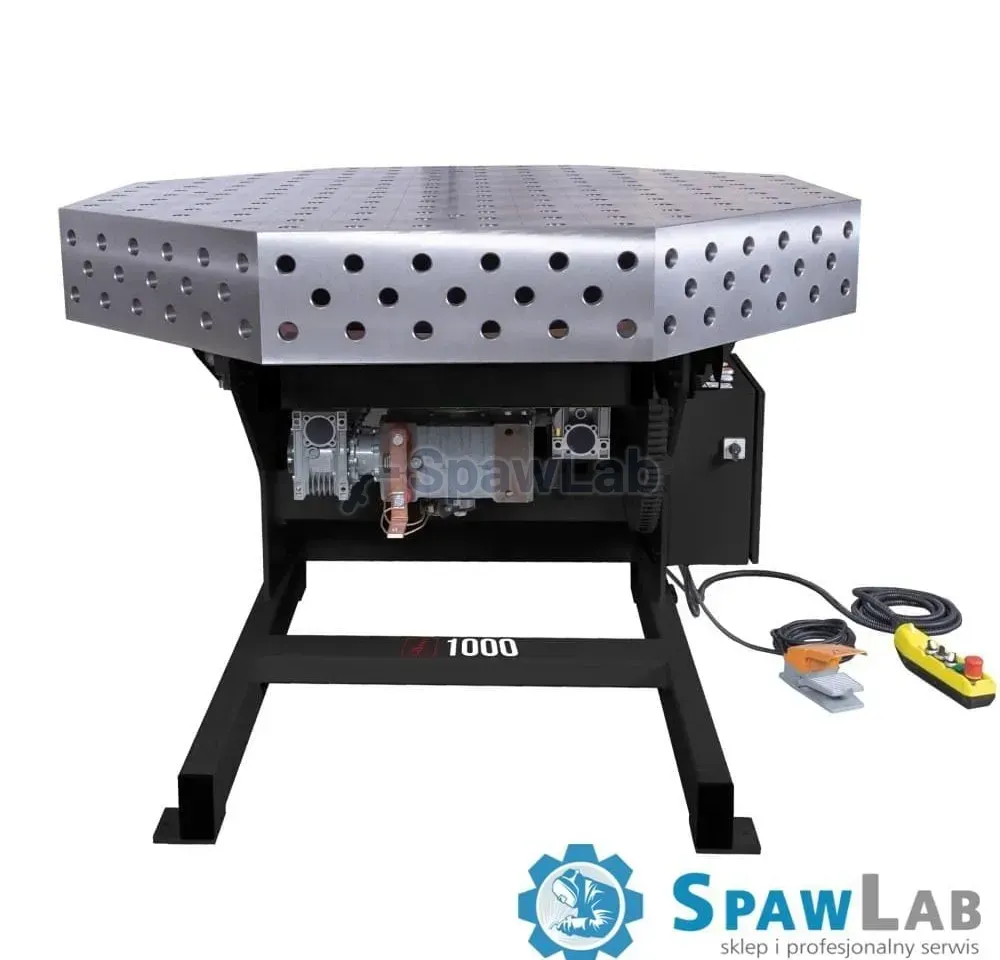

With the positioner, you can adapt the working position to the operator. It rotates the table top in both directions at variable speed and changes the tilt angle of the main frame. It is operated with a foot pedal. The self-locking drive stops the turntable in any position.

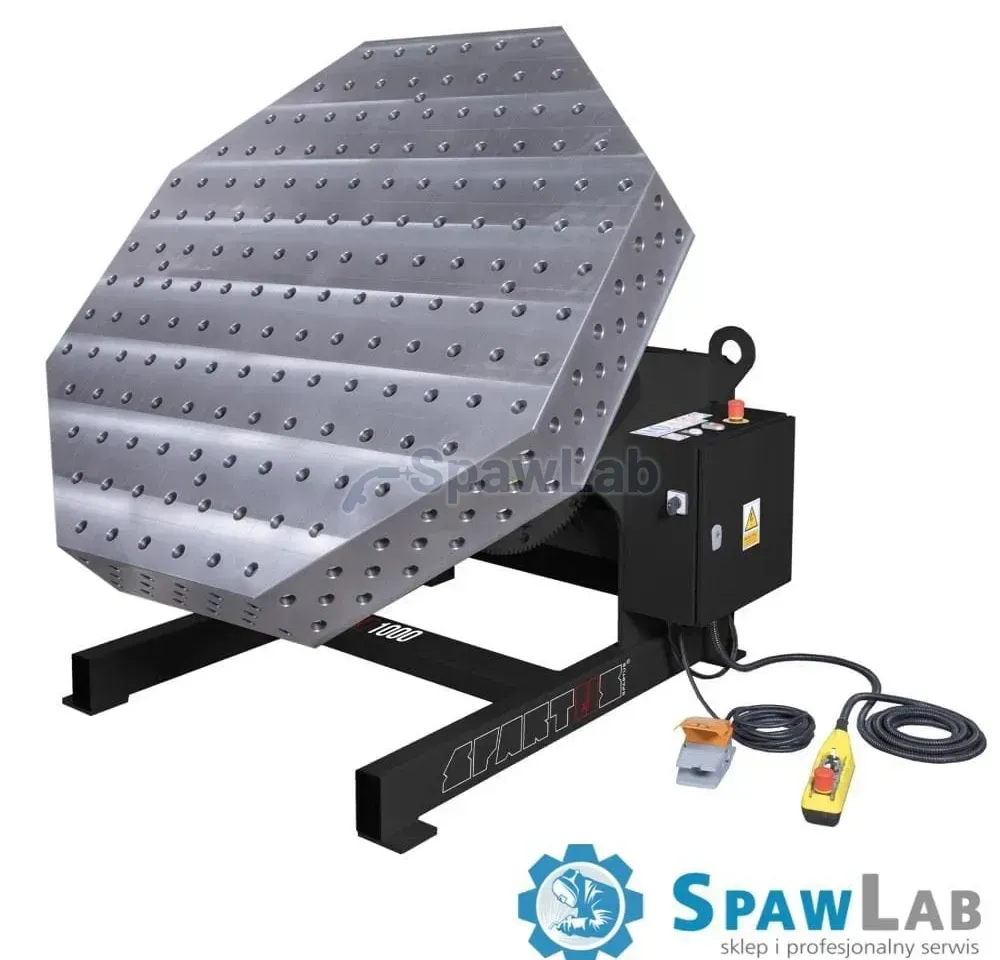

The positioner mechanism turns the table about its own axis and tilts the rotary unit up to 140° from horizontal; with the table top fitted, the tilt angle is 90°.
With the positioner, you can adapt the working position to the operator. It rotates the table top in both directions at variable speed and changes the tilt angle of the main frame. It is operated with a foot pedal. The self-locking drive stops the turntable in any position. The positioner mechanism turns the table about its own axis and tilts the rotary unit up to 140° from horizontal; with the table top fitted, the tilt angle is 90°. The table top is made of EN-GJL-300 cast iron, which is highly resistant to damage and protects against corrosion, scratches and sticking weld spatter. The 25mm thick top has a precisely marked grid and drilled and milled holes to the D28 standard. This lets you work on projects that call for high accuracy and precise execution
| Table top format | 1400 x 1400 x 200mm |
| Construction | cast |
| Material | EN-GJL-300 cast iron to EN 1561 |
| Top thickness | 25mm |
| Manufacturing accuracy, horizontal | 0.1/1000mm |
| Manufacturing accuracy, vertical | 0.1/200mm |
| Hardness | 55 RC |
| Standard | D28 (drilled and milled holes Ø 28mm) |
| Load capacity | 1000kg/positioner |
| Total table height | 1090mm |
| Supporting structure | Positioner |
| Top weight | 650kg |
| Total weight | 1140kg |
