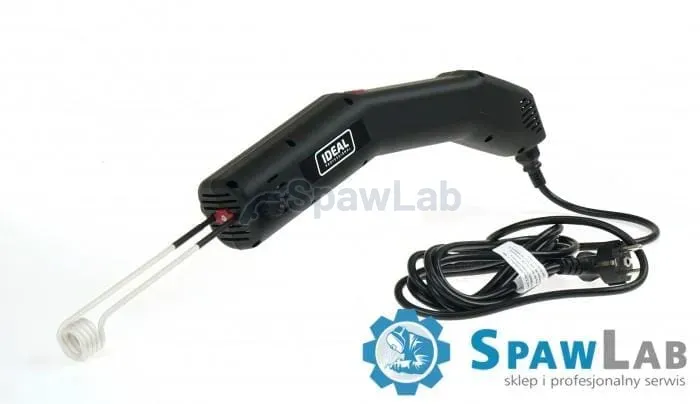

INDUCTOR 2000 INDUCTOR HEATING machine is designed for fast, very efficient and at the same time safe heating of metal parts. INDUCTOR 2000 perfectly replaces the standard methods of heating with flammable gases, uses a modern, efficient and effective method of heating parts, instruments before hardening. Power 1,2 kW.

Technical parameters

INDUCTOR 2000 is designed for fast, very efficient and at the same time safe heating of metal parts. The device perfectly replaces the standard methods of heating with flammable gases (propane-butane-oxygen, acetylene-oxygen) in workshops, repair shops, automotive plants and wherever it is required to heat bolted connections, bushings, bearings, hubs for disassembly, etc. It is used wherever there is a need for quick use and there is a risk of damage to the area of the heated area by the flame, such as upholstery, paint, rubber hoses, electrical wiring, etc. the device uses a modern, efficient and effective method of heating workpieces, instruments before hardening, for thawing, etc.

Uniform, fast and stable heating of workpieces. The surface of the heated workpiece is only in the area required for heat treatment and is under full control of the area where the temperature influence is required.

High occupational safety (no flammable gases) and better working conditions for the operator. The operator is not exposed to open flames, hot gases and to the risk of fire and explosion when using open flames.

Lower costs associated with crew training, lower wage costs. There is no need for periodic employee training which is required for work with gases.

Low cost of purchase and operation. No costs associated with the purchase of industrial gases and the lease of cylinders.

High energy efficiency.

Capable of heating workpieces to 600°C and above.

DESCRIPTION:

• Reliable IGBT technology
• Easy operation and low operating costs.
• Optimal protection for the user, by separating the main power circuit from the power grid
• Device made with microprocessor technology
• Automatic selection of frequency and impedance of power inverter operation
• Inductor operating frequency: 40 kHz – 60 kHz
• Overload alarm

FITTINGS:

• Fixed coils – for heating tubes, bolts, sections, etc. of various diameters.
• Flexible coils – are designed to wrap material subjected to heating with them.
• Focused flat coils – are designed for heating flat material, sheet metal, etc.
• Plastic case.

The INDUCTOR 2000 is capable of heating an M14 bolt or nut to 600°C in up to 30 seconds. Preparation for use is generally faster than preparation for the heating process using flammable gas burners. The induction heating process begins when the heater is plugged into a 230 V outlet, the inductor coil is seated or brought close to the workpiece to be heated and a button is pressed. The workpiece to be heated is heated very quickly according to individual requirements, even to “redness”. A white LED illuminates the heated area at the same time, making it easier for operators in dark and hard-to-reach areas. Induction coils are easily interchangeable and come in many sizes and types ranging from round coils of fixed diameter, flat coils to sheet metal and flexible coils with which we can wrap a workpiece of any surface . For induction heating you can additionally order a set of coils of different diameters which are not included in the standard equipment with the device.

BENEFITS:

• High mobility – weighing only 1 kg and compact in size
• Power of 1.2 kW, with high load factor.
• Easy manipulation and access
• Flexibility and ease of use – 1×230 V power supply, simple operation and speed of preparation.
• Versatile use – heating workpieces of different shapes of flat, round, centrally placed or on a flat surface.
• Available with a low price modern method of workshop induction heating of steel parts.

APPLICATIONS:

• Automotive industry, repair shops, assembly shops, heating industry installers, service shops, etc.
• Manufacturing, repair, overhaul, maintenance of machinery.
• Parts requiring heating: bolts, rods, profiles, sheet metal, bearings, housings, drive shafts, hinges, nuts, tubes, gears,
• Bearing fits, lambda probes, machine and vehicle parts and components, exhaust systems, pulleys, clamps, etc.
• Heating of instruments and workpieces before hardening, joining, soldering, welding.
• Defrosting
• Use for the same work as the use of propane-oxygen and acetylene-oxygen gas burners.

Power supply parameters

230V single-phase power supply.

Equipment

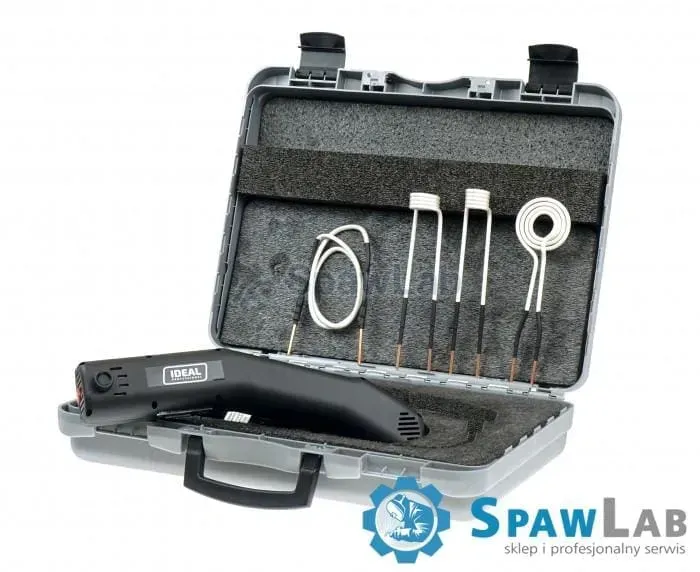

Delivery includes device with accessories: carrying case, Flexible cable FLEXI800, L=800mm IND. 2000 Straight coil /19/220mm/M8, Straight coil /23/220mm/M10, coil for peeling strips and emblems

Warranty terms and conditions

Warranty 12 months for professional use. Warranty service is provided door-to-door without transportation costs on the user’s side.
