Description

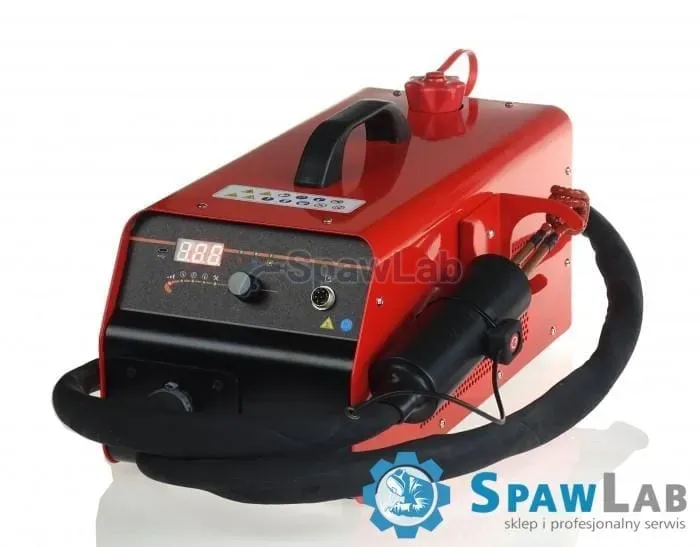

INDUCTOR 45C is a revolutionary induction heater for rapid flameless heating of ferrous metals and aluminum by induction. 230V power supply. 5kW power.

Technical parameters

INDUCTOR 45 is a revolutionary induction heater for rapid flameless heating of ferrous metals, aluminum and copper by induction.

Using the rules of electro-induction

Magnetic, can deliver a tremendous amount of heat to a specific spot in just a few seconds to a depth of 4mm. By heating only the selected spot, it does not damage glass, rubber, plastic parts and painted surfaces in the immediate vicinity of the heater’s operation.

Despite its small size and weight (13.5kg), it achieves high output performance. The built-in liquid cooling system allows a maximum power output of 5kW.

Recommended for production applications, e.g., repeated heating of the same workpieces at approximately the same time. The device has been optimized for heating copper so that hard solders can be made.

It guarantees maximum control of heating during operation. Unlike a gas burner – the induction heater, heating the metal only in a selected place to a temperature of 500-600˚C, does not change the technical characteristics of the steel.

Infinitely adjustable power from 10 – 100 %

The timer allows automatic termination of heating after a specified time.

The device has 2 modes:

• Magnetic field control: Constant power magnetic field (CF) mode

In this mode of operation, the heater provides an equal magnetic field force regardless of the environment of the heater tip. The heater behaves similarly to a gas burner, where the flame force is replaced by the magnetic field force. The force of the delivered heat is easily controlled by moving the heater tip closer or farther away from the material to be heated, similar to a gas panlide

• Power control: Constant energy delivered to material (CP) mode

In this mode, the device tries to deliver and maintain a certain power to the material. The advantage of this mode is the similar heating time of the same workpiece, which is applicable when heating the same workpiece repeatedly, for example, in the production process.

The device has a universal remote control system that allows it to be easily integrated into automated production processes . The device can be controlled via foot pedal, push button, analog signal based on coil voltage and current, providing output information back. On selected models, full control through the Data Bus connector is possible, enabling full control and complete monitoring of the heating process.

The device provides the possibility to interfere with the settings of the heating parameters and display the most relevant values of the heating process in the Information mode

Power supply parameters

230V single-phase power supply.

Warranty terms and conditions

Warranty 12 months for professional use. Warranty service is provided door-to-door without transportation costs on the user’s side. Manufactured in the EU.
