Description

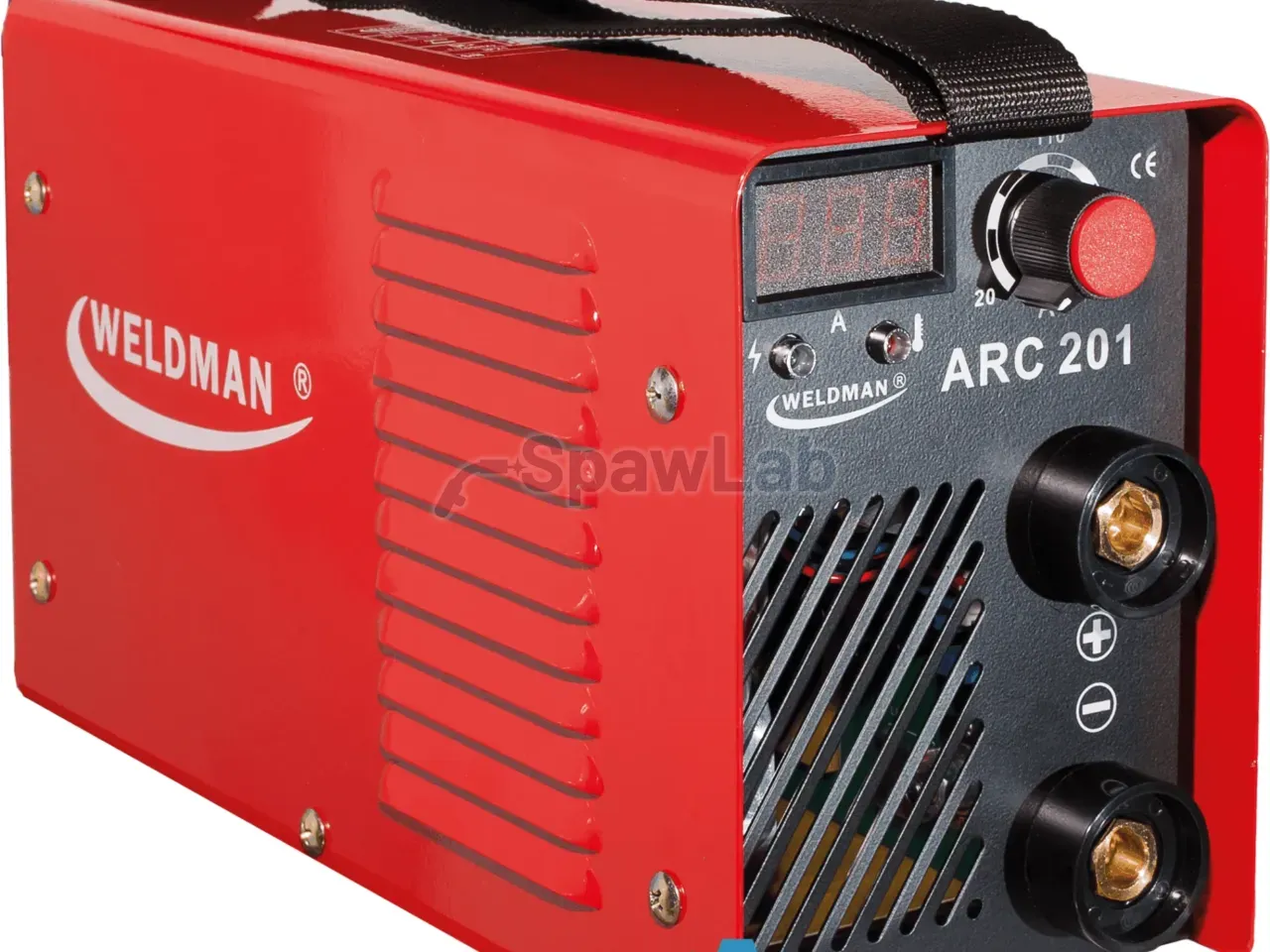

ARC 201 inverter welder for welding with direct current (DC) covered electrodes.
If you are one of those who like proven and reliable products, be sure to read the following description of the ARC 201 inverter welding machine for welding with direct current (DC) covered electrodes. It is designed for welding with rutile and basic electrodes up to 4 mm of various steels (low carbon, low alloyed, stainless, etc.) and cast iron. The ARC 201 welder has a digital display of welding current, equipped with a simple lamp system. LEDs on the front panel indicate when the power is connected (green LED) or when it is switched off due to overload (red LED). During operation, the electronically controlled infinitely variable welding current control and special equipment overload protection are also sure to come in handy.
The ARC 201 inverter welder has features that make welding easier:
– HOT START (hot start): increases welding current during arc ignition to facilitate electrode ignition
– ARC FORCE (arc dynamics): shortens the arc length when increasing the welding current optimizing the transfer of molten electrode droplets to the welded material, preventing arc extinction when the electrode comes into contact with the welded material
– ANTI STICK: limits the welding current by preventing the electrode from sticking to the material being welded
The ARC 201 inverter welder can TIG weld when connected to a gas valve handle. Touch welding arc ignition due to rubbing the tungsten electrode against the material to be welded (TIG Scratch). The small and lightweight design makes the ARC 201 inverter welding machine for welding with direct current (DC) coated electrodes suitable for repair work in workshop conditions as well as for work in the field. The welder is easy to transport and is equipped with a sturdy shoulder strap.
Equipment
The welder on the equipment has:
– 2m cable with 200A electrode holder (DX25)
– 1.6m cable with 300A ground terminal (DX25)
– welding mask
– power cord 2m with 230V plug
Technical data
| Code | 103 001 |
| Device type | ARC 201 |
| Supply voltage [V] | 230 |
| Welding current adjustment range | 20-200 |
| Efficiency max EN 60974-1 | 200A@60% 155A@100% |
| Electrode diameter [mm] | 2-4 |
| Idle current voltage [V] | 56 |
| Dimensions [cm]. | 28x11x16 |
| Weight[kg]. | 3,5 |
