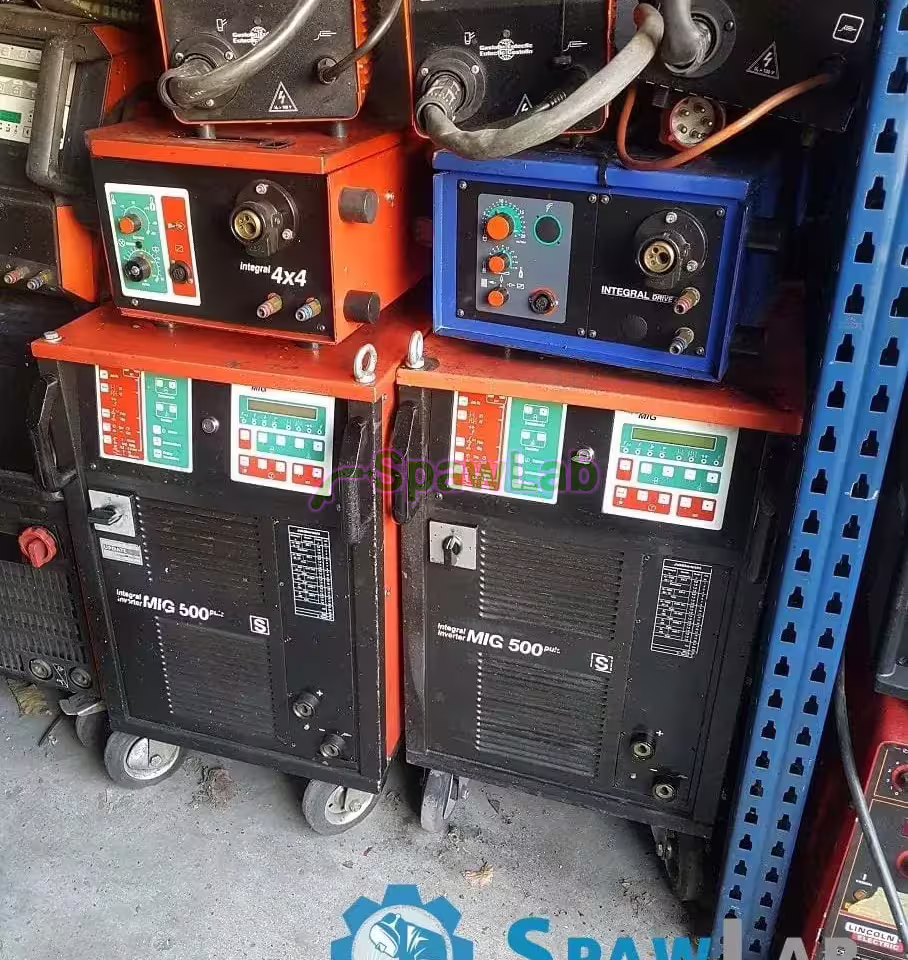

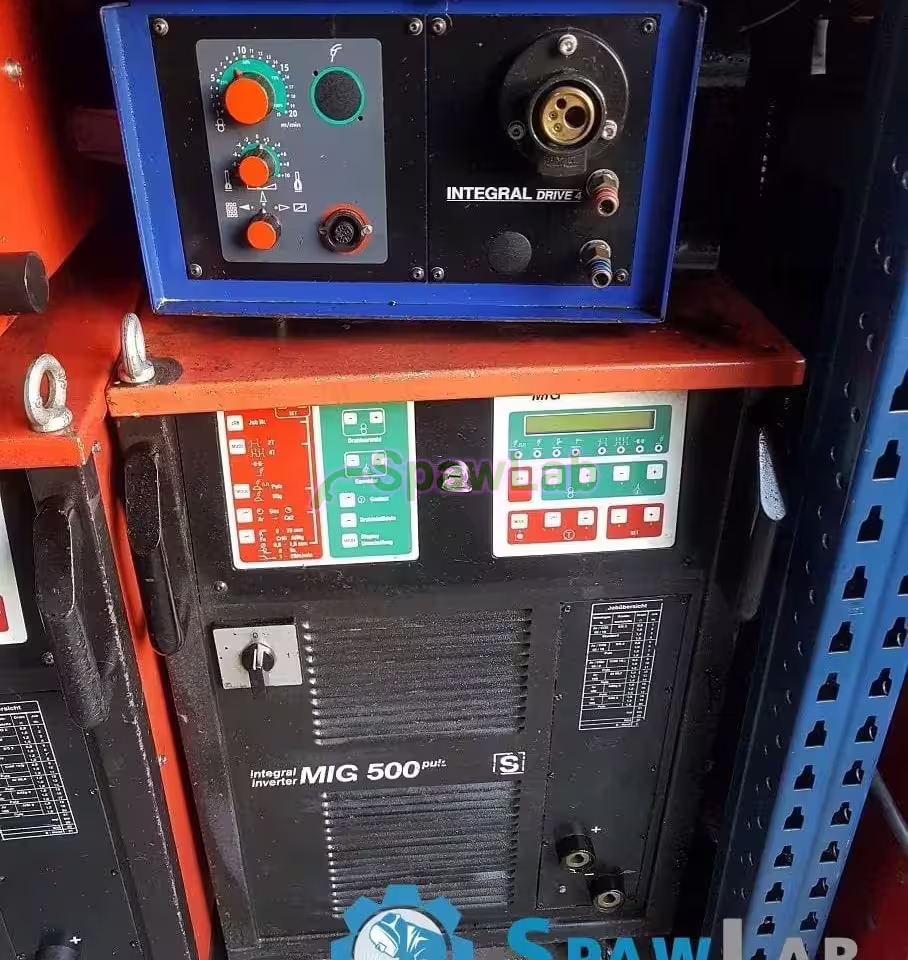

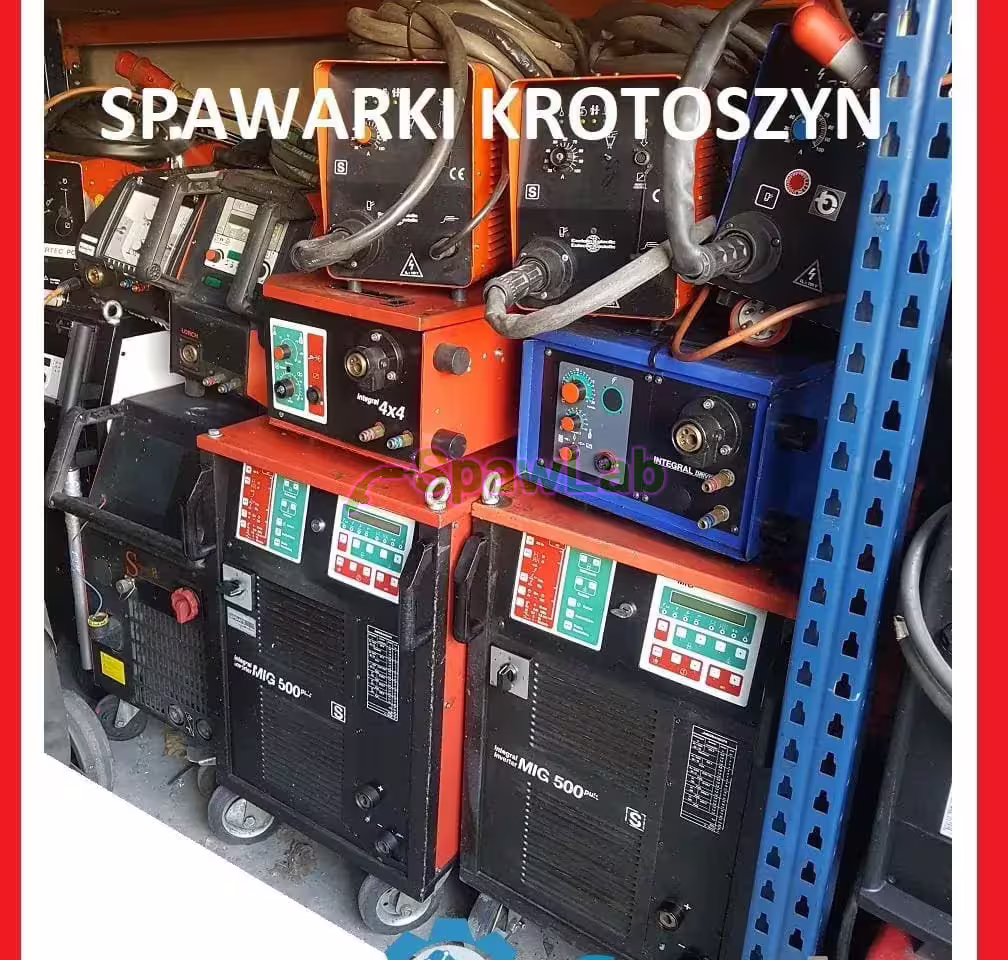

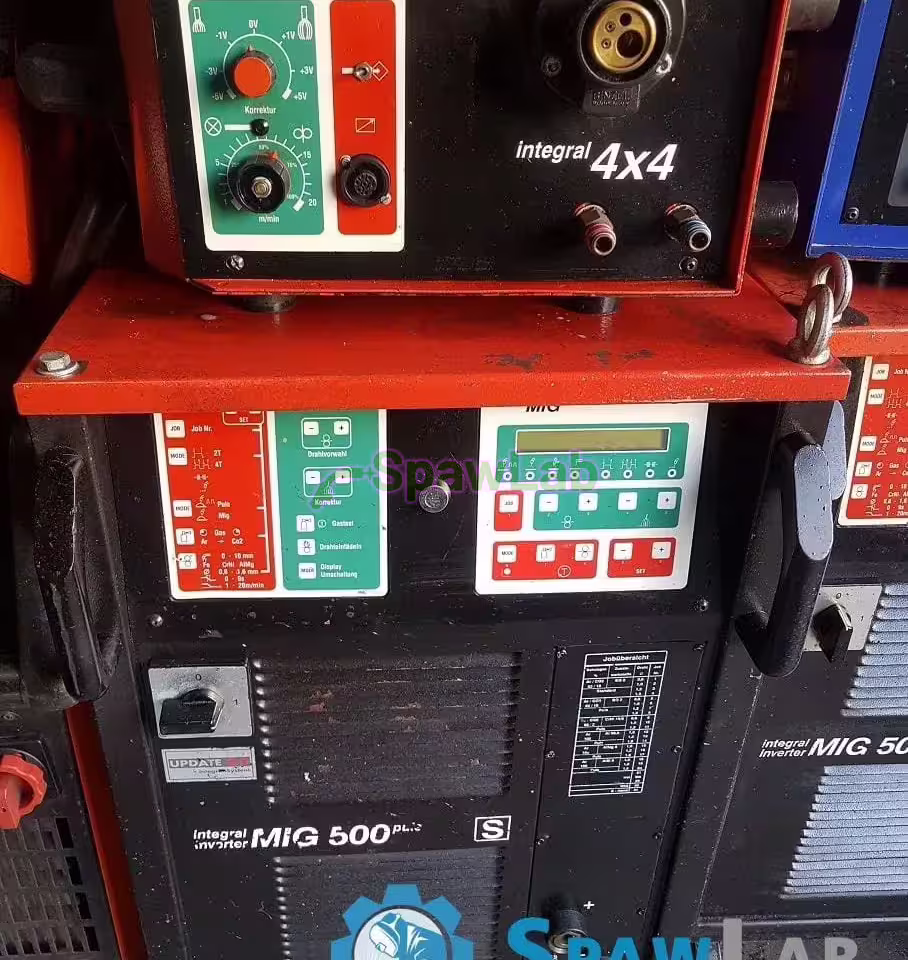

The EWM Integral MIG 500 is an inverter MIG/MAG welder with a welding current from 5 A to 500 A, with 500 A at a 60% duty cycle and 400 A at a 100% duty cycle. The supply is 400 V, the cooling is liquid, and it has pulse, synergy and built in programs for different metals.
What this machine is for
The range from 5 A to 500 A covers both thin sheet and thick structural joints. A current of 400 A in a 100% duty cycle holds long runs without breaks for cooling. Apart from MIG/MAG the power source handles TIG and a covered electrode, so one station closes three methods. Such a set suits a workshop that during one shift moves from structural steel to stainless steel or to aluminium.

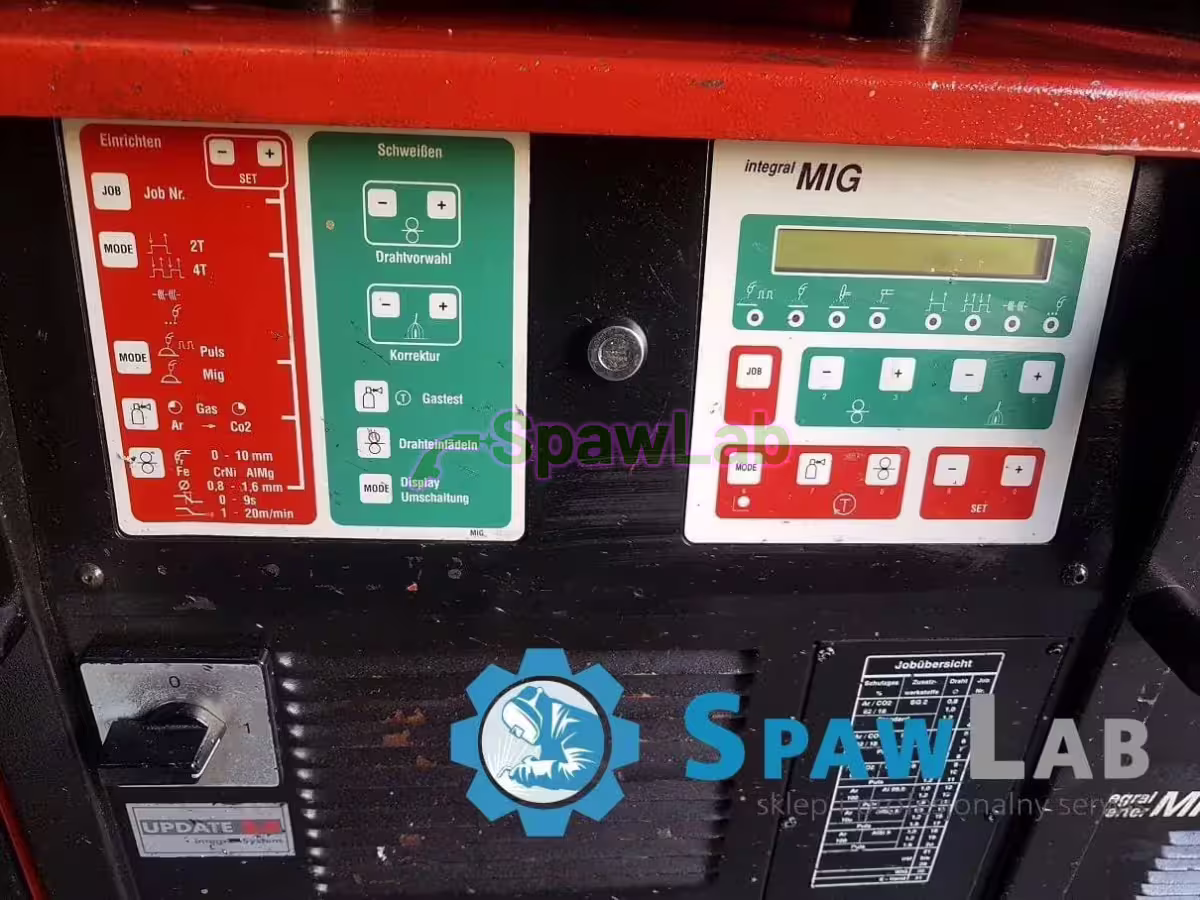

Synergy shortens the settings: you choose the wire and the thickness of the material, and the power source picks the voltage and the feed speed. Pulse orders the transfer of drops in the arc and limits spatter, which shortens the work after welding. The feeder is a 4 roll one, such a drive also leads soft aluminium wires.
Features and equipment
- Pulse. Less spatter and control of the amount of heat in the material.

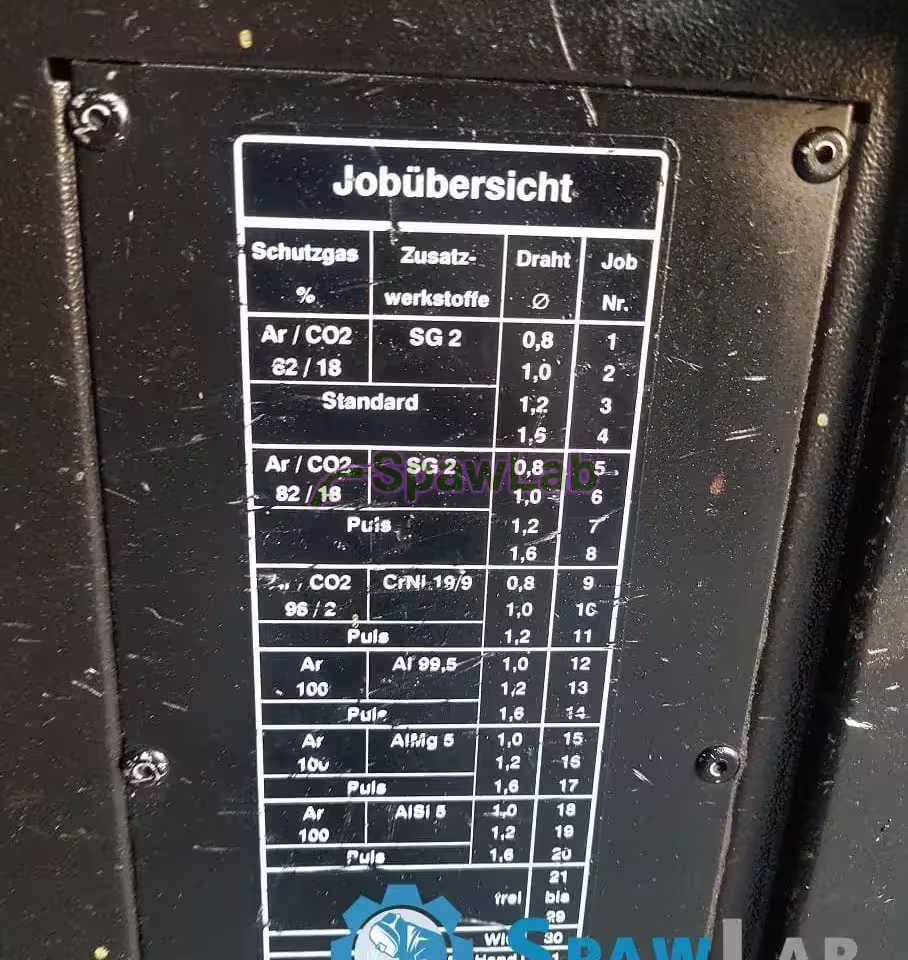

- Synergy with programs for different metals. A change of material is a choice of a program.
- TIG and MMA welding next to MIG/MAG. Three processes on one power source.

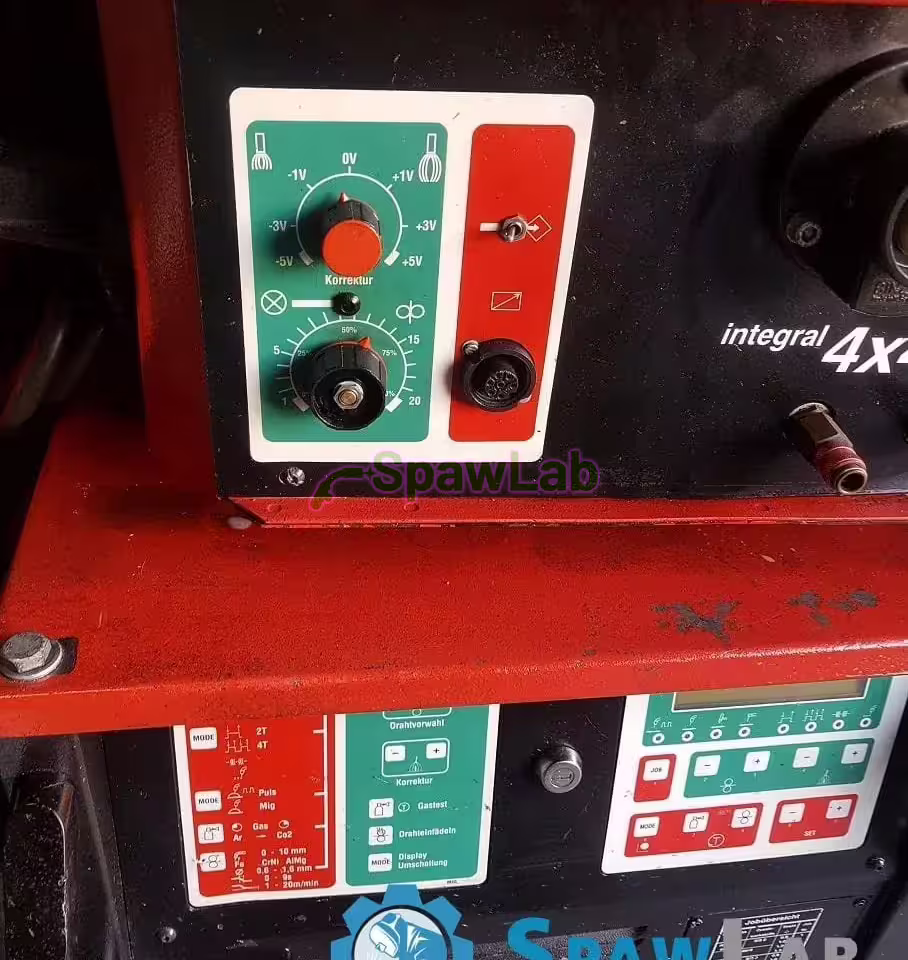

- 4 roll feeder. An even feed also with aluminium wire and with a longer torch.
- Liquid cooling. The circuit takes the heat from the torch in work at a high current.
Technical data
| Brand | EWM |
|---|---|
| Power source type | inverter |
| Processes | MIG/MAG, TIG, MMA |
| Welding current range | from 5 A to 500 A |
| Current at a 60% duty cycle | 500 A |
| Current at a 100% duty cycle | 400 A |
| Supply voltage | 400 V |
| Cooling | liquid |
| Wire feeder | 4 roll |
What you get
- used EWM Integral MIG 500 power source
- new MIG torch 4 m for 500 A, liquid cooled
- earth cable about 3 m
- supply cable about 3 m
What to watch out for
The supply is 400 V, three phases, a power connection is needed. Liquid cooling: you check the fluid level, the flow and the tightness of the quick couplings before the start. TIG and MMA are an option, for both processes you need a separate torch and cable.
The card gives neither the weight nor the dimensions, settle the transport before collection.
This unit is sold
This machine has already gone to a customer. Similar units are listed below, and if you want the same model, leave your contact details in the form and we will let you know when the next one arrives.
