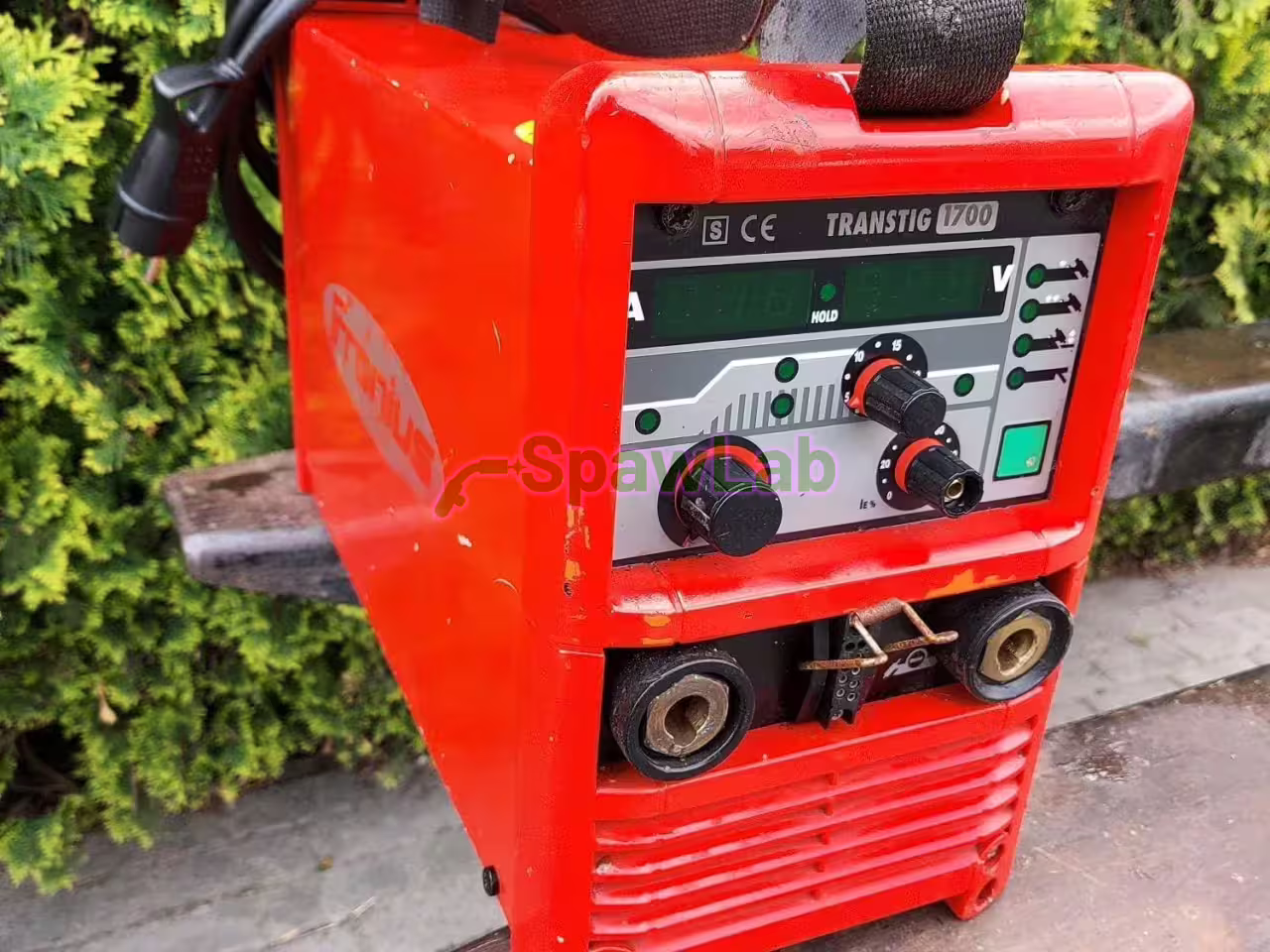

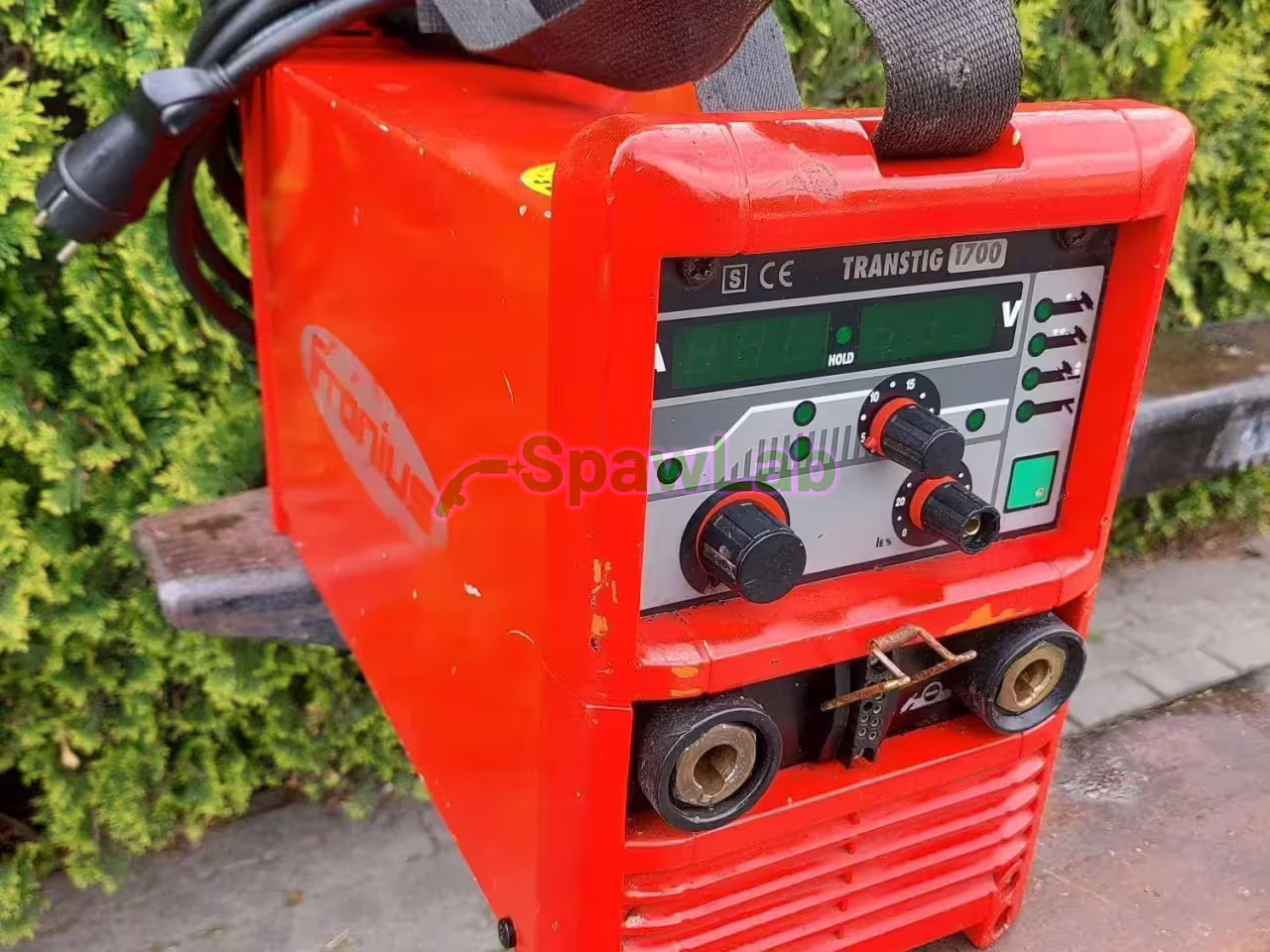

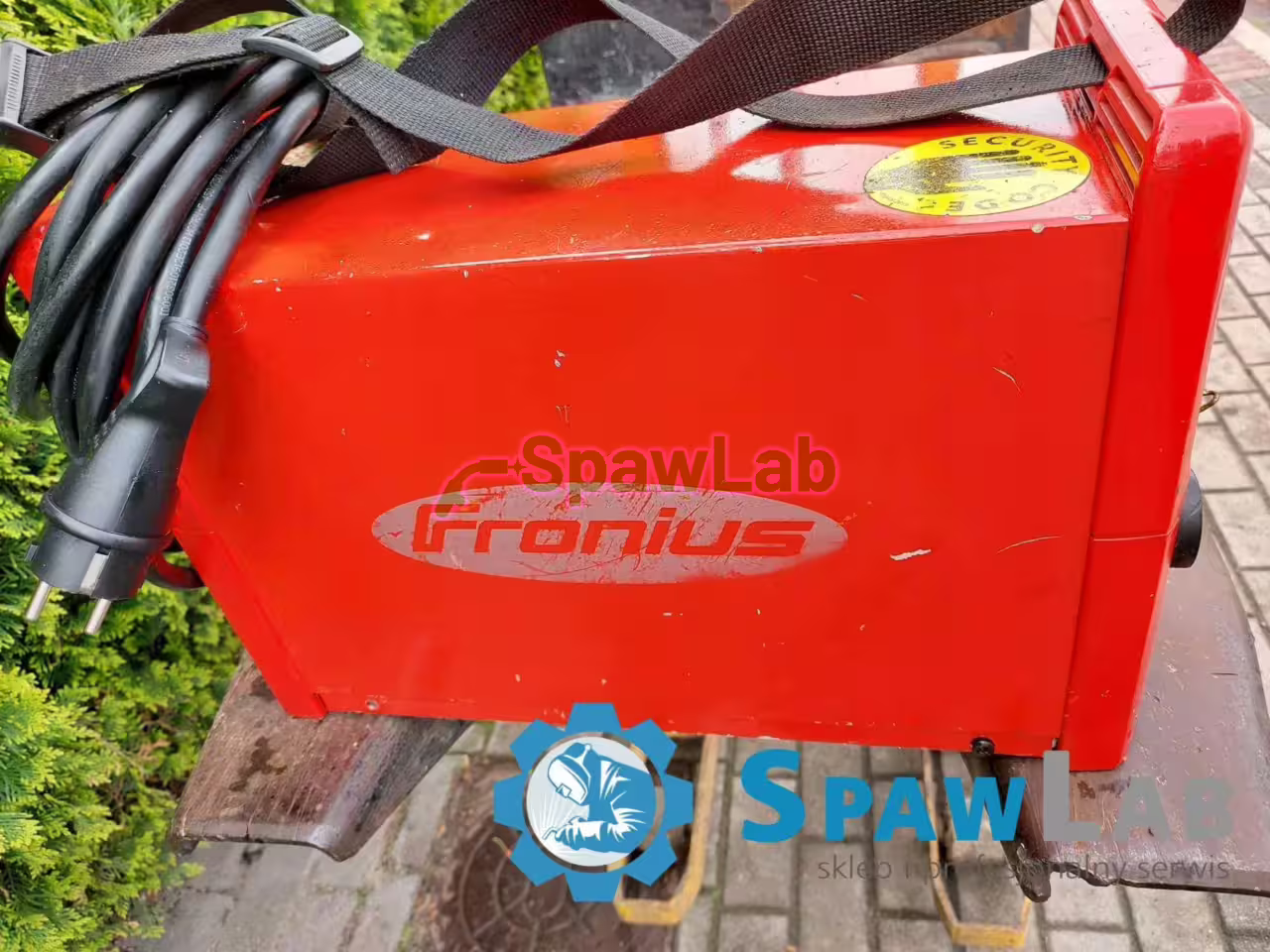

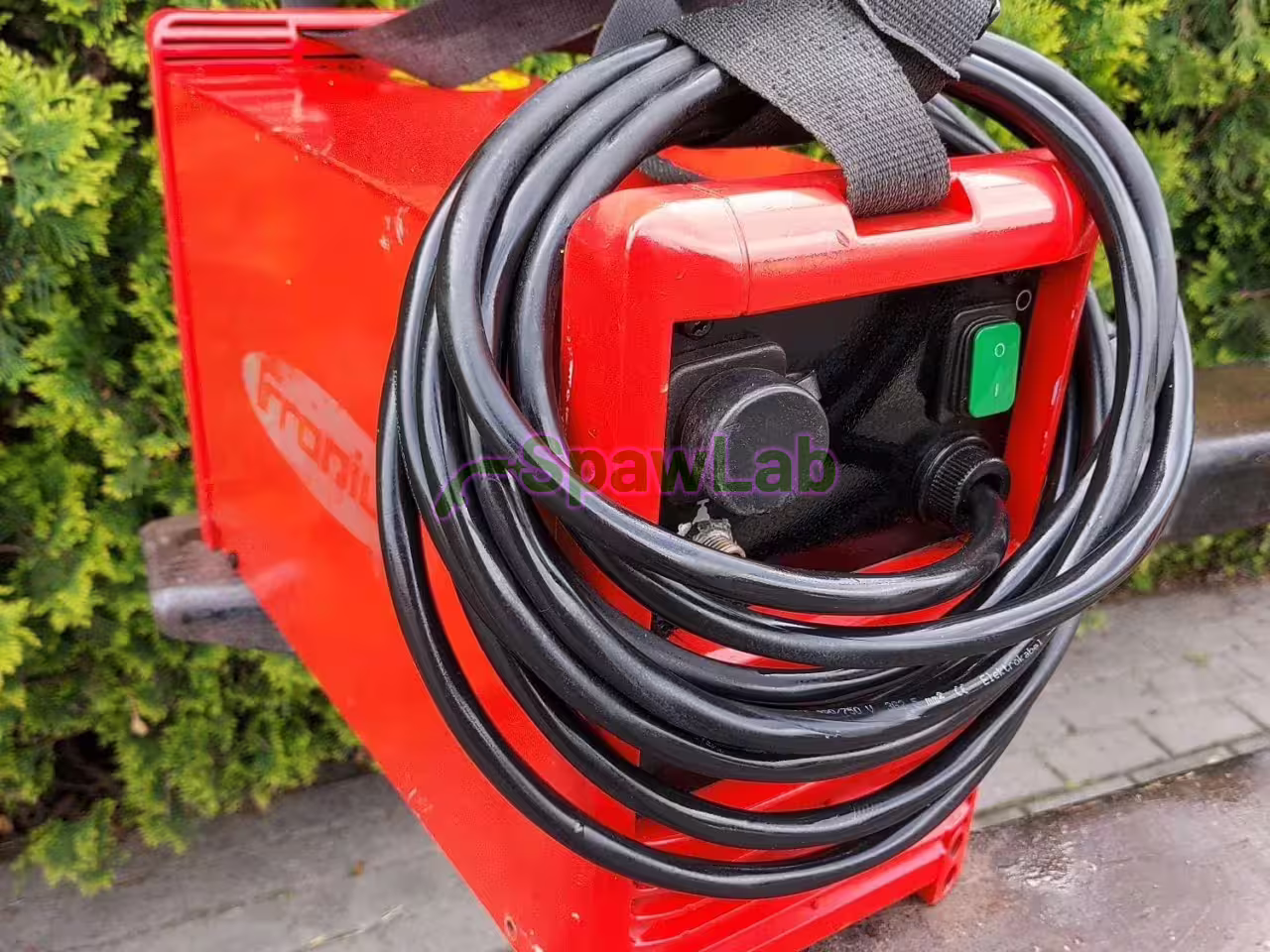

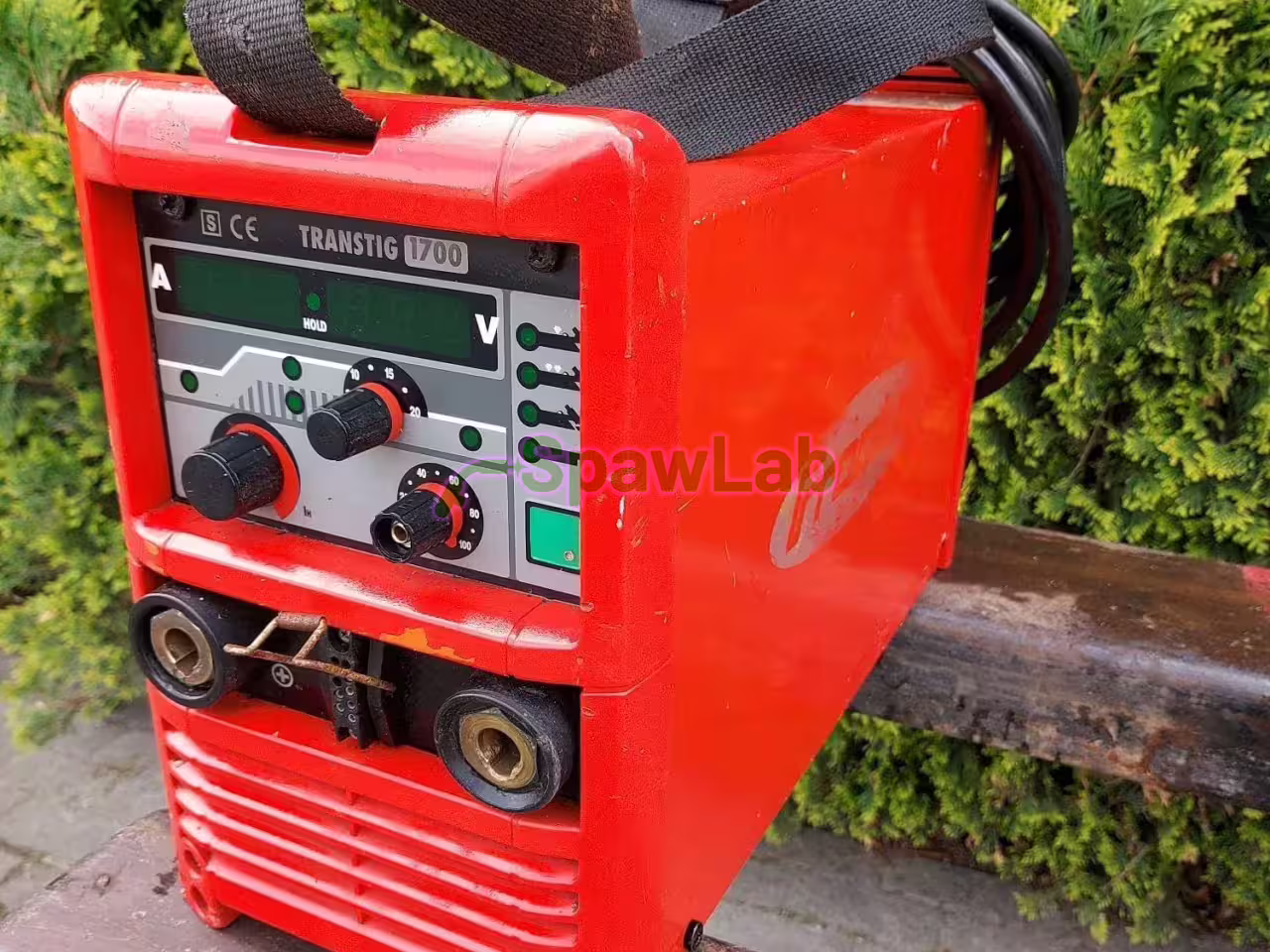

The Fronius Transtig 1700 is a small, portable inverter TIG welder on direct current, supplied from a 230 V socket. The description gives 170 A at a 40% duty cycle and 120 A at a 100% duty cycle, and there is a new 8 m TIG torch in the set.
What this machine is for
This is a power source for small repairs in the field, for assembly and for a workshop in which welding is one job among many. With direct current you join mild steel and stainless steel, and after you switch the mode you work with a covered electrode, so with one machine you cover TIG and MMA.
In continuous work the machine holds 120 A, that is you weld thin and medium sheet with it without breaks, and you have the peak of 170 A at a 40% duty cycle, for shorter passes. The torch is cooled by the shielding gas, so the station is simple: no cooler, no coolant and no extra hoses, and you move the whole thing in a car.
Features and equipment
- TIG welding on direct current and with a covered electrode.
- Inverter design, that is a low weight and work from a 230 V socket.
- Gas cooling, with no separate circuit with coolant.
- A new TIG torch 8 m long.
Technical data
| Brand | Fronius |
|---|---|
| Type of current | DC |
| Processes | TIG, MMA |
| Supply | 230 V |
| Duty cycle | 170 A at 40%, 120 A at 100% |
| TIG torch | 8 m, new |
| Cooling | gas |
What you get
- new TIG torch 8 m
What to watch out for
The product record puts the machine in the current band up to 200 A and the description gives 170 A at a 40% duty cycle, so when you match it to your process keep to the values from the duty cycle. Gas cooling limits long runs at the upper settings, because the grip heats up. On a long extension lead the voltage drops, so watch the cross section of the cores and the length of the cable.
This is a direct current source, so you will not weld aluminium with it, for that you need a machine with alternating current. Apart from the TIG torch the description does not list an earth cable or a regulator, so confirm what the set holds before you buy. The description gives no weight and no dimensions.
This unit is sold
This machine has already gone to a customer. Similar units are listed below, and if you want the same model, leave your contact details in the form and we will let you know when the next one arrives.
