Description
Professional plasma cutting machine. Power supply 3x400V, output power 100A. Separation cutting 50 mm / quality cutting 45 mm.

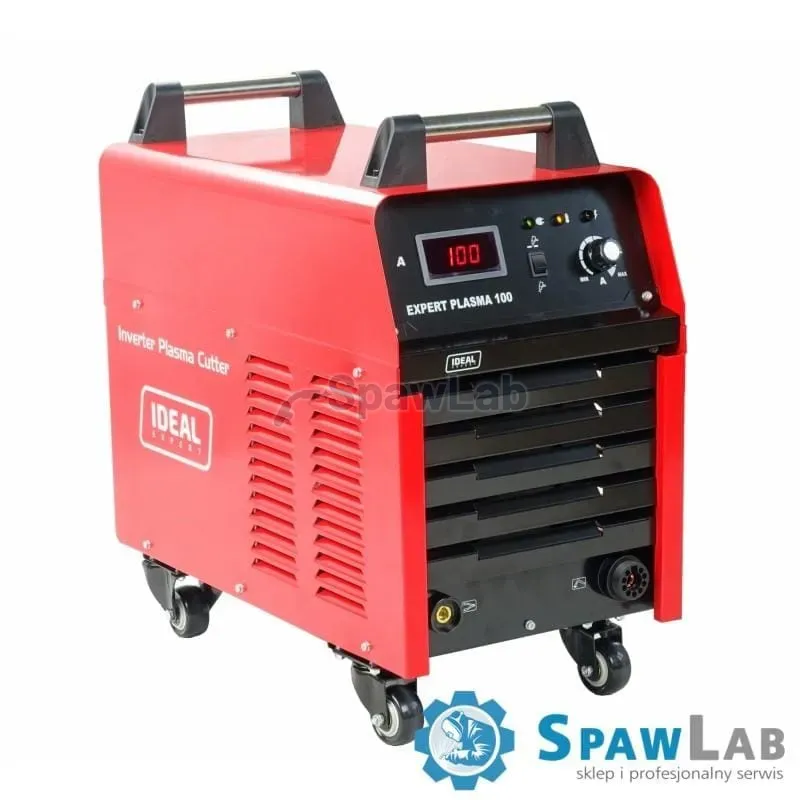

EXPERT PLASMA 100 HF is a professional plasma cutting machine. It enables distortion-free cutting of: steel, stainless steel, aluminum, brass and copper. Electronically controlled, infinitely adjustable cutting current.
The easy-to-read digital display allows accurate adjustment of the device, ensures stable parameters and high cutting quality.
Non-contact plasma arc ignition and the use of a torch carriage prolongs the life of consumable components and improves cutting quality.
With the use of the P80 hand plasma chuck, the device is capable of separating 50 mm of black steel.
Physical parameters

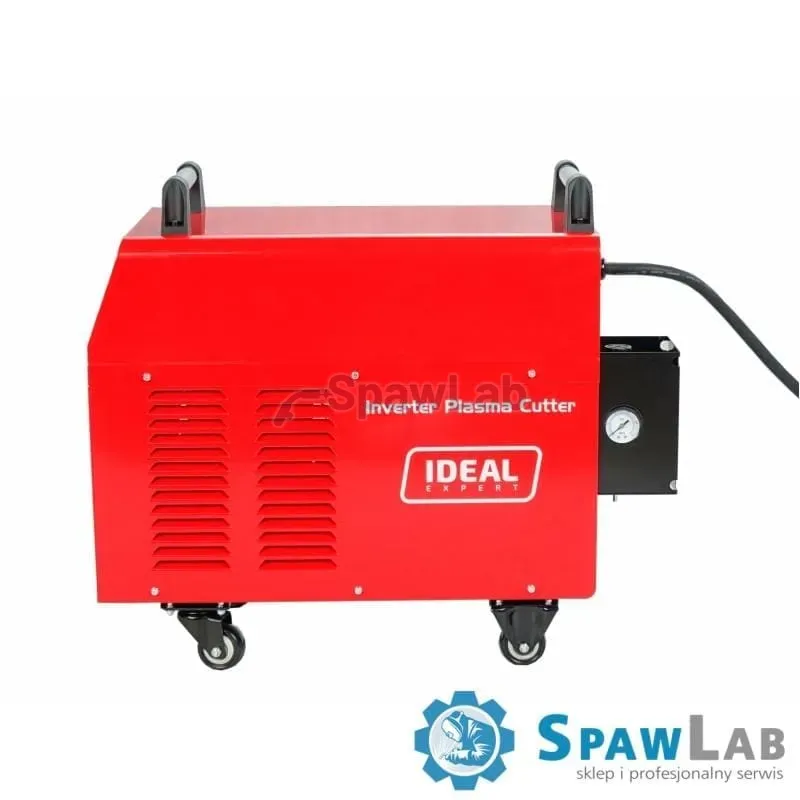

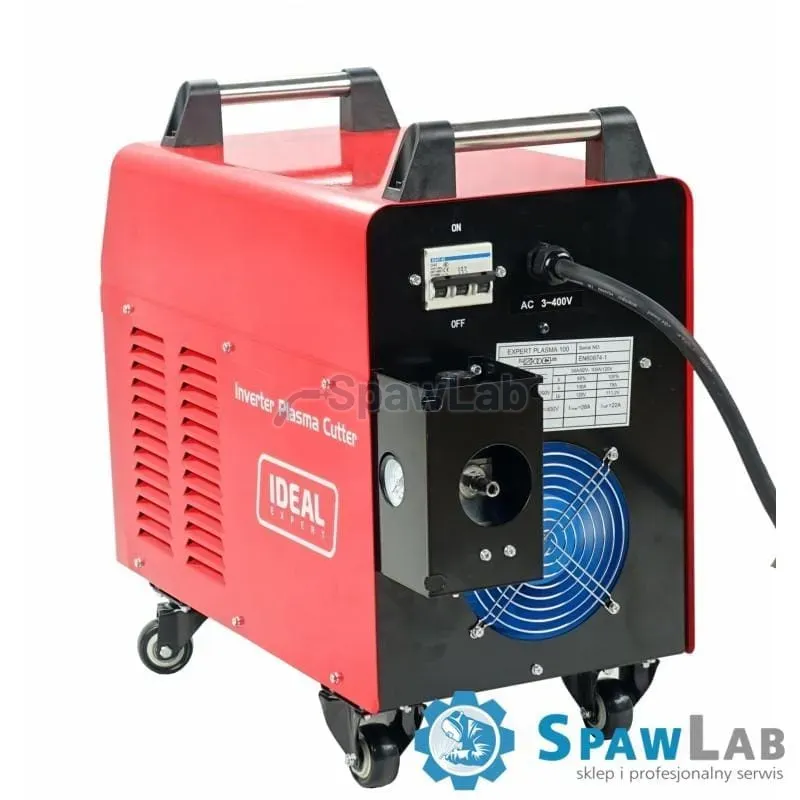

The device has a fan-cooling system which definitely increases its efficiency.
The device is equipped with overload protection, which increases its reliability.
Power supply parameters
Three-phase 400V power supply.
The device is not equipped with a power plug.
Equipment

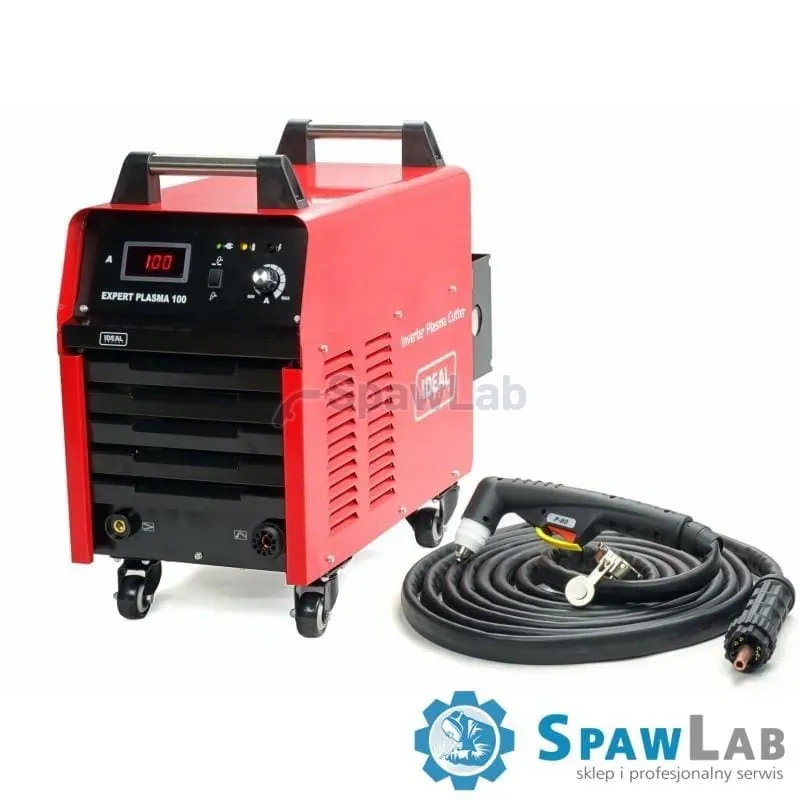

The supply includes a device with a P80 6m hand plasma holder central connector and a 3m ground wire.
| CUTTING PARAMETERS | |
| Compressed air pressure | 5 – 6 bar |
| Thickness of cut (max) | 50 mm (separating) / 45 mm (qualitative) |
| Compressed air capacity | 250 l |
| Cutting current adjustment range | 30 – 100 A |
| PHYSICAL PARAMETERS | |
| Degree of protection | IP 21S |
| Weight | 37 kg |
| Overall dimensions L x W x H | 500x250x330 mm |
| SPECIFICATIONS | |
| Power | 13.6 kW |
| Idle state voltage | 300 V |
| Maximum current | 100 A |
| Current at 60% operation | 100 A |
| POWER SUPPLY PARAMETERS | |
| Mains protection | C25 A |
| Rated supply voltage | 3×400 V; 50Hz (3ph) |
