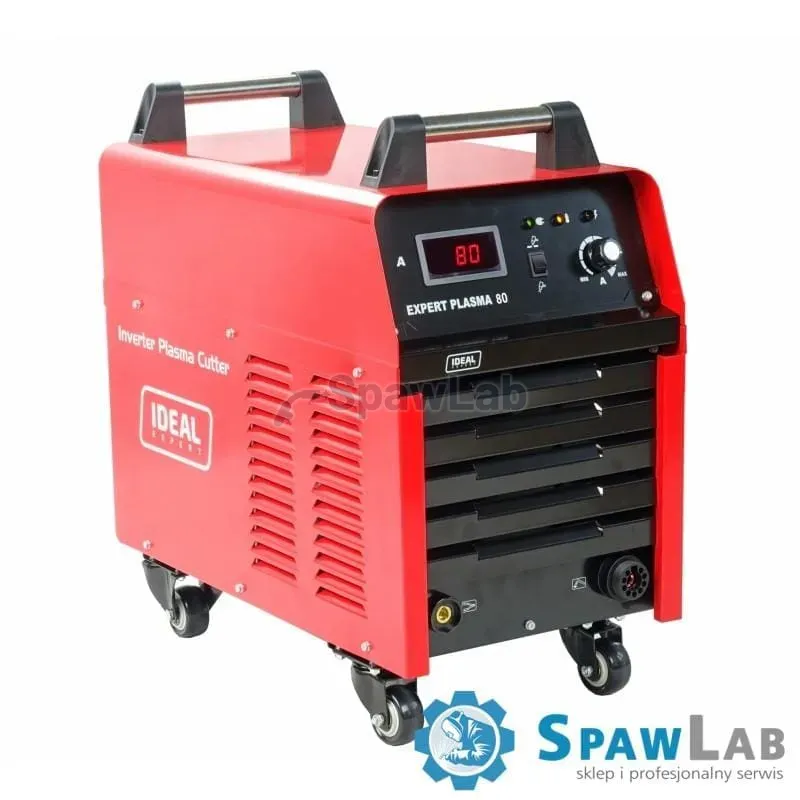

EXPERT PLASMA 80 HF is a plasma cutter with a 3 x 400 V supply and cutting current up to 80 A. It cuts steel, stainless steel, aluminium, brass and copper without distortion. With the P80 manual torch it makes a severance cut through 40 mm of mild steel.
Specifications
- Power supply: 3 x 400 V, 50 Hz, without plug
- Mains protection: C20 A
- Power: 11.5 kW
- Cutting current range: 30 to 80 A
- Maximum current: 80 A, also 80 A at 60% duty cycle
- Open-circuit voltage: 270 V
- Cutting thickness: 40 mm severance, 35 mm quality
- Compressed air: 5 to 6 bar, flow 250 l/min
- Protection rating: IP 21S
- Weight: 37 kg
- Dimensions (L x W x H): 500 x 250 x 330 mm
Features
- Smooth, electronically controlled cutting current adjustment and a digital display
- Contactless arc ignition and work with a torch guide trolley extend the life of consumables and improve cut quality
- Fan cooling and overload protection
Included

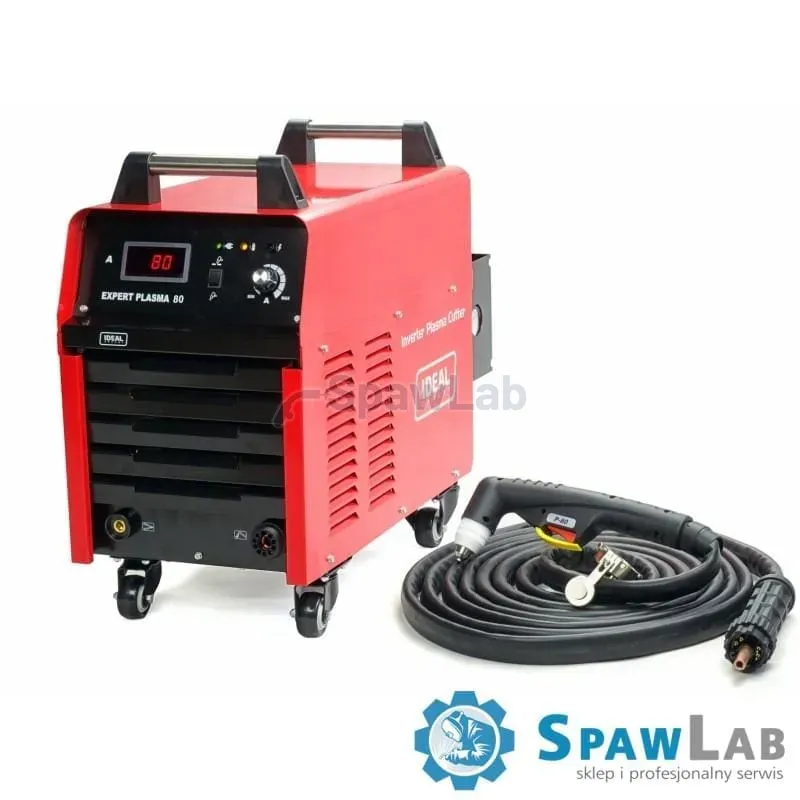

- P80 manual plasma torch, 6 m, central connector
- Earth cable, 3 m
