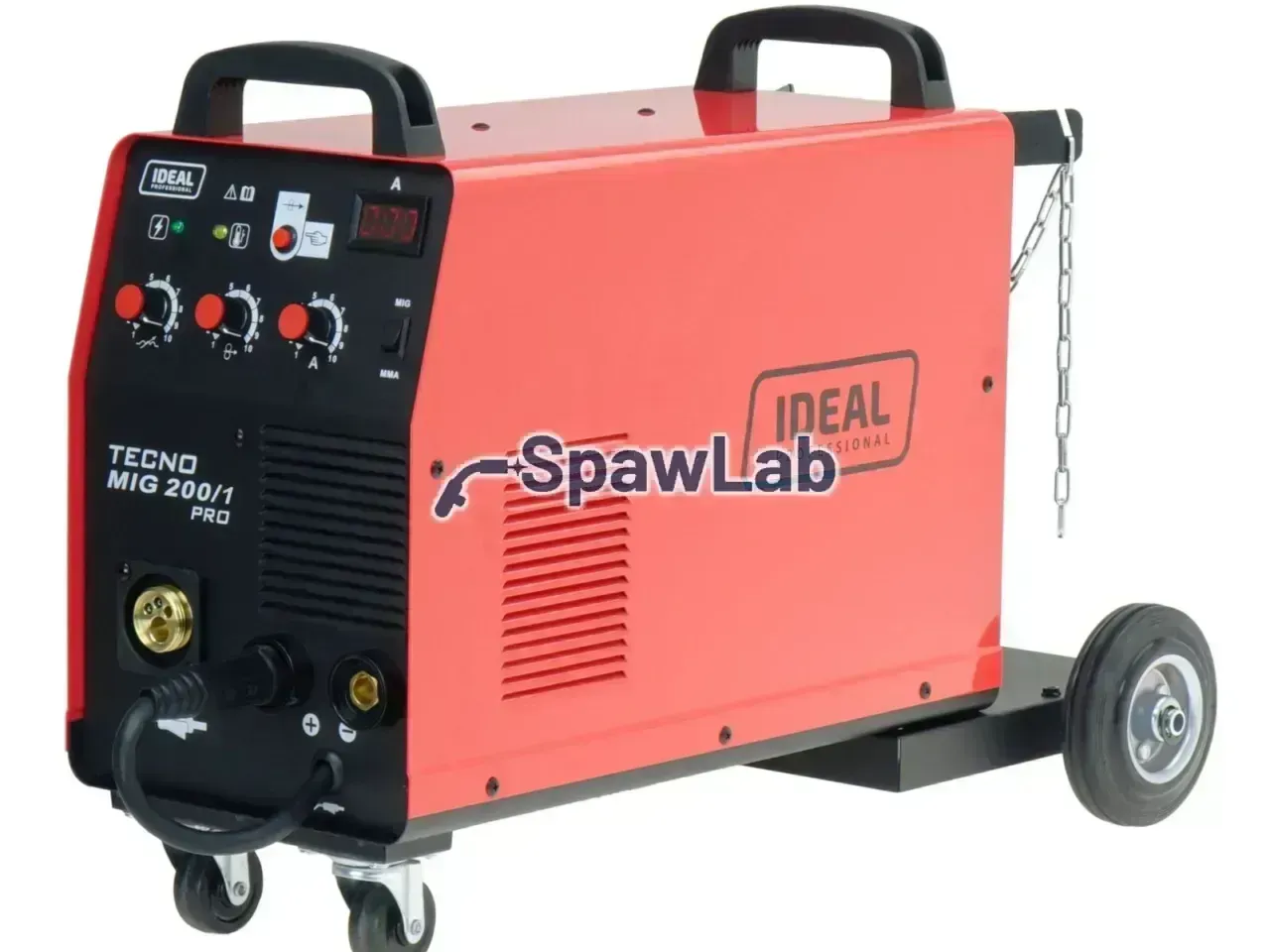

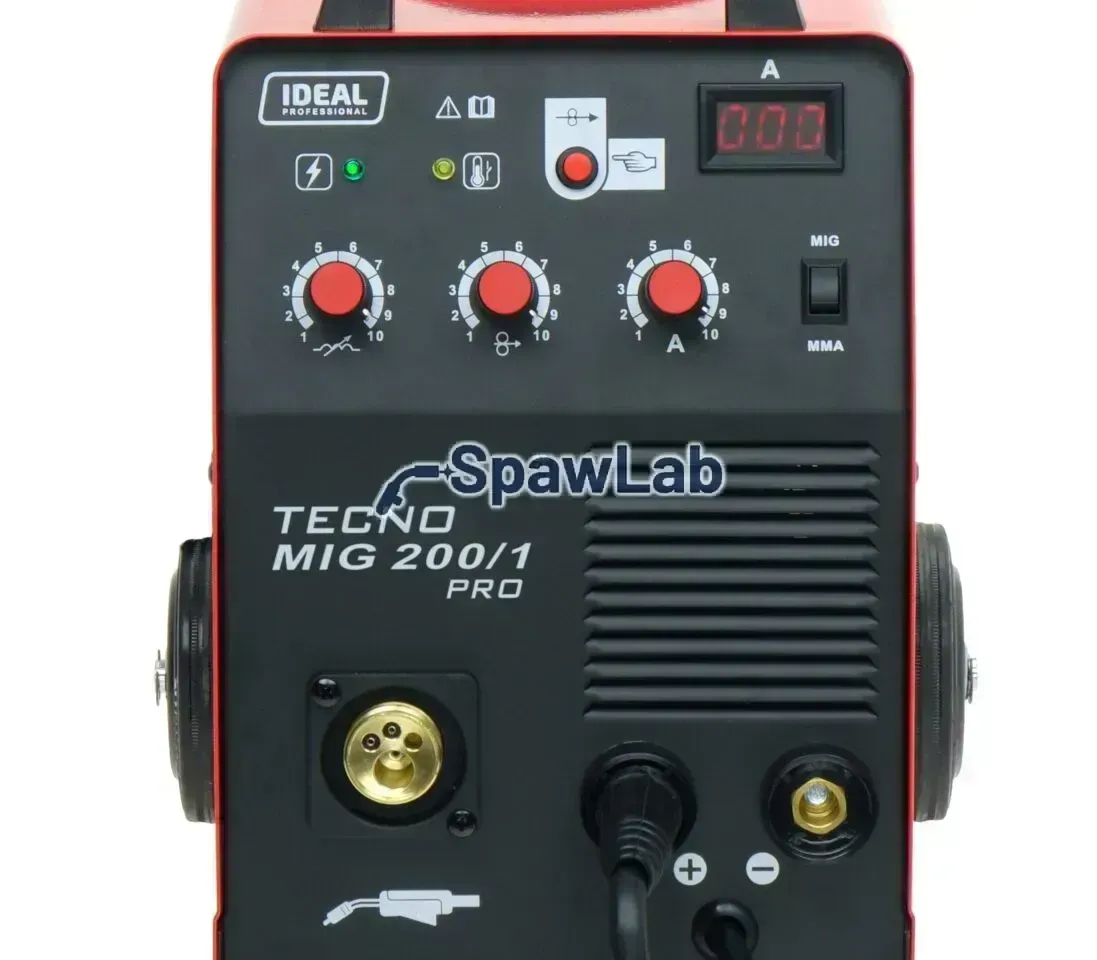

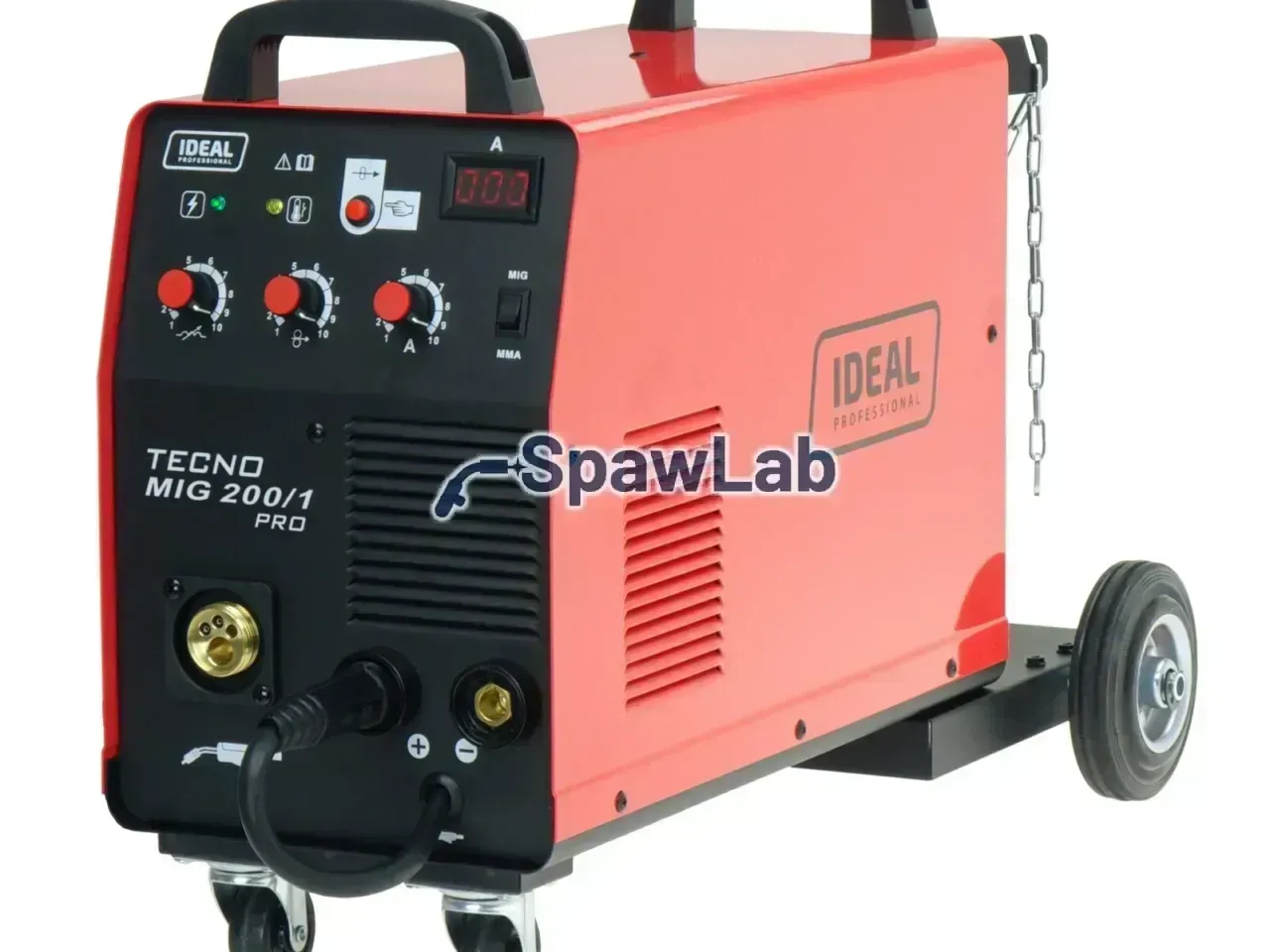

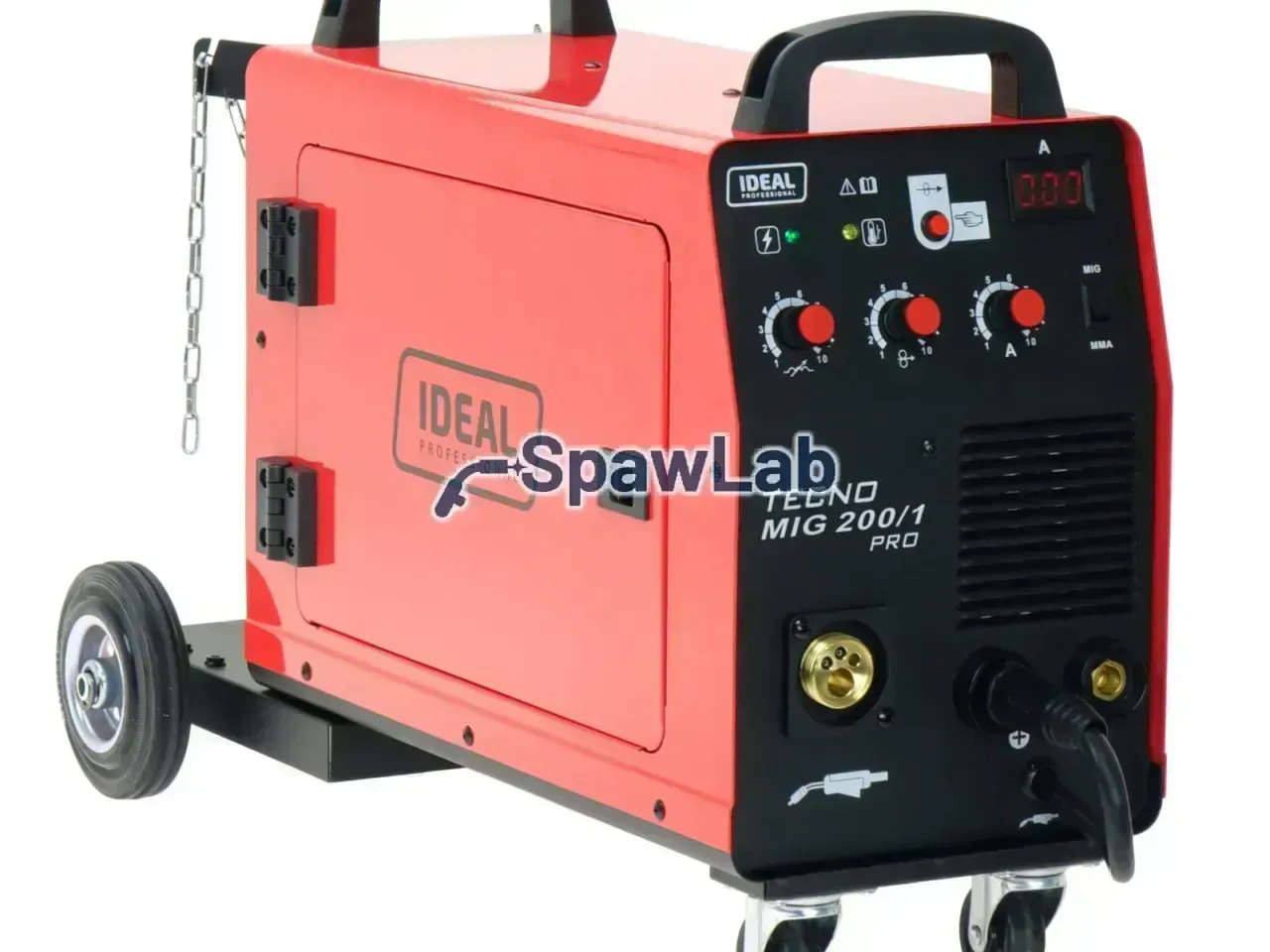

Ideal Tecno MIG 200/1 MMA 230V pro is an inverter MIG/MAG welder for MIG/MAG, self-shielded wire (FLUX) and coated-electrode (MMA) welding. The manufacturer recommends it for the workshop, for jobs ranging from maintenance work to car body repairs. You can weld carbon and low-alloy steels and aluminium with it. You power it from a single-phase 230 V supply. You adjust the current steplessly in the 30 to 200 A range.
Specifications
- Power supply: 230 V, 50 Hz, single-phase, with plug
- Mains protection: C16A
- Power: 6.1 kW
- Open-circuit voltage: 56 V
- Welding current range: 30 to 200 A, stepless
- Maximum current: 200 A (MIG), 180 A (MMA)
- Duty cycle: 200 A (MIG) and 180 A (MMA) at 60%, 130 A at 100%
- Steel wire: 0.6 to 1.0 mm
- Aluminium wire: 0.8 to 1.0 mm
- Self-shielded wire: 0.8 to 1.2 mm
- MMA electrode: 1.6 to 4.0 mm
- Wire feeder: 2-roll
- Wire spool: D200 (2 kg and 5 kg)
- Protection rating: IP 21S
- Weight of machine / set: 15 / 16 kg
- Dimensions (L x W x H): 650 x 320 x 450 mm
Features
MIG/MAG, FLUX and MMA
You weld with inert gas, active gas or a mixture as shielding. With self-shielded wire (FLUX) you weld without gas, with reverse polarity. Once you connect the electrode cable, you can also weld with a coated electrode at up to 180 A.
Inductance control
The welder has inductance control. With it you change the character of the arc and match it to the material and the wire settings.
Construction and power supply
A fan cools the inside, and a protection circuit guards the machine against overload. The machine has a factory-fitted mains plug.

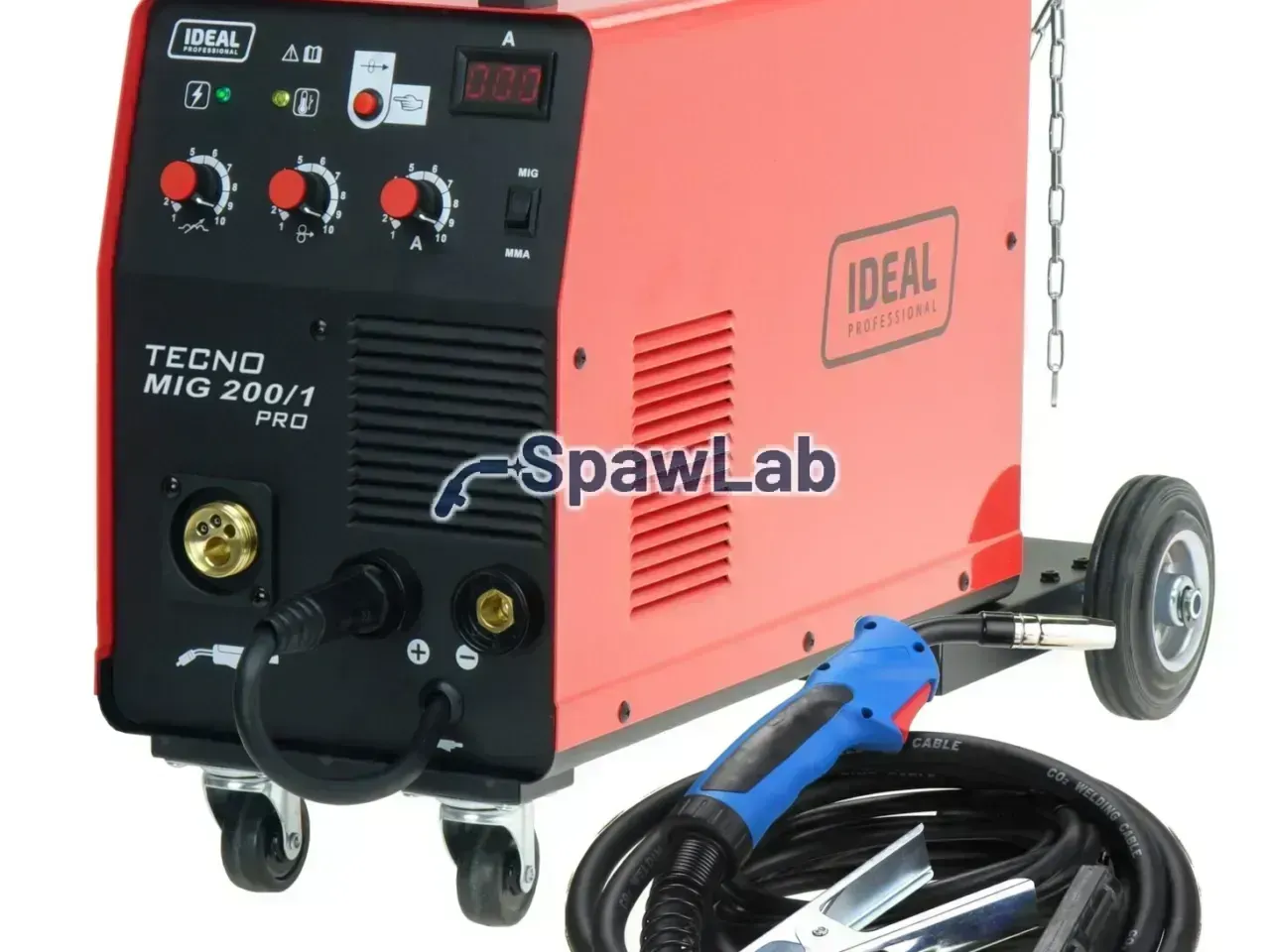

In the box
- MIG 15 torch, 3 m
- Earth cable, 2 m
- Electrode cable, 2 m
12-month warranty for professional use. Warranty service works door-to-door, with no transport costs on your side.
