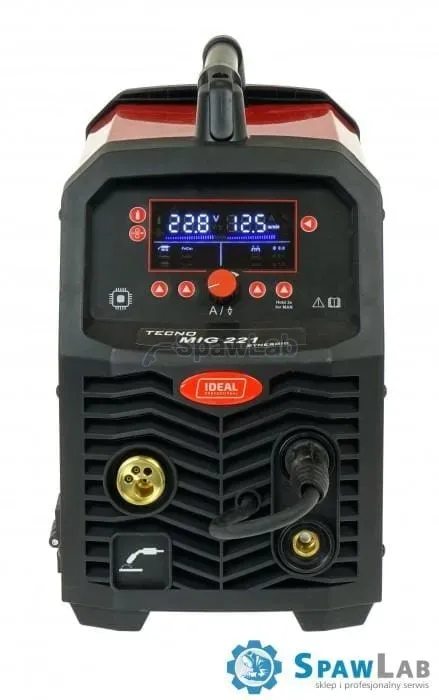

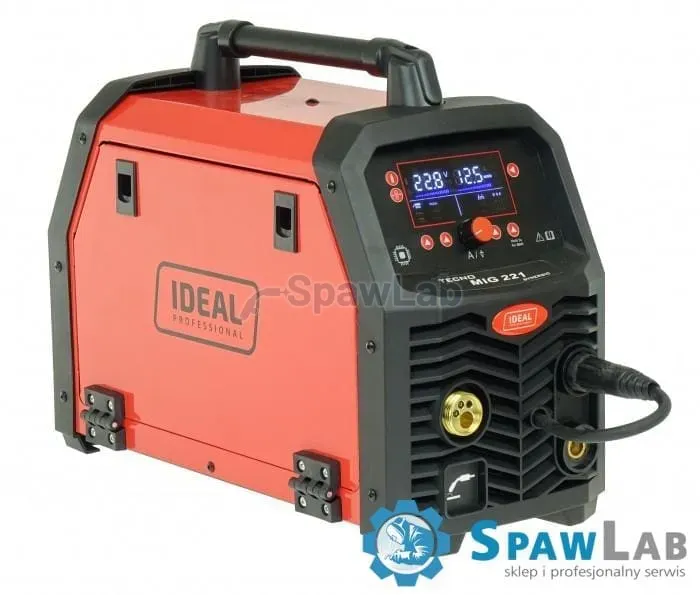

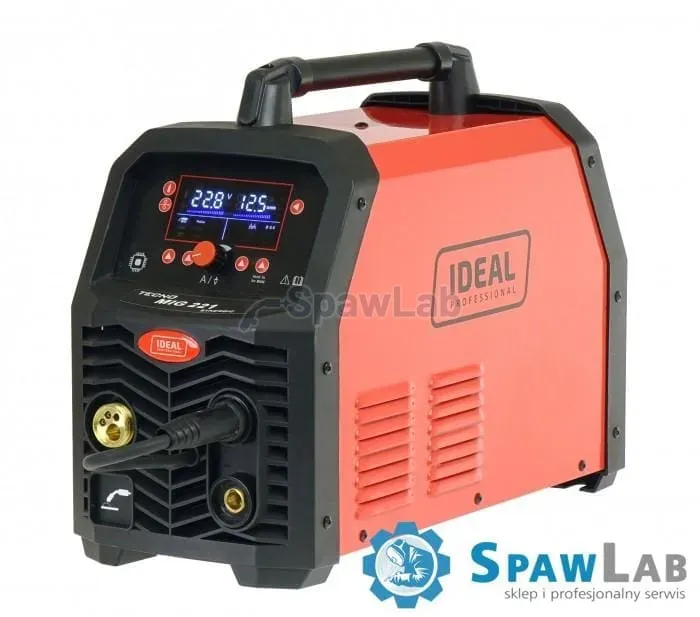

Tecno MIG 221 Synergic is an inverter MIG welder for MIG/MAG, FLUX, MMA and TIG LIFT, with 200 A welding current and a 230 V supply. It has synergic programs for carbon and low-alloy steels, and you weld stainless steel and aluminium in manual mode. It suits maintenance work and car body repairs.
Specifications
Power supply: 230 V, 50 Hz (1ph), with plug
Mains protection: C25A
Power: 6.5 kW
Open-circuit voltage: 51 V
Maximum current: 200 A
Current at 60% duty cycle: 200 A (MIG/TIG), 160 A (MMA)
Current at 100% duty cycle: 160 A
Current range: 50 to 200 A (MIG), 10 to 200 A (TIG), 10 to 160 A (MMA)
Steel wire: 0.6 to 1.0 mm
Stainless steel wire: 0.6 to 0.8 mm
Aluminium and self-shielded wire: 0.8 to 1.0 mm
Electrode: 1.6 to 4.0 mm

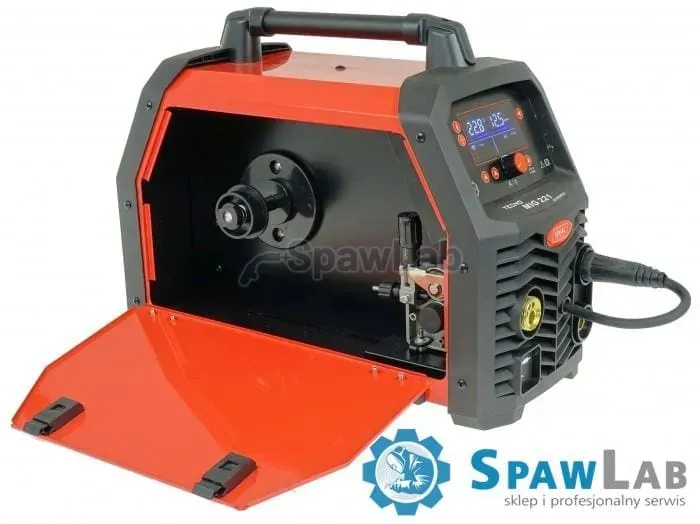

Wire feeder: 2-roll
Wire spool: D100 (0.45 kg and 1 kg), D200 (2 kg and 5 kg)
Protection rating: IP 23S
Weight of machine / set: 11 / 16 kg
Dimensions (L x W x H): 510 x 230 x 370 mm
Packaging dimensions: 550 x 250 x 385 mm
Features
Shielding: inert gas, active gas or a mixture, and no gas on reverse polarity.
Torch trigger: 2T without latch or 4T with latch for long welds.

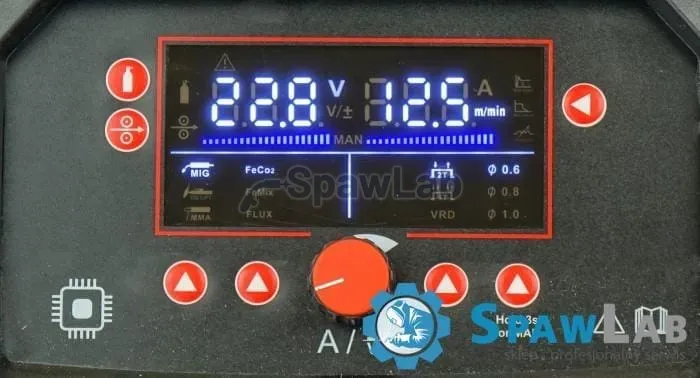

LED display: large and clear, you check and change parameters as you work.
Settings: inductance in MIG/MAG, HOT START and ARC FORCE in MMA.
VRD (Voltage Reduction Device): lowers the open-circuit voltage on the electrode to a safe level and protects you against electric shock when you work in damp surroundings.
Construction: fan cooling and overload protection.

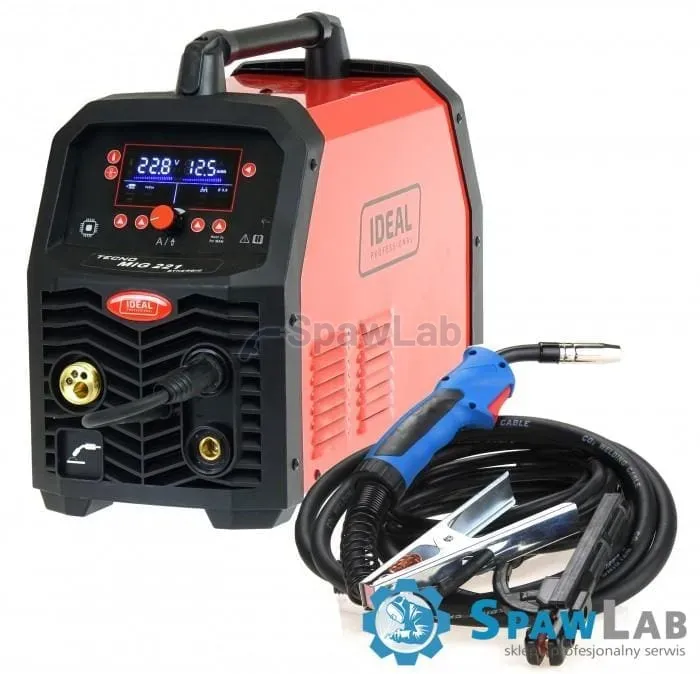

Included
MIG 15 welding torch, 3 m
Earth cable, 2 m
Electrode cable, 2 m
Feed roll 0.8 to 1.0 mm for steel
Warranty
12 months for professional use. Door-to-door service, with no transport costs on your side.
