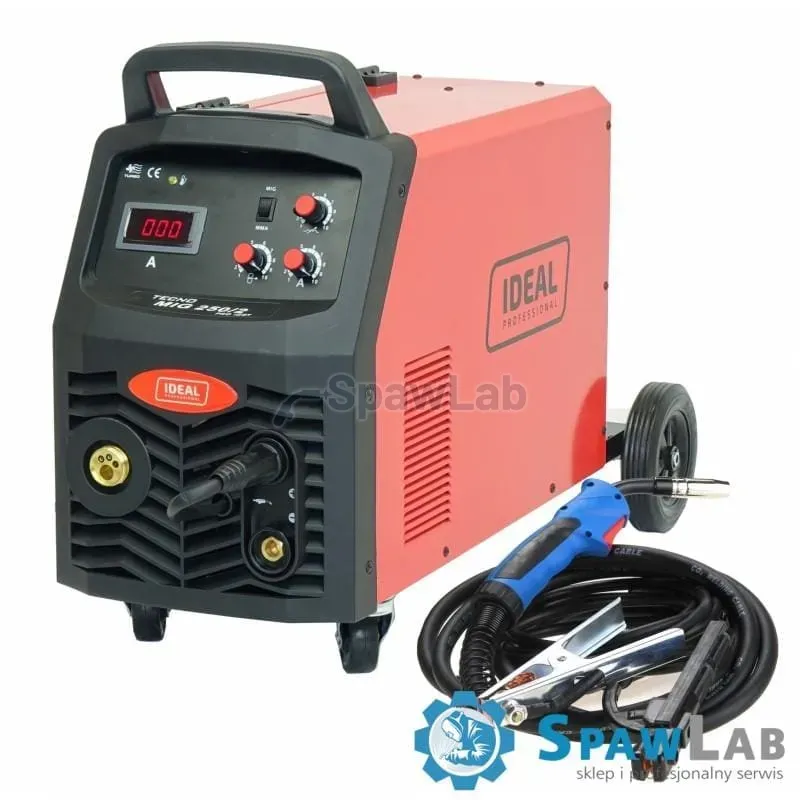

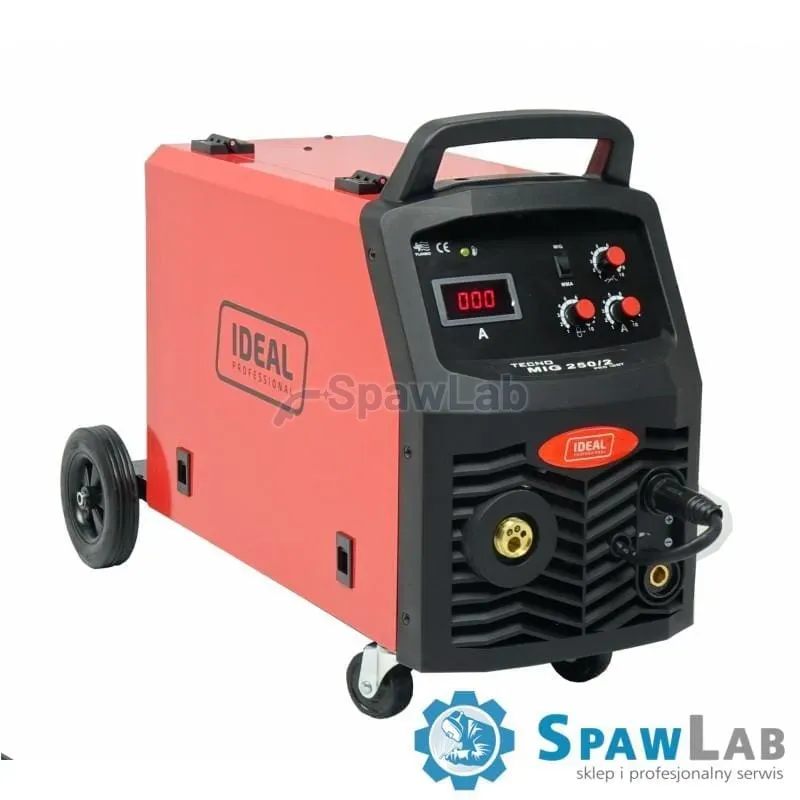

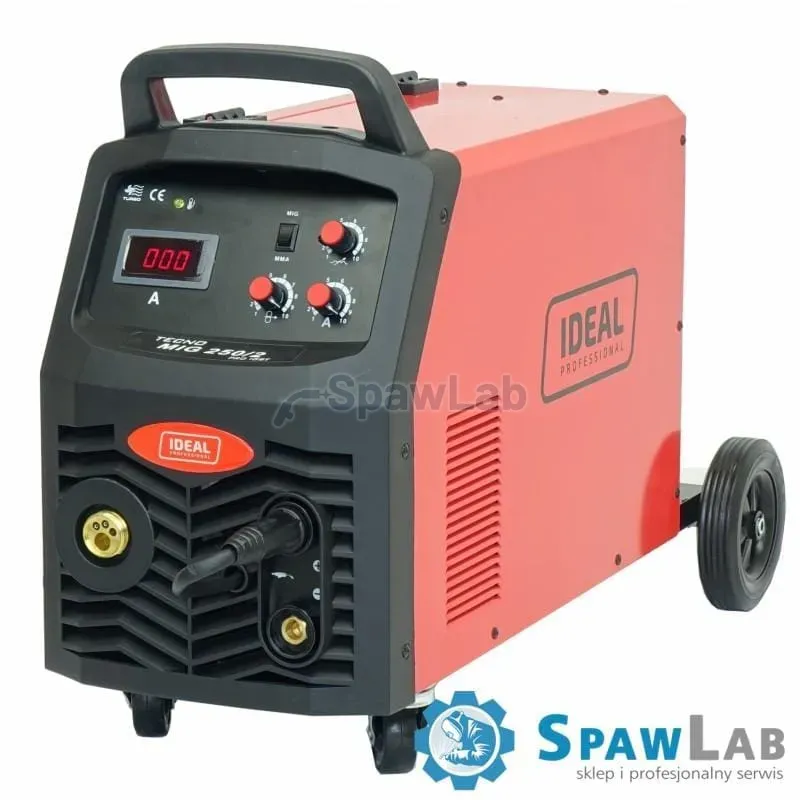

TECNOMIG 250/2 PRO MMA DIGITAL is an inverter MIG welder for MIG/MAG, FLUX and MMA (coated electrode) welding. It welds carbon steel, low-alloy steel and aluminium with inert or active shielding gas, and with FLUX wire without gas, with reverse polarity. It runs on a single-phase 230 V supply and a phase-to-phase 400 V supply, and delivers up to 250 A. It suits maintenance work, steel structures and car body repairs, in the workshop and on site.
Technical data
Power supply: 230/400 V, 50 Hz (1ph/2ph)
Mains protection: C25 A (230 V) / C16 A (400 V)
Power: 5.9 kW
Open-circuit voltage: 56 V
Welding current range: 30 to 250 A
Current at 60% duty cycle: 200 A
Wire diameter: steel 0.6 to 1.0 mm, aluminium 0.8 to 1.0 mm, self-shielded (FLUX) 0.8 to 1.0 mm, stainless steel 0.6 to 0.8 mm
MMA electrode diameter: 1.6 to 4.0 mm

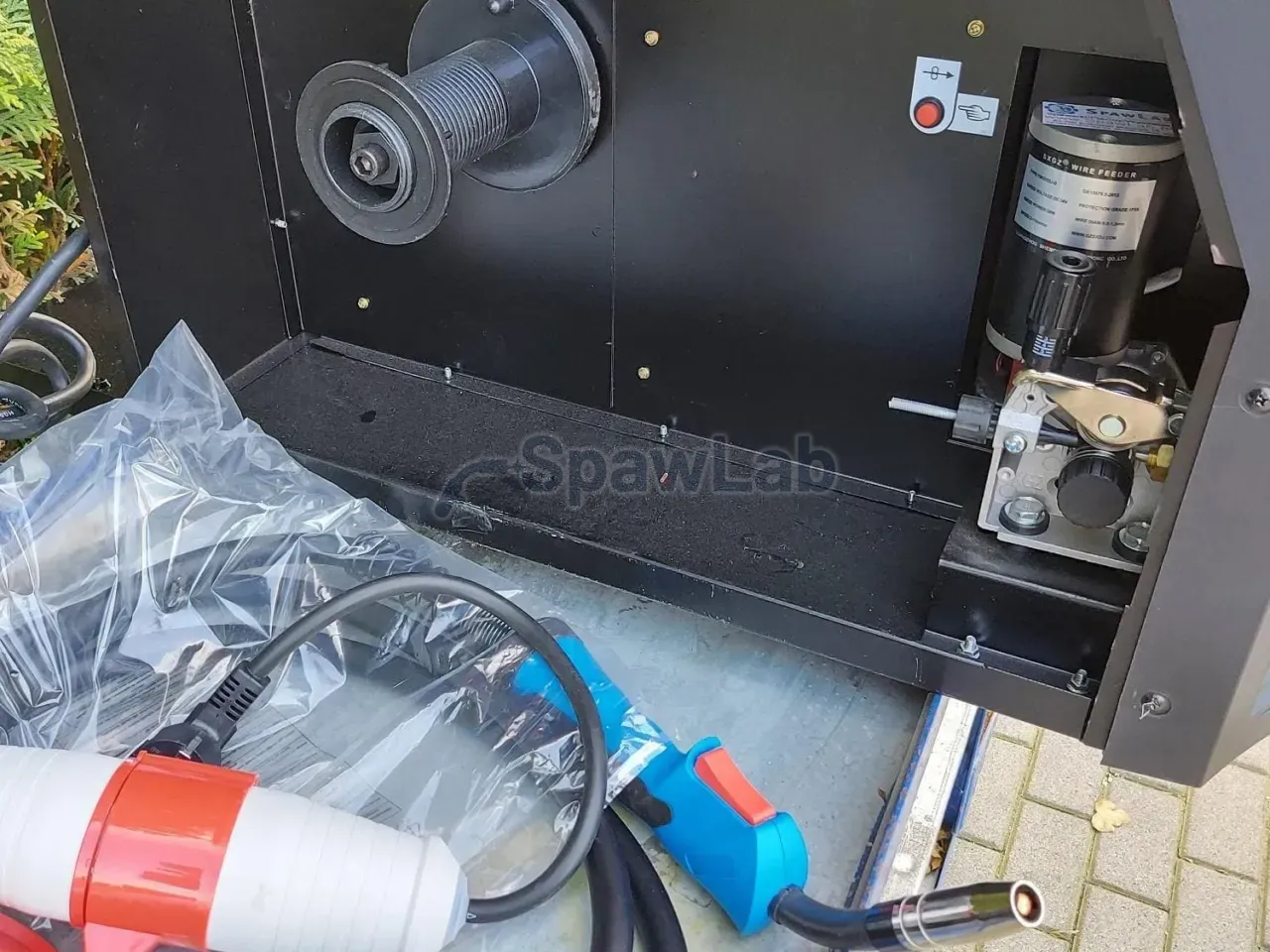

Wire feeder: 2-roll
Wire spool: 5 / 15 kg
Protection rating: IP21S
Net / gross weight: 26.3 / 28 kg
Machine dimensions: 800 x 280 x 540 mm
Package dimensions: 800 x 300 x 420 mm
Warranty: 12 months for professional use, door-to-door service with no transport costs
Features
Inductance control: you match the arc characteristic, there is less spatter and the weld is better.

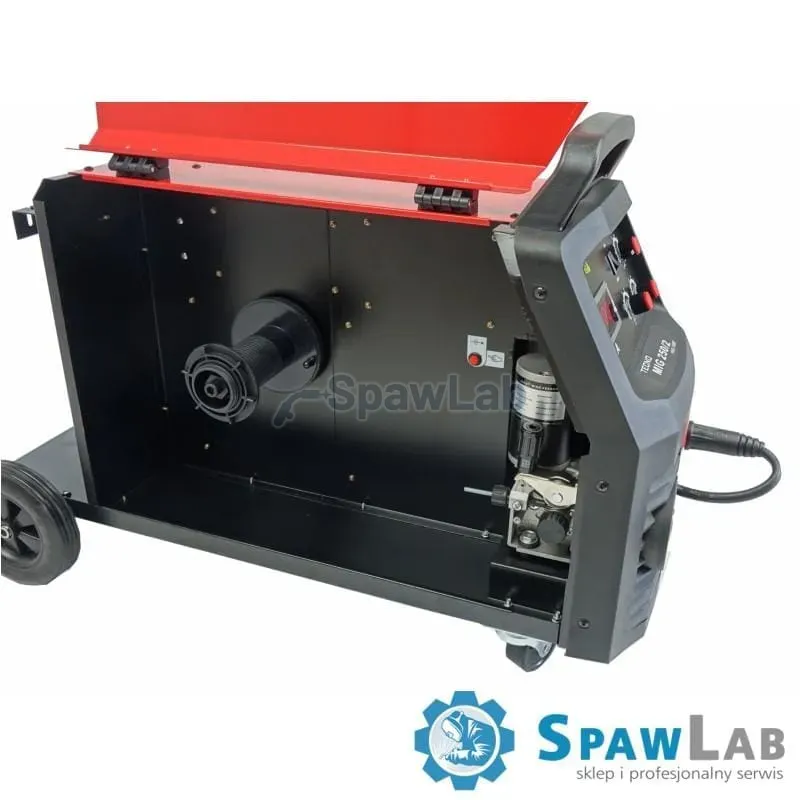

2-roll wire feeder: 0.6 to 1.0 mm wire feeds smoothly and evenly.
Fan cooling: output holds up during long work.
Overload protection: protects the machine and extends its service life.
Compact, durable design: for the workshop and for site work.

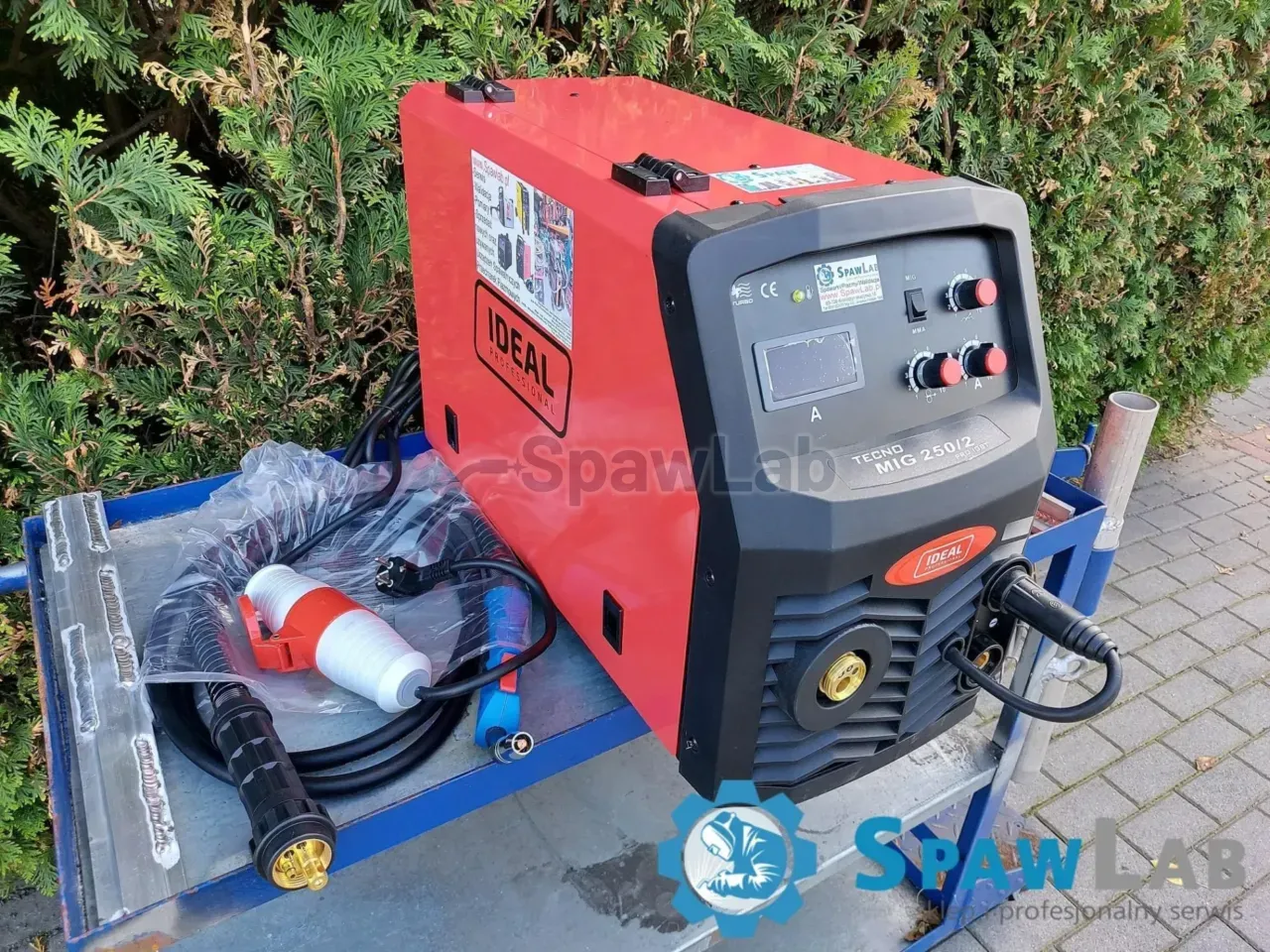

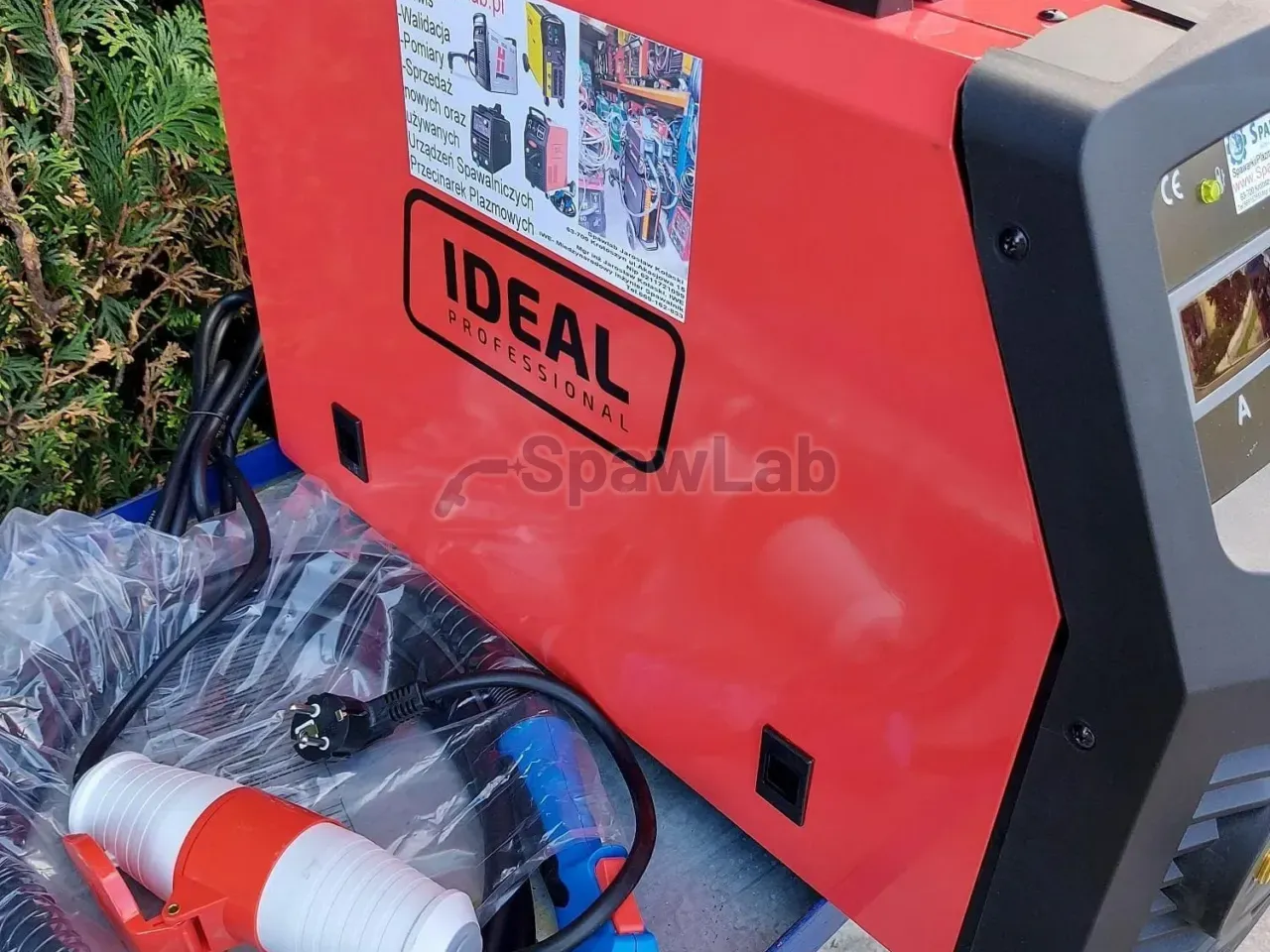

In the set
MIG 15 welding torch, 3 m
Earth cable, 2 m
MMA electrode cable, 2 m
