Description
Professional inverter semi-automatic welding machine for MIG-MAG welding with gas-shielded welding wire, FLUX welding and MMA welding. Welding current 250A. Power supply 230/400V. Welding wire diameter 0,6-1,0mm. Wire feeder 4-roller
Technical parameters

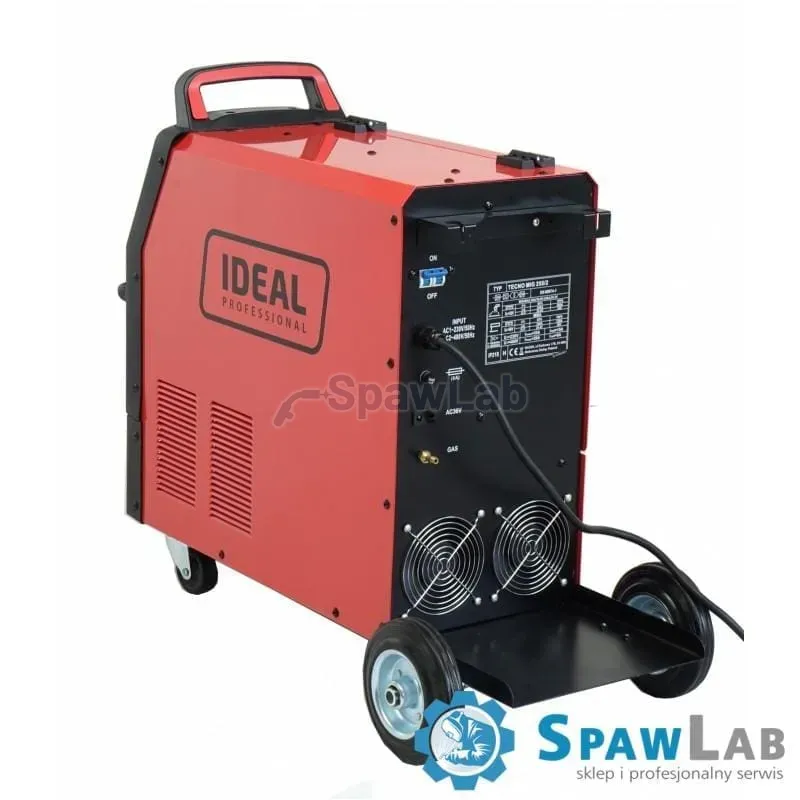

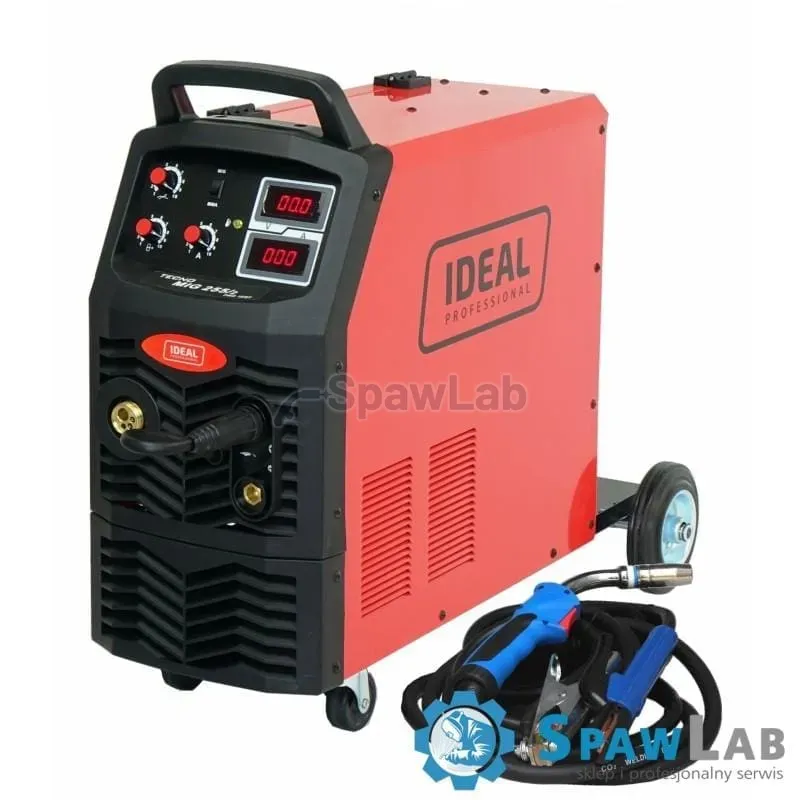

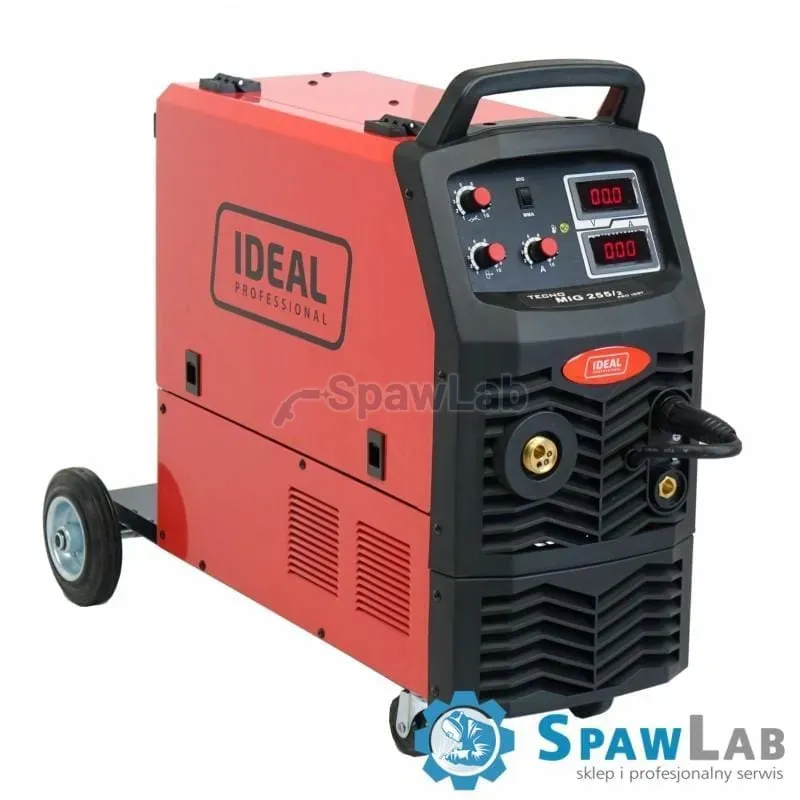

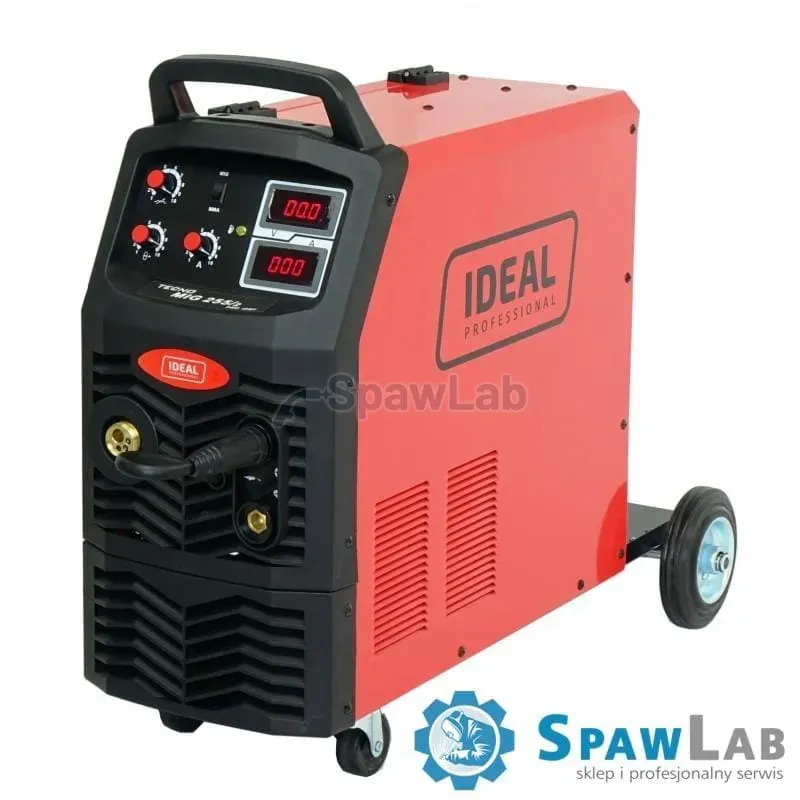

The TECNOMIG 255/2 4×4 PRO 230/400V is an inverter semi-automatic welding machine designed for MIG/MAG, MMA and FLUX arc welding . The machine has been designed for a wide range of applications: from maintenance work to auto body repair.
The device is ideal for welding steel, stainless steel, aluminum and its alloys.
Welding is carried out in a shield of inert gas, active gas or mixture, and in reverse polarity without gas.
Electronically controlled stepless adjustment of welding current, wire feed speed and inductance control.

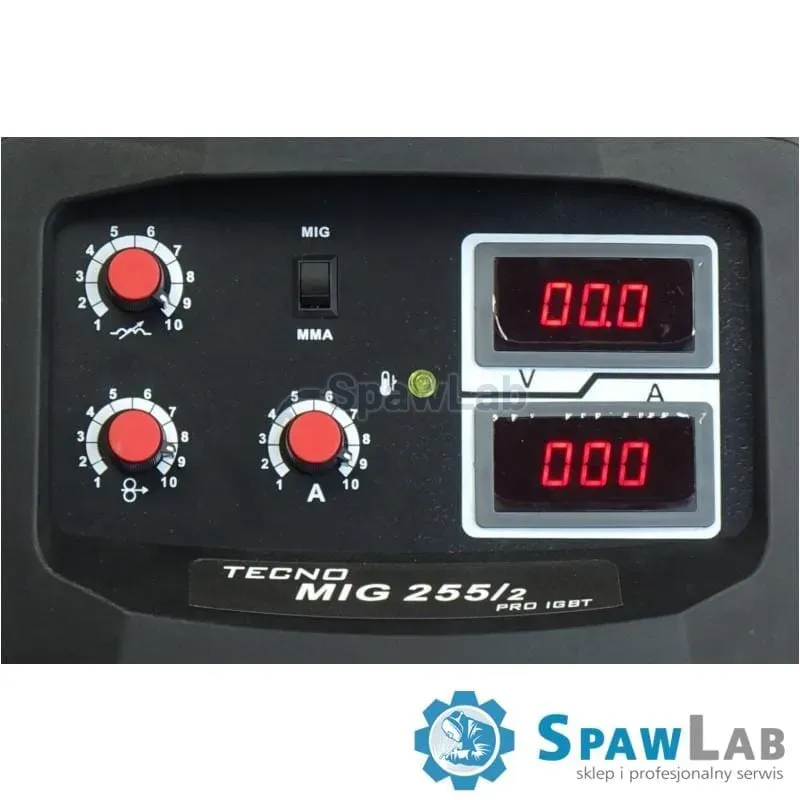

TECNOMIG 255/2 is equipped with a digital meter (voltmeter, ammeter) which allows you to constantly control welding parameters.

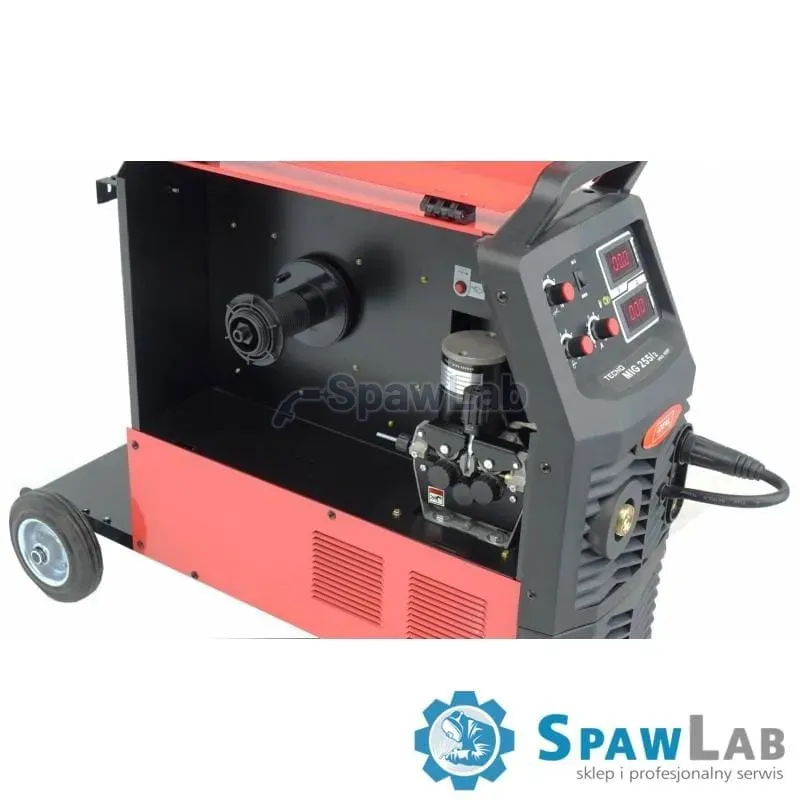

Professional wire feeder: 4-roller, provides stable feeding of the filler metal.
Physical parameters
The device has a fan-cooling system which dramatically increases its performance.
The device is equipped with overload protection, which increases its reliability.
Power supply parameters
Single-phase (230V) and inter-phase (400V) power supply.
The device is equipped with a power plug.
Equipment
The delivery includes a device with a 3-meter-long MIG welding chuck, a 2-meter-long ground wire and a 2-meter-long electrode wire.
Warranty terms and conditions
Warranty 12 months for professional use. Warranty service is provided door-to-door without transportation costs on the user’s side.
| PHYSICAL PARAMETERS | |
| Wire spool size | 5 / 15 kg |
| Degree of protection | IP21S |
| Weight of device / set | 38/41 kg |
| Overall dimensions L x W x H | 855x400x685 mm |
| Package dimensions L x W x H | 865x305x565 mm |
| SPECIFICATIONS | |
| Power | 6 kW |
| Idle state voltage | 56 V |
| Maximum current | 250 A MIG/180 A MMA |
| Current at 100% operation | 200 A (MIG) / 130 A (MMA) |
| Current at 60% operation | 250 A |
| Diameter of aluminum wire | 0.8 – 1.0 mm |
| Self-insulating wire diameter | 0.8 – 1.2 mm |
| Steel wire diameter | 0.8 – 1.0 mm |
| Stainless steel wire diameter | 0.8 – 1.0 mm |
| Welding electrode diameter | 1,6 – 4,0 |
| Welding current adjustment range | 30 – 250 A |
| POWER SUPPLY PARAMETERS | |
| Mains protection | C20A |
| Rated supply voltage | 230/400 V; 50Hz (1ph/2ph) |
