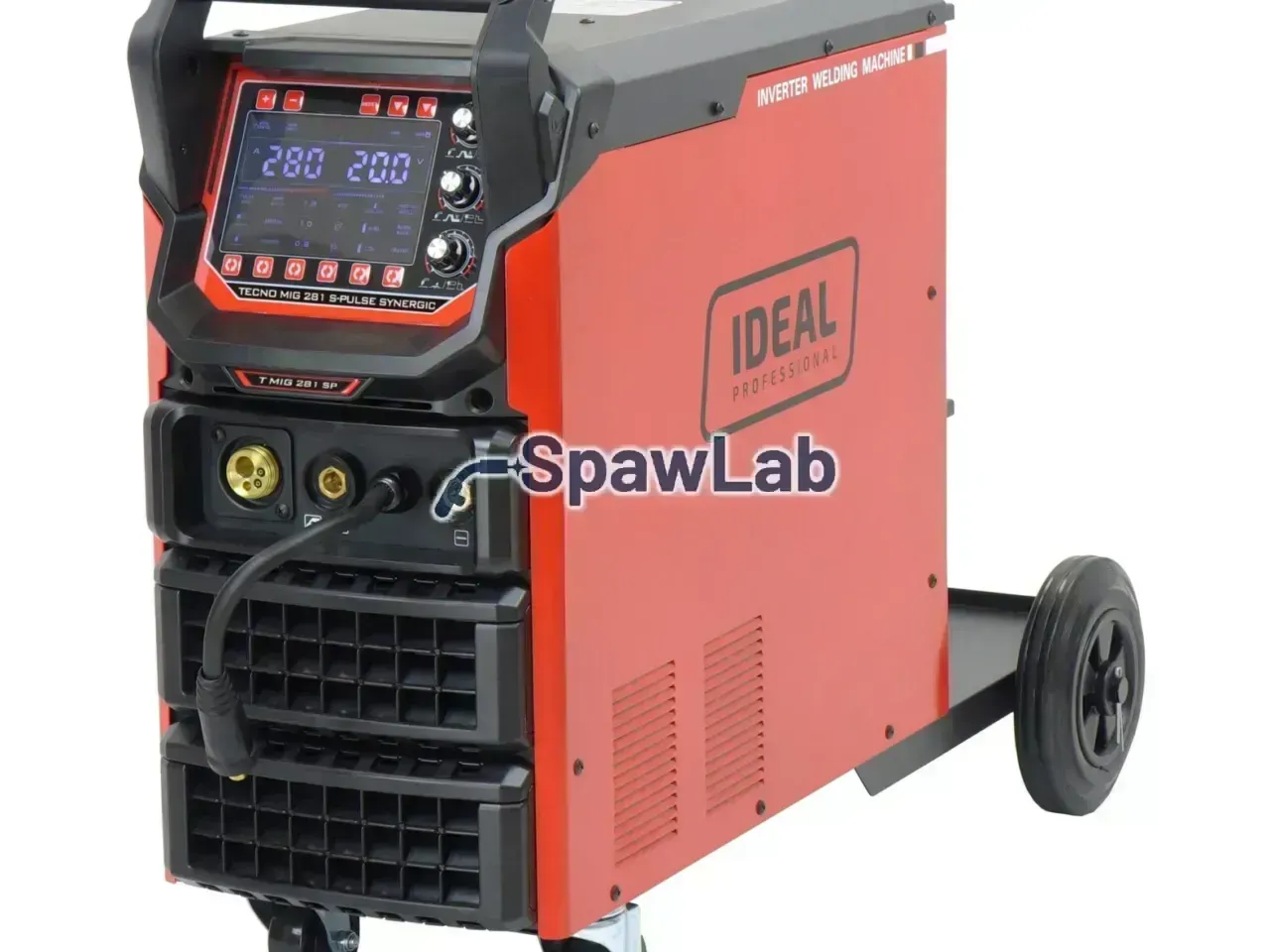

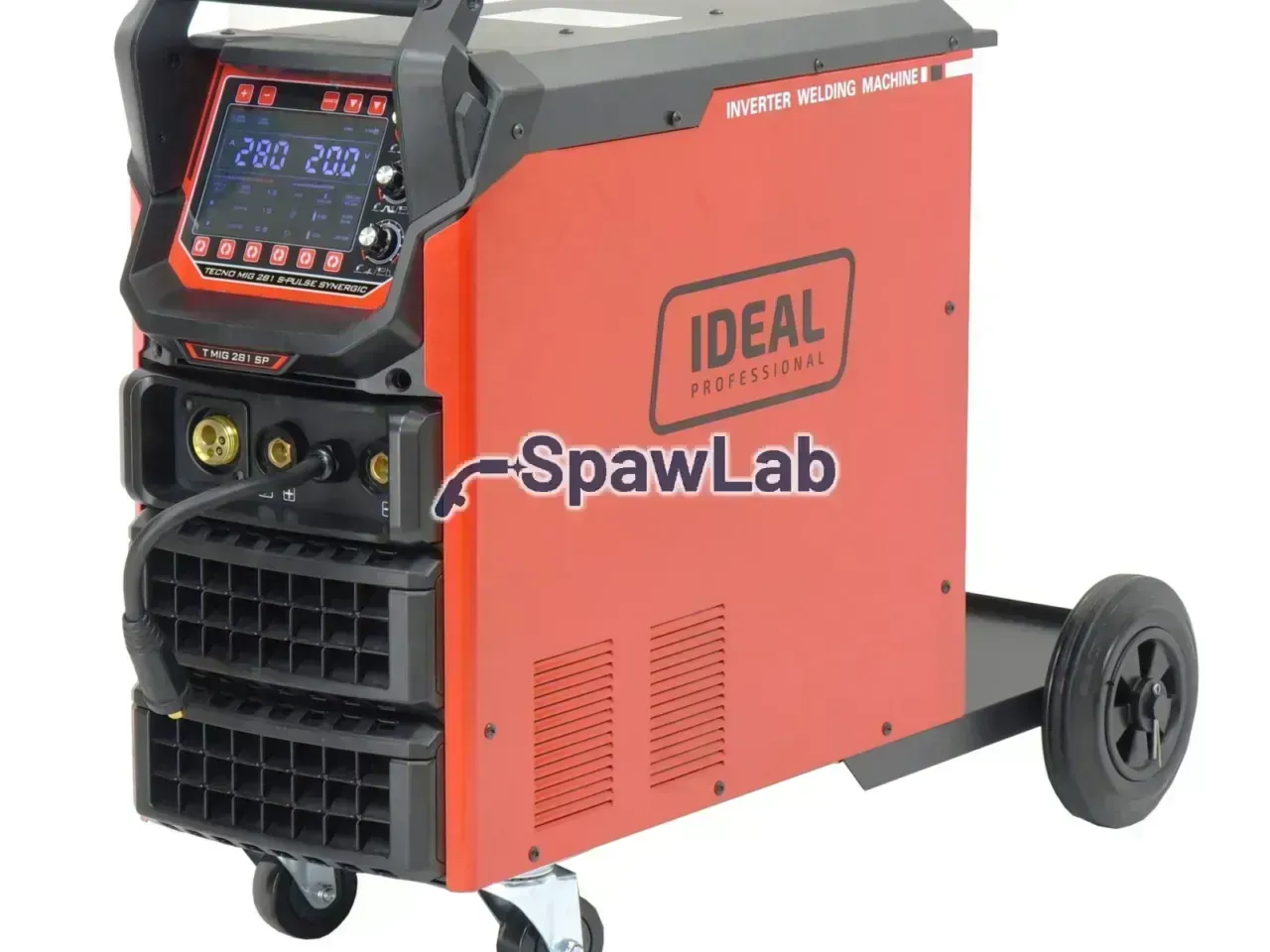

Tecno MIG 281 S-Pulse Synergic is an Ideal synergic inverter MIG welder that runs on a three-phase 400 V supply. You use it for MIG/MAG, pulse MIG, self-shielded wire (Flux) and coated electrode (MMA) welding. MIG/MAG current reaches 280 A, and a 4-roll wire feeder drives 0.8 to 1.2 mm wire. The manufacturer designed it for jobs from maintenance to car body repairs.
Specifications
- Power supply: 3 x 400 V, 50/60 Hz, three-phase, with plug
- Mains protection: C16
- Power: 8.2 kW
- Open-circuit voltage: 65 V
- Welding current range: MIG/MAG 20 to 280 A, MMA 20 to 250 A
- MIG/MAG duty cycle: 280 A at 60%, 220 A at 100%
- MMA duty cycle: 250 A at 60%, 194 A at 100%
- Steel wire: 0.8 to 1.2 mm
- MMA electrode: 1.6 to 4.0 mm
- Wire feeder: 4-roll
- Wire spool: 5 kg or 15 kg
- Protection rating: IP 21S
- Weight: 45 kg
- Dimensions (L x W x H): 920 x 380 x 700 mm
Features
Four welding processes

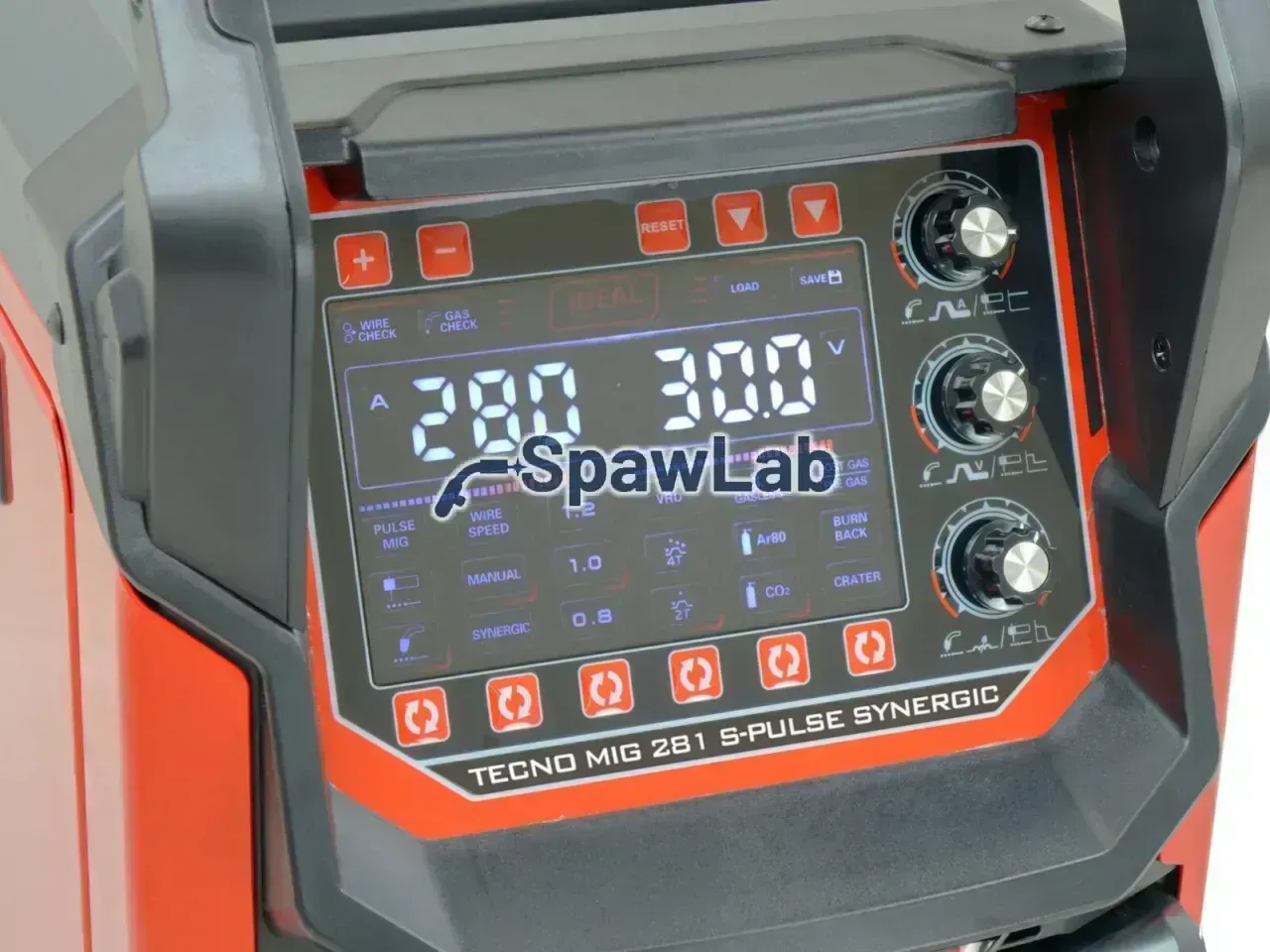

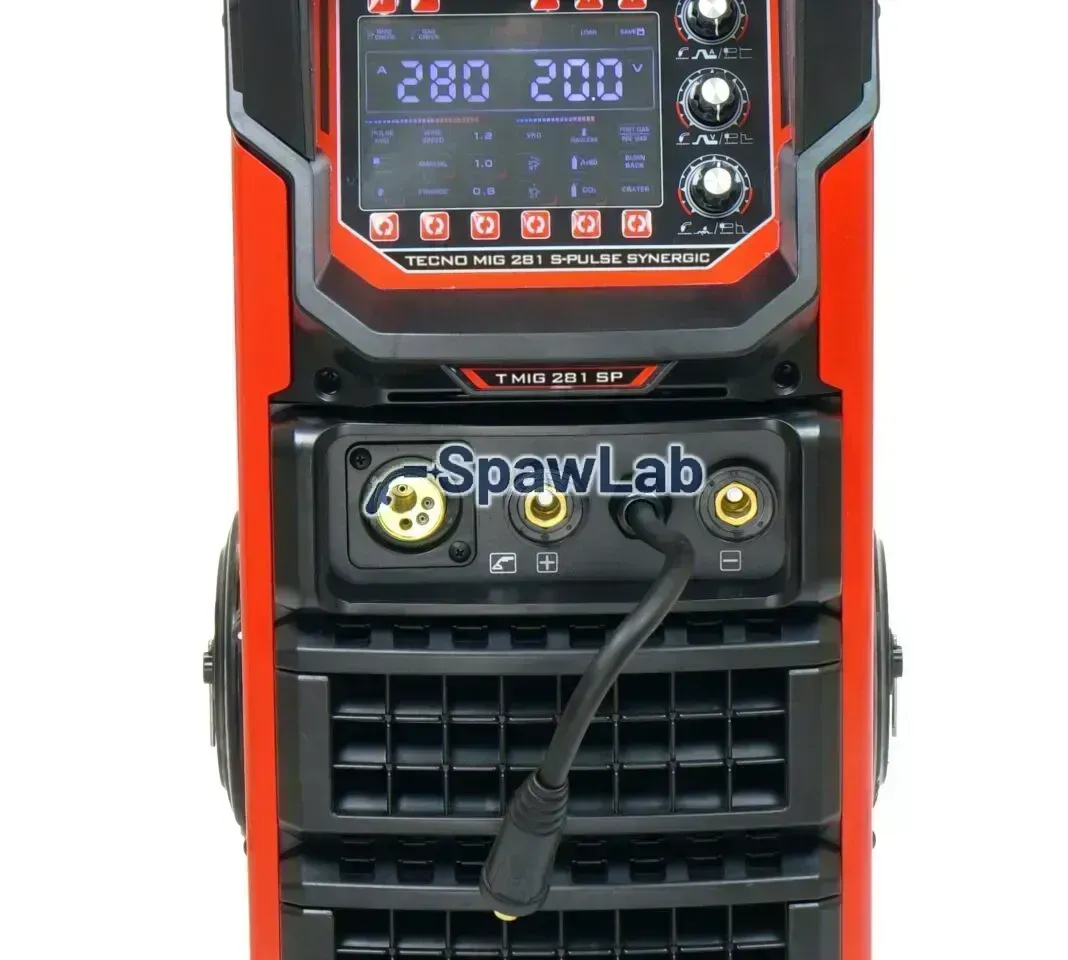

You select the process on the clear LED panel: MMA, Manual MIG, Synergic MIG or Pulse MIG. You weld carbon, low-alloy and stainless steel. You work with inert gas, active gas or a mixture, and with self-shielded wire without gas, on reverse polarity.
Pulse MIG
On this model, pulse is for welding mild steel with a single pulse, using 0.8, 1.0 or 1.2 mm wire. The weld comes out better in any welding position, and there is less spatter.
Trigger modes and inductance
In MIG/MAG you choose how the torch trigger works: 2T without latch or 4T with trigger latch for long welds. The MIG/MAG processes also give you inductance adjustment.
MMA: ARC FORCE, HOT START and VRD
In MMA you adjust ARC FORCE and HOT START. The VRD function lowers the open-circuit voltage at the electrode to a safe level, so you can work in humid surroundings. You switch VRD on or off as needed.
Design
A fan cools the inside, and overload protection guards the machine. The wire feeder takes 5 kg and 15 kg spools. The machine has a mains plug.

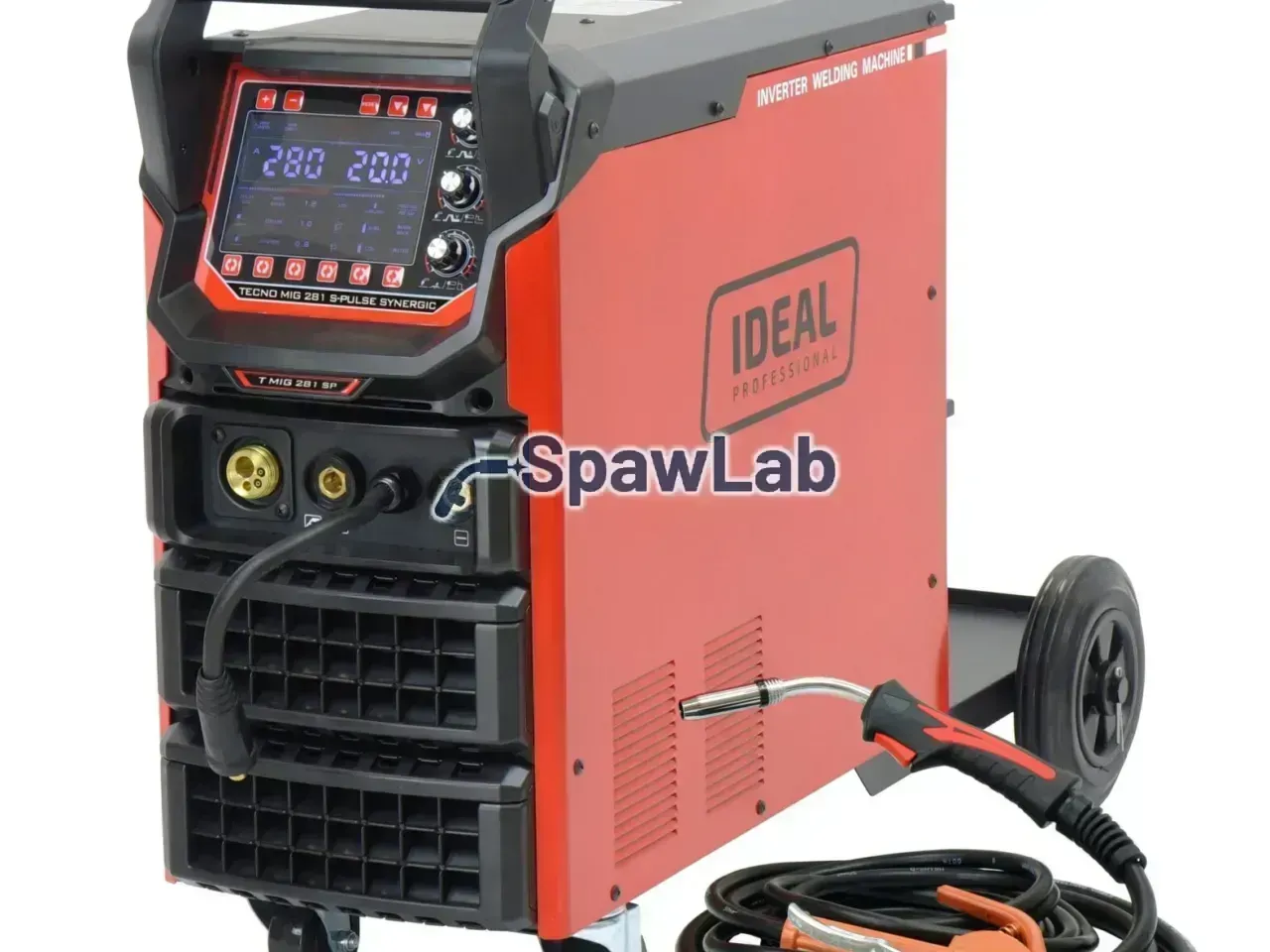

In the box
- MIG 24 welding torch, 3 m
- Earth cable, 2 m
- Electrode cable, 2 m
- Feed roll for 1.0 to 1.2 mm steel wire
12-month warranty for professional use. Warranty service runs door-to-door, with no transport costs on your side.
