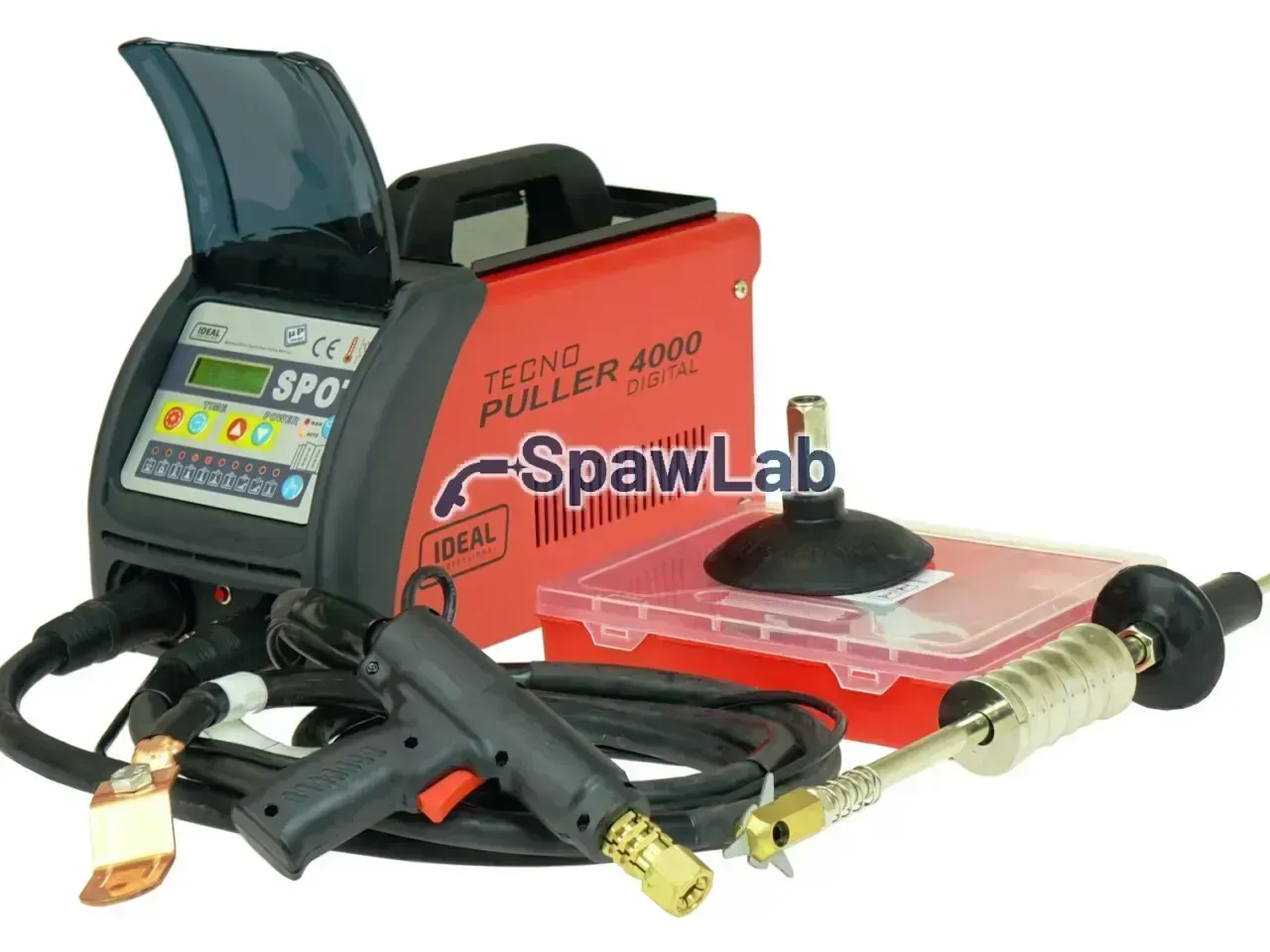

Tecno Puller 4000 Digital 230V is a microprocessor-controlled Ideal machine for pulling, patching and heating sheet metal with a carbon electrode. It is used mainly for car body repairs. You power it single-phase from a 230 V supply, and the maximum welding current is 2200 A.
Specifications
- Power supply: 230 V, 50 Hz, single-phase, without plug
- Mains protection: C25A
- Power: 10 kW
- Welding current: 1800 A, maximum 2200 A
- Welding current adjustment: stepless
- Welding time: 0 to 99 ms
- Weight of machine / set: 20 / 31 kg
- Dimensions (L x W x H): 390 x 210 x 270 mm
Features

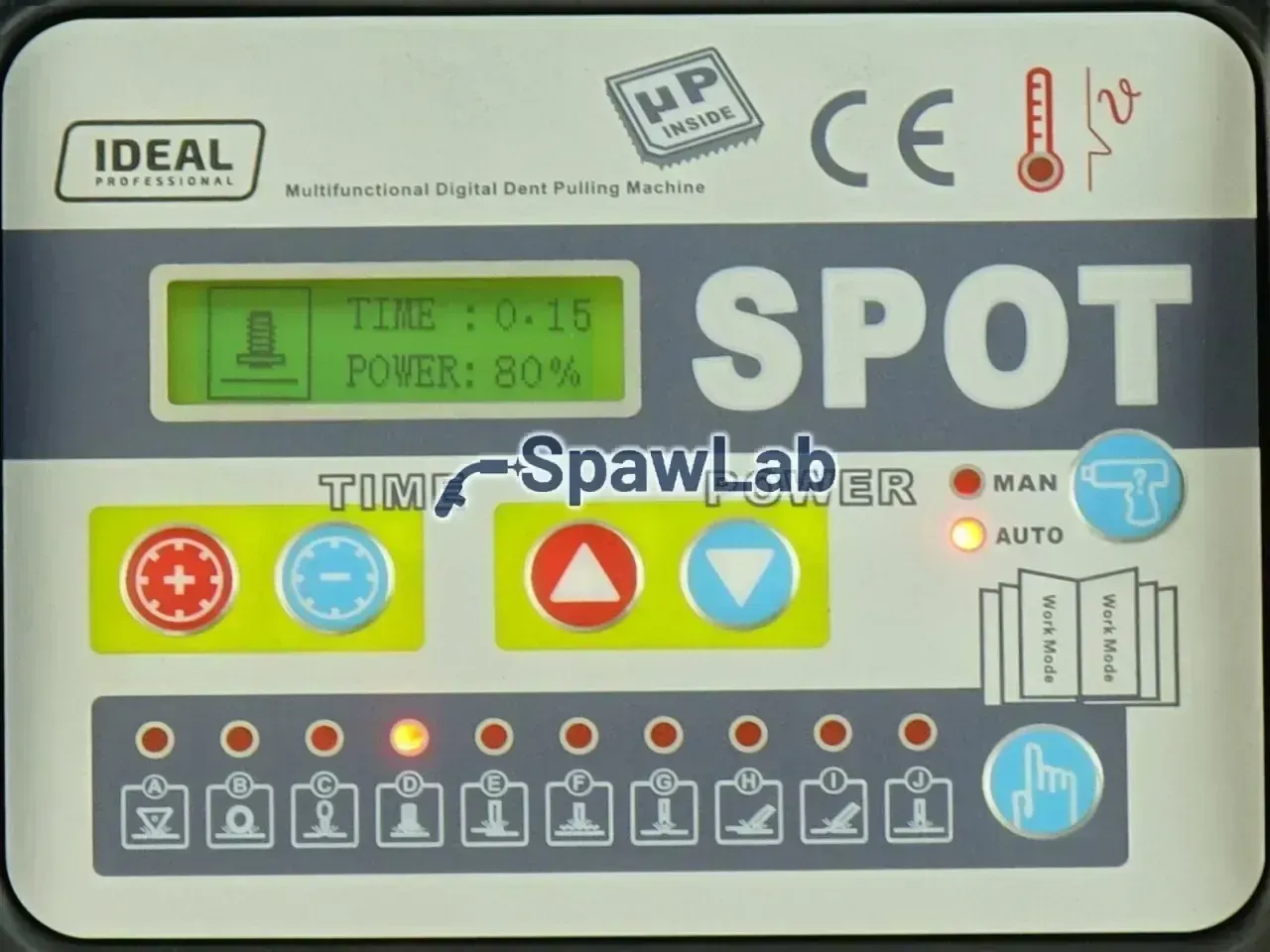

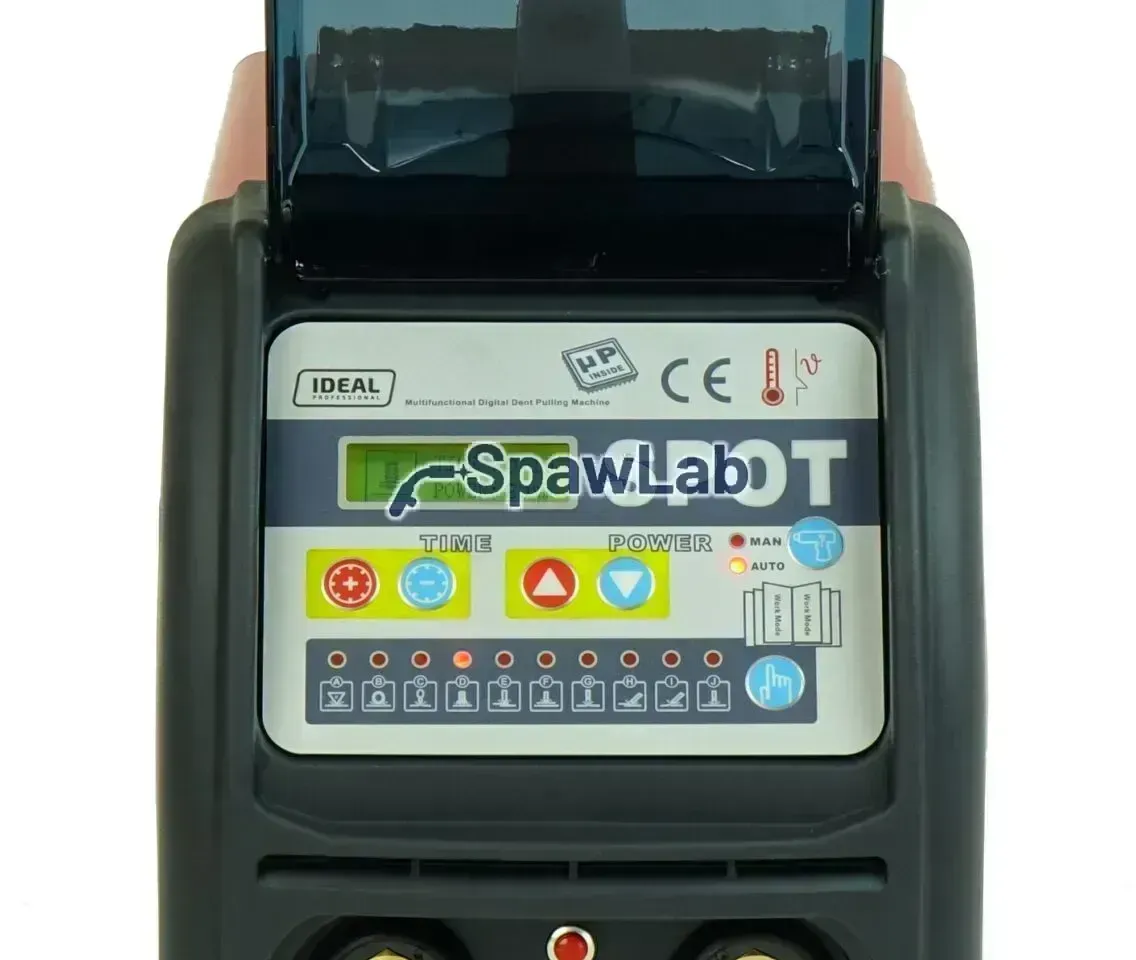

Panel control
You change all settings on the control panel. Once you select the tool, the machine sets the welding current and work cycles itself. You can also set the welding time and current manually.
Automatic and manual mode
In automatic mode, work starts the moment the tool makes contact with the material. In manual mode, you start with the button on the gun.
Protection
The machine has overload protection. Overvoltage and undervoltage protection guards it when the mains voltage is too high or too low.
In the box
- Work cable with gun
- Earth cable with clamp holder (Tecnospotter earth clamp)
- Carbon electrodes for heating, 300 mm (3 pcs)
- Carbon electrode holder
- Electrode for M10 to M12 washers
- M10/M12 washers (30 pcs)
- Triangular weld-on washers (10 pcs)
- Washer hook
- Slide hammer with holder for triangular washers
- Rubber suction cup for shallow dents
- Spanner
- Accessory box
12-month warranty for professional use. Warranty service runs door-to-door, with no transport costs on your side.
