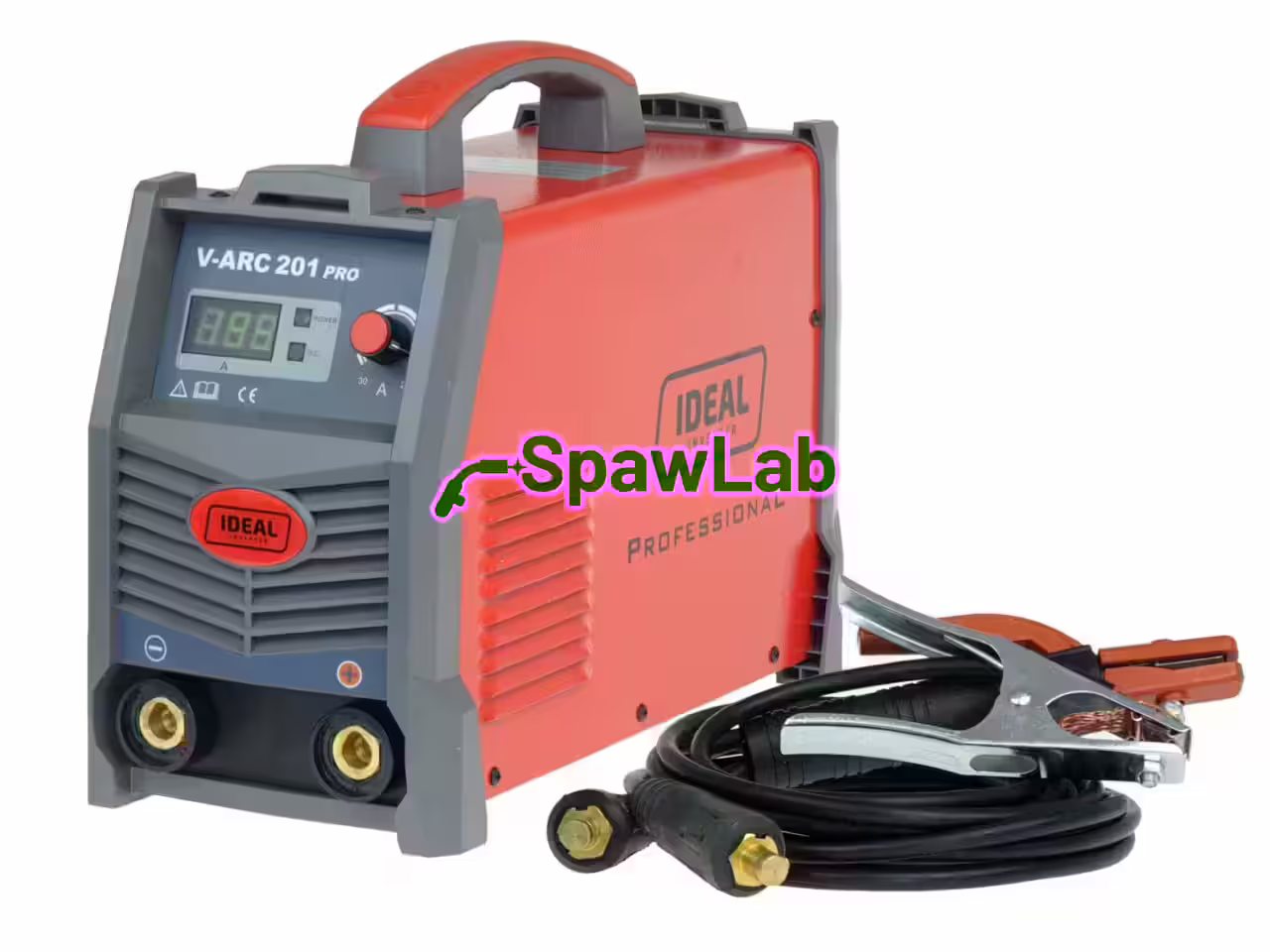

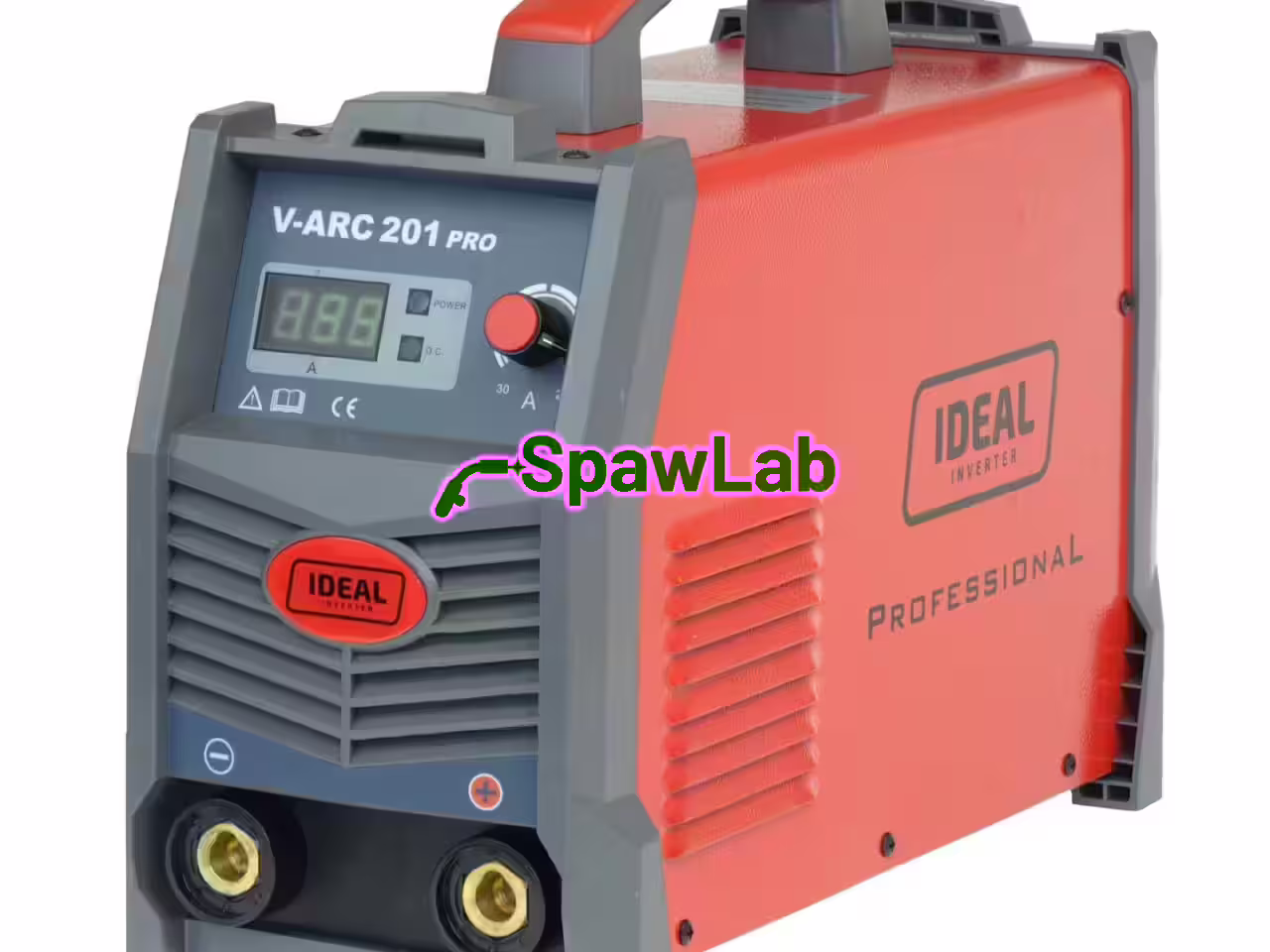

V-ARC 201 Pro +ACX is an Ideal inverter welder for coated electrode (MMA) welding on direct current, and it plugs into a 230 V socket. You can also weld TIG DC with it, with arc ignition by short circuit. It works with rutile, basic, stainless steel and cast iron electrodes. You adjust the current steplessly in the range 30 to 200 A, and the machine weighs 8 kg.
Specifications
- Power supply: 230 V, 50 Hz, single-phase, with plug
- Mains protection: 16A
- Power: 7.3 kW
- Open-circuit voltage: 59 V
- Welding current adjustment range: 30 to 200 A
- Duty cycle: 200 A at 60%
- MMA electrode: 1.6 to 4.0 mm
- Protection rating: IP 21
- Weight: 8 kg
- Packaging dimensions (L x W x H): 445 x 260 x 350 mm
Features
- ARC FORCE: adjusts the short-circuit current and helps droplet transfer from the electrode to the weld pool, so the arc does not go out when a droplet touches the pool.
- HOT START: supplies a higher current at every arc strike and makes it easier to strike the electrode.
- ANTI STICK: cuts the welding voltage when the electrode sticks to the material. The electrode is easier to pull free, and the arc does not strike by accident.
- TIG DC: you can also weld TIG on direct current, with arc ignition by short circuit.

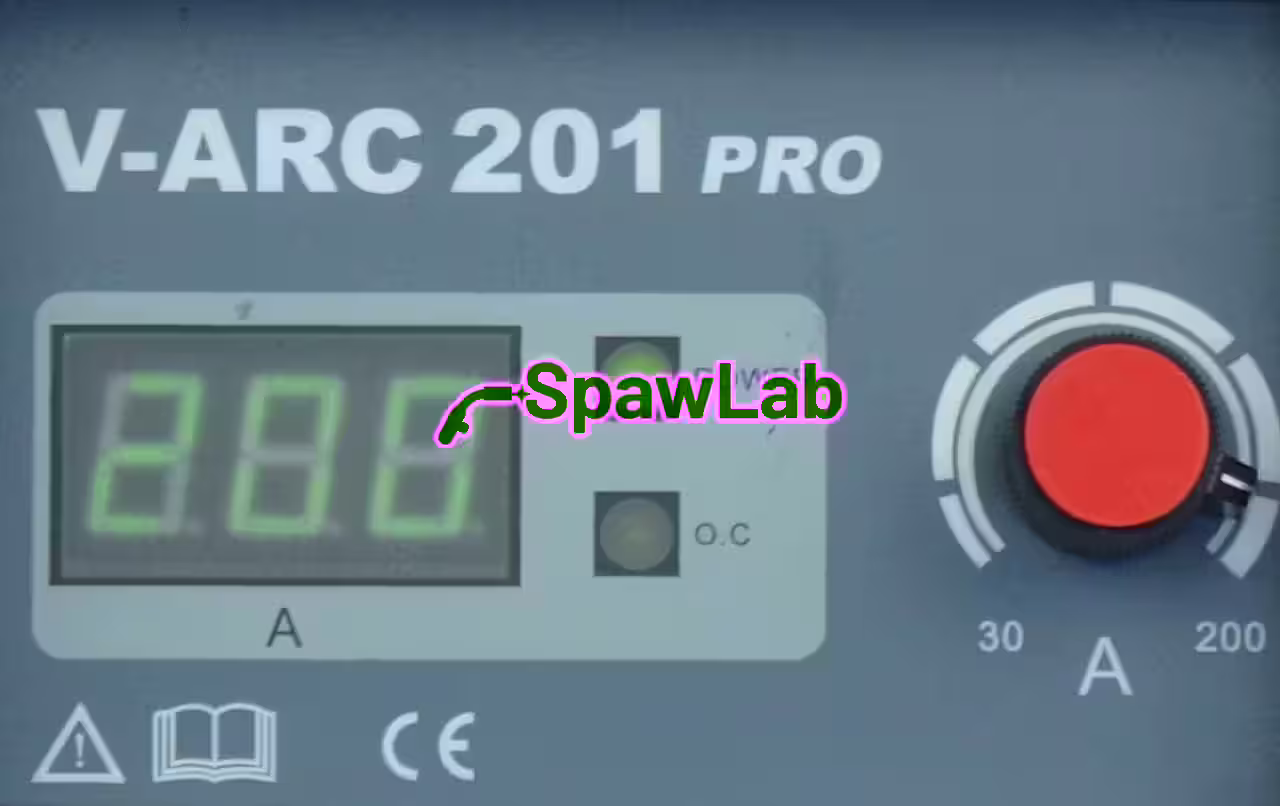

- Control: digital display and stepless, electronically controlled welding current adjustment.
- Design: fan cooling and overload protection.
In the box
- MMA electrode cable, 3 m
- Earth cable, 2 m
12-month warranty for professional use. Warranty service runs door-to-door, with no transport costs on your side.
