Description
- All devices are built with modern inverter technology
- Best suited for installation work (on ladders, scaffolding, …) and thanks to its IP 21S rating generally also for outdoor work
- Suitable for use around a generator, such as in workshops, ports, chemical plants, schools, metal structures, construction sites, ships, or for farmers
- Protection against moisture, salt spray and corrosion thanks to the sealed circuit board. Therefore, it is also suitable for marine use

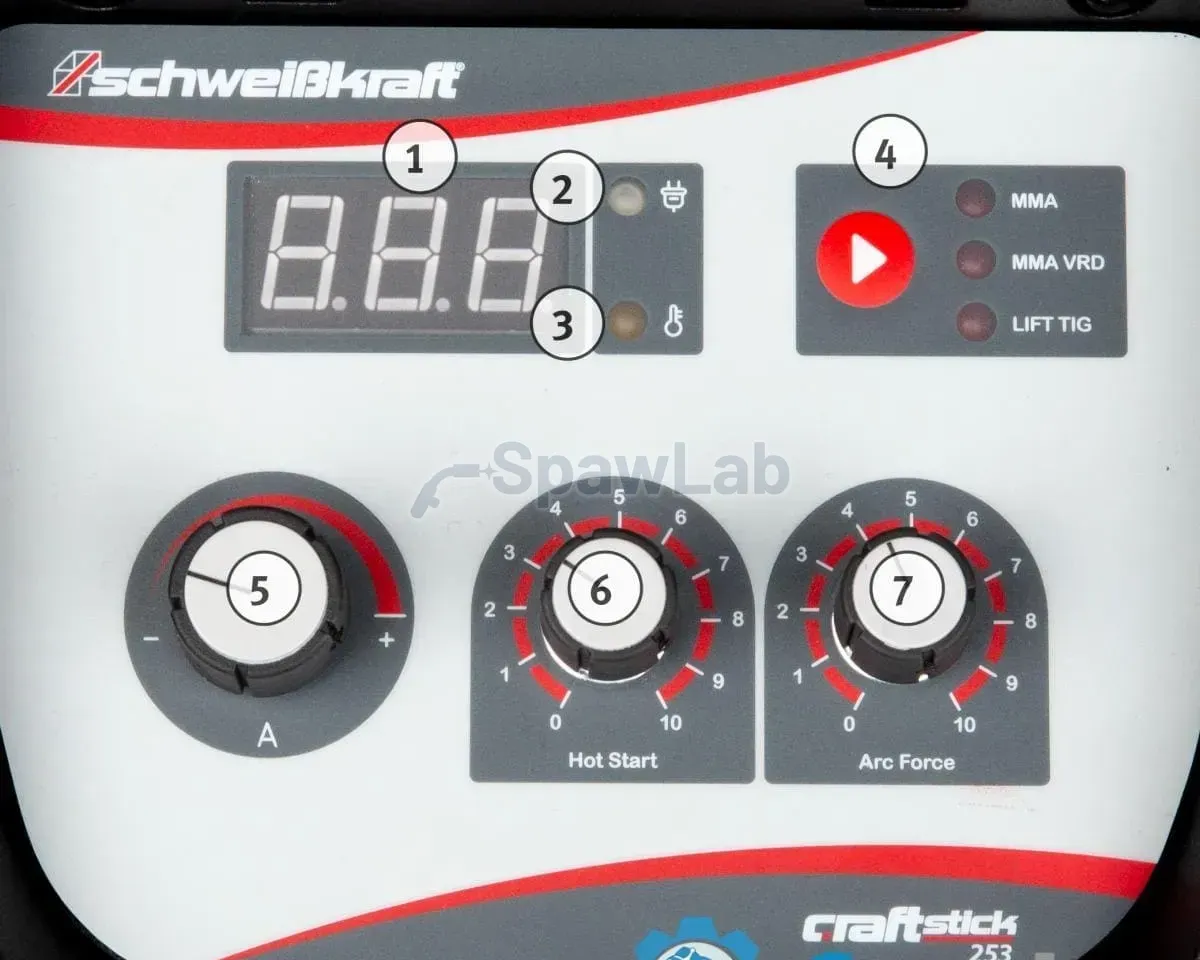

- Hot Start:With an adjustable, brief increase in welding current, the arc ignites safely and is immediately stable
- Anti-stick: If the electrode accidentally sticks, the welding current is automatically reduced, preventing the electrode from annealing
- WG DC LiftArc ignition
- Arc force control:Internal monitoring of welding current and voltage quickly and safely resolves short circuits. Adjustable current rise stabilizes the arc, and the electrode can be processed without problems.
- RD (Voltage Reducing Device): Reduction of voltage during no-load operation
Dimensions and weightsLength (product) approx.495mmWidth/depth (product) approx.190mmHeight (product) approx.350mmWeight (net) approx.11,8kgRange of adjustmentWork cycleDuty cycle at max current 40°C Electrode60%Duty cycle at 40°C max current DC TIG60%Current at ED 100% 40°C Electrode200ACurrent at ED 100% 40°C TIG DC200AElectrical dataSupply voltage400±10%VNetwork frequency50/60HzEnergy consumptionPower consumption electrode8,5kVATIG DC power consumption6,3kVAElectrical connectionGenerator power required>10kVAPositive line voltage tolerance10%Negative line voltage tolerance10%Open circuit voltageMMA 70.1/ TIG 69.4VConnection cable length2,2mCurrent-consuming electrode17,7ATIG energy consumption13,1ATotal power electrode10kVATotal TIG performance7,4kVA
- 3 m of 25 mm² welding cable with 300 A electrode holder
- 3 m of 25 mm² ground wire with 300 A ground terminal
