- Modern inverter technology
- TIG welding with LIFT arc ignition
- Suitable for use on generators, for example in workshops, schools, metal fabrication, on building sites or on farms

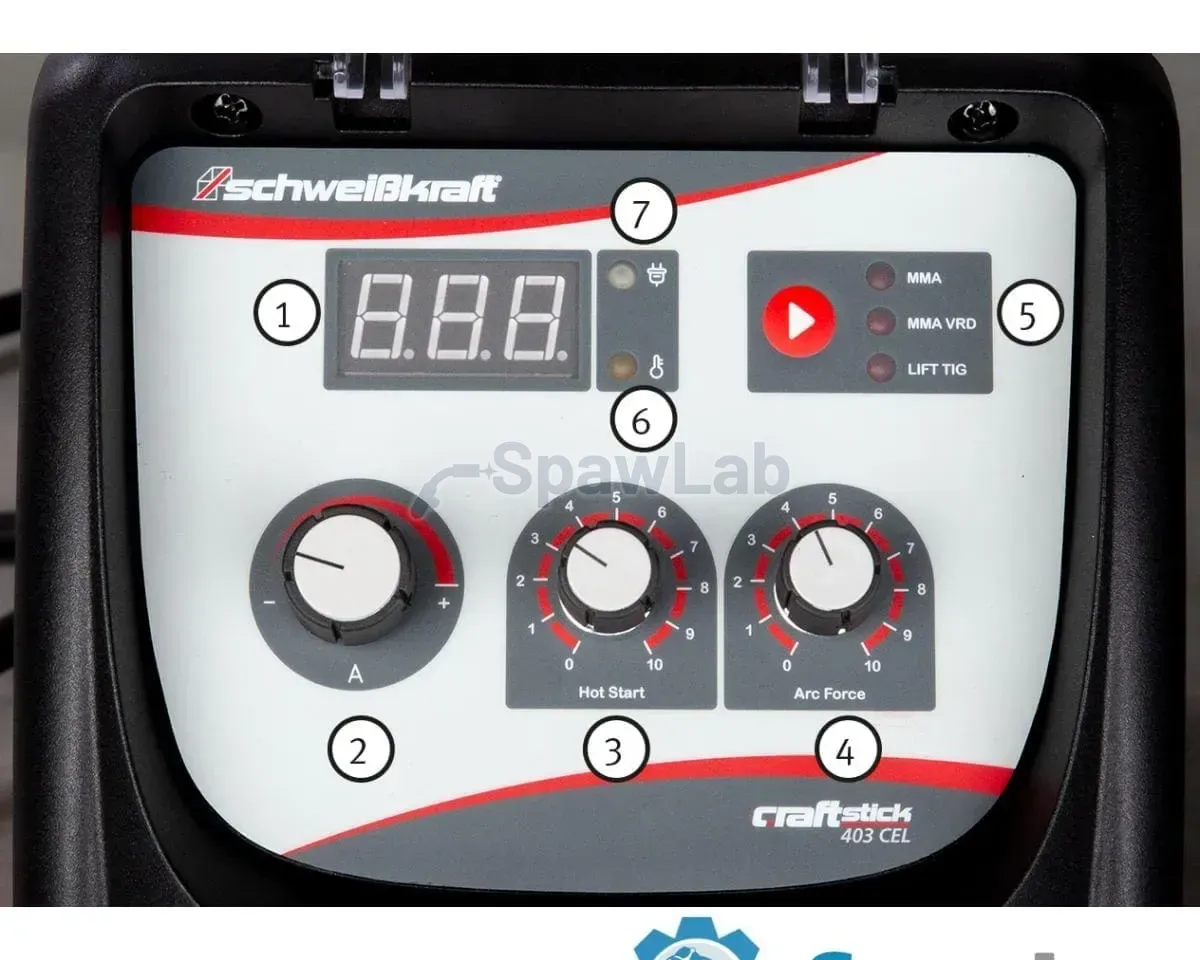

- Hot start: A short rise in welding current strikes the arc safely and the arc is stable at once
- Anti Stick: If the electrode sticks by accident, the welding current is reduced automatically and the electrode is kept from glowing out
- Arc force control: Internal monitoring of welding current and voltage clears a short circuit quickly and safely. The adjustable current rise stabilises the arc, so the electrode can be run without trouble.
- VRD (voltage reducing device): reduction of the open circuit voltage
Dimensions and weights
| Length (of product) approx. | 560mm |
| Width/depth (product) approx. | 240mm |
| Height (of product) approx. | 440mm |
| Weight (net) approx. | 21.7kg |
Duty cycle at max. current 40°C electrode
60%
Duty cycle at max. current 40°C TIG DC
60%
| Current at 100% duty cycle 40°C electrode | 310A |
| Current at 100% duty cycle 40°C TIG DC | 310A |
Supply voltage
400V
Mains frequency
50/60Hz
Power consumption
| Power input electrode | 16.4kVA |
| Power input TIG DC | 12.4kVA |
Electrical connection
| Required generator rating | >22.4kVA |
| Electrode current draw | 32.3A |
| Power consumption TIG | 25.1A |
| Electrode total power | 22.4kVA |
Total power TIG
17.3kVA
SCOPE OF DELIVERY
- Welding cable 3 m 50 mm² with 500 A electrode holder
- Earth cable 3 m 50 mm² with 500 A earth clamp
