Schweisskraft EASY-TIG 181 DC

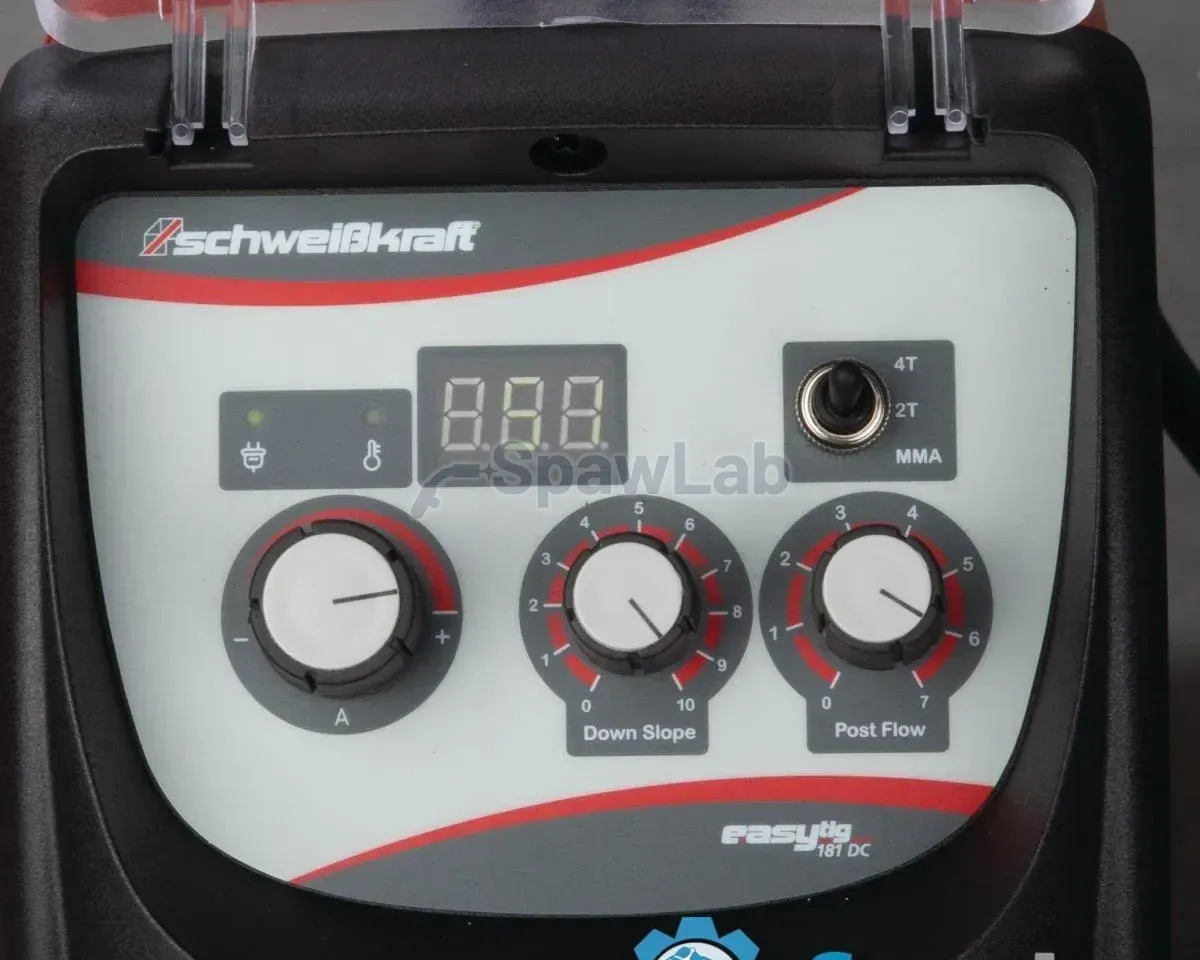

Schweisskraft EASY-TIG 181 DC, photo 3
Schweisskraft

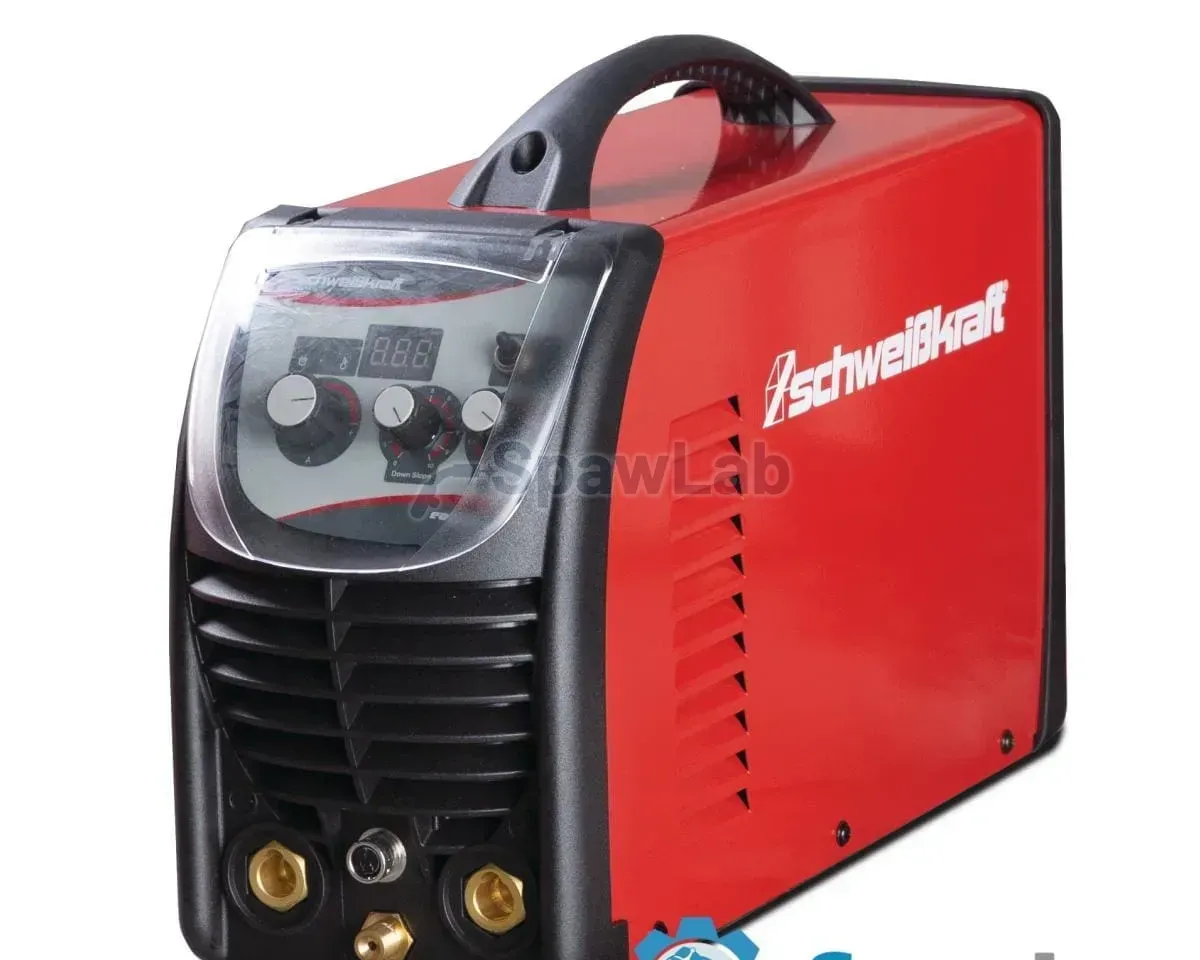

Schweisskraft EASY-TIG 181 DC

manufacturer warranty service with us
378.14 EURnet
465.11 EURgross

We ship within 2 working days.

International shipping: calculate the cost

Price for 1 unit, based on the carrier's price list. In the cart we calculate the exact cost for the whole order.

Courier in Poland and abroadin Poland EUR 6.98 net, dispatch within 2 working days
Service in Polandrepairs and parts with us
14 days to returnfor consumers
We help you choose+48 669 162 833
Ask us to help you choose
Description Specifications Complete your purchase Similar
Description

Who this machine is for

EASY-TIG 181 DC

For workshop and mobile use

  • All the units are built in modern inverter technology
  • Well suited to assembly work (on a ladder, on scaffolding and so on) and, thanks to protection class IP 21 S, generally also to work outdoors
  • Exact setting of the welding parameters on the digital display
  • Universal use for welding with all common electrode types
  • Suitable for use on a generator, for example in company workshops, schools, metal fabrication, on building sites or for farmers
  • TIG pulses allow welding with reduced heat input
  • High frequency HF ignition strikes the arc in TIG welding without touching the workpiece
  • A quiet fan carries heat out of the unit and in this way secures a long duty cycle
  • Three year Schweißkraft warranty

TECHNICAL DATA

Dimensions and weights

Length (of product) approx. 430mm
Width/depth (product) approx. 150mm
Height (of product) approx. 280mm
Weight (net) approx. 7.7kg

Setting range

TIG setting range 5200A
Electrode setting range 5200A
Duty cycle at max. current 40°C TIG 30%
Duty cycle at max. current 40°C electrode 30%
Current at 100% duty cycle 40°C TIG 120A
Current at 100% duty cycle 40°C electrode 120A
Supply voltage 230±10%V
Mains frequency 50/60Hz
Power factor 0.6cos phi
Power input TIG DC 32.9A

Electrode current input DC

47.2A

Unit data

Pulse frequency 0.5-200Hz
Ignition high frequency

Torch cooling

Gas

Power input TIG

4.7kVA

Electrode power input

6.9kVA

Electrical connection

Required generator output >10.8kVA
Positive mains voltage tolerance 10%
Negative mains voltage tolerance 10%
Open circuit voltage MMA 90.5/TIG 60.3V

Connection cable length

2.2m

SCOPE OF DELIVERY

  • Gas hose 4m with quick coupling
  • TIG torch 26, 4m
  • 3m earth cable 16mm² with earth clamp
  • 3m welding cable 16mm² with electrode holder
