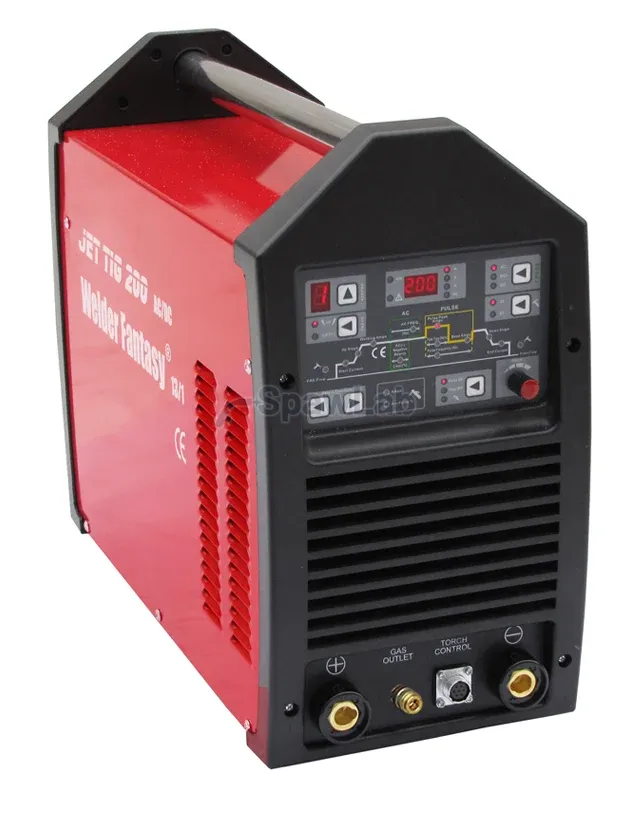

Inverter welder JET TIG AC/DC 200 IGBT Welder Fantasy with Parker torch

Inverter welder JET TIG AC/DC 200 IGBT Welder Fantasy with Parker torch, photo 2

Inverter welder JET TIG AC/DC 200 IGBT Welder Fantasy with Parker torch, photo 3

Inverter welder JET TIG AC/DC 200 IGBT Welder Fantasy with Parker torch, photo 8

Inverter welder JET TIG AC/DC 200 IGBT Welder Fantasy with Parker torch, photo 7

Inverter welder JET TIG AC/DC 200 IGBT Welder Fantasy with Parker torch, photo 6

Welder Fantasy

Inverter welder JET TIG AC/DC 200 IGBT Welder Fantasy with Parker torch

Name: Inverter welder JET TIG AC/DC 200 IGBT Welder Fantasy with Parker torch
Brand: Welder Fantasy
SKU: JET TIG I 200
Price: 813.95 EUR
Availability: OutOfStock

Part number: JET TIG I 200

Microprocessor controlled IGBT welding source for carbon steel, stainless and acid resistant steel and copper.

manufacturer warranty service with us

661.75 EURnet

813.95 EURgross

Out of stock

This product is out of stock right now, ask us about the delivery date

Temporarily unavailableask about the lead time

Service in Polandrepairs and parts with us

14 days to returnfor consumers

We help you choose+48 669 162 833

Ask us to help you choose

Description Specifications Complete your purchase Similar

Specifications

Technical data

Brand	Welder Fantasy
Current type	AC/DC
Welding current	200 A
Cooling	gas-cooled
Welding functions and modes	pulse

Supply voltage [V]	230
Power consumption TIG/MMA [kVA]	6,7/7,1
Fuse zwłoczne min [A]	20 typ C
Open circuit voltage MMA [V]	70
Welding current range MMA DC+ DC- [A]	5-160
Duty cycle MMA [%]	160A-60%/130A-100%
MMA ARC FORCE [%]	1-100
Welding current range TIG DC [A]	5-200
Welding current range TIG AC [A]	20-200
Duty cycle TIG [%]	200A-60%/160A-100%
Waveform	PROSTOKĄTNY
AC frequency control [Hz]	25-250
AC balance [%]	10-90
Gas pre / post flow AC/DC [s]	0-10/0-25
Start / end current DC [A]	5/150
Start / end current AC [A]	20/150
Prąd bazowy pulsu DC [A]	5-200 (max wartość prądu pracy)
Prąd bazowy pulsu AC [A]	20-200 (max wartość prądu pracy)
Pulse frequency [Hz]	0,5-250
Pulse modulation [%]	5-95
TIG arc ignition	HF (jonizator) / LIFT
Enclosure protection	IP21S
Insulation class	F
Dimensions [mm]	555x225x435
Weight [kg]	23/25

This model at Spawlab

Welder Fantasy JET TIG 200 AC/DC: 3 models, 2 available

See all: Welder Fantasy JET TIG 200 AC/DC The whole Welder Fantasy JET TIG series

Description

Who this machine is for

Technical data of this machine are in the table next to the description. The manufacturer's full description is in Polish, so ask us for the English datasheet and for advice on the configuration before you buy. New machine with manufacturer warranty, shipped across the European Union from Krotoszyn.
