Description

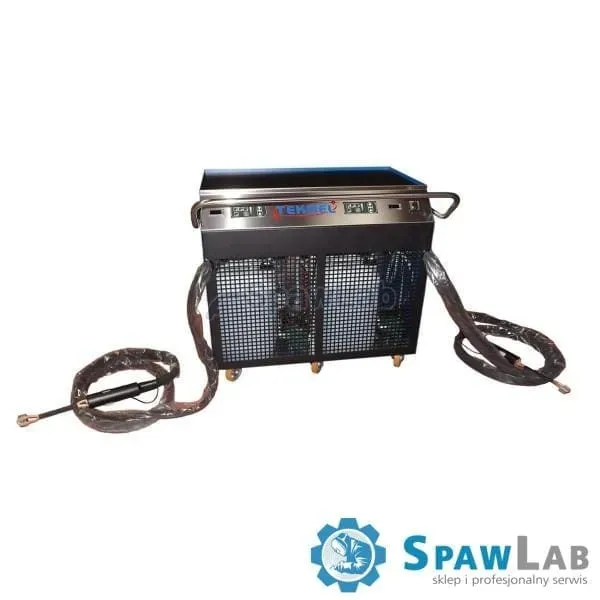

INDUCTOR DRAGON TWIN POWER 18 is a revolutionary induction heater for rapid flameless heating of ferrous metals and aluminum by induction. 3x400V power supply. Power 2x18kW.
Technical parameters
INDUCTOR DRAGON TWIN POWER 18 is a revolutionary induction heater for fast flameless heating of ferrous metals and aluminum by induction method.
Using the rules of electromagnetic induction, it can deliver a tremendous amount of heat to a specific spot in just a few seconds to a depth of 6mm. It heats metal to ‘red’ (temperature of about 1000˚C) in an area 10x40mm and 6mm thick in 1 second. By heating only the selected area, it does not damage glass, rubber, plastic parts and painted surfaces in the immediate vicinity of the heater’s operation.
Recommended for truck service for mechanical and accident repair and trailer repair.
It guarantees reduced repair time and maximum control of heating during operation. Unlike a gas burner – the induction heater, heating the metal only in a selected area to a temperature of 500-600˚C, does not change the technical characteristics of the steel.
Adjusting power in 10% increments.
Recommended for :
straightening shafts
straightening of structural beams
suspension repairs
straightening and bending of springs
straightening of frames even on trucks
works on brake lines
screw removals
dismantling of exhaust systems
dismantling of lambda probes
dismantling of steering knuckles, beams and other suspension presses
dismantling of shock absorbers
unscrewing screws and hub pins
unblocking of rusty parts
removal of old paint and varnish residues
hardening of steel
Power supply parameters
Three-phase power supply 3x400V.
Warranty conditions
Warranty 12 months for professional use. Warranty service is provided door-to-door without transportation costs on the user’s side.
Current drawn from the grid
46A
Rated supply voltage
3x400V; 50Hz/60Hz (3ph)
Length of complete cable
4 m
Tank capacity
25 liters
Type of cooling
liquid
Degree of protection
IP21
Overall dimensions L x W x H
101x64x95cm
Continuous operation time
more than 30 minutes at maximum power
Frequency
15-50 kHz adjustable automatically
Maximum power
2×18 kW
Heating power (temperature about 1000˚C)
10x40x6mm in 1 second (for each tip)
Adjustment steps
10, independent for each tip
