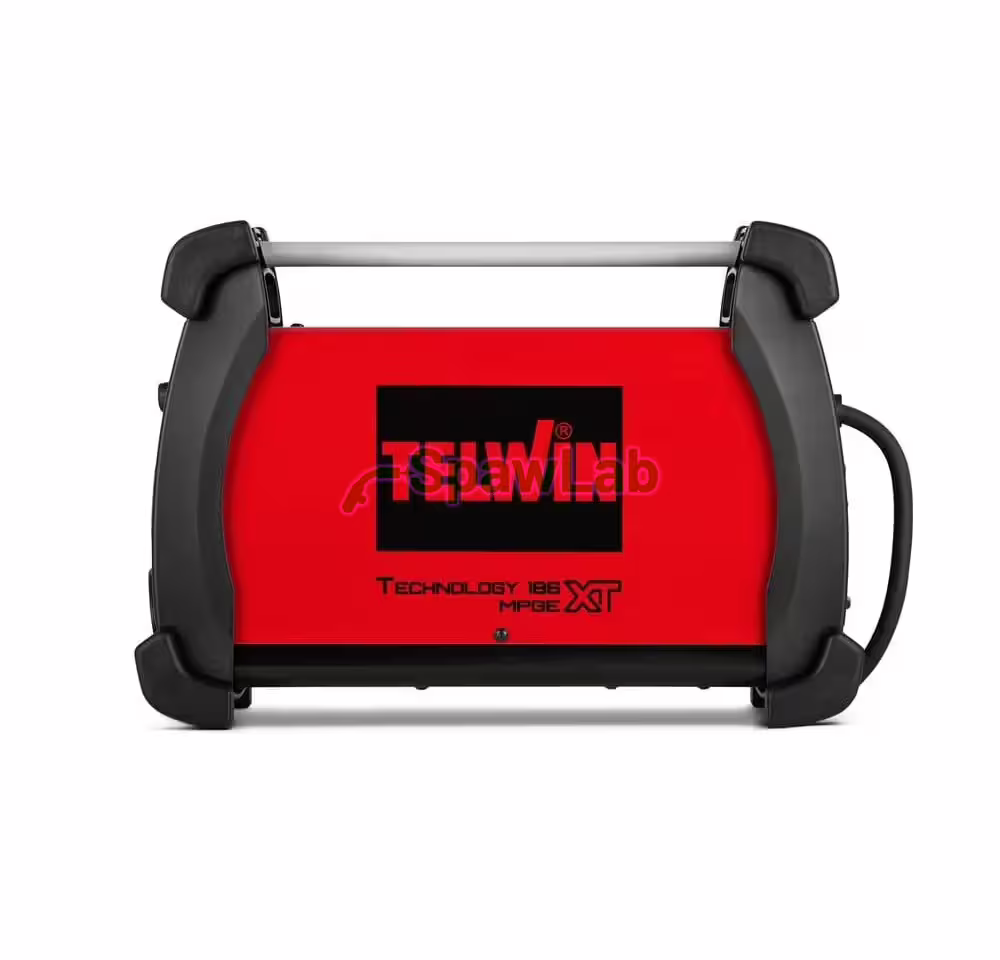

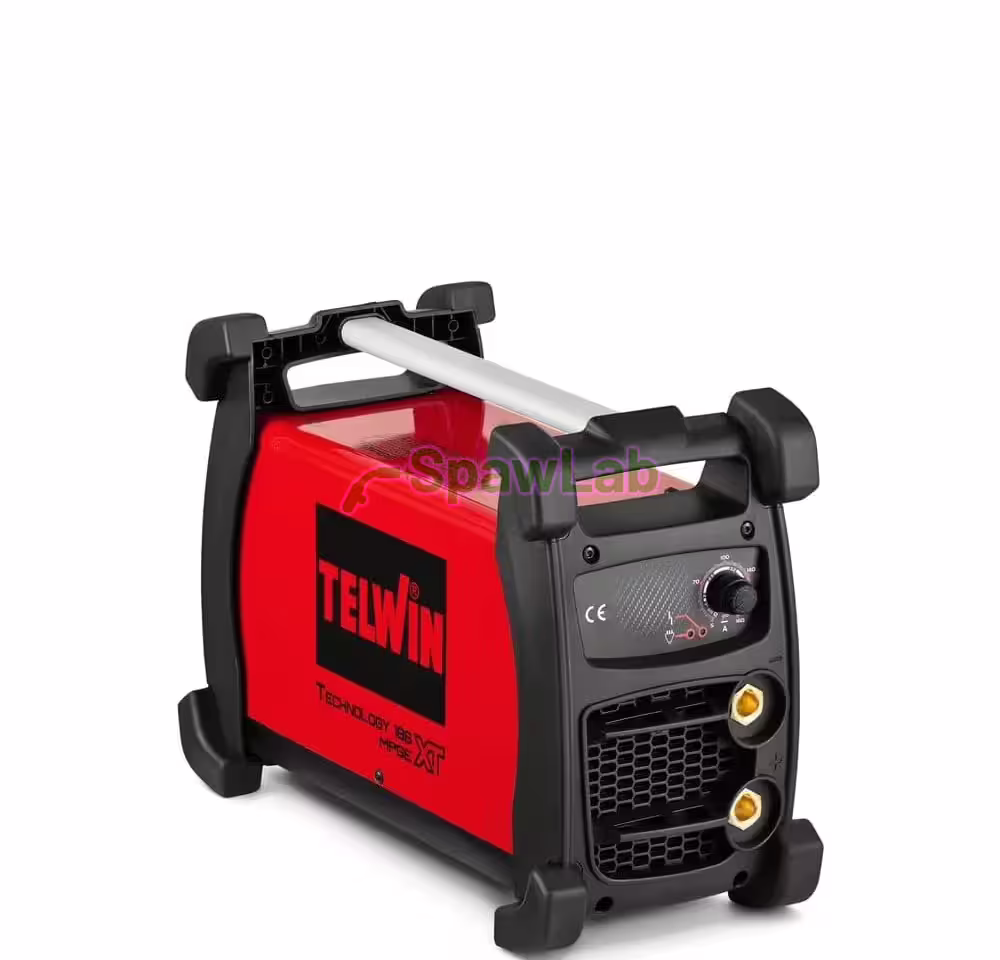

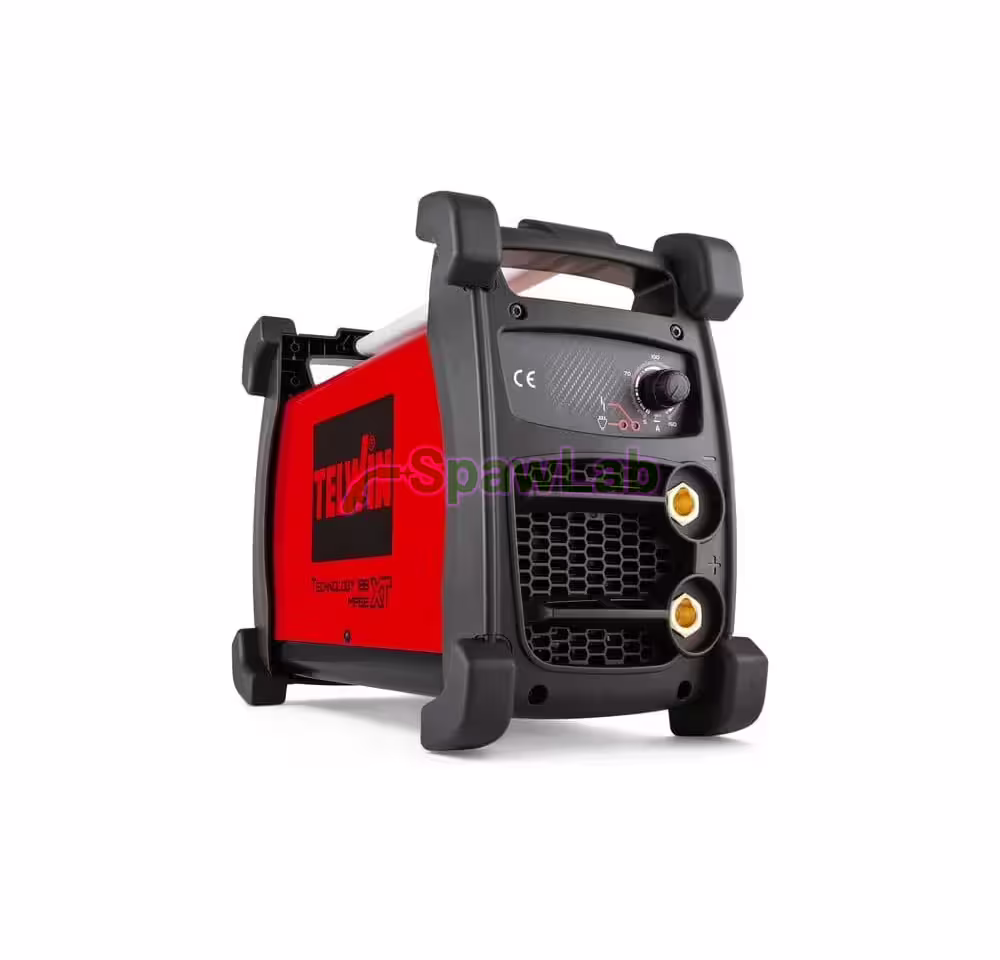

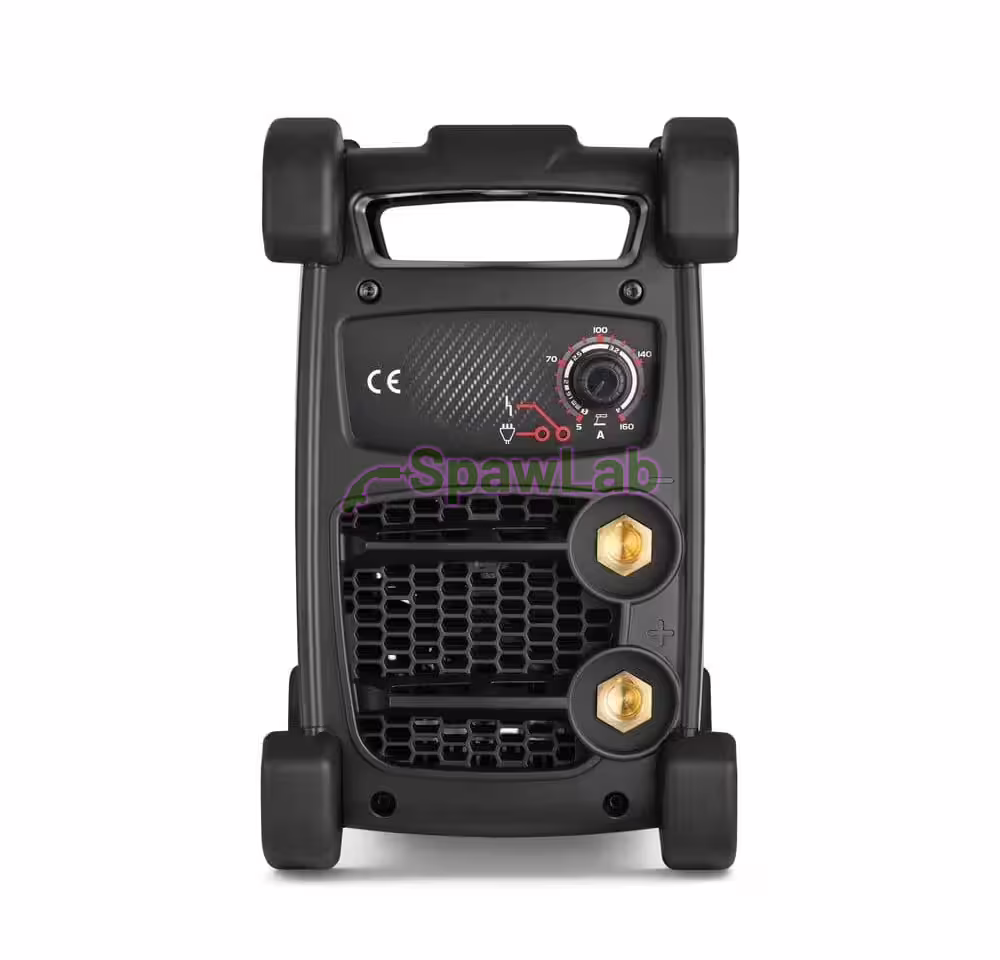

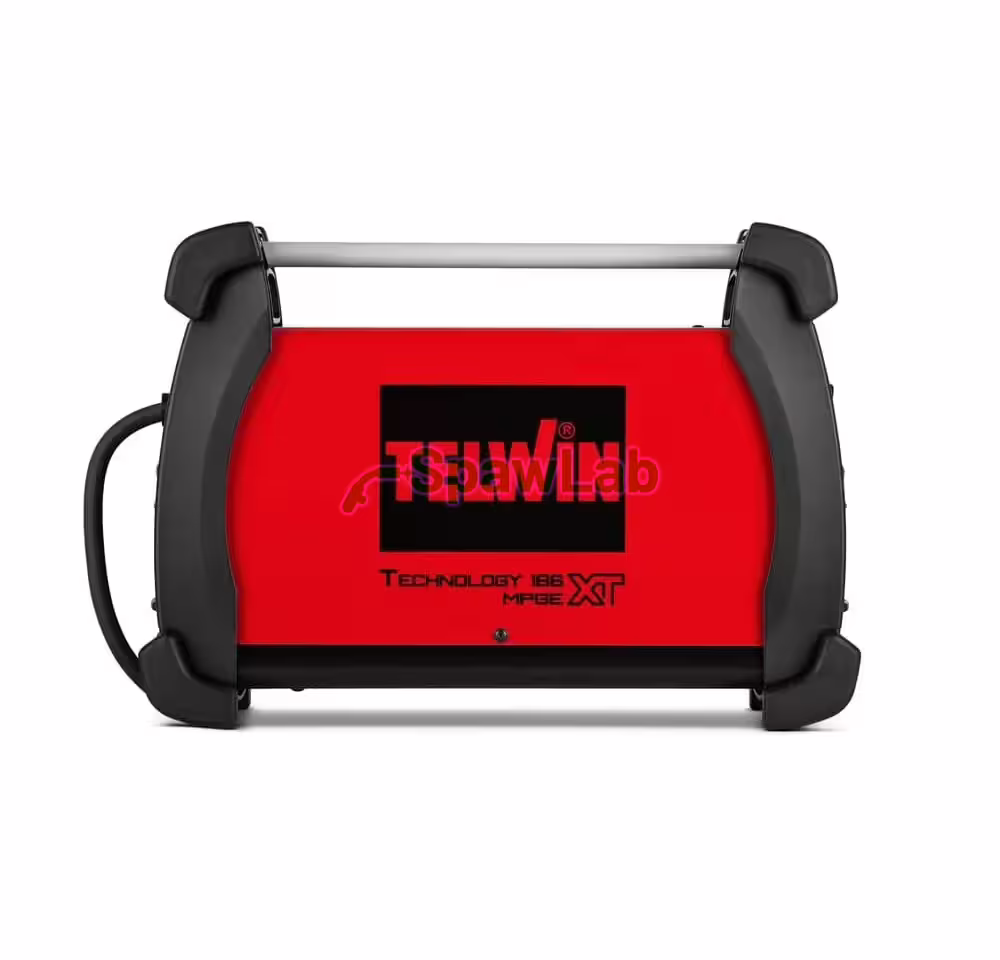

TELWIN TECHNOLOGY 186 XT MPGE 230V: Inverter Welding Power Ready for Site Work.
The TELWIN TECHNOLOGY 186 XT MPGE 230V inverter welder is built for professionals who work away from a stable mains supply. Picture the situation: you are on site, far from a fixed socket, and the deadline is close. You need a machine that delivers power and also works correctly from a generator, holding a stable arc and clean weld quality. That is where the TECHNOLOGY 186 XT MPGE earns its place, solving a problem welders meet every day.
MPGE technology (Multi Protection for Generator Engine) makes this model a dependable partner in hard conditions. Voltage swings and unsteady generator output are taken care of by protection circuits designed by Telwin engineers, which guard the machine and keep the MMA and TIG LIFT process continuous and accurate. It is a welder that lets you work calmly wherever the job takes you.
The compact, light housing holds power enough for demanding tasks. Simple operation, supported by Arc Force, Hot Start and Anti-Stick, makes welding in constrained positions and on difficult material considerably easier. The TELWIN TECHNOLOGY 186 XT MPGE saves time, cuts the number of reworks and raises the profitability of your work. Italian engineering designed around what the job actually needs.
The Capabilities of the TELWIN TECHNOLOGY 186 XT MPGE 230V

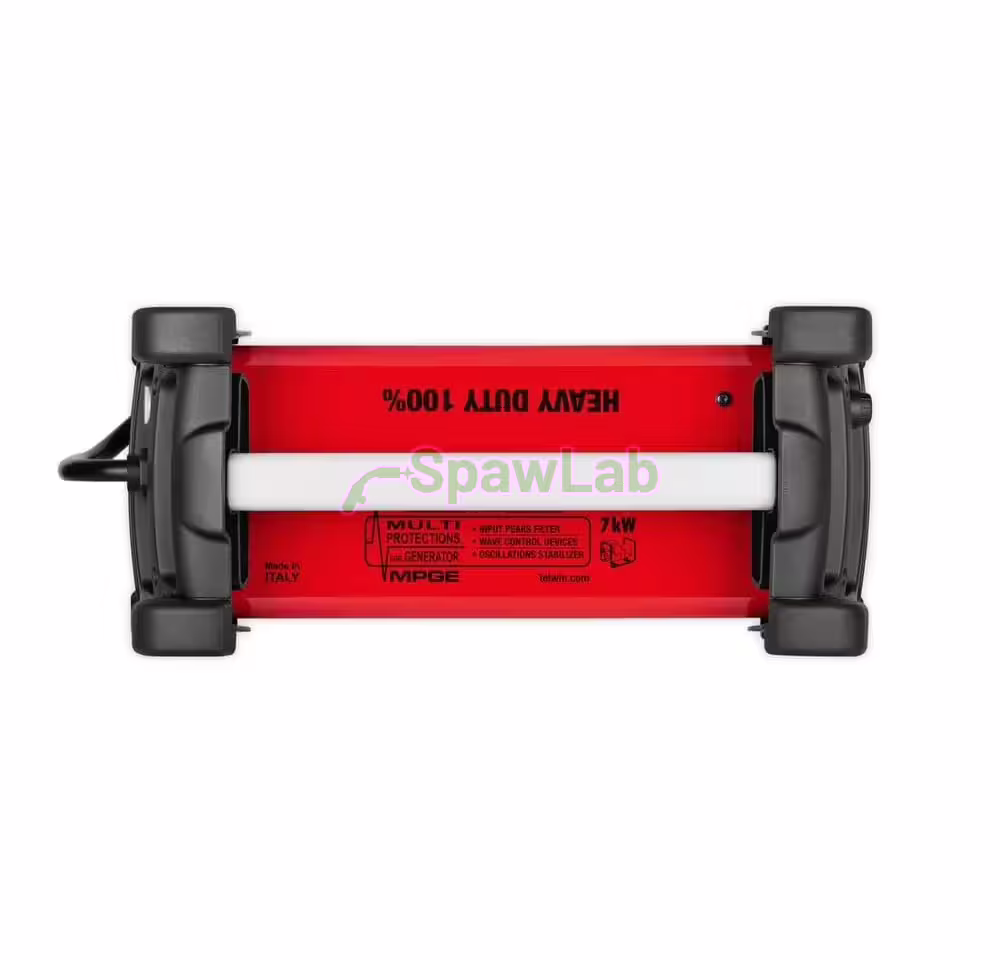

MPGE Technology: Protection When Running from a Generator
Site work often means running from a generator, and generator voltage is not always steady. The MPGE (Multi Protection for Generator Engine) system in the TELWIN TECHNOLOGY 186 XT matters to professionals who value reliability and safety. This microprocessor based system acts as a shield, protecting the sensitive electronics of the welder against voltage spikes, against a supply that is too low or too high and against other anomalies typical of some generators.
MPGE keeps the machine safe from damage and, just as important, holds a stable and undisturbed welding arc. The system filters and stabilises the supply, which shows in smooth welding and in weld quality comparable with work done from the mains. For you that means no more concern about generator compatibility, less risk of downtime and the certainty that your Telwin welder is ready to work in normal workshop conditions at full output and accuracy. That is the basis of efficient mobile work.
MMA Weld Quality: Arc Force, Hot Start and Anti-Stick Together
MMA welding with coated electrodes takes skill, and it also takes support from the machine. The TELWIN TECHNOLOGY 186 XT MPGE combines three functions that lift both the quality and the comfort of welding. Hot Start is a current boost at the moment of striking that makes the arc easier to establish, even with damp electrodes or a contaminated surface. No more awkward attempts to start the bead, the strike is sure and immediate.
Arc Force (arc dynamics) adjusts the welding current to the arc length in real time. As the arc shortens the current rises, which prevents the electrode sticking and gives deeper penetration. With a longer arc the current falls, stabilising it and reducing spatter. Anti-Stick drops the welding current the moment it detects the electrode sticking, so it can be freed without damaging the material or the electrode. For the professional this means close control over the process, smoother and more even beads, less cleaning afterwards and the option to weld in difficult positions at full quality.
Mobility and Durability: A Partner for Site and Workshop
The TELWIN TECHNOLOGY 186 XT MPGE was designed for welders who need a dependable tool in a fixed workshop and on assembly work in the field alike. Its compact dimensions and low weight (about 6.3 kg for the machine alone) make it easy to handle. It fits into a service van without trouble, and carrying it to the work position is no challenge, even on large sites or at height.
Solid construction and a protection class of IP23 show what it is built for. That means protection against solid bodies larger than 12.5 mm and against water sprayed at up to 60° from the vertical. Additional thermal, overvoltage and undervoltage protection guards the machine against damage and supports a long, trouble free service life. For a professional who changes work location often and works in varied surroundings, that mix of mobility and durability means the equipment keeps up with daily demands and serves for years.
Technical Specification
| Parameter | Value |
|---|---|
| Catalogue number | 816150 |
| EAN code | 8004897165707 |
| Supply voltage | 230V (1ph 50/60Hz) |
| Welding current adjustment range | 10 - 160 A |
| Maximum welding current (MMA) | 160 A |
| Duty cycle (EN60974-1 at 40°C) | 160 A @ 30% ; 120 A @ 60% |
| Coated electrode diameter (MMA) | 1.6 - 4.0 mm (rutile, basic, stainless, cast iron) |
| Open circuit voltage | 72 V |
| Maximum current drawn from the mains | 31 A |
| Maximum power drawn from the mains | 4.7 kW |
| Minimum generator power | 6 kW |
| Protection class | IP23 |
| Dimensions (L x W x H) | 380 x 420 x 170 mm (with case and accessories, indicative) |
| Machine weight | approx. 6.3 kg (welder alone) |
| Set weight (with case and accessories) | approx. 7.3 kg |
| Protections | thermal, overvoltage, undervoltage, overload, MPGE system |
Key Features and Benefits
- MPGE System (Multi Protection for Generator Engine): A microprocessor controlled multiple protection system that keeps the welder running safely and steadily from generators. It monitors and compensates voltage swings and current peaks, protecting the internal components of the machine. For the professional it means freedom to work on site, no risk of damaging the welder through an unsteady supply and reliable weld quality even in the hardest conditions, without downtime or unplanned cost.
- Dynamic Arc Control (Arc Force, Hot Start, Anti-Stick): The machine carries functions that work together to optimise the MMA process. Hot Start makes striking easier by raising the current briefly at the start of the weld. Arc Force adjusts the welding current to the arc length automatically, stopping the arc from going out and keeping it stable, especially with a short arc. Anti-Stick reduces the risk of the electrode sticking to the material by lowering the current. For the welder that is an easier start, smooth electrode travel, less spatter, deeper penetration and fewer weld defects, which makes the work faster and cleaner.
- MMA and TIG LIFT Versatility: The TELWIN TECHNOLOGY 186 XT MPGE welds with a broad selection of coated electrodes (rutile, basic, stainless, cast iron) up to 4.0 mm in diameter. With the TIG LIFT function, which strikes the arc by scratching, it also handles accurate TIG welding of stainless steel, carbon steel and copper. The professional gets one machine for varied tasks, from quick repairs to more demanding structural and decorative work, without buying several specialised units.

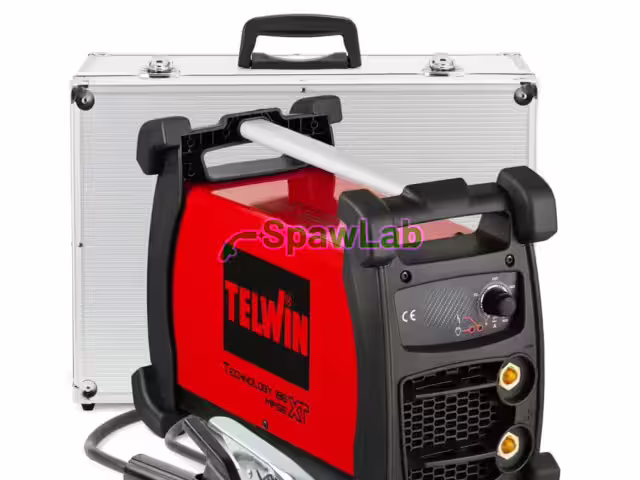

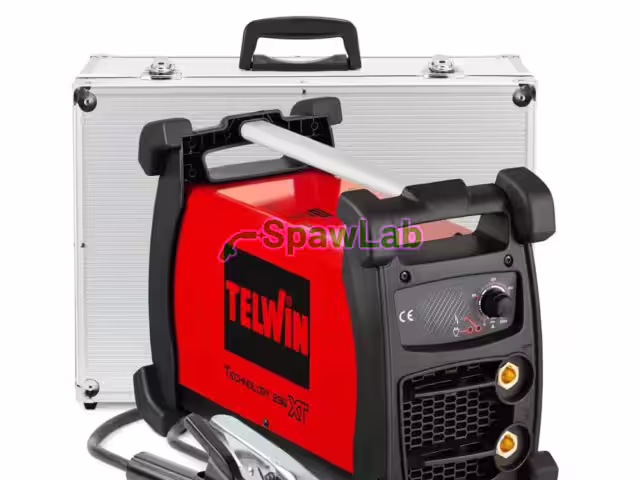

- Compact and Light Construction: Despite its output and its functions, the welder is small and light (approx. 6.3 kg for the welder alone). Together with the ergonomic handle and the sturdy carrying case often supplied with it, that gives real mobility. For the tradesman it means easy transport to the work site, comfortable handling in tight spaces and less fatigue when moving the equipment, which counts on assembly and service work in the field.
- Telwin Durability and Reliability: The machine was designed to work in demanding conditions, as the IP23 protection class confirms. A solid housing, quality components and the several protection circuits (thermal, overvoltage, undervoltage, overload) support a long working life and the reliability the Telwin brand is known for. For the professional that is confidence the equipment will not fail at the critical moment, with less risk of breakdown and downtime, which keeps the work running and protects the investment.
Product Applications
- Assembly and installation work in the field (balustrades and light steel structures, for example)
- Repair and maintenance of industrial and agricultural machinery and equipment
- Welding structural elements on building sites (where a generator is available)
- Workshop work: small batch production, repairs, metalwork services
- Welding pipelines and installations (carbon and stainless steels)
- Construction and repair work in shipbuilding (light work)
- Making decorative and functional metal structures
- Suited to demanding hobbyists and home users who need dependable equipment
Summary: TELWIN TECHNOLOGY 186 XT MPGE 230V - Your Best Investment
The TELWIN TECHNOLOGY 186 XT MPGE 230V is more than a welder, it is a dependable partner in professional work. MPGE technology lets you run from a generator without concern, with a stable arc and clean weld quality. Its versatility (MMA and TIG LIFT) and the functions that support MMA welding make the work faster, easier and more efficient. Mobile, durable and productive, it is an investment that returns quickly.
Do not let equipment limits hold your work back. Choose the TELWIN TECHNOLOGY 186 XT MPGE and weld with confidence wherever you are. Contact us today to learn more and join the professionals who already work with it.
Catalogue number: 816150
EAN code: 8004897165707
