Inverter welder TELWIN TECHNOLOGY 238 XT MPGE: professional power and reliability under normal workshop conditions.
The TELWIN TECHNOLOGY 238 XT CE/MPGE is an MMA inverter welder that sets a new standard for mobile work, for professionals and for demanding enthusiasts. Built for heavy use in hard conditions, this machine is a reliable partner wherever precision, power and uninterrupted work count. You can run complicated welding jobs on site without worrying about the stability of the supply from a power generator: with the MPGE system the TECHNOLOGY 238 XT holds its working parameters and protects itself against voltage swings.
This welder is a piece of Italian TELWIN engineering that brings compact dimensions together with output up to 200A. Whether you work on steel structures, do assembly work, repair machines or handle precise tasks in the workshop, the TECHNOLOGY 238 XT delivers a steady arc and good weld quality. Trouble with striking the arc or with a sticking electrode is handled by Arc Force, Hot Start and Anti-Stick, which tune the process automatically so you can concentrate on the job.

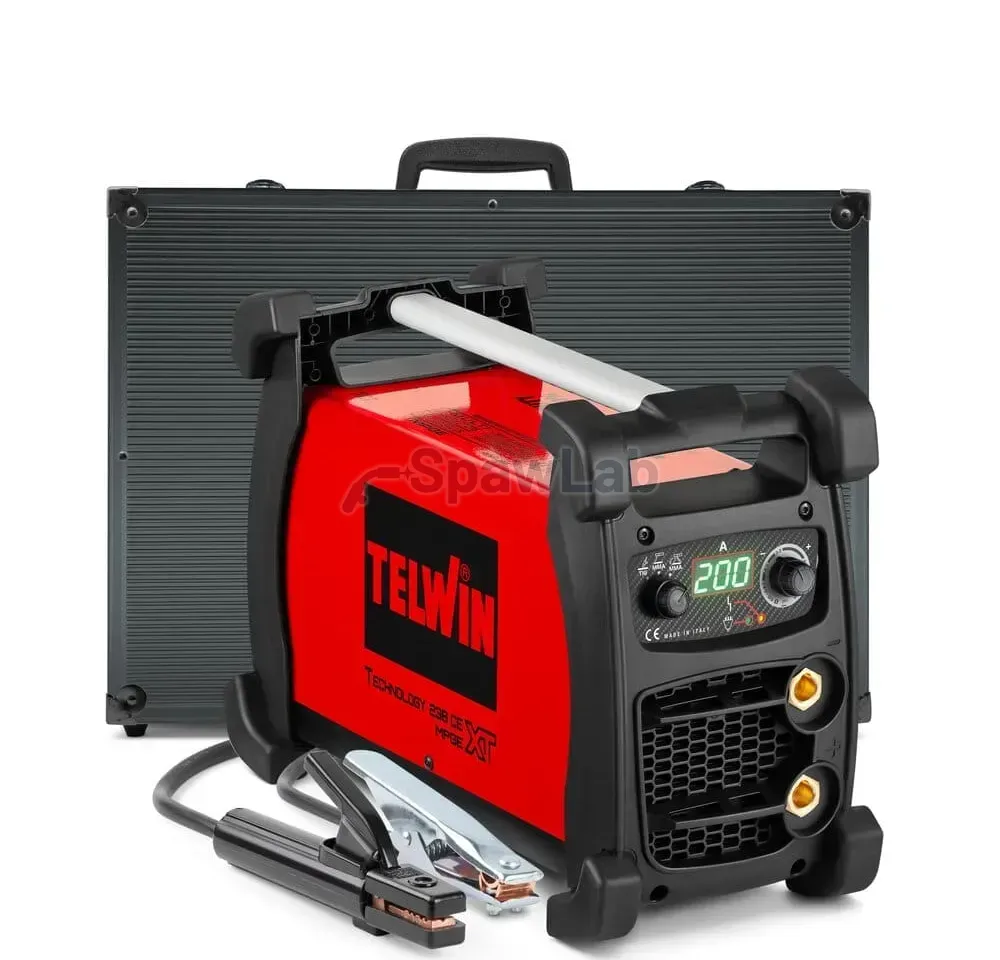

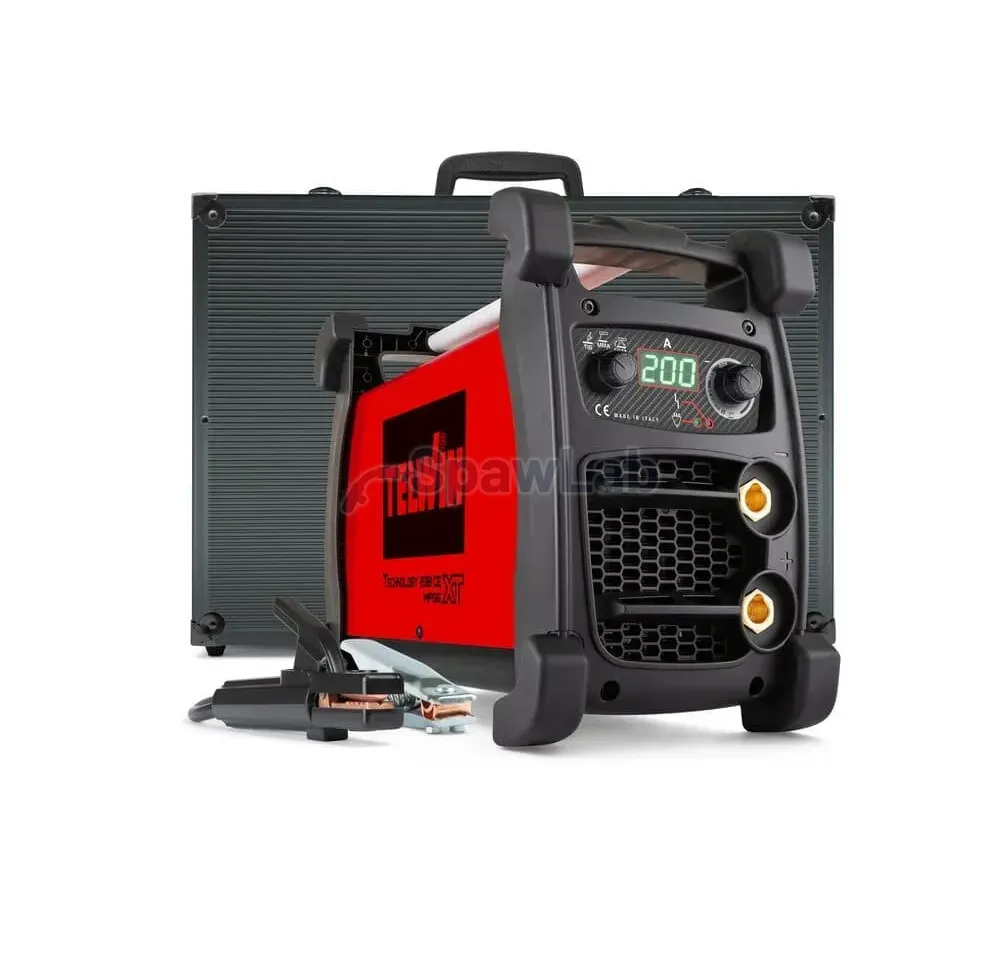

The solid case included (ACX+CASE) makes transport and storage easier and protects the machine against mechanical damage. The light and at the same time sturdy build makes this welder a good choice for mobile service teams and for welders who value freedom of movement. With the TELWIN TECHNOLOGY 238 XT, welding with rutile, basic, stainless and cast iron electrodes becomes simpler, faster and more effective.
This is not only a tool, it is your entry to professional welding without compromise. With the TELWIN TECHNOLOGY 238 XT CE/MPGE you invest in reliability, output and technology that handles every task and raises the standard of your work.
What the TELWIN TECHNOLOGY 238 XT CE/MPGE 230V ACX+CASE can do
Reliable work from a generator: MPGE technology in the TELWIN 238 XT
Work on site often means using a power generator, and a generator does not always deliver a stable voltage. The TELWIN TECHNOLOGY 238 XT welder carries an advanced MPGE system (Multi-Protection for Generator) that answers this problem. This intelligent electronic circuit works as a guard, watching and correcting the supply parameters in real time.
The MPGE system gives protection on several levels for the welder itself and for the welding process. First, it filters interference and voltage peaks coming from the generator. Second, it compensates voltage swings and holds a steady welding arc even with an unstable power source. Third, it protects the internal components of the welder against damage from a poor supply. For a professional welder this means work without stress at any location, welds of high quality and a much longer service life of the machine. You no longer need to wonder whether your generator and the welder will get along, the TELWIN 238 XT with MPGE is ready for it.
Intelligent arc support: Arc Force, Hot Start and Anti-Stick for clean welds
The TELWIN TECHNOLOGY 238 XT is not only raw power, it also supports the welder intelligently. The built in functions Arc Force, Hot Start and Anti-Stick are a trio that changes MMA welding, making it easier, more effective and better in result.
Hot Start is a function that delivers a pulse of higher current at the moment the arc is struck. The arc lights at once and surely, even with electrodes that are hard to strike, for example basic ones, or on slightly dirty or cold surfaces. This reduces the risk of the electrode sticking at the start.
Arc Force (arc dynamics) works during welding and raises the current automatically when the arc gets shorter, for example when the welder brings the electrode closer to the material. This keeps the arc from fading and the electrode from sticking, and makes it easier to hold a steady process, above all in constrained positions or with a short arc, which is decisive for the right penetration.
Anti-Stick steps in when the electrode does stick to the material. The system cuts the welding current to a minimum at once, which prevents overheating and damage to the electrode and makes it easy to free without harming the workpiece. For a professional these functions mean more control over the process, better weld quality, fewer corrections and a real saving of time and material.
Mobility, strength and versatility: a partner for the professional
The TELWIN TECHNOLOGY 238 XT CE/MPGE was designed for professionals who need mobility, strength and versatility. Its compact dimensions and fairly low weight of about 6.5 kg for the machine alone make it easy to carry and no great load, even when working at height or in places that are hard to reach.
Included in the set (ACX+CASE), the solid plastic case is not only convenient for transport but above all effective protection against mechanical damage, dust and damp during storage and while moving between jobs. The IP23 protection rating also confirms that the welder suits demanding workshop and site conditions.
The versatility of the TECHNOLOGY 238 XT shows in welding with a broad selection of covered electrodes (MMA), rutile, basic, stainless and cast iron types, in diameters from 1.6 mm to 4.0 mm, and even 5.0 mm in favourable conditions. The welder therefore fits many uses: light structural and repair work, metalwork, and harder tasks in industry or farming. One machine covers many jobs and delivers reliability and very good welding results under normal workshop conditions.
Technical specification
| Parameter | Value |
|---|---|
| Full name | TELWIN TECHNOLOGY 238 XT CE/MPGE 230V ACX+CASE |
| Catalogue number | 816258 |
| EAN code | 8056590374061 |
| Supply voltage | 230V - 1 ph (+/-15%) |
| Mains frequency | 50/60 Hz |
| Maximum current drawn from the mains | 38 A |
| Maximum power draw | 5.6 kW |
| Minimum generator output | 10 kW |
| Mains fuse | 16 A |
| Power factor (cos φ) | 0.7 |
| Open circuit voltage (no load) | 75 V DC |
| Welding current range | 10 - 200 A DC |
| Duty cycle (to EN60974-1 at 40°C) | 200 A @ 35% ; 140 A @ 60% |
| Covered electrode diameter (MMA) | 1.6 - 4.0 mm (up to 5.0 mm for some uses) |
| Supported electrode types | rutile, basic, stainless, cast iron |
| Enclosure protection rating | IP23 |
| Protections | thermostatic, overvoltage, undervoltage, overcurrent, MPGE system |
| Dimensions (l x w x h) | 380 x 420 x 170 mm (machine, approximate) |
| Machine weight | approx. 6.5 kg (without accessories and case) |
Key features and benefits
- MPGE system (Multi-Protection for Generator): This technology protects the welder on several levels while it runs from a power generator. It controls the shape of the supply voltage wave, filters interference and compensates swings, which keeps the welding parameters steady. For a professional this means freedom to work on site without risking damage to costly equipment, even with an unstable supply. You gain certainty of operation and a longer service life of the welder.
- Dynamic arc functions (Arc Force, Hot Start, Anti-Stick): Intelligent systems that support MMA welding. Hot Start raises the current at the start of welding and makes arc striking easier, even with difficult electrodes or dirty surfaces. Arc Force adjusts the welding current dynamically, keeps the arc from going out and holds it steady with deeper fusion, above all with a short arc. Anti-Stick cuts the current to a minimum when the electrode sticks to the material, preventing overheating and making it easy to free. The result is smoother and stronger welds, less spatter and much better working comfort.
- Welding power and output: A welding current up to 200A with a solid duty cycle (35% @ 200A, 60% @ 140A at 40°C) allows welding of many materials, among them carbon and stainless steel and cast iron, with electrodes up to 4.0mm and even 5.0mm. For a professional this means demanding structural and assembly jobs without breaks to cool the machine, which raises productivity.
- Mobility and strength for professional use: A compact, light build together with a solid transport case (ACX+CASE) makes the TECHNOLOGY 238 XT a good tool for welders working at different locations. The machine is easy to carry and the case protects it against mechanical damage and weather. Your equipment is always ready for work, wherever you need it.
- Versatility in electrode use: Welding with many types of covered electrodes, rutile, basic, stainless and cast iron, makes this welder a universal tool. A professional will value the freedom in choosing materials and welding techniques, which allows different projects, from precise repairs to solid structures.
- Quality and reliability of the TELWIN brand: Made in Italy, the TECHNOLOGY 238 XT stands for high build quality, durability and advanced technology. TELWIN is a brand with long experience, valued by professionals around the world. This product gives you reliable operation for years, even under heavy use.
Applications
- Assembly and installation work on site (halls, pipelines, structures)
- Advanced metalwork and production of steel structures
- Repair of farm and construction machinery and heavy equipment
- Maintenance and overhaul work in industrial plants
- Building and repair of small vessels (repair shipyards)
- Mechanical and sheet metal workshops (welding of load bearing parts and frames)
- Advanced hobby and artistic projects that need strong welds
Summary: TELWIN TECHNOLOGY 238 XT CE/MPGE 230V ACX+CASE - a sound investment
The TELWIN TECHNOLOGY 238 XT CE/MPGE is more than a welder, it is a guarantee of professional work, reliability and versatility in your hands. With MPGE technology you can work from a power generator without concern, and the arc functions give you clean welds with little effort. Do not let equipment limits hold back what you can do.
Choose the TELWIN TECHNOLOGY 238 XT and see the difference Italian quality and invention make. Invest in a tool that handles the heaviest jobs and will serve you for years. Order today and take your welding to a higher level.
Catalogue number: 816258
EAN code: 8056590374061
