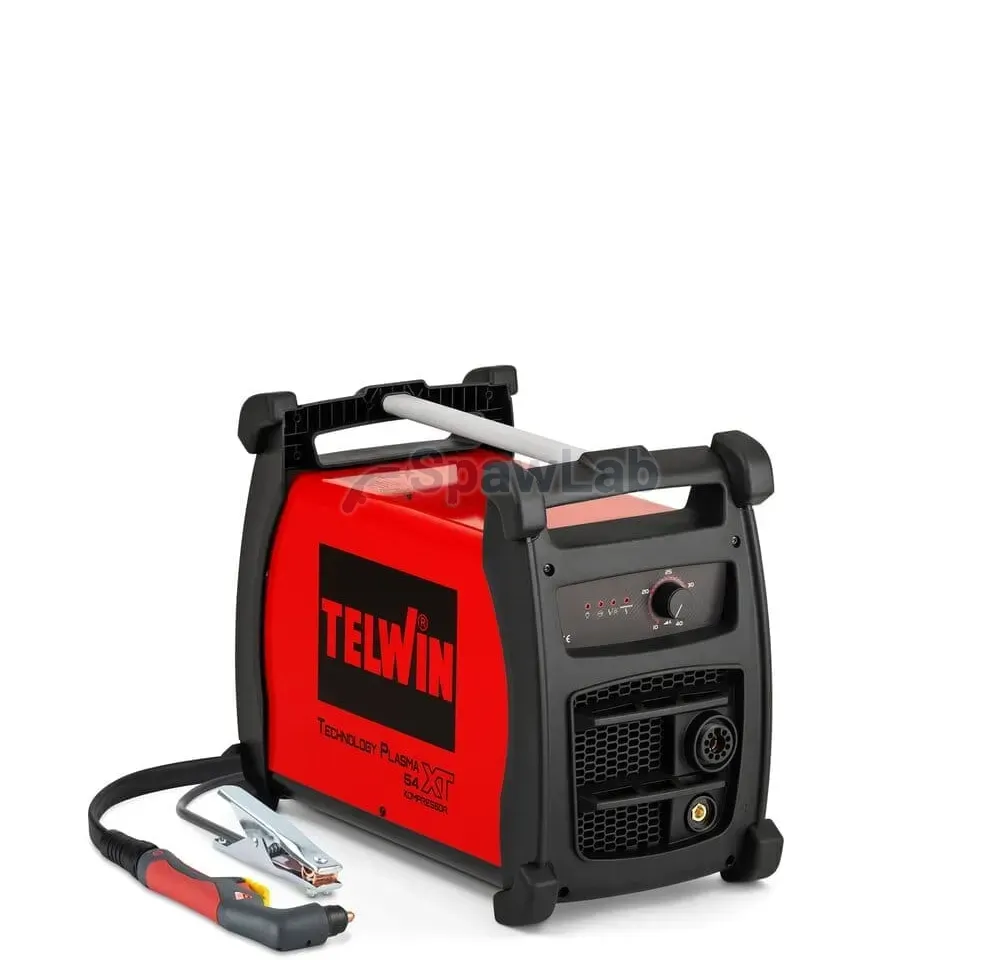

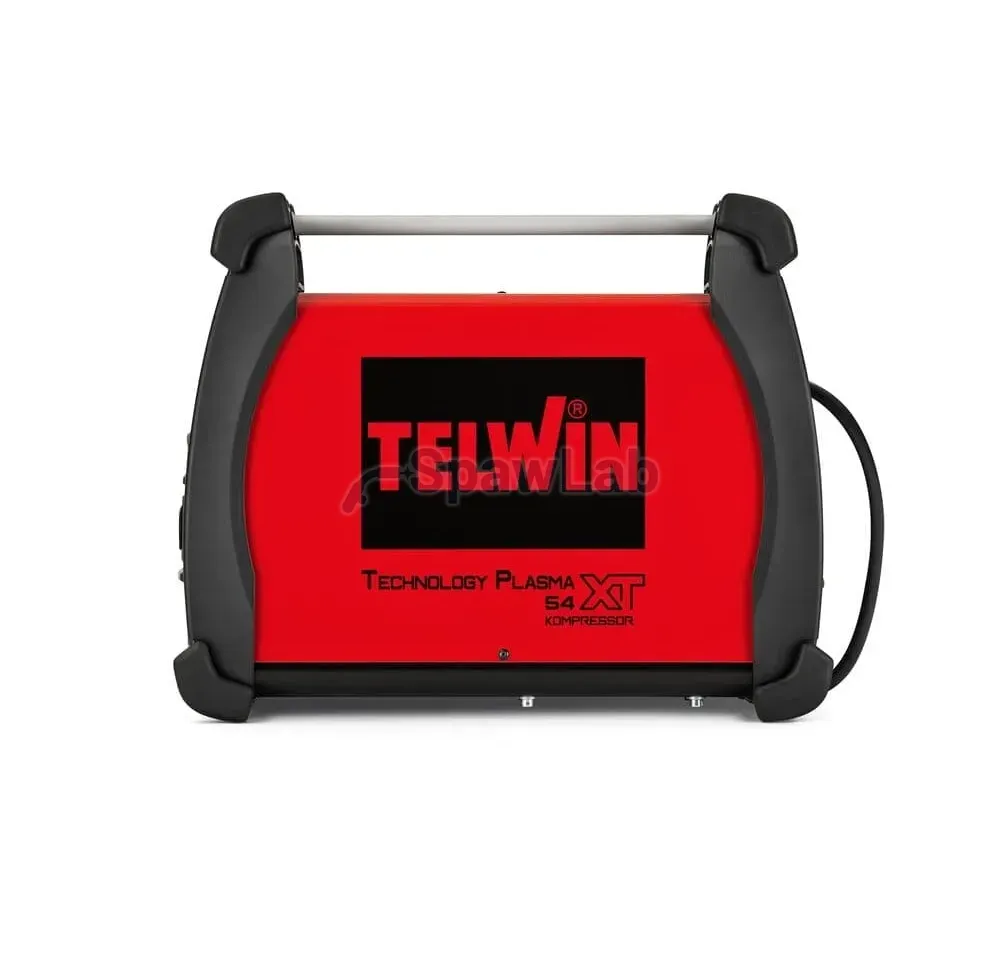

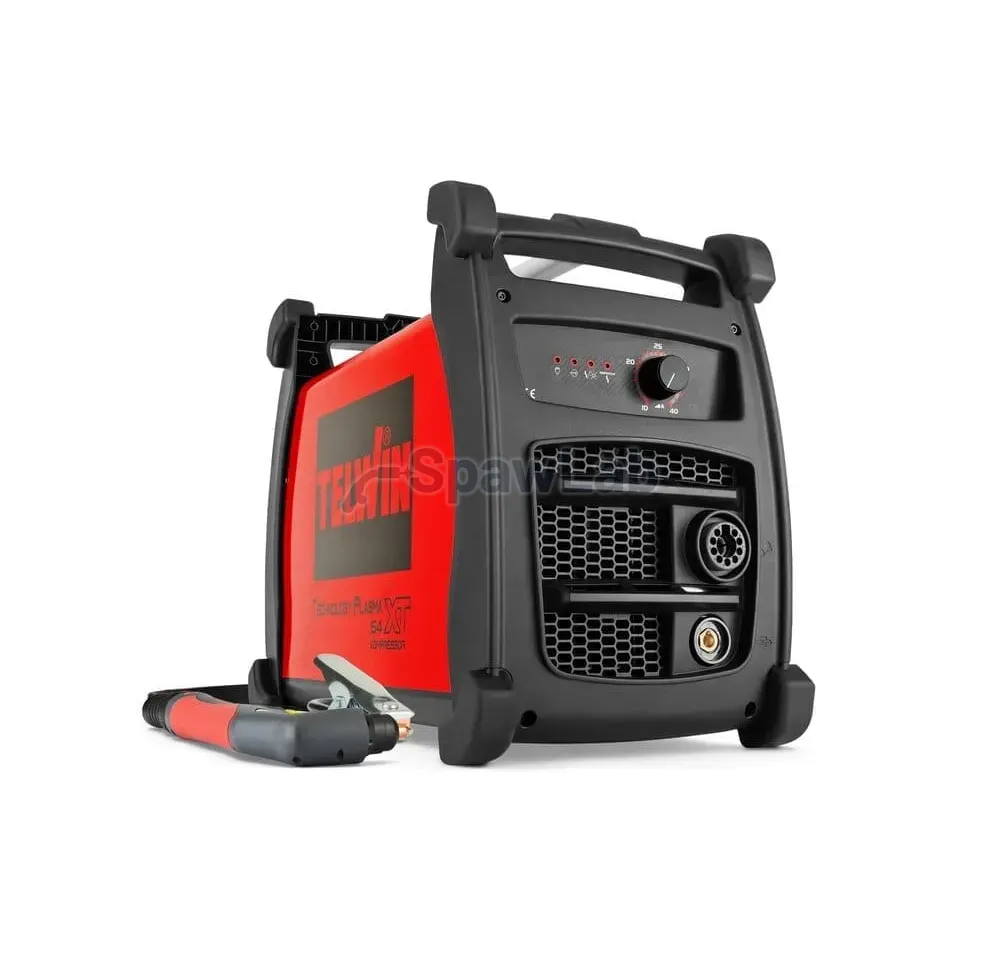

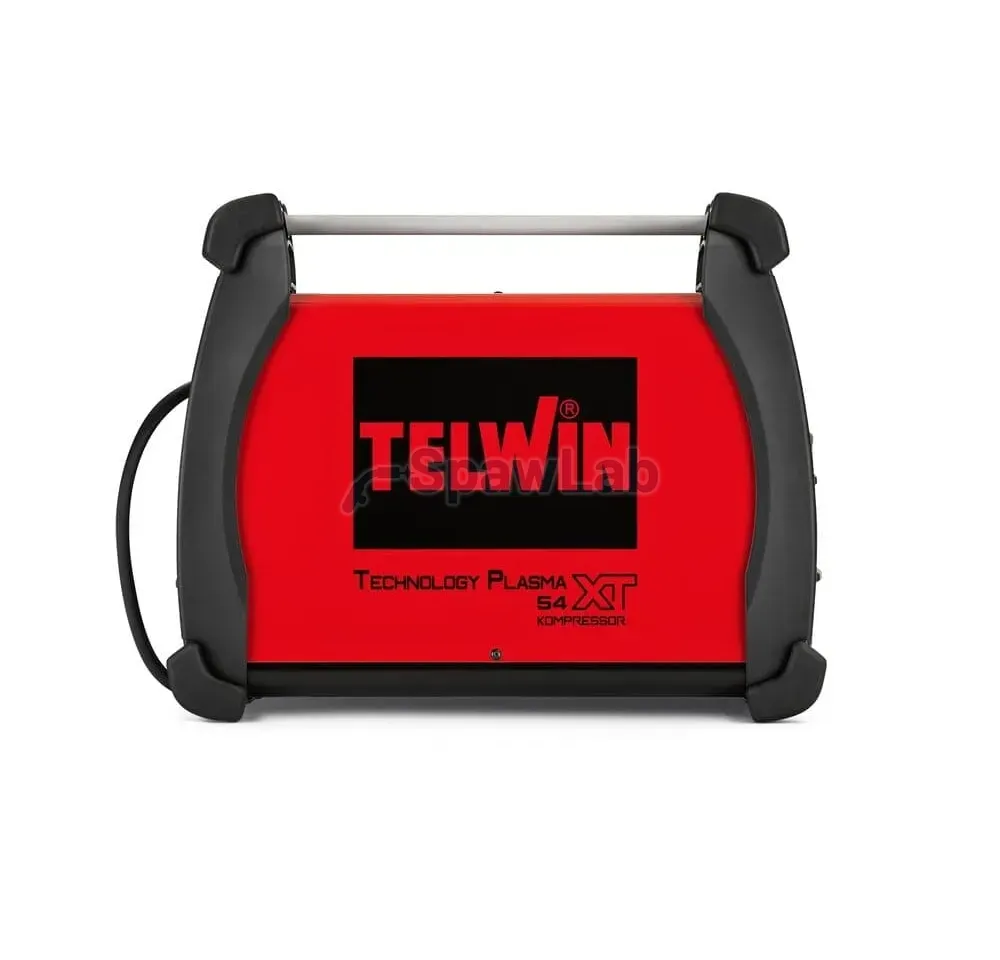

Telwin Technology Plasma 54 XT Kompressor: Your Portable Plasma Cutting Power Wherever You Need It.
Full freedom of work, whatever the access to an external supply of compressed air. No limits and no compromises. The Telwin Technology Plasma 54 XT Kompressor plasma cutter is a solution for professionals and demanding users who value mobility, reliability and cut quality. This model is Italian engineering, designed for intensive use in hard conditions.
Thanks to the integrated high output compressor, the Technology Plasma 54 XT becomes an autonomous cutting station. No transport of a second heavy compressor, no tangle of hoses and no limits on mobility. You simply plug the machine into a standard 230V socket and start work at once. It is the right tool for assembly work on site, for service calls, for tasks in car workshops and for ambitious projects in a home garage.
At the heart of the machine sits advanced inverter technology, which keeps the size and the weight low and, above all, delivers a stable and precise plasma arc. That gives clean, smooth cut edges, a small heat affected zone and less need to work the material further. Whether you cut carbon steel, stainless steel, aluminium, copper or brass, the Telwin Technology Plasma 54 XT Kompressor delivers the power and the precision expected from premium equipment.
Solutions such as non contact ignition of the pilot arc (Pilot Arc) make it easier to start a cut on material covered with rust or paint and on walkway grating, and they also protect the nozzle against fast wear and limit electromagnetic interference. A set of protections, thermal, overvoltage, undervoltage and overload, supports trouble free operation and a long service life. Invest in the Telwin Technology Plasma 54 XT Kompressor and see what mobile plasma cutting can be.
Advanced Capabilities of the TELWIN TECHNOLOGY PLASMA 54 XT KOMPRESSOR 230V
Independence and Mobility: Cut Where You Want with the Built In Compressor
The key innovation of the Telwin Technology Plasma 54 XT Kompressor is the integrated high output air compressor. This feature redefines what mobile plasma cutting means. Professionals no longer depend on access to external compressors, which are often heavy and awkward to move. Think of work at height, at a distant building site or during quick service calls in the field, anywhere that bringing compressed air has so far been difficult or impossible.
With this solution you only plug the cutter into a standard 230V socket to be ready for the job. It removes the need to transport extra equipment, reduces the number of hoses at the work station and shortens setup time considerably. The built in compressor is matched to the plasma system and supplies the right pressure and air flow for good cut quality. That is convenience, but also a real saving of time and money, and it widens the scope of work you can take on.
Cut Precision and Output from Inverter Technology and Pilot Arc
The Telwin Technology Plasma 54 XT Kompressor uses advanced inverter technology, which is the basis of its cutting performance. The technology generates a stable, tightly concentrated plasma arc, and that shows in unusual precision. The user gets clean, smooth cut edges with very little dross, which cuts the time spent on finishing. A smaller heat affected zone limits the risk of distortion in the material, and that is important when cutting thinner sheet or precise parts.
Another advantage is the non contact pilot arc ignition system (Pilot Arc). This function makes it easier to start a cut on difficult material (corroded, painted, perforated) and it also extends the life of the nozzle and the electrode, because no contact with the material is needed to strike the arc. For a professional this means faster work and lower running costs and the ability to cut many materials and shapes at steady quality.
Intelligent Protections and Ergonomics for Safe and Comfortable Work
Safety and reliability are the priorities in the design of the Telwin Technology Plasma 54 XT Kompressor. The machine carries a complete protection system that covers both the operator and the cutter itself. Thermostatic protection monitors the temperature of the key components and prevents overheating. Overvoltage and undervoltage protection guard against mains fluctuation, while overcurrent protection and protection against compressor overload support long and trouble free operation.

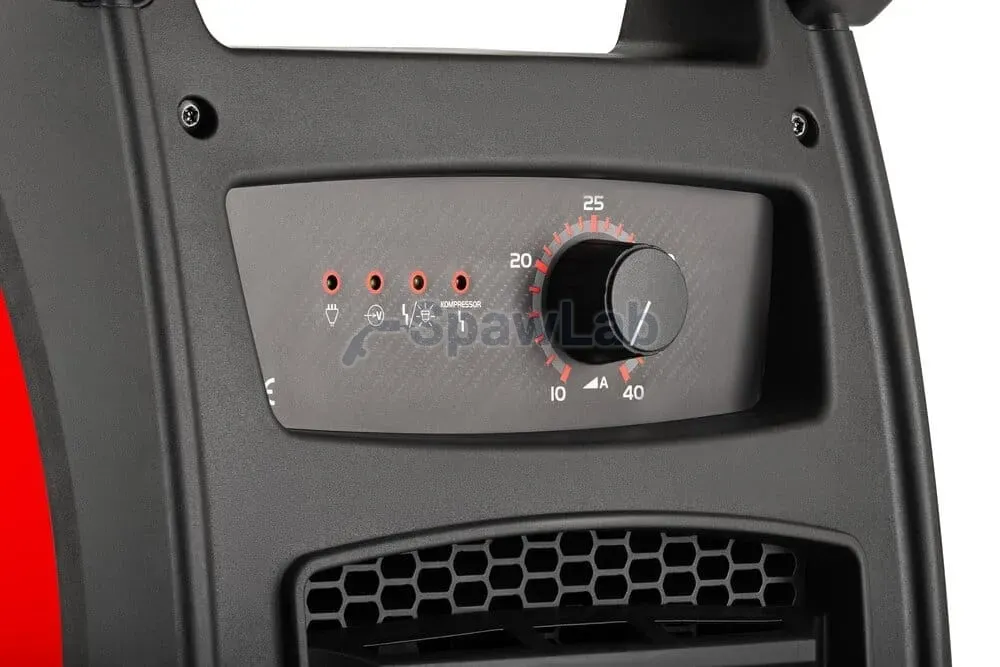

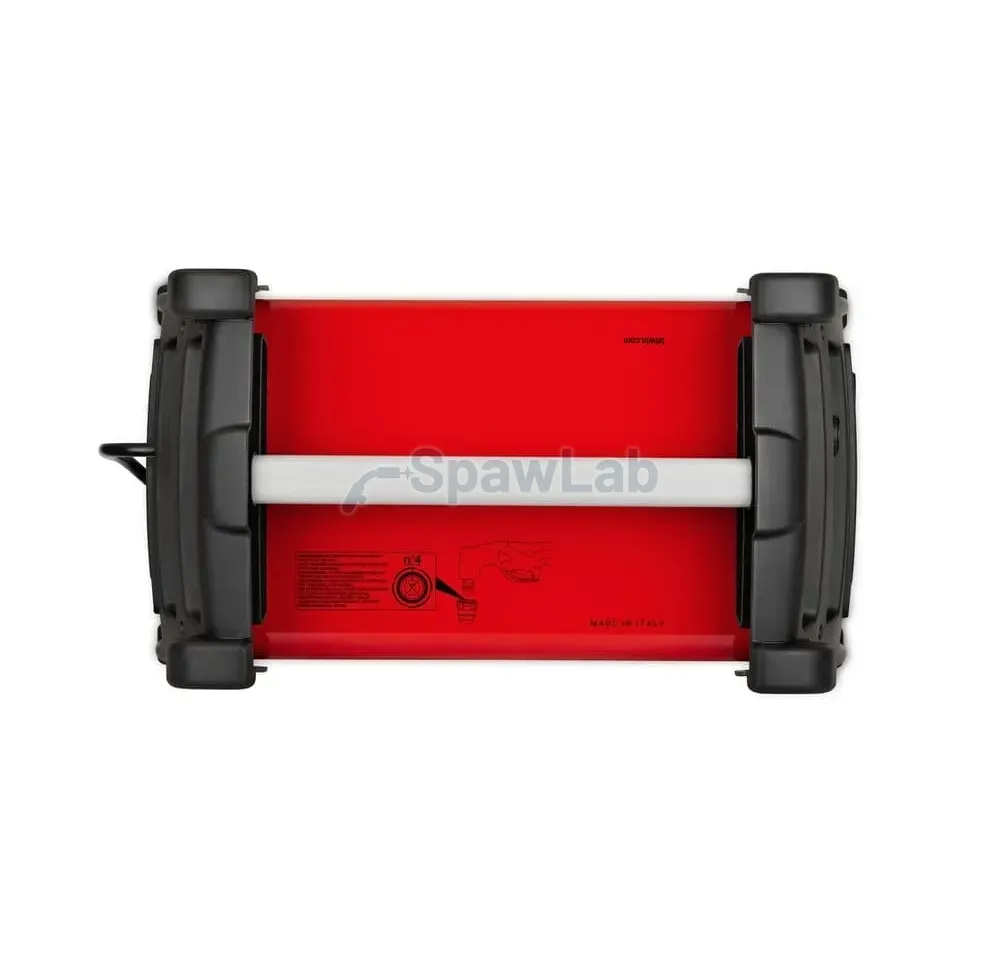

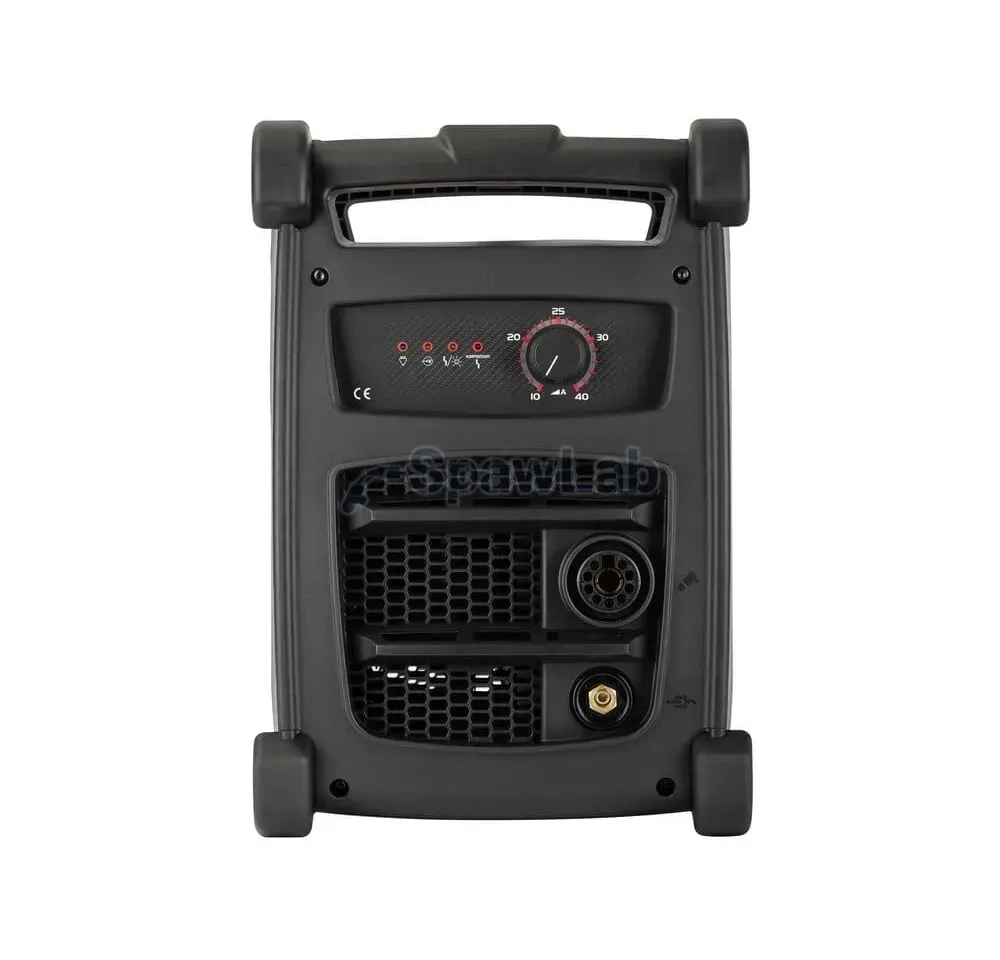

The control panel was designed for maximum simplicity and intuitive operation. Clear LED indicators show the state of the machine, active protections and air pressure. Cutting current adjustment is smooth and precise, so the parameters match the type and the thickness of the material being cut. A solid, compact housing with a comfortable carrying handle makes the machine easy to move. All of this adds up to comfortable, safe and efficient work and lets you concentrate on doing the job accurately.
Technical Specification
| Parameter | Value |
|---|---|
| Full name | TELWIN TECHNOLOGY PLASMA 54 XT KOMPRESSOR 230V |
| Part number | 816147 |
| EAN code | 8056151812452 |

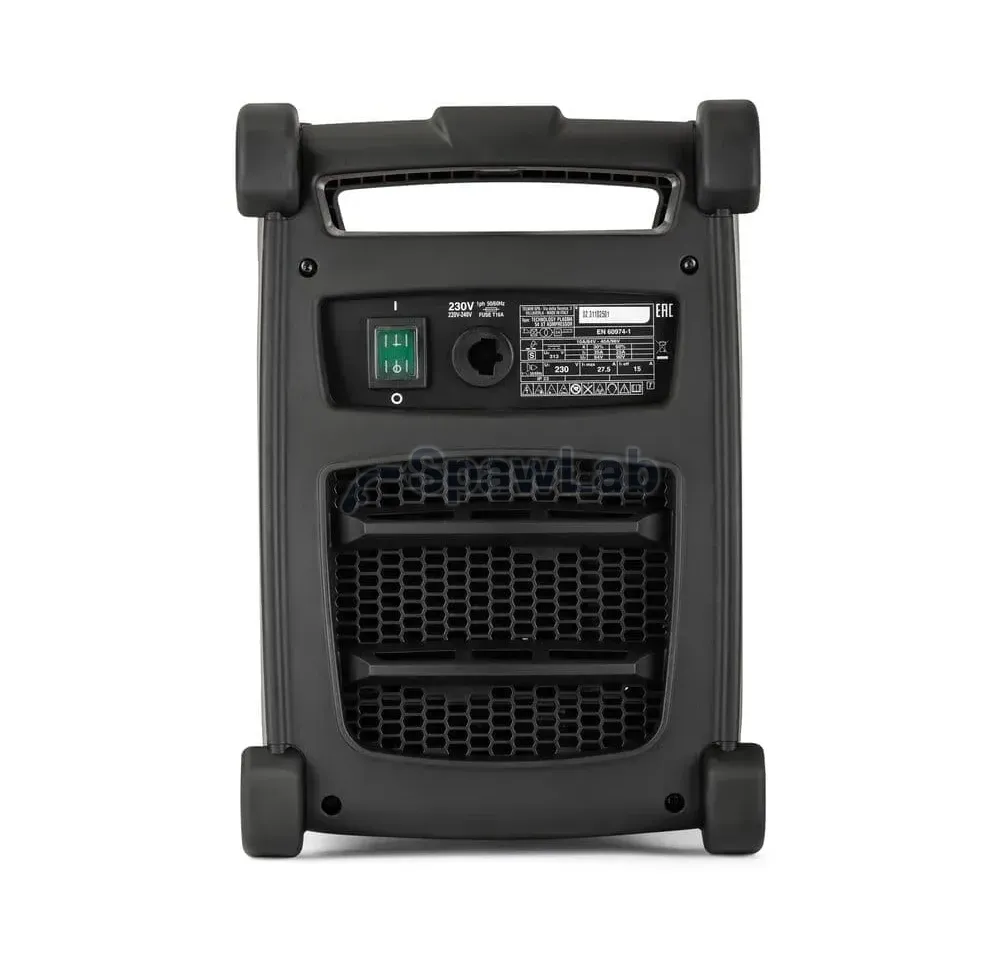

| Supply voltage | 230V (50/60Hz) |
| Rated power (60%) | 4.5 kW |
| Mains protection | 20 A (type C) |
| Power factor (cos φ) | 0.7 |
| Cutting current range | 10 - 40 A |
| Maximum current (30% duty cycle at 40°C) | 40 A |
| Current at 60% duty cycle (at 40°C) | 28 A |
| Current at 100% duty cycle (at 40°C) | 20 A |
| Open circuit voltage | 313 V |
| Maximum cutting thickness (carbon steel) | 12 mm (quality cut), 15 mm (severance cut) |
| Maximum cutting thickness (stainless steel) | approx. 8-10 mm |
| Maximum cutting thickness (aluminium) | approx. 6-8 mm |
| Built in compressor | Yes |
| Air pressure required from the built in compressor | 3.5 - 4.0 bar (regulated automatically) |
| Protection class | IP23 |
| Dimensions (L x W x H) | 550 x 270 x 465 mm |
| Weight | 17.8 kg |
Key Features and Benefits
- Integrated High Output Compressor: The machine carries its own built in air compressor, which removes any need to connect an external supply of compressed air. This solution gives maximum mobility and autonomy at work. For a professional it means jobs can be taken on anywhere, even where access to workshop infrastructure is limited, with time saved on setting up the work station and lower cost, since a separate compressor need not be bought and maintained.
- Advanced Telwin Inverter Technology: At the heart of the cutter sits a modern inverter module that gives a stable and concentrated plasma arc while keeping the weight and the size of the machine low. The technology optimises energy use and allows precise control of the cutting parameters. The user gains excellent quality of the cut edge, minimal thermal distortion of the material, higher cutting speed and a machine that is easy to transport and store.
- Non Contact Pilot Arc Ignition (Pilot Arc): The system that strikes the arc without contact with the material (non-HF Pilot Arc) allows a cut to be started even on surfaces covered with paint, rust or mill scale, and on perforated material such as mesh or grating. This protects the nozzle against damage and fast wear and also limits electromagnetic interference, which matters when working near sensitive electronics. The professional gains wider use, longer life of the consumable parts and a reliable cut start in typical workshop conditions.
- Complete Protection System: The Technology Plasma 54 XT Kompressor carries a set of intelligent protections, thermostatic, overvoltage, undervoltage, overcurrent and against overload of the built in compressor. These systems monitor the machine in real time and protect the key components against damage. For the welder this means high reliability, safe use and long, trouble free service even under intensive use.
- Intuitive Control Panel and Ergonomics: A clear control panel with readable LED indicators (for example air pressure, a protection that has tripped) and simple cutting current adjustment make the machine very easy and intuitive to operate, even for less experienced users. The ergonomic design and the solid carrying handle add further comfort in use. The benefit is fast preparation for work, precise parameter setting and less operator fatigue, which shows in higher productivity.
Where the Product Is Used
- Panel and car workshops: cutting body parts, exhaust systems, support structures.
- Installation and assembly work on site: cutting pipe, profiles and structural sheet without access to an external compressor.
- Light steel and aluminium structures: making and fitting railings, fences, street furniture.
- Renovation and building firms: conversion work, cutting openings, dismantling structures.
- Agriculture and maintenance: repair of farm machinery and equipment, quick interventions.
- Demanding hobby users and home builders: advanced DIY projects, work in a home workshop.
- Production and craft shops: cutting parts, preparing material for further work.
Set Contents
- Plasma cutter TELWIN TECHNOLOGY PLASMA 54 XT KOMPRESSOR 230V (816147)
- Plasma cutting torch (for example PH 4m or compatible, type depends on the manufacturer configuration)
- Earth cable with clamp
- Built in air compressor
- Power cable
- Operating manual
Summary: TELWIN TECHNOLOGY PLASMA 54 XT KOMPRESSOR 230V, Your Best Investment
The Telwin Technology Plasma 54 XT Kompressor is more than a plasma cutter, it is a partner in efficient and precise cutting wherever you need it. The integrated compressor frees you from limits, advanced inverter technology gives good results and the solid Telwin build supports reliability for years. Do not waste time and energy on half measures. Choose a professional, mobile solution that raises your productivity and the quality of your work. Invest in the Telwin Technology Plasma 54 XT Kompressor today and see how straightforward plasma cutting can be.
Part number: 816147
EAN code: 8056151812452
