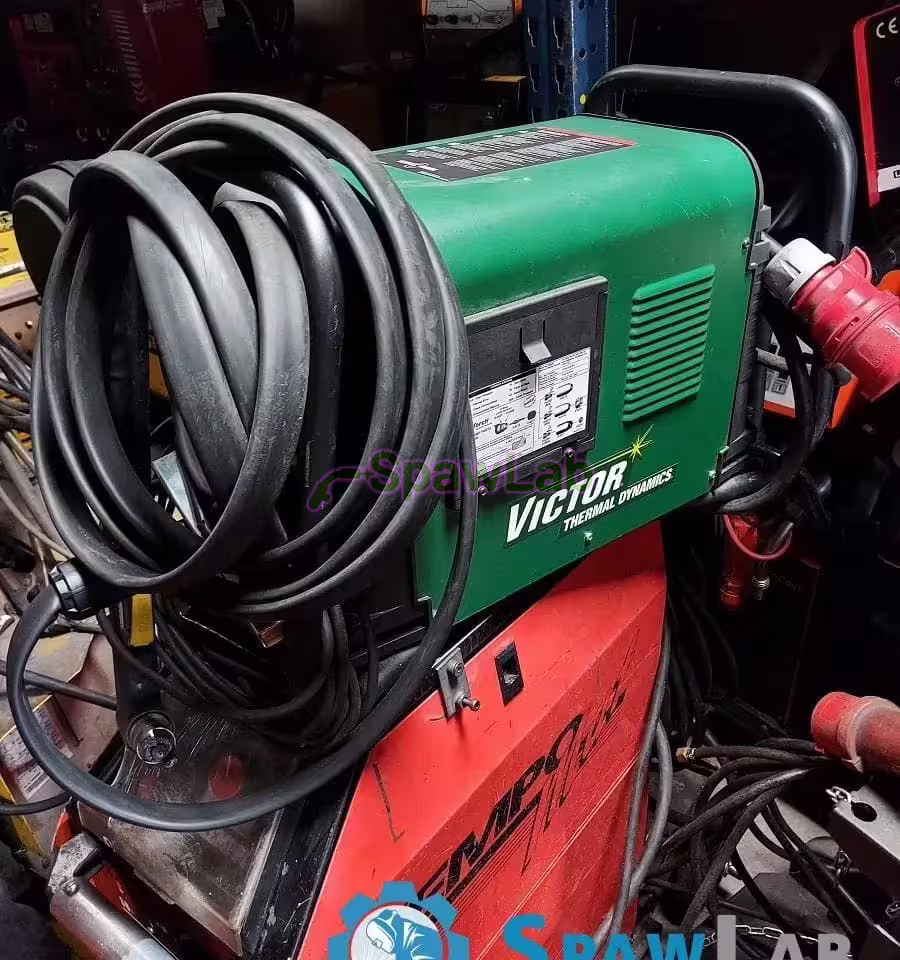

The Victor Thermal Dynamics 60 A is a plasma cutter with the cutting current set steplessly from 20 A to 60 A, supplied from a 400 V mains. It severs carbon steel up to 32 mm, and clean cutting ends at 20 mm. Weight about 19 kg, gas cooling.
What this machine is for
This is a tool for a fabrication shop, a metal shop and for dismantling and cutting scrap. The range from 20 A to 60 A covers both thin sheet and heavier flat bar, and the stepless setting lets you match the current to the material with no jumps. In severance cutting you go through 32 mm of carbon steel, and for a cut with an even edge the limit of 20 mm counts.
The striking works without a high frequency circuit, in the SureLok technology with a contact start. Thanks to that you cut next to CNC controllers, computers and packing machines without the risk of hanging them up, which with plasma cutters using HF ignition can be a real problem.
The Ventilation on Demand system starts the fans only when they are needed, so less grinding dust gets inside. The machine works with the SL60 1Torch, for which you buy consumables easily and cheaply. The housing is compact, and a weight of about 19 kg means you carry it to the station in one hand, with no trolley.
Features and equipment

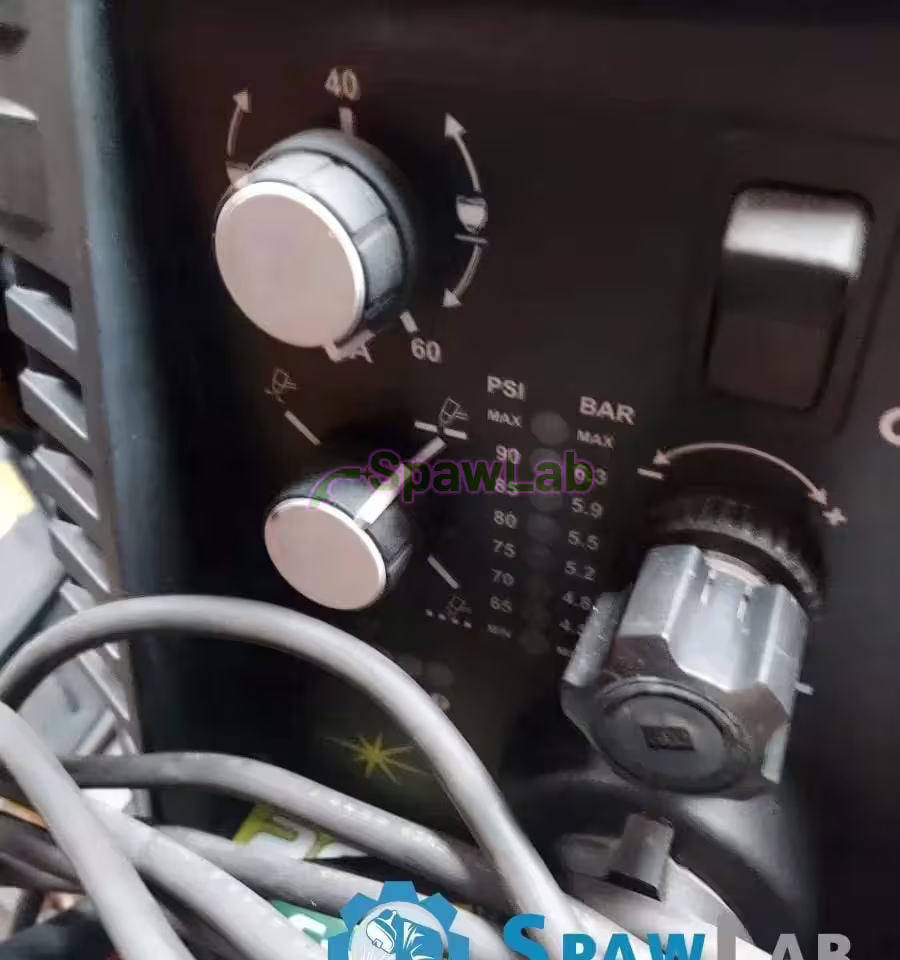

- Stepless cutting current control from 20 A to 60 A. You match the current to the thickness of the material with no steps.
- Striking without HF, the SureLok technology. A contact start, with no interference for controllers standing nearby.
- Ventilation on Demand. The fans start only when they have to, so less dust gets inside.
- The SL60 1Torch. Cheap consumables that are easy to buy.
- A compact housing and a weight of about 19 kg. You carry it without a trolley.
- Gas cooling. There is no liquid circuit, so you do not top up fluid and do not watch the flow.
Technical data
| Machine type | plasma cutter |
|---|---|
| Cutting current, stepless control | 20 A to 60 A |
| Maximum cutting thickness | 32 mm, carbon steel |
| Recommended clean cutting | 20 mm |
| Ignition technology | without HF, SureLok, contact start |
| Supply voltage | 400 V |
| Cooling | air |
| Torch | SL60 1Torch |
| Machine weight | about 19 kg |
What to watch out for
The supply is 400 V. Cooling is by air, there is no liquid circuit here. The record gives no requirements for the working gas and no compressor output, so settle them before you start it up, because the air has to be dry and free of oil.
Nozzles and electrodes are consumables, so check them before the first cut. The record does not list an earth cable or spare parts, so confirm the equipment before you buy.
How we sell used machines
This unit was checked in our service workshop in Krotoszyn with measurements to PN-EN 60974-4 and a load test. The price includes the first year of the basic service package: an inspection with cleaning of the machine and a validation measurement. Further years can be added. We ship across the European Union, collection in person by appointment.
