Description

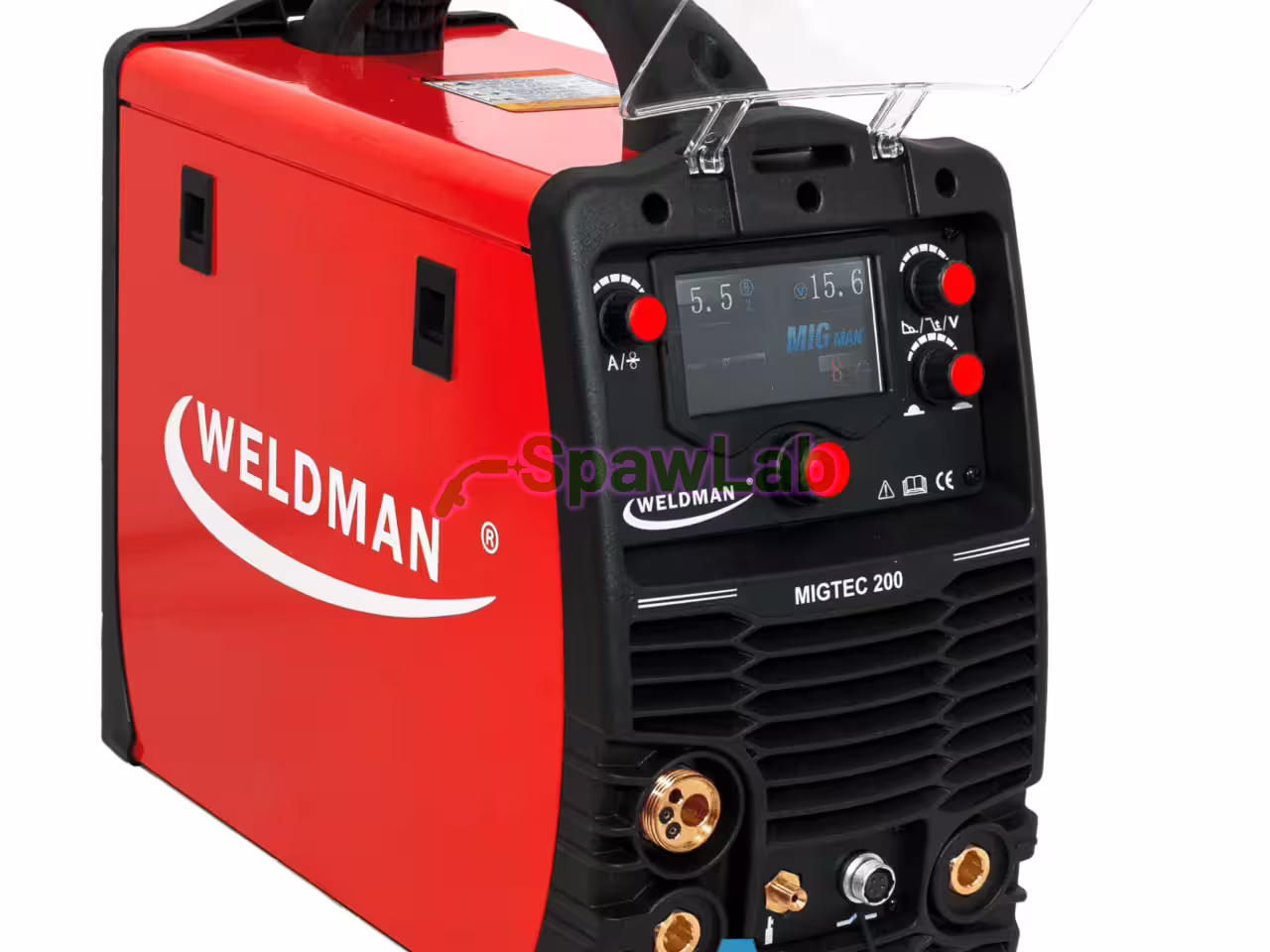

Semi-automatic welding machine powered by single-phase MIGTEC MIG 200 LCD microprocessor-controlled, made with IGBT inverter technology for MIG/MAG (gas-shielded) or FLUX (non-gas-shielded) welding, for welding with covered electrodes by direct current (DC) and TIG Lift by direct current (DC) with contact arc ignition.
Designed for welding with 0.6-1.2 mm welding wires, 0.9 mm self-consuming wires, and covered and tungsten electrodes up to 4 mm in diameter of low-carbon steel, low-alloyed steel (MAG), alloyed steel (MIG), aluminum, and cast iron.
Max spool 5 kg D200.
– Menu in Polish.
– Electronically controlled infinitely adjustable welding current and wire feed speed.
– Synergic welding 5 programs: FE (carbon steel), SS (stainless steel), AL. (aluminum), FCAW-S (self-consuming wire), FCAW-G (powdered wire).
– Selective choice of welded material.
– Intuitive graphical menus on a color LCD display.

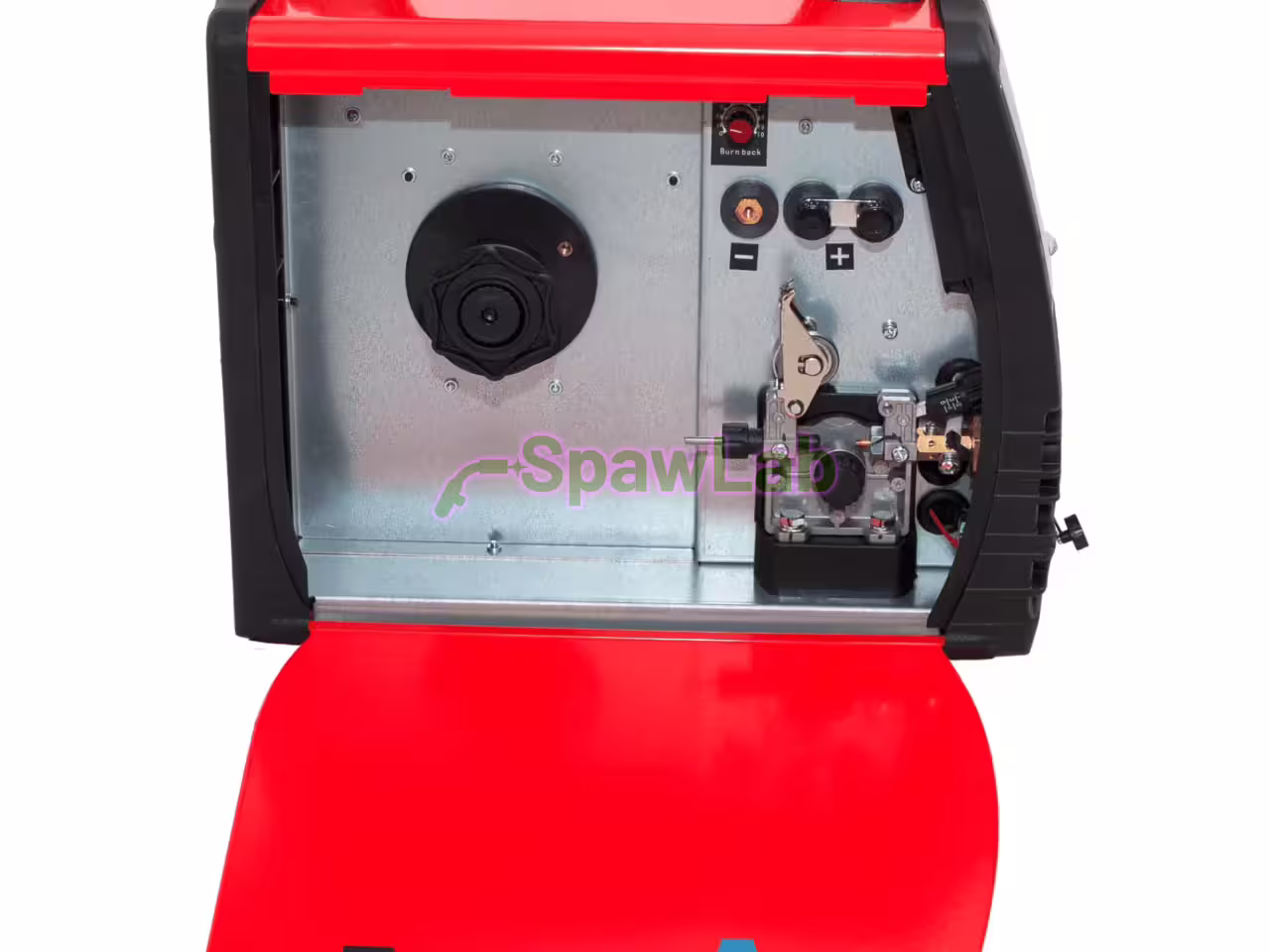

– 2-roll wire feeder.
– 2-tactile / 4-tactile operation function.
– In the TIG LIFT function, control from the handle, regulate gas discharge after welding, and regulate sink current.
– In the TIG function, after entering the thickness of the material to be welded, the program sets the welding current
It has features to facilitate MMA welding:
– ARC FORCE (arc dynamics): shortens the arc length when increasing the welding current optimizing the transfer of molten electrode droplets to the material being welded, preventing arc extinction when the electrode comes into contact with the material being welded
– ANTI STICK: limits the welding current preventing the electrode from sticking to the material being welded
– electrode type separation: rutile/basic
Equipped with Euro connector and detachable ground wire.
Thermal protection.
The combination of multiple welding processes in a single unit and compact size make it suitable for use wherever compactness and easy transportation are required (overhauls or minor repairs in the field).
Equipment
It comes standard with:
– power cord 3 m with 230V plug
– MB 15 3 m welding torch
– 4 m ground cable with 200A clamp (DX50)
– gas connection (spigot type 21)
Semi-automatic version of MIGTEC MIG 200 LCD SYNERGIA PAK (104 302)
additionally includes:
– 3 m welding cable with 200A electrode holder
– 3 m TIG ECO GRIP welding handle
Technical data
| Code | 104 302 |
| Type of device | MIGTEC MIG 200 LCD |
| Supply voltage [V] | 230 |
| Idle current voltage [V] | 45 |
| Welding current adjustment range [A] | MIG 10-200 TIG DC 10-200 MMA 10-200 |
| Max efficiency at 40°C EN 60974-1 |
200A@25% 130A@100% |
| Wire diameter [mm]. | 0,6-1,2 |
| Protection class [IP] | 23 |
| Dimensions [cm]. | 46x23x43 |
| Weight [kg]. | 15,5 |
