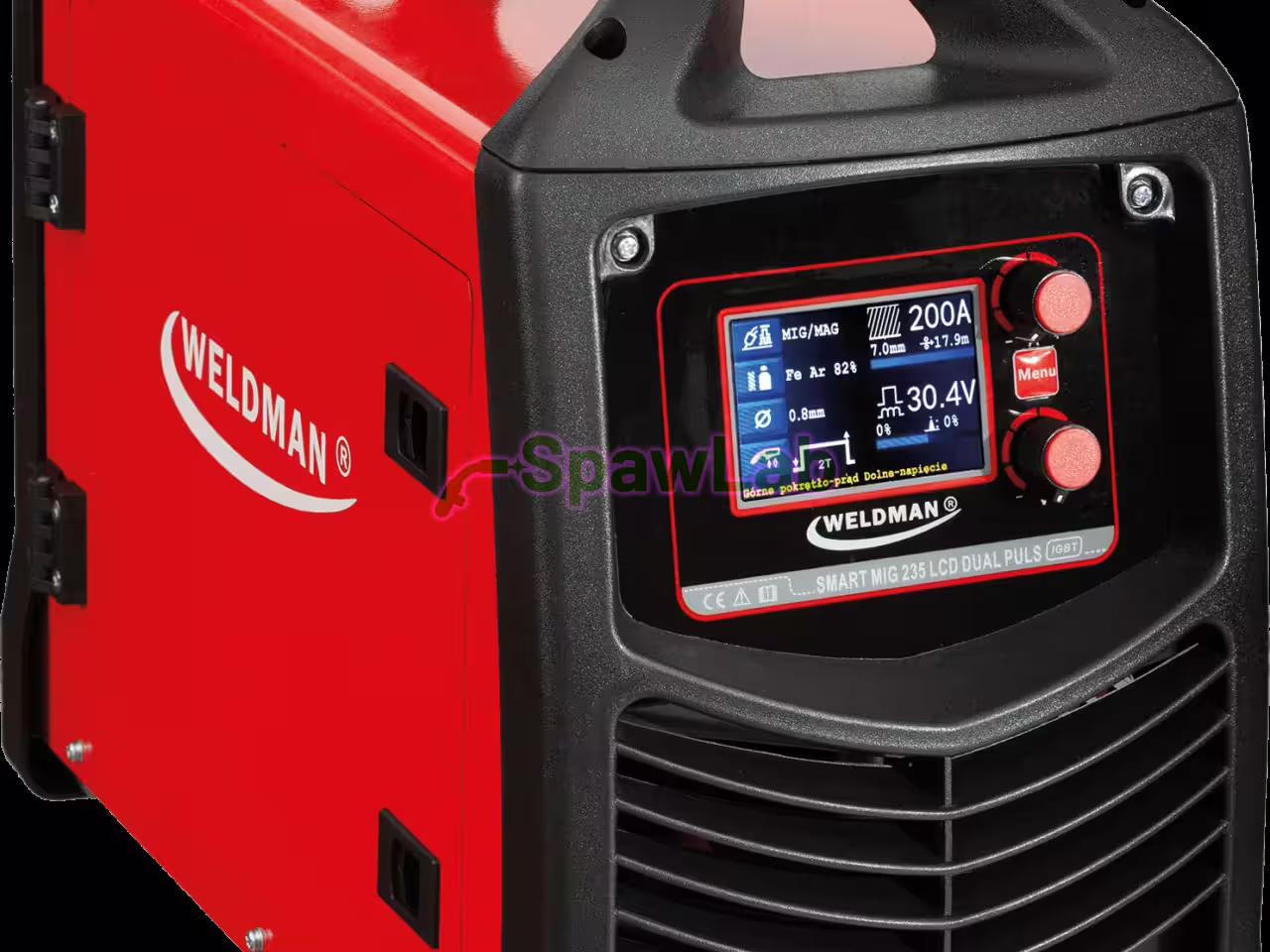

Semi-automatic welder with single phase supply, SMART MIG 235 LCD SYN DUAL PULS, microprocessor controlled, built in IGBT inverter technology for welding in the MIG/MAG process (with shielding gas) or FLUX (without shielding gas), for welding with covered electrodes using direct current (DC) and in the TIG process with direct current (DC) with contact arc striking, TIG LIFT.
Intended for welding with welding wires 0.8-1.2 mm in diameter, self-shielded wires 0.9 mm and covered and tungsten electrodes 1.6-4 mm in diameter, on low carbon and low alloy steel (MAG), alloy steel (MIG), aluminium and cast iron castings.
Max spool 5 kg D200
The semi-automatic SMART MIG 235 LCD SYN DUAL PULS offers:
panel in Polish / voice messages in Polish / colour LCD display / full synergic control / single and double adjustable MIG PULSE and TIG PULSE /
adjustment of the torch characteristic in S4T/S2T mode / settings memory / adjustment of wire burn back and wire inching / adjustable pre-gas and post-gas function / MMA VRD function /
inductance adjustment / 2-step or 4-step mode or spot welding / material separation /braze welding
The SMART MIG 235 LCD SYN DUAL PULS semi-automatic welder is a mobile multi-process machine intended for welding aluminium and for braze welding.
Equipment
Standard equipment includes:
, 2m supply cable with a 230V plug
, KD 24 15 welding torch, 3m, with a teflon liner
, spare 1.0-1.2U roller for aluminium
, 2.5m welding cable with a 200A electrode holder (DX 50)
, 2.5m earth cable with a 300A clamp (DX 50)
, gas connection for an 8mm technical hose
, 230V output socket on the rear panel
, welding shield
, brush
Technical data
| Code | 103 134 |
| Machine type | SMART MIG 235 LCD |
| Supply voltage [V] | 230 |
| Open circuit voltage [V] | 69 |
| Welding current adjustment range [A] | 10-200 |
| Max. output at 40°C | 200A@60% 160A@100% |
| Protection class [IP] | 21 |
| Dimensions [cm] | 54x32x45 |
| Weight [kg] | 17 |
