Description

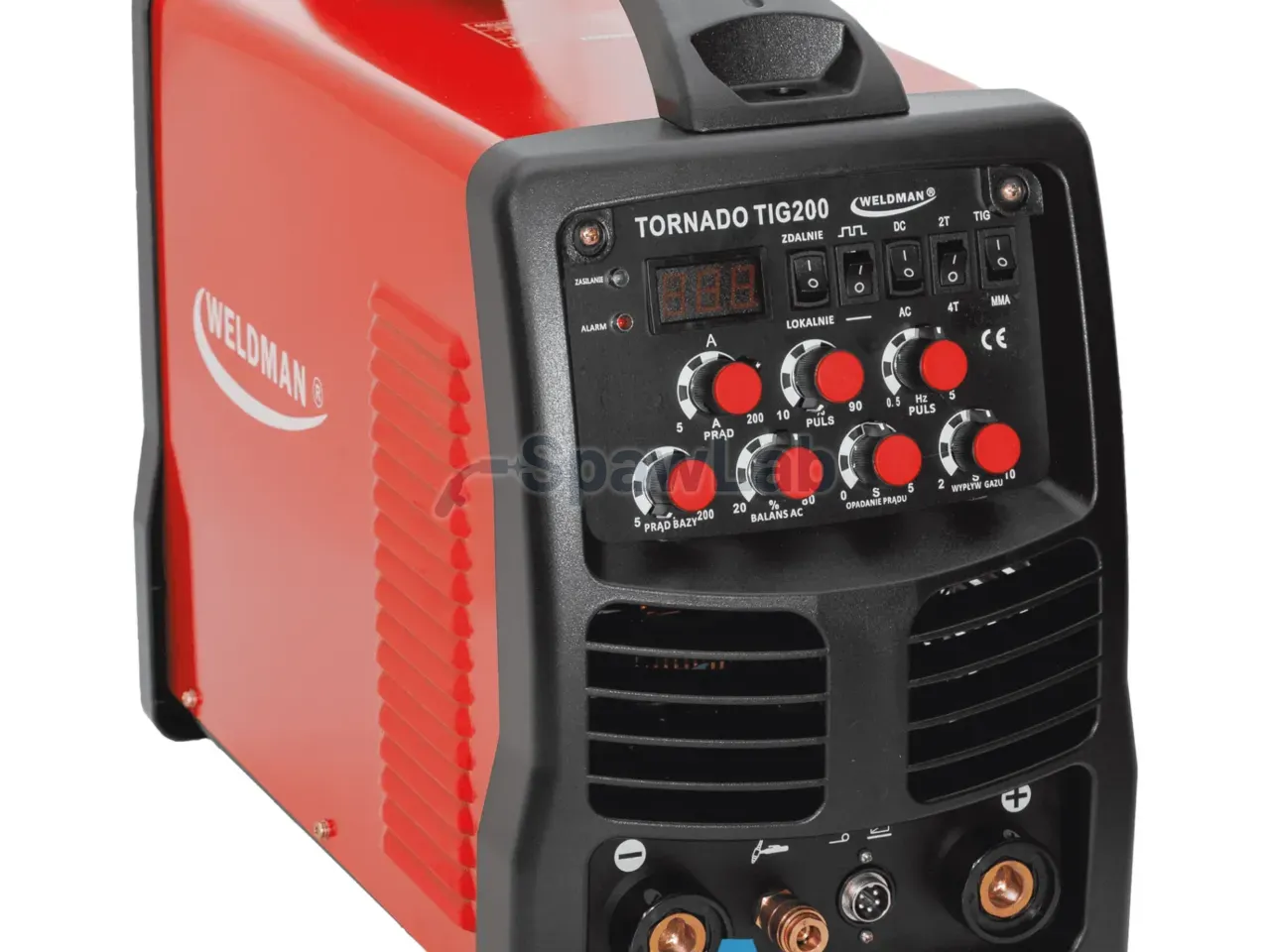

TORNADO TIG 200 AC/DC inverter welder
Developed according to modern MOSFET & IGBT technology, the TORNADO TIG 200 inverter welder is designed for welding with several methods. They are: TIG AC/TIG AC PULS/ TIG DC/TIG DC PULS, MMA welding method using direct current (DC) covered electrodes, and alternating current (AC), or direct current (DC) welding method. The TORNADO TIG 200 AC/DC inverter wel der is perfect for welding all kinds of metals, including aluminum. What distinguishes this product is smooth operation with non-contact (TIG HF) arc ignition in both 2-tact and 4-tact modes. The device can also be controlled from the outside.
TORNADO TIG 200 AC/DC inverter welder, a device with many advantages.
To facilitate work and parameter selection, the manufacturer has placed individual controls, a digital display, and a clear panel in Polish on the welder. On the display of the TORNADO TIG 200 AC/DC inverter wel der you can see both the pulse current and the welding current. Additional features include drop current fall time adjustment, as well as gas discharge time adjustment after the arc is extinguished. The TORNADO TIG 200 AC/DC inverter welder offers the ability to adjust the AC balance value when operating with the TIG AC method. What’s more, you can also adjust the base current, frequency and pulse width when operating with PULSE. The device has been properly protected with the TIG DC PULS function. Thanks to this, you don’t have to worry about burning through thin material that is less than 1.5mm thick, or about discoloration, for example, when working with stainless steel.
TORNADO TIG 200 AC/DC inverter welder – Delta Technika recommends.
In addition to the above-mentioned advantages, the TORNADO TIG 200 AC/DC inverter welder is also equipped with two handles for easy transportation. Intuitive operation and a wide range of capabilities make this device very suitable for industrial operations, as well as workshops. You are also welcome to check out our other products.
Equipment
It comes standard with:
– power cord 2 m with 230V plug
– TIG welding chuck WP 26 4 m (DX50)
– welding cable 2 m with electrode holder 200A (DX50)
– ground cable 2 m with clamp 200A (DX50)
– gas connection for 8 mm technical hose
– 5-pin handle control socket and mini type 21 gas quick connector
Technical data
| Code | 103 036 |
| Type of device | TORNADO TIG 200 |
| Supply voltage [V] | 230 |
| Idle current voltage [V] | 56 |
| Welding current adjustment range [A]. | TIG – 10-200 MMA – 10-200 |
| Max efficiency at 40°C | 200A@60% 156A@100% |
| Protection class [IP] | 21S |
| Dimensions [cm]. | 48x24x40 |
| Weight [kg]. | 17 |
