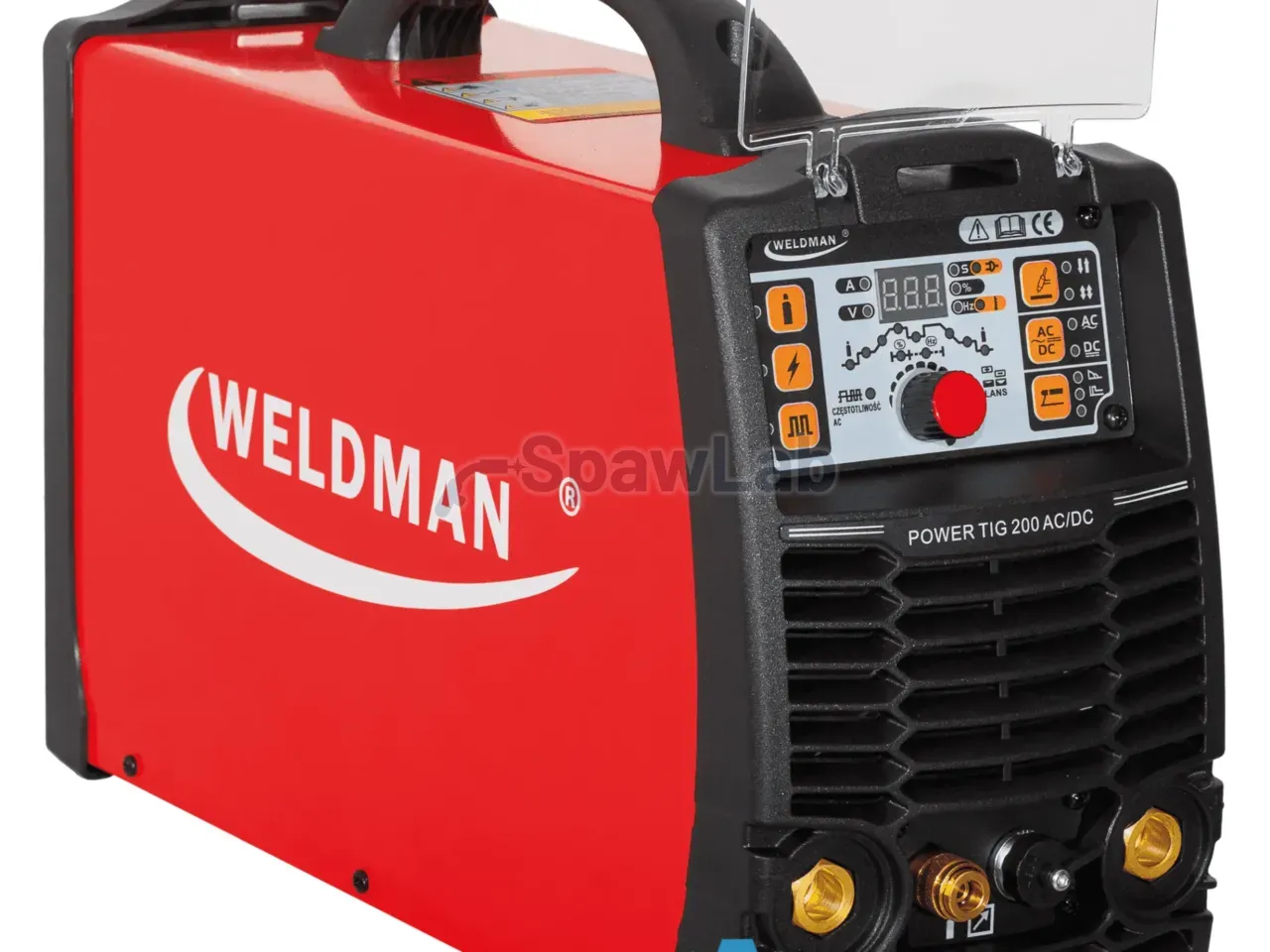

This POWER TIG 200 AC/DC machine (called the welder from here on) is built on inverter technology with IGBT components together with PWM and MCU.
The welder is designed for welding in the following processes:
1) TIG DC
2) TIG DC PULSE
3) TIG AC
4) TIG AC PULSE
5) MMA DC
6) MMA AC on carbon, alloy, stainless and acid resistant steel, cast iron and copper.
The welder runs in 2-stroke/4-stroke mode with contactless (HF) or contact (LIFT) arc ignition.
It has an adjustable ARC FORCE (arc pressure) and HOT START function.
The latest PFC technology holds the power factor above 0.98. The welder has intelligent thermal, overload, undervoltage and overvoltage protection.
All machine parameters are set on the control panel, which carries a multifunction knob and an LCD display. That keeps setting and reading every welding parameter quick and clear.
The welder suits home users and professionals alike.
Equipment
The welder comes with:
• TIG WP 17 (DX50) welding torch 4 m
• earth lead 3m with 200A clamp (DX50)
• power lead 3 m with 230V plug
• PU gas hose 3.5 m with a type 21 quick coupling and 2 hose clamps
A gas regulator is not part of the standard equipment.
Technical data
| Code | 104 412 |
| Machine type | POWER TIG 200 AC/DC |
| Supply voltage [V] | 230 |
| Open circuit voltage [V] | 45 |
| Welding current range [A] | TIG DC, 5-200 TIG AC, 10-200 MMA DC, 5-170 MMA AC, 10-170 |
| Protection class [IP] | 23 |
| Dimensions [cm] | 48x17x32 |
| Weight [kg] | 12 |
