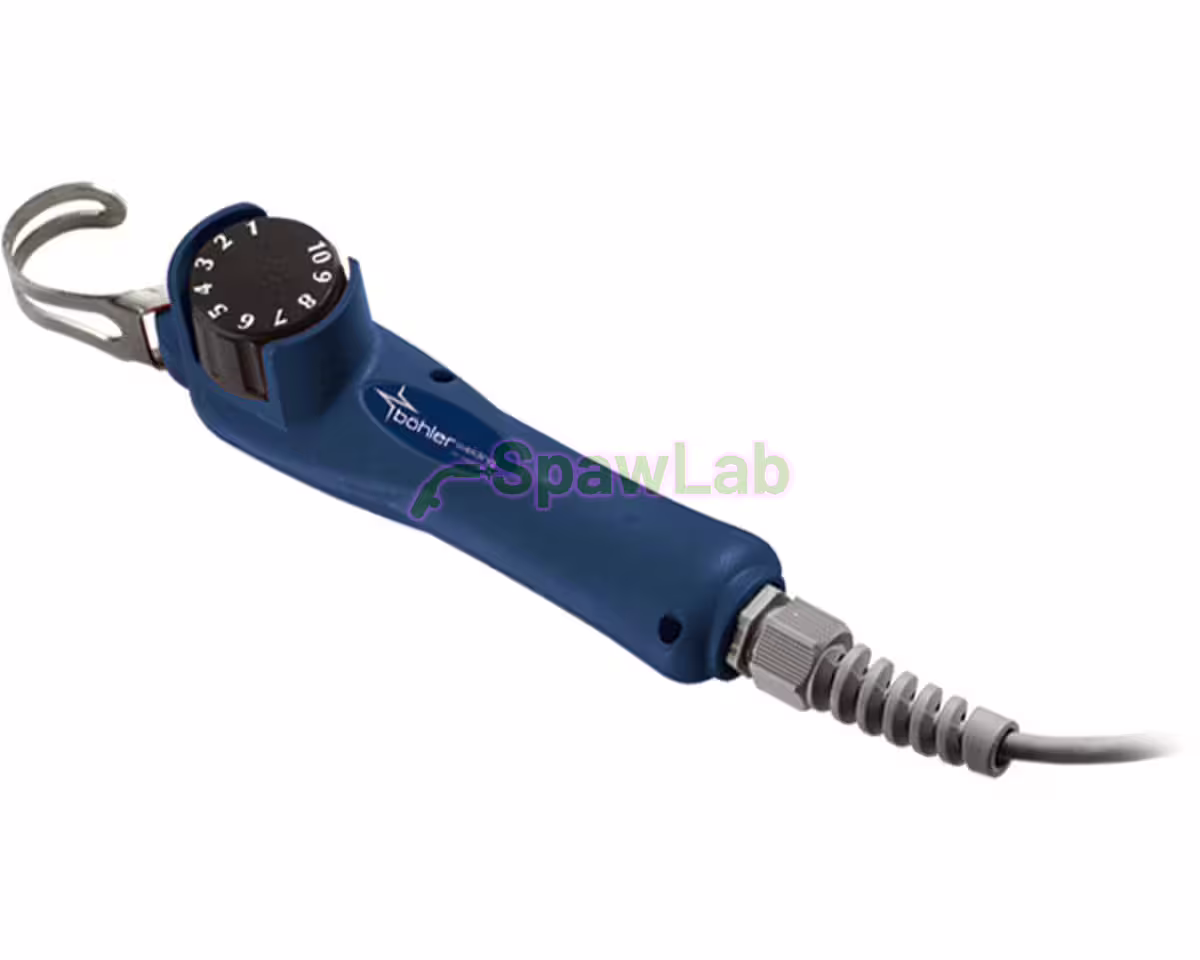

The RC 180 is a Böhler Welding remote control with digital CAN bus communication and a 6 m cable. It measures 160 x 40 x 50 mm and weighs 0.7 kg. The Böhler price list 2026/27 lists it for the same 20 machines as the RC 100 and RC 200.
What it is for
The remote lets you control the machine from your workplace instead of walking to the power source panel when it stands far from the joint. The 6 m version suits a cable route from the machine to your workplace of up to 6 m. The remote control selection guide in the price list does not cover the RC 180, so we do not list its functions. If you need a specific function, compare the RC 100 and RC 200 or ask us before ordering.
| Part number | 71.02.198 |
|---|---|
| Brand | Böhler Welding |
| Model | RC 180 |
| Type | remote control |
| Communication | digital, CAN bus |
| Cable length | 6 m |
| Dimensions | 160 x 40 x 50 mm |
| Weight | 0.7 kg |
| Pack quantity | 1 pc |
Fits
According to the Böhler price list 2026/27:
- MMA: TERRA 270/350 RC, TERRA 500 RC
- MIG/MAG: TERRA NX 320/400 SMC, TERRA NX 400/500 MSE
- pulsed MIG/MAG: TERRA NX 320 PME, TERRA NX 320/400 PMC, TERRA NX 400 PMC DualFeeder, TERRA NX 400/500 PME, URANOS NX 2200 PMC, URANOS NX 2700 PMC
- multi-process: URANOS NX 2200 MTE, URANOS NX 2700 MTE, URANOS NX 3200 GSM, URANOS NX 4000/5000 GSM
- TIG DC: TERRA NX 270 TLH, TERRA NX 320/400 TLH, URANOS NX 2200 TLH
- TIG AC/DC: URANOS NX 2200 AC/DC, URANOS NX 2700/3200 AC/DC, URANOS NX 4000/5000 AC/DC
Also order
For connecting the remote at the wire feeder:
- Remote control wiring kit for WF NX 330 and WF NX 430 SteelDrive: for TERRA NX 320 PME, 400/500 PME and 400/500 MSE
- Remote control upgrade kit for WF NX 430 Smart: for the WF NX 430 Smart feeder
FAQ
What is the difference between RC 180 and RC 18?
In the price list both measure 160 x 40 x 50 mm and weigh 0.7 kg. The RC 18 uses analogue communication and is for CORE machines, while the RC 180 communicates via CAN bus and is listed for TERRA, TERRA NX and URANOS NX. According to the compatibility lists they are not interchangeable.
Does the RC 180 adjust voltage?
The price list does not say. According to the selection guide, voltage adjustment is available for example on the RC 200.
Which cable length should I choose?
Measure the cable route from the machine to your workplace and add a reserve. The RC 180 comes in three versions: 6 m (71.02.198), 10 m (71.02.19801) and 25 m (71.02.19804).
You buy from an authorised Böhler Welding distributor and service partner in Poland: VAT invoice, courier shipping from Krotoszyn, also to EU countries.
