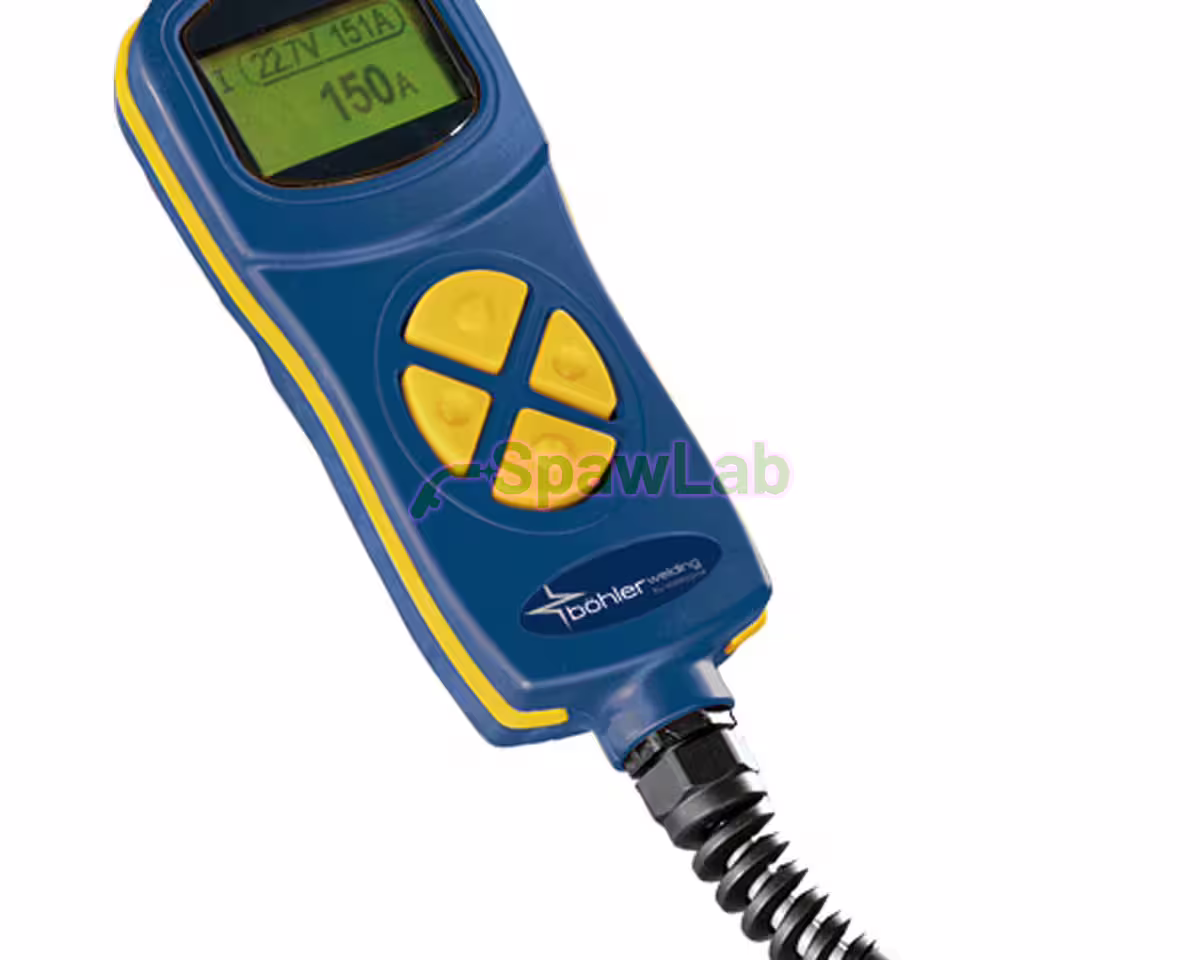

The RC 200 is a Böhler Welding remote control with LCD display, digital CAN bus communication and a 6 m cable. According to the Böhler selection guide it adjusts welding current and voltage, shows both values and gives access to set-up.
What it is for
Choose the RC 200 when you want to change both values at the joint: current and voltage. This is especially useful for MIG/MAG. The 6 m version suits a cable route from the machine to your workplace of up to 6 m.
| Part number | 71.02.199 |
|---|---|
| Brand | Böhler Welding |
| Model | RC 200 |
| Type | remote control |
| Communication | digital, CAN bus |
| Cable length | 6 m |
| Dimensions | 170 x 70 x 35 mm |
| Weight | 0.7 kg |
| Functions | welding current adjustment, welding voltage adjustment, digital parameter adjustment, digital display of welding parameters, current reading, voltage reading, set-up menu |
| Display | LCD |
| Mounting | magnetic hanging device |
| Pack quantity | 1 pc |
Fits
According to the Böhler price list 2026/27:
- MMA: TERRA 270/350 RC, TERRA 500 RC
- MIG/MAG: TERRA NX 320/400 SMC, TERRA NX 400/500 MSE
- pulsed MIG/MAG: TERRA NX 320 PME, TERRA NX 320/400 PMC, TERRA NX 400 PMC DualFeeder, TERRA NX 400/500 PME, URANOS NX 2200 PMC, URANOS NX 2700 PMC
- multi-process: URANOS NX 2200 MTE, URANOS NX 2700 MTE, URANOS NX 3200 GSM, URANOS NX 4000/5000 GSM
- TIG DC: TERRA NX 270 TLH, TERRA NX 320/400 TLH, URANOS NX 2200 TLH
- TIG AC/DC: URANOS NX 2200 AC/DC, URANOS NX 2700/3200 AC/DC, URANOS NX 4000/5000 AC/DC
Also order
For connecting the remote at the wire feeder:
- Remote control wiring kit for WF NX 330 and WF NX 430 SteelDrive: for TERRA NX 320 PME, 400/500 PME and 400/500 MSE
- Remote control upgrade kit for WF NX 430 Smart: for the WF NX 430 Smart feeder
FAQ
What is the difference between RC 200 and RC 100?
According to the selection guide the RC 200 adds voltage adjustment and a set-up menu, and has an LCD instead of a 7-segment LED display. Both weigh 0.7 kg and have a magnetic hanging device; the RC 100 measures 130 x 85 x 60 mm.
Which cable lengths are available?
The RC 200 comes in two versions: 6 m (71.02.199) and 15 m (71.02.19902).
Is the RC 200 suitable for TIG welding?
Yes, the price list names it for TIG machines: TERRA NX TLH, URANOS NX 2200 TLH and URANOS NX AC/DC. For foot control there is the RC 120 pedal.
