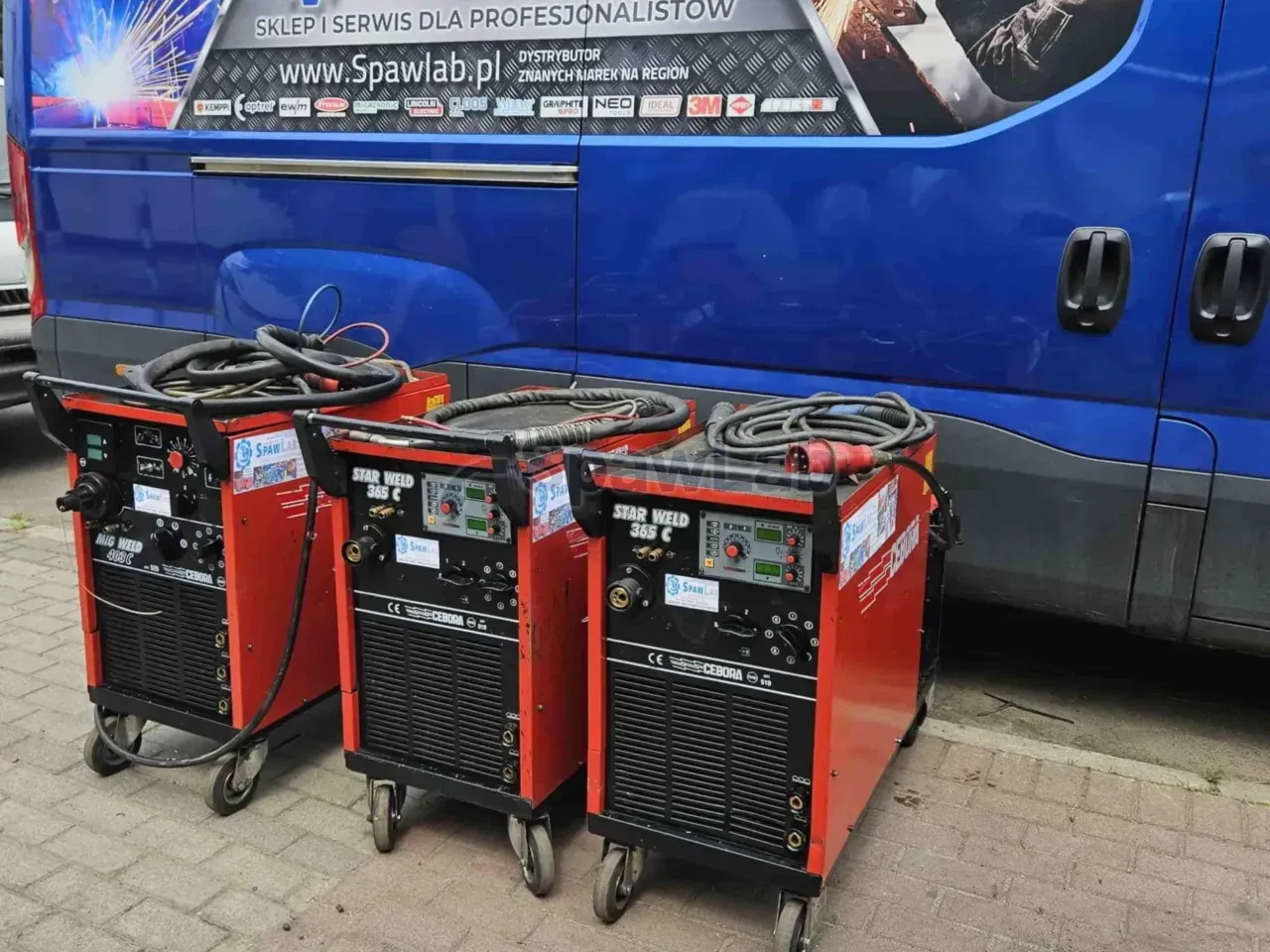

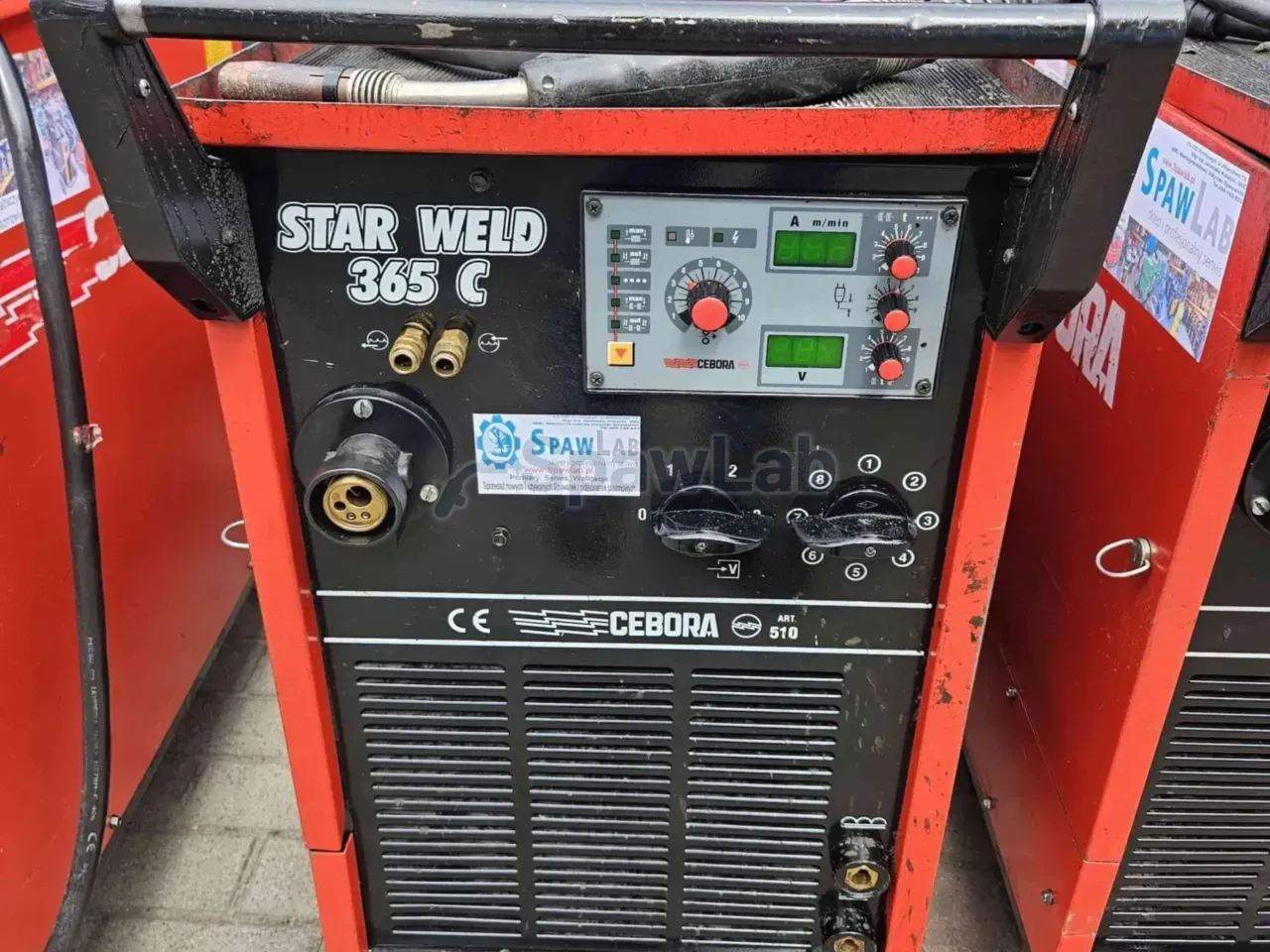

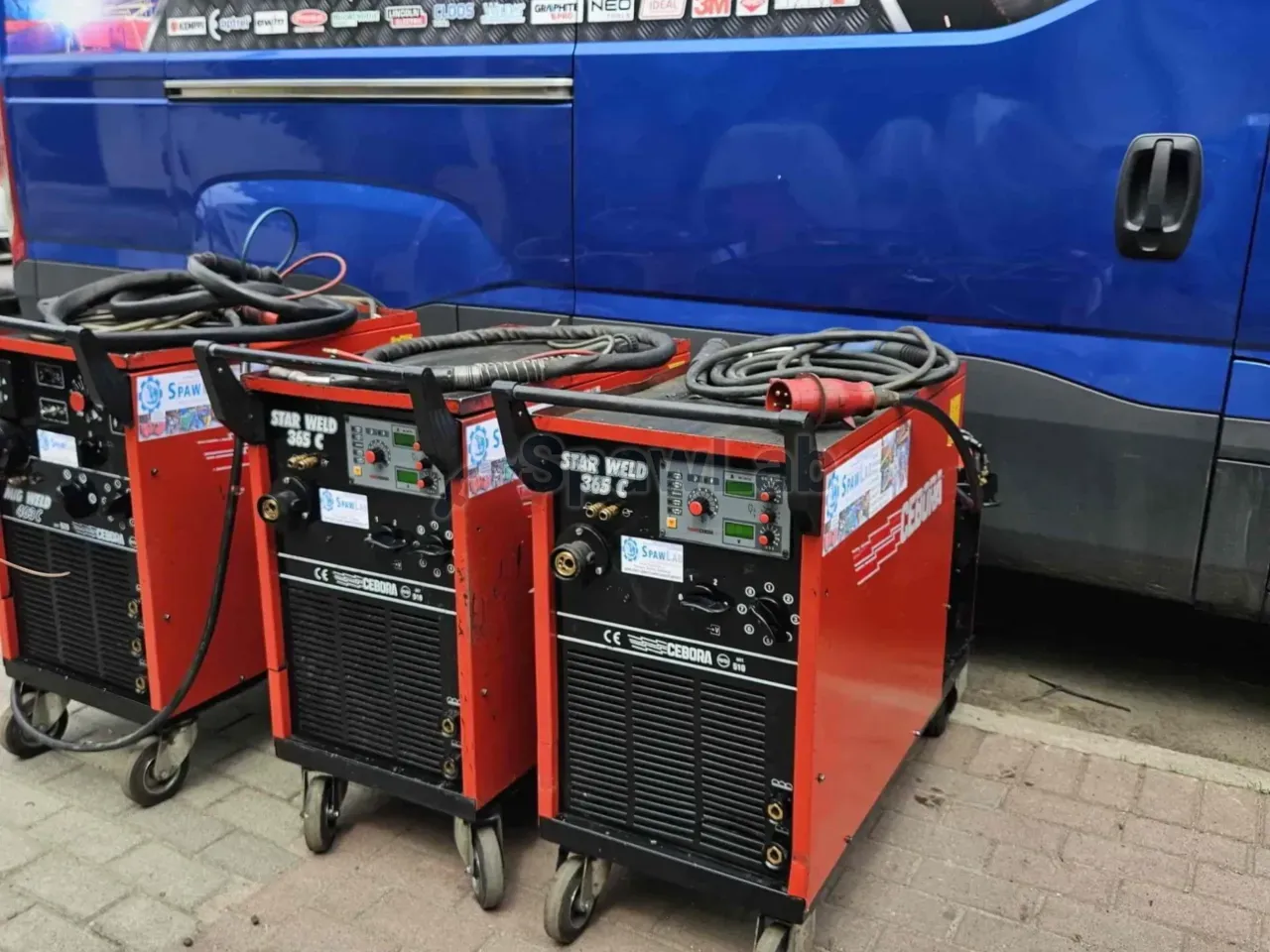

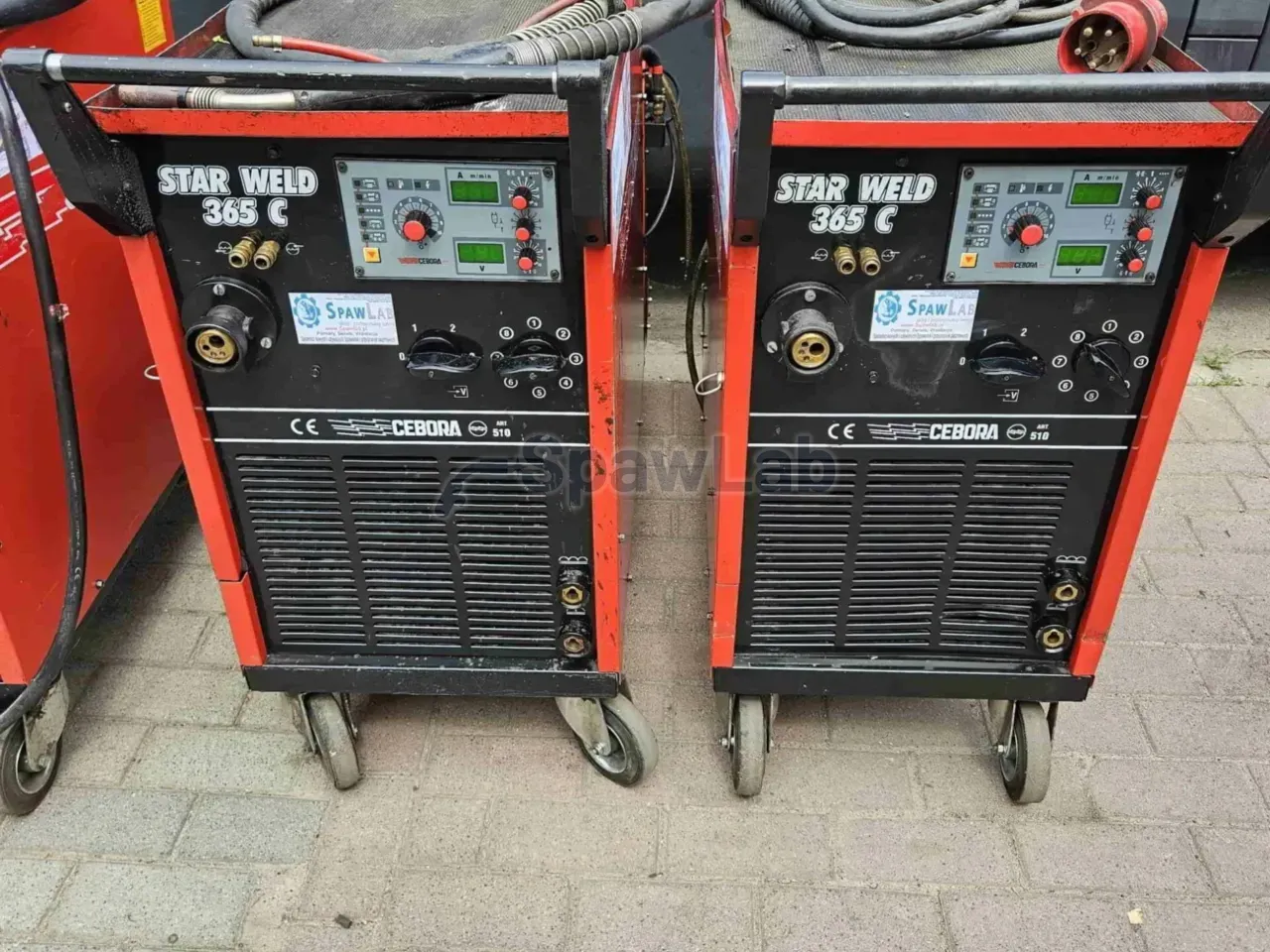

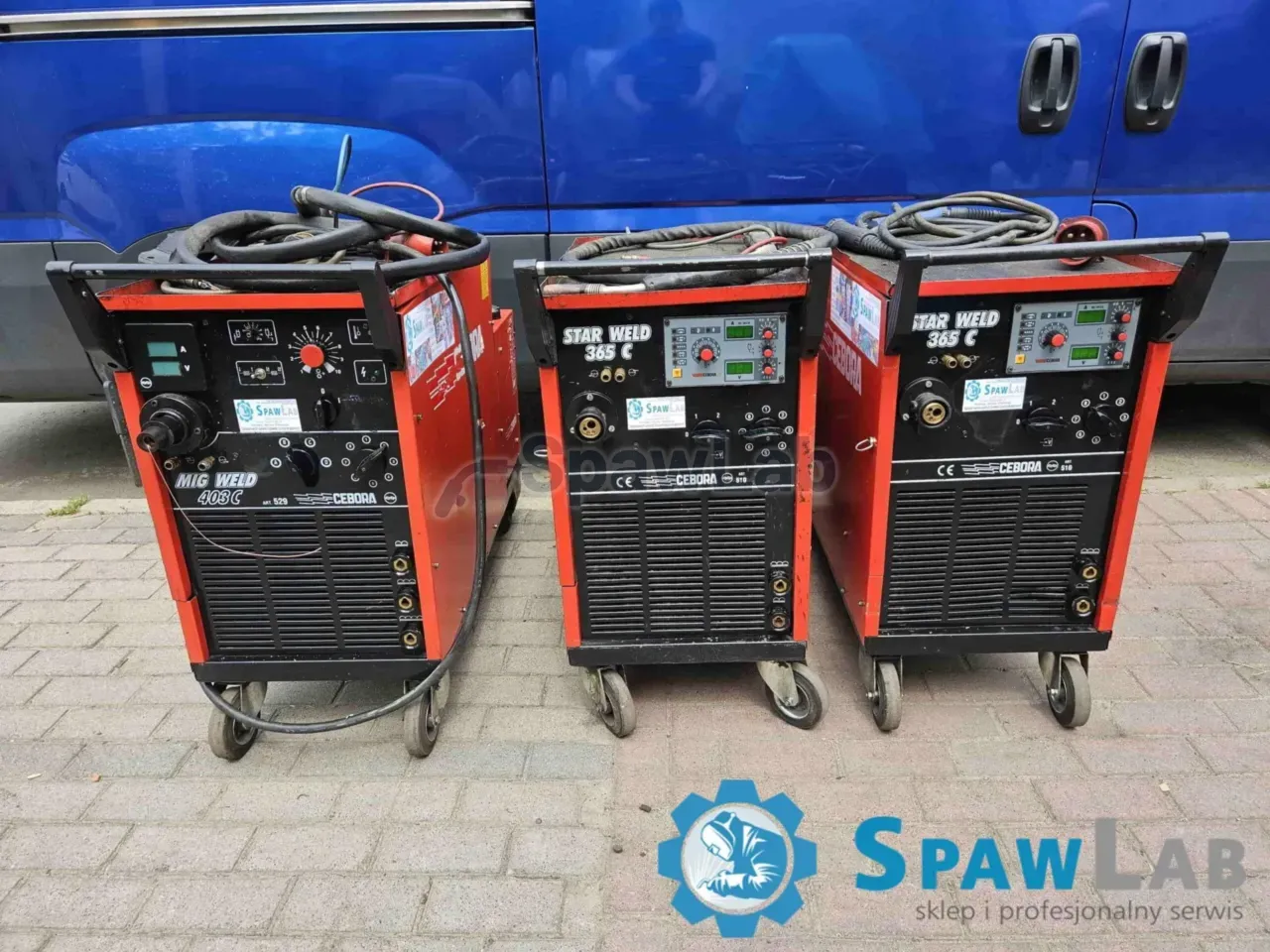

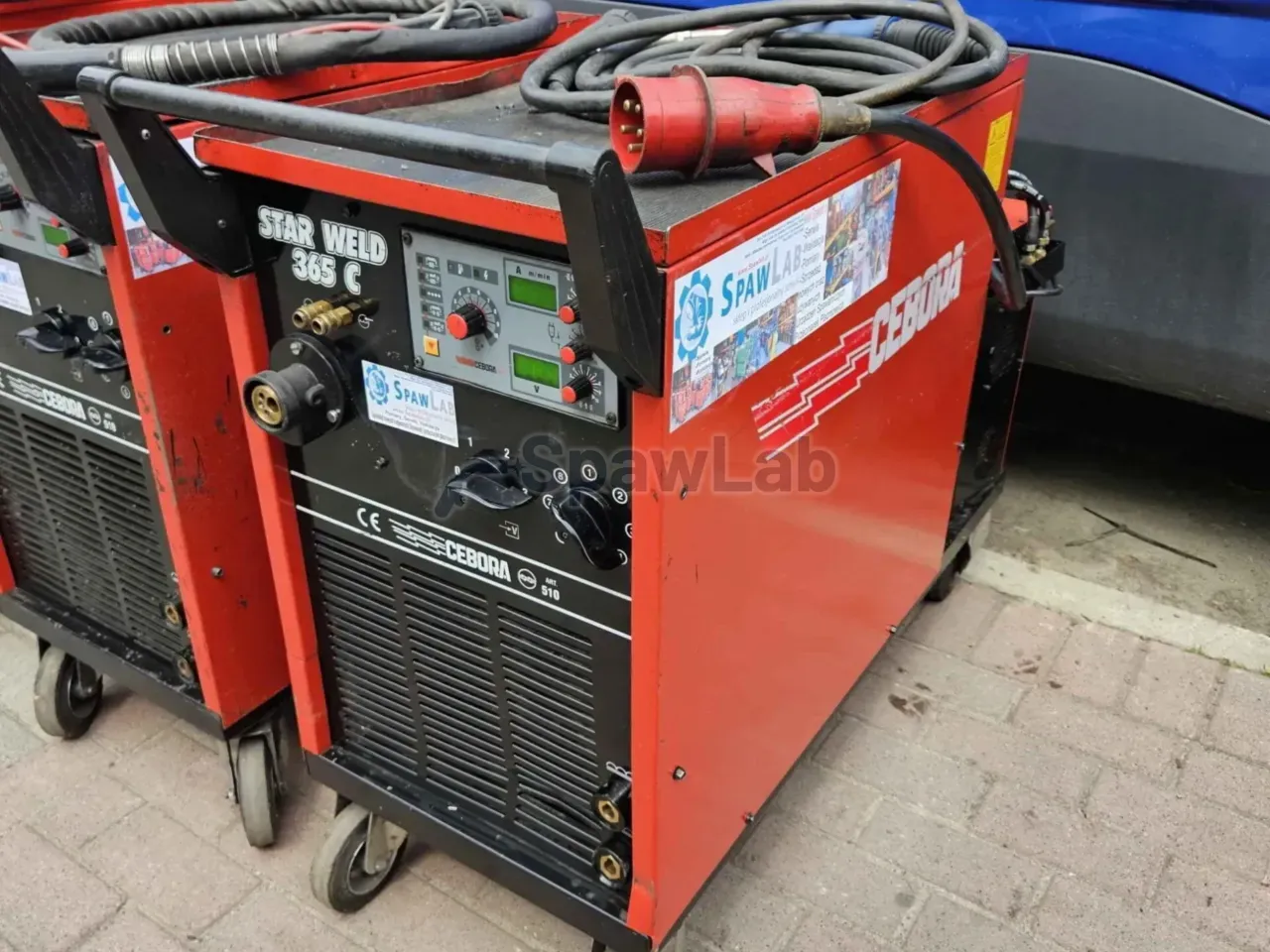

The Cebora Star Weld 365C is a transformer MIG/MAG welder on thick copper, with a simple control layout. The maker gives 350 A at a 60% duty cycle and 270 A in continuous work, with a current range from 45 to 350 A and a voltage from 16.3 to 31.5 V. Liquid from a GRV7 module cools the torch.
What this machine is for
A current of 270 A held without breaks and liquid cooling mean a machine for long beads on thicker steel. You change the voltage with a step switch, you set the wire feed and the wire burn back time steplessly, so you pick the parameters yourself, without curves and without a program memory.
A four roll feeder guides the wire, it spreads the pressure evenly and copes also with cored wires. Stepless adjustment of the burn back sees to it that the tip of the filler does not stick into the freezing crater.
Features and equipment
- Transformer on thick copper: a simple construction without sensitive electronics.
- Current range from 45 to 350 A at a voltage from 16.3 to 31.5 V.
- Duty cycle 350 A at 60% and 270 A at 100%.
- Stepped adjustment of the welding voltage, easy to repeat.
- Stepless adjustment of the wire feed and of the wire burn back time.
- Four roll feeder: even pressure, also with cored wires.
- Liquid cooling with the GRV7 module.
Technical data
| Brand | Cebora |
|---|---|
| Model | Star Weld 365C |
| Welding current range | from 45 to 350 A |
| Voltage range | from 16.3 to 31.5 V |
| Duty cycle 60% | 350 A |
| Duty cycle 100% | 270 A |
| Supply and fuse | 400 V, 23 A |
| Voltage adjustment | stepped |
| Wire feeder | 4 roll |
| Torch cooling | liquid, GRV7 module |
What to watch out for
The supply is three phase 400 V, and the documentation gives a 23 A fuse, so a power socket is needed. Liquid cooling needs the fluid level checked and a torch made for water, a gas cooled torch does not fit here. A transformer with a cooler weighs its own, plan the transport around the plant with a truck. The stepped adjustment does not change the voltage while the arc burns, you pick the setting before the bead. You match the rolls and the liner to the wire diameter.
This unit is sold
This machine has already gone to a customer. Similar units are listed below, and if you want the same model, leave your contact details in the form and we will let you know when the next one arrives.
