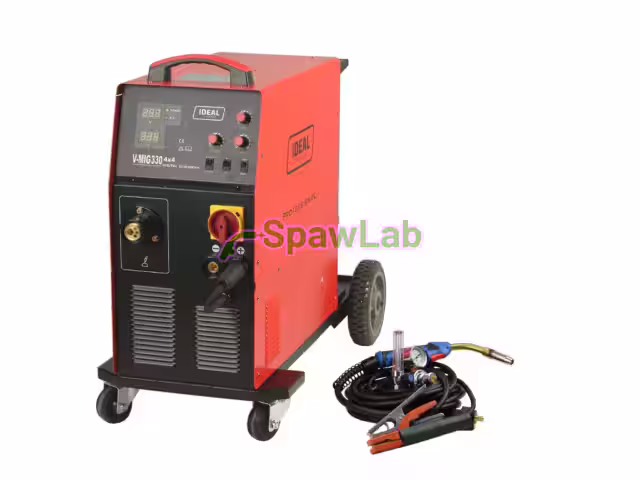

V-MIG 335 4×4 PRO MMA is an inverter MIG welder for gas-shielded MIG/MAG welding and for MMA. It welds aluminium and its alloys, stainless steel, and carbon and low-alloy steels under inert gas, active gas or a mixture. It delivers up to 330 A, runs on a three-phase 400 V supply and has a 4-roll wire feeder.
Specifications
Power supply: three-phase 3 x 400 V, 50 Hz (3ph), without plug
Power: 11.5 kW
Open-circuit voltage: 52 V
Welding current range: 30 to 330 A (MIG/MAG), 30 to 200 A (MMA)
Maximum current: 330 A
Current at 100% duty cycle: 256 A (MIG/MAG), 155 A (MMA)
Current at 60% duty cycle: 330 A
Wire diameter: steel 0.6 to 1.2 mm, stainless steel 0.8 to 1.2 mm, aluminium 0.8 to 1.2 mm, self-shielded 0.8 to 1.2 mm
Electrode diameter: 1.6 to 4.0 mm
Wire feeder: 4-roll
Wire spool: 15 kg
Protection rating: IP 21S
Warranty: 12 months for professional use, door-to-door service with no transport costs
Features
MIG/MAG adjustment: welding current, wire feed speed, wire burnback time (free wire end adjustment) and inductance.
Digital meter: a voltmeter and ammeter show the welding parameters as you work.
Current stabilisation: the circuit holds the set output parameters and controls the current delivered to the material.
Fan cooling and overload protection protect the machine during longer work.
Included
MIG 25 welding torch, 3 m
Electrode cable, 3 m
Earth cable, 3 m
Wire feeder rolls: 1.0 to 1.2 and 0.8 to 1.0 for steel
