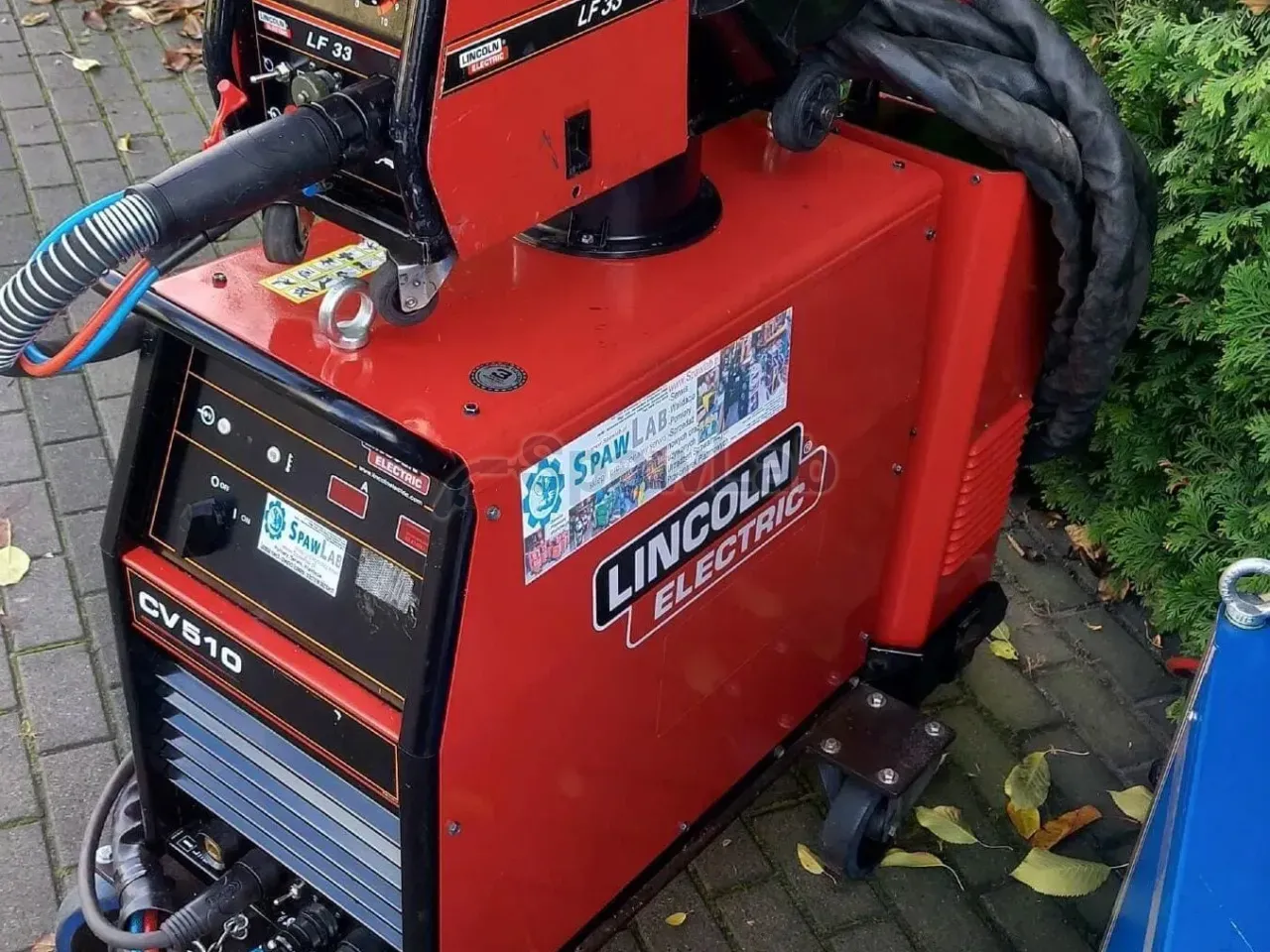

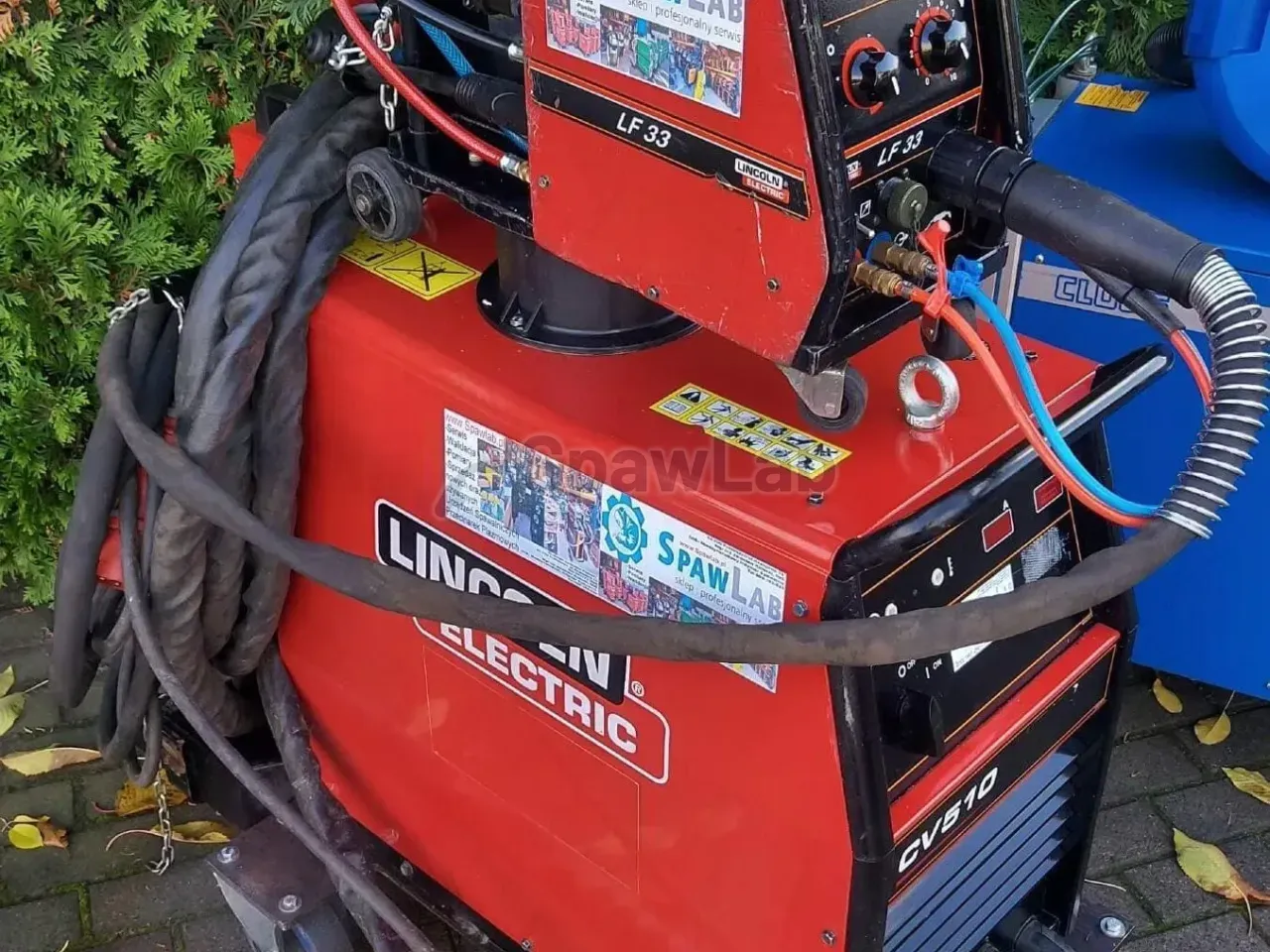

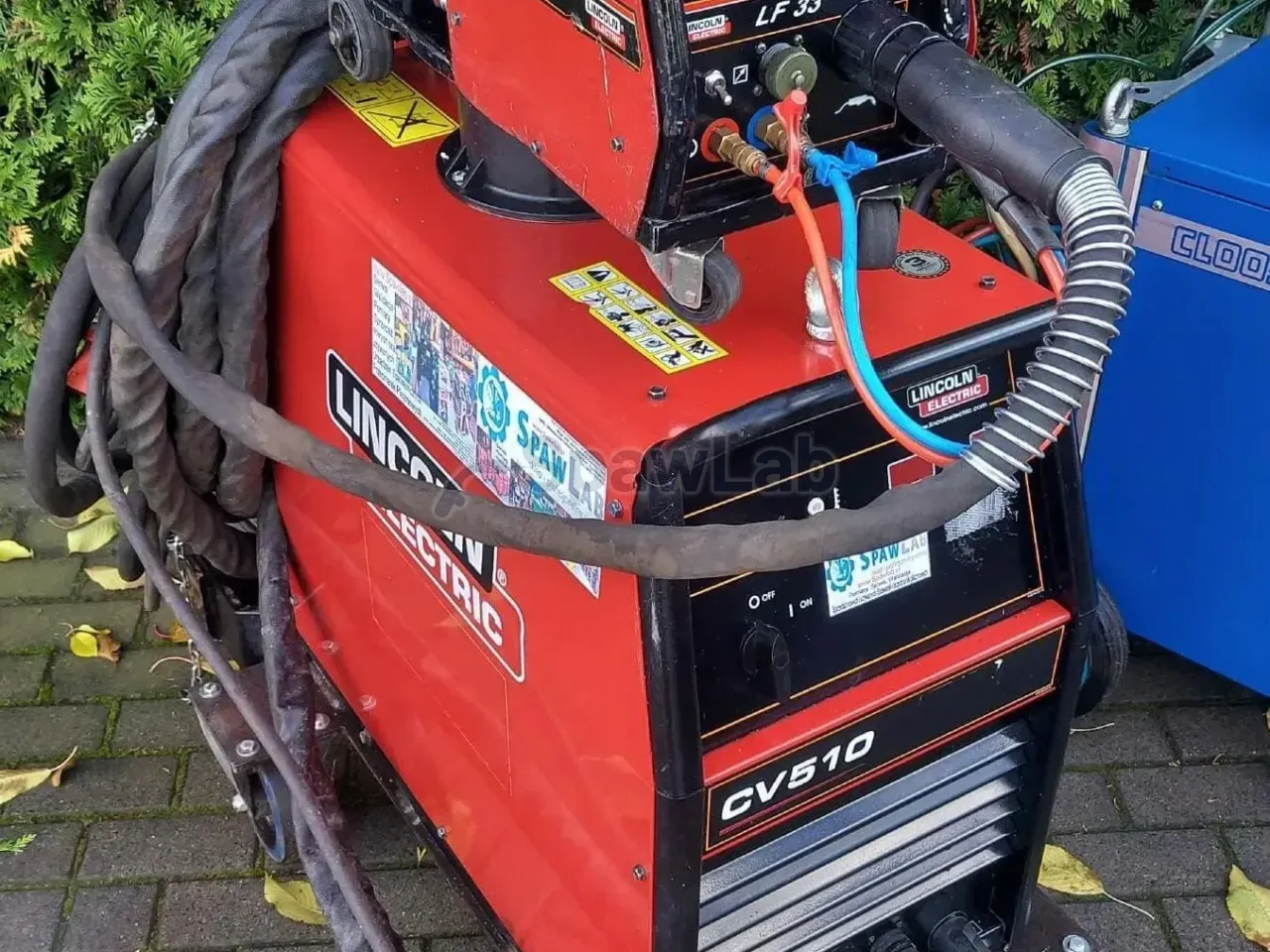

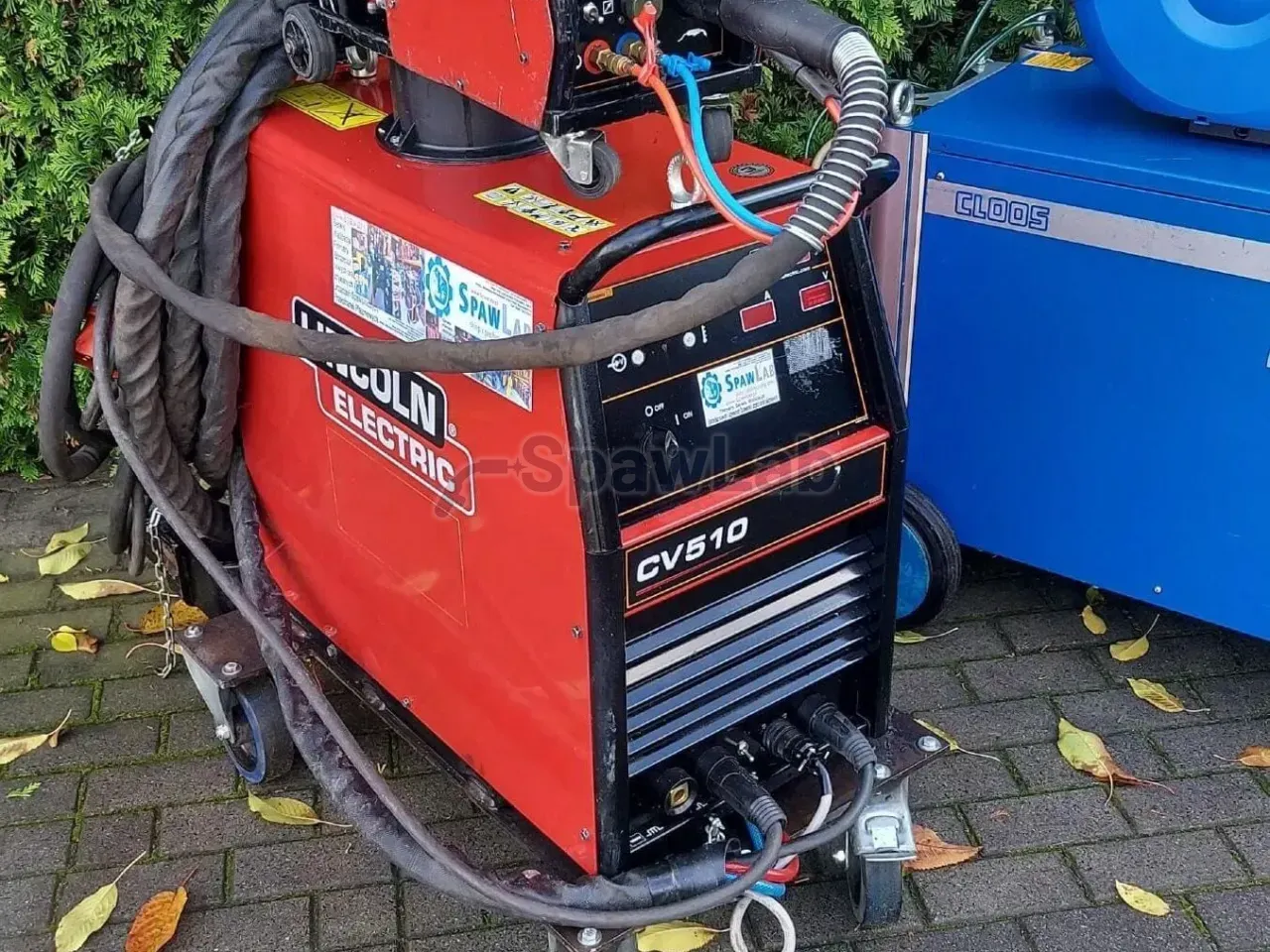

The Lincoln CV 510 is a transformer MIG/MAG welder cooled with liquid, run from a 400 V supply. It gives 500 A at a 60% duty cycle and 325 A at 100%, and you work in the band from 10 to 500 A. A four roll drive feeds the wire, you set the feed and the voltage steplessly.
What this machine is for
This is a power source for heavy production and long welds on thick sections. 325 A at a 100% duty cycle means work without breaks for cooling, and the reserve up to 500 A you use on thick fillet welds and with wire of larger diameter. The lower limit of 10 A lets you go down to thinner parts.
Stepless adjustment of the wire feed and the voltage gives you control over the arc working point without being tied to the steps of a switch. The interconnection cable 10 m long lets you move the feeder away from the source and come up to the part without rolling the machine.
Features and equipment
- Transformer build: a construction resistant to dust and to voltage swings.

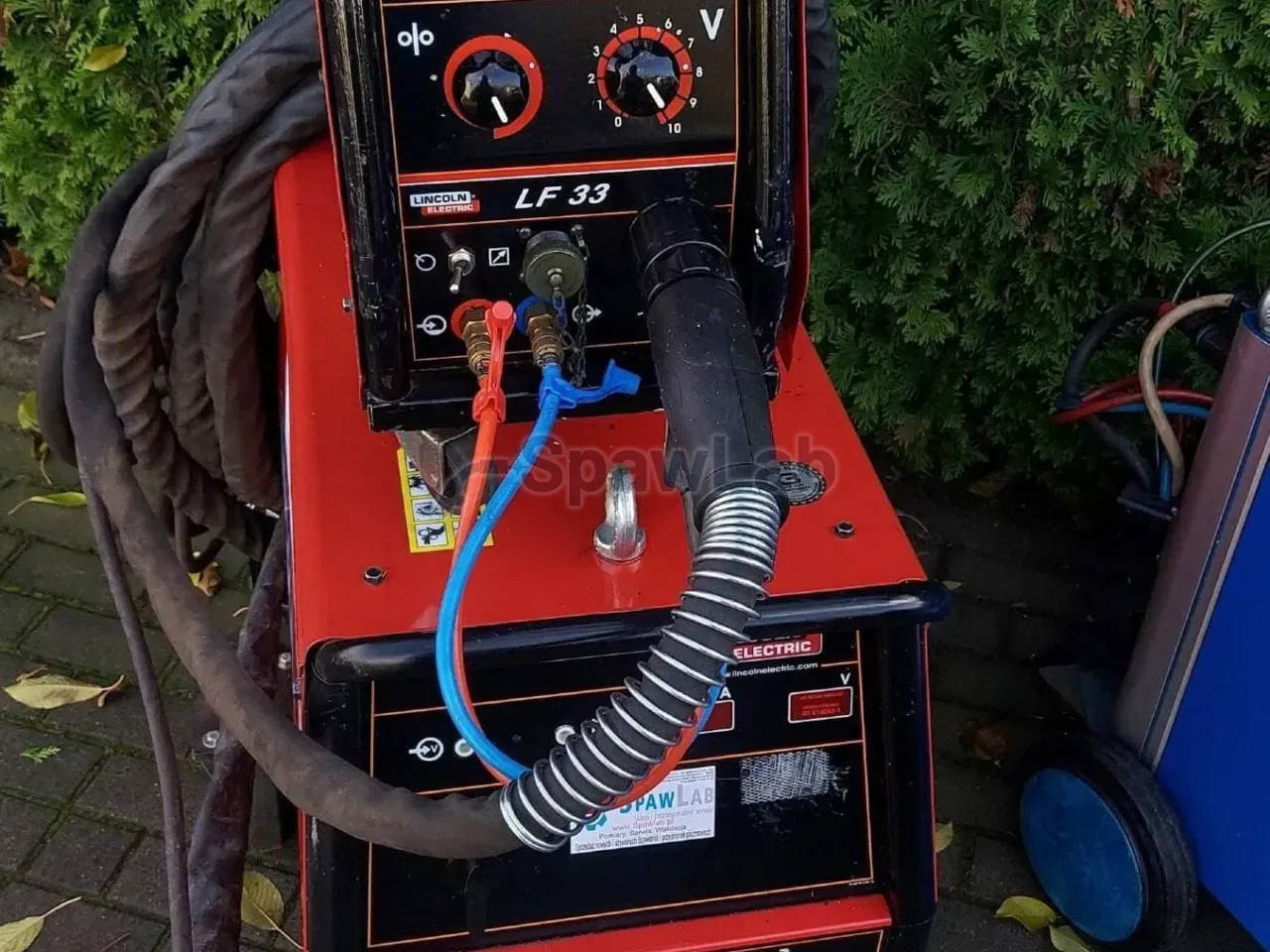

- Stepless adjustment of the wire feed and the voltage: you set the arc working point exactly to the material.

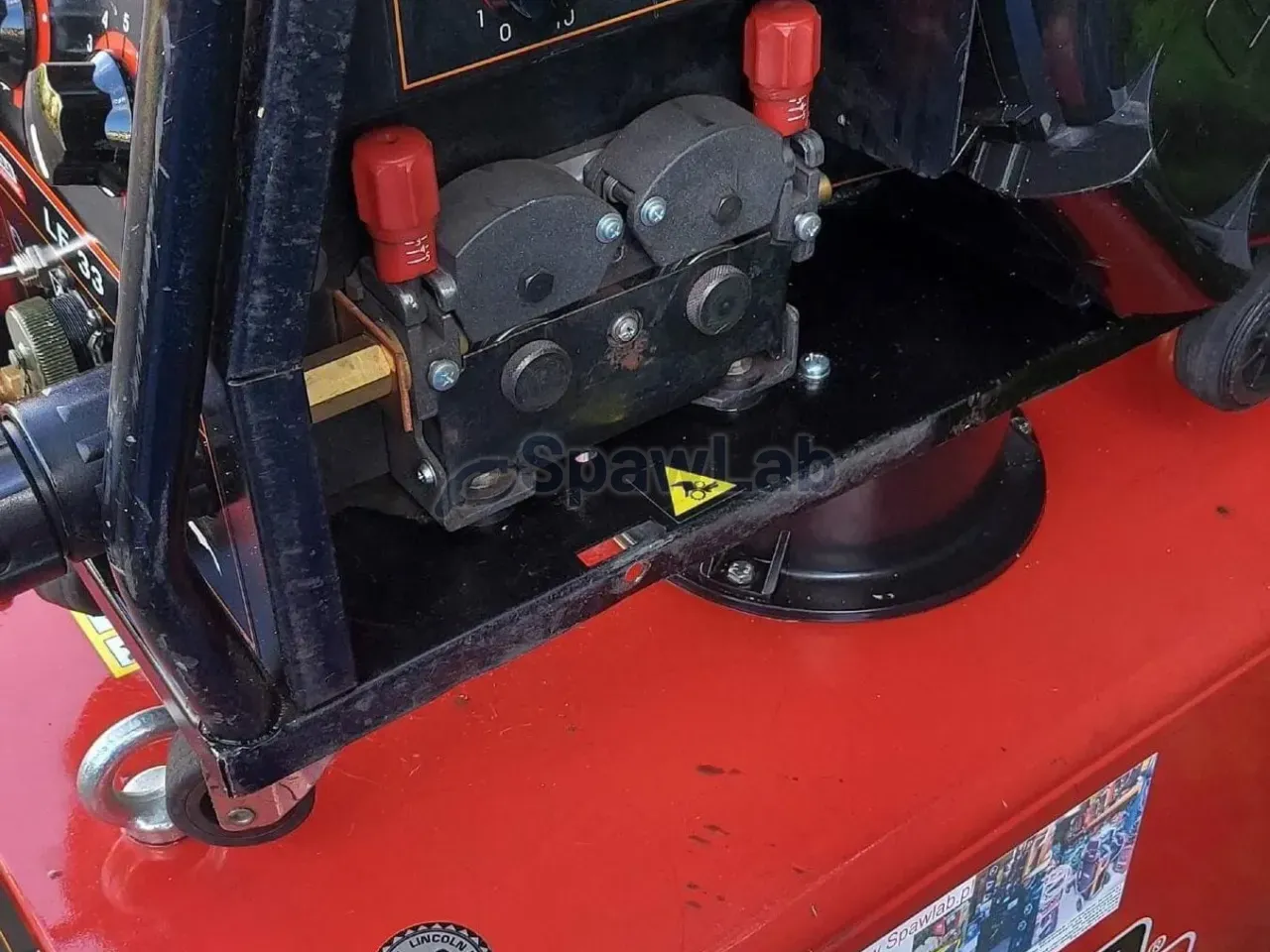

- Four roll feeder: an even wire feed without slipping in continuous work.

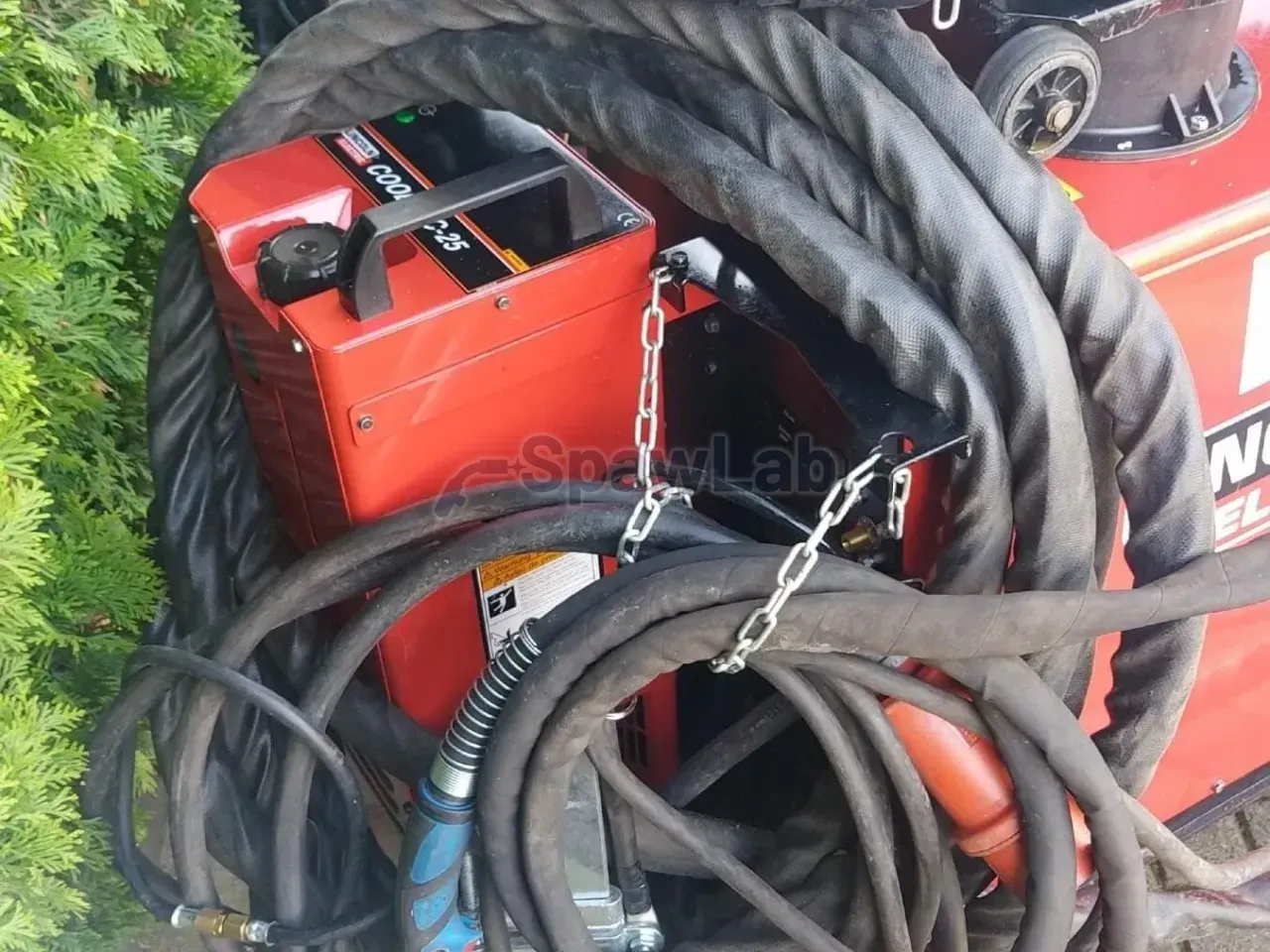

- Liquid cooling: the fluid circuit takes heat off the torch at currents of the order of 500 A.
- Interconnection cable 10 m: you move the feeder away from the source and gain reach around the part.
Technical data
| Brand | Lincoln Electric |
|---|---|
| Model | CV 510 |
| Type of source | transformer, MIG/MAG |
| Current at 60% duty cycle | 500 A |
| Current at 100% duty cycle | 325 A |
| Welding range | from 10 to 500 A |
| Supply voltage | 400 V |
| Cooling | liquid |
| Wire feeder | four roll |
| Adjustment | stepless, wire feed and voltage |
| Interconnection cable | 10 m |
What you get
- interconnection cable 10 m
- earth cable 3 m
- welding cable 3 m
What to watch out for
The welding cable is 3 m, on a large part count on a longer one or reckon with moving the bay. The 400 V supply needs a power socket and a circuit matched to the draw at 500 A, and a transformer source pulls more from the mains than an inverter of similar power. Liquid cooling is a separate circuit, in which you check the fluid level and the flow through the hoses. The weight is not given, so settle the transport before collection.
This unit is sold
This machine has already gone to a customer. Similar units are listed below, and if you want the same model, leave your contact details in the form and we will let you know when the next one arrives.
