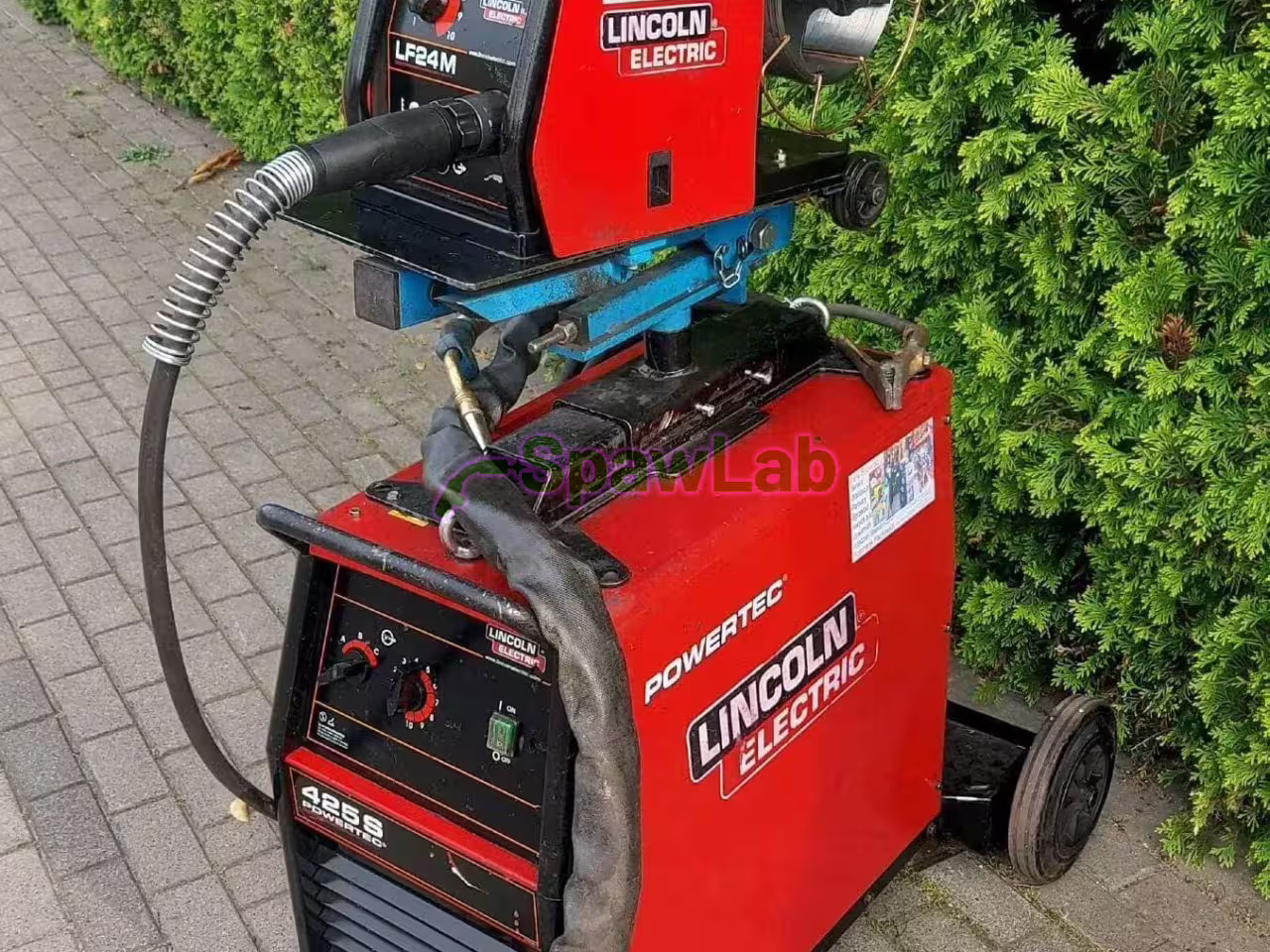

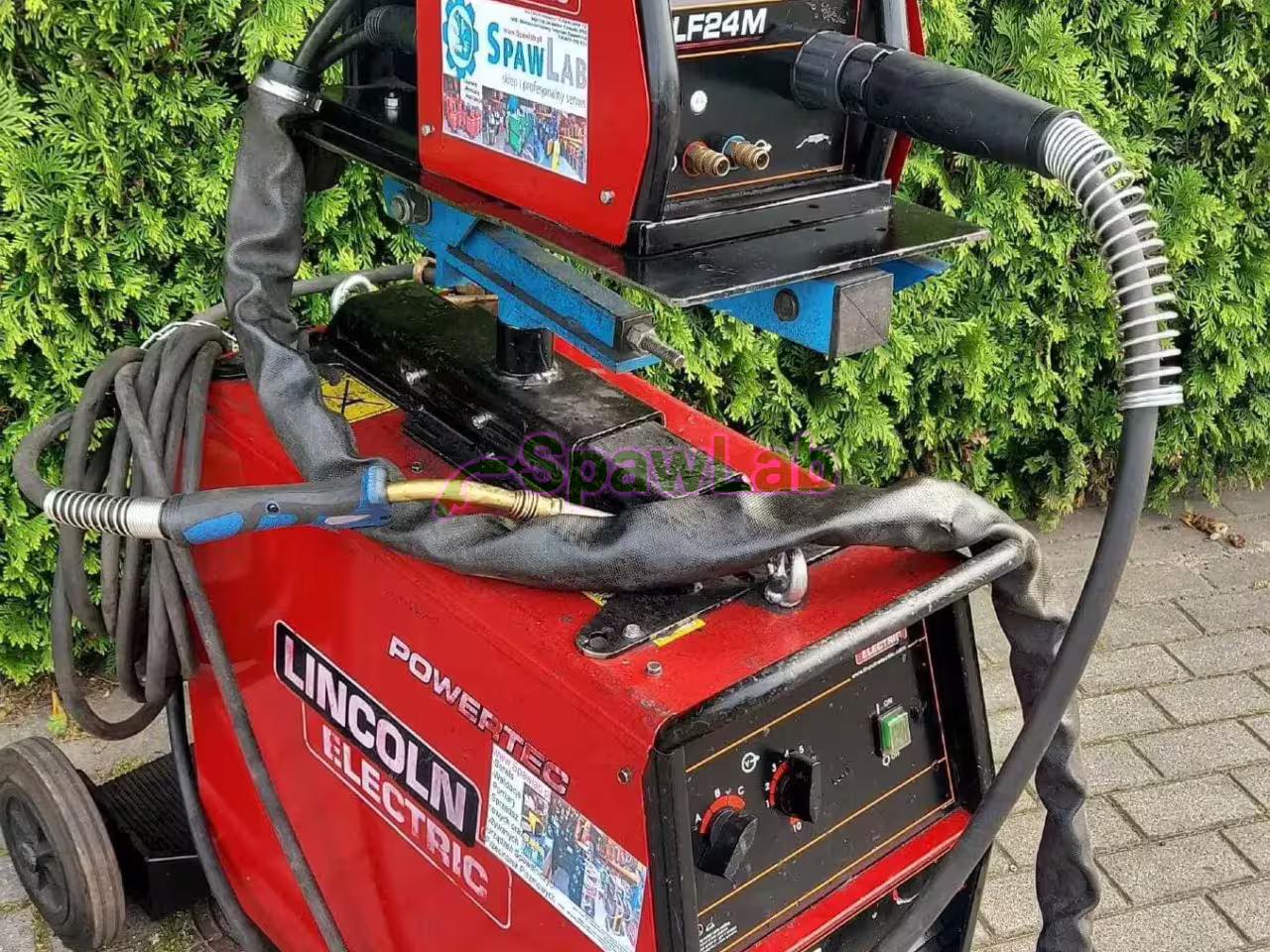

The Lincoln Electric POWERTEC 425 S is a MIG/MAG welder in the workshop and production class, supplied from a 400 V mains. The source works from 30 to 420 A and gives 420 A at a 40% duty cycle and 265 A at 100%. The wire is driven by a four roll feed and you set the voltage with a step switch.
What this machine is for
The machine welds by MIG/MAG under gas, with wire fed without a break. A current of 420 A at a 40% duty cycle is enough for fillet welds on thicker sections, and 265 A in continuous work pulls long runs with no stops for the source to cool.
This is kit for a fabrication workshop and for production in mild steel, where operation with no screen menu counts. The spot mode comes in useful when you tack sheets in a lap joint.
Features and equipment
- Manual MIG/MAG welding: wire fed without a break under gas.
- Spot welding: the system times the arc and cuts the current.

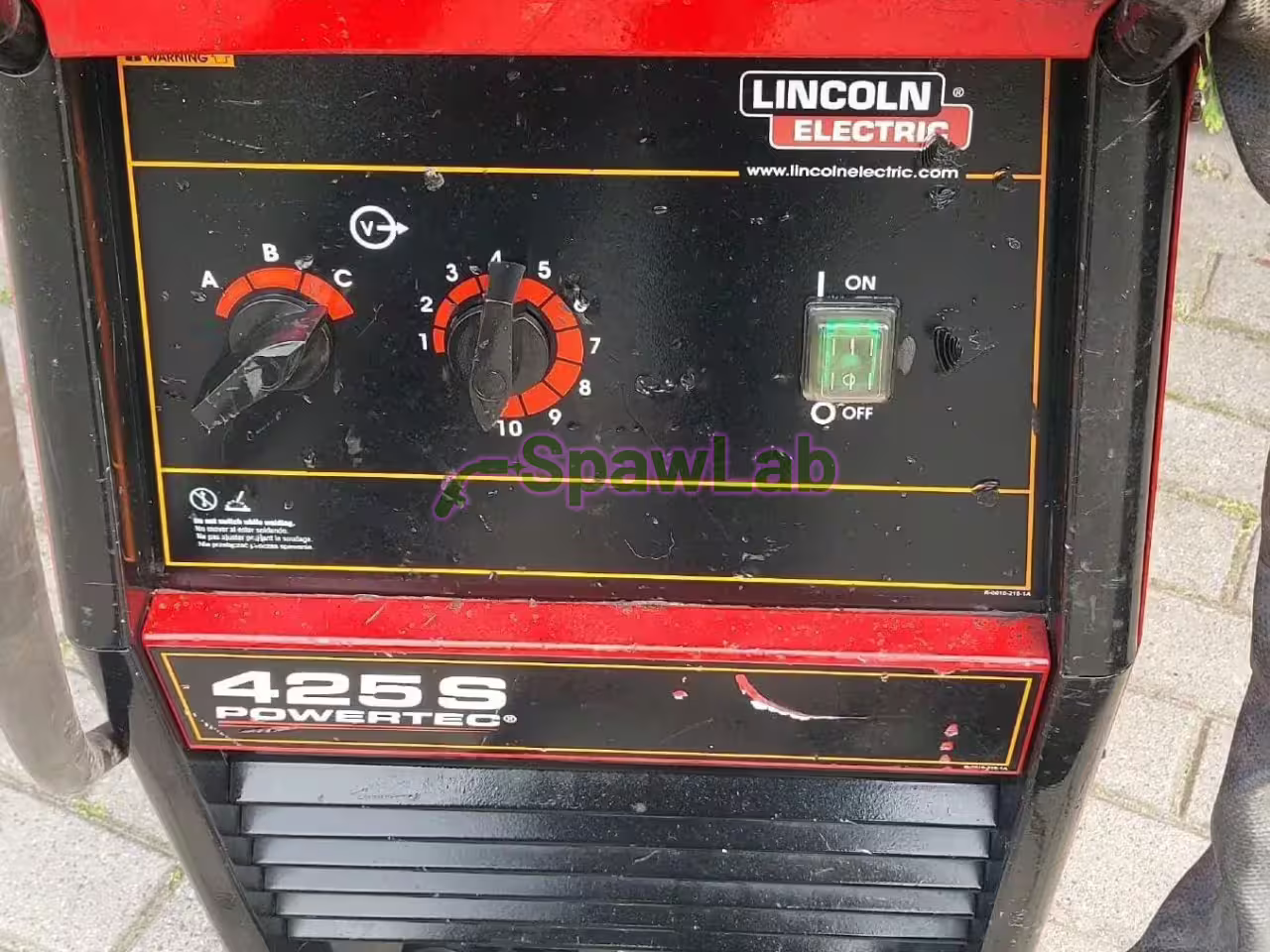

- Stepped control of the welding voltage: repeatable steps of settings.
- Stepless control of the wire feed: you match the speed to the thickness of the material.

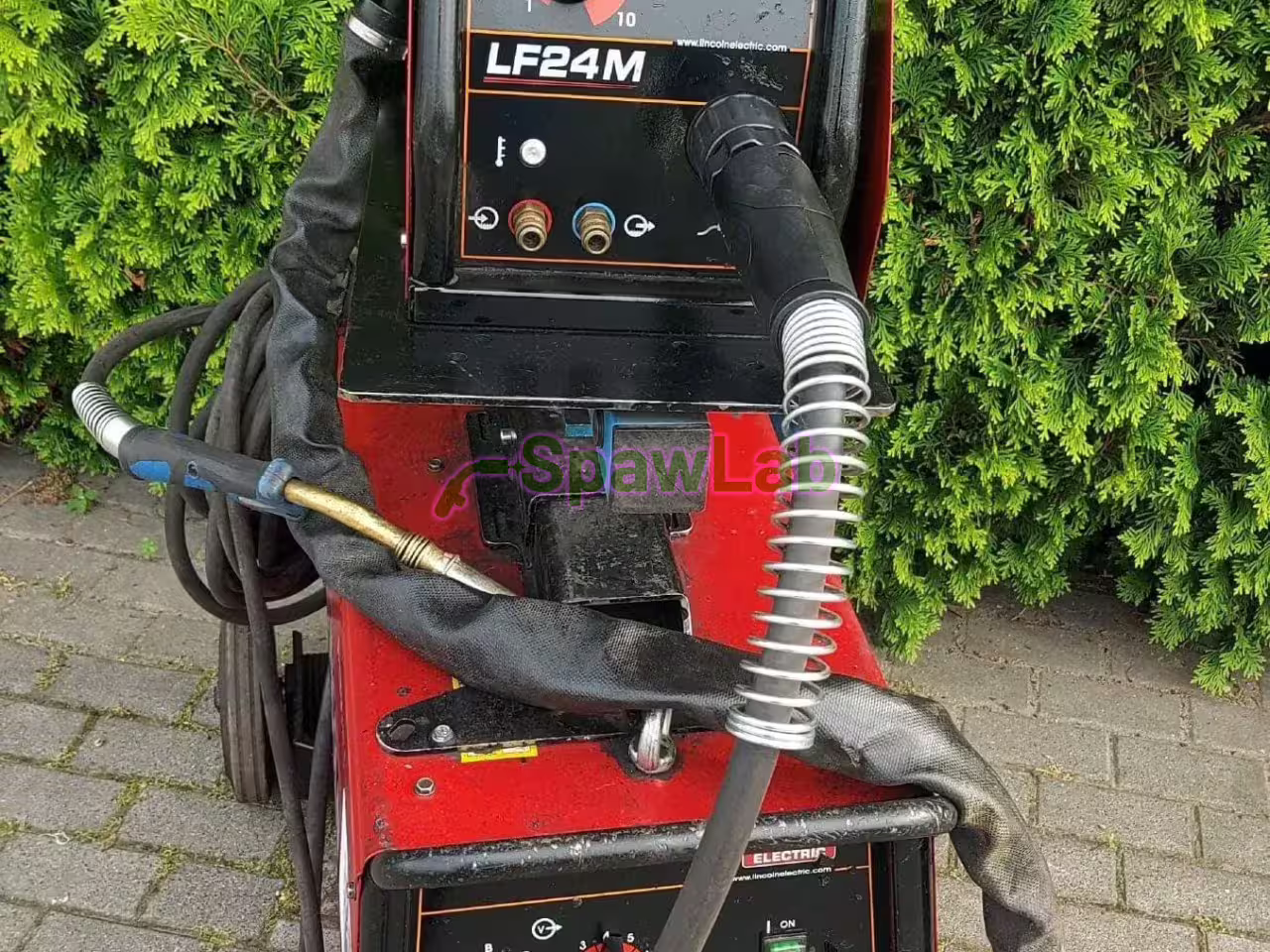

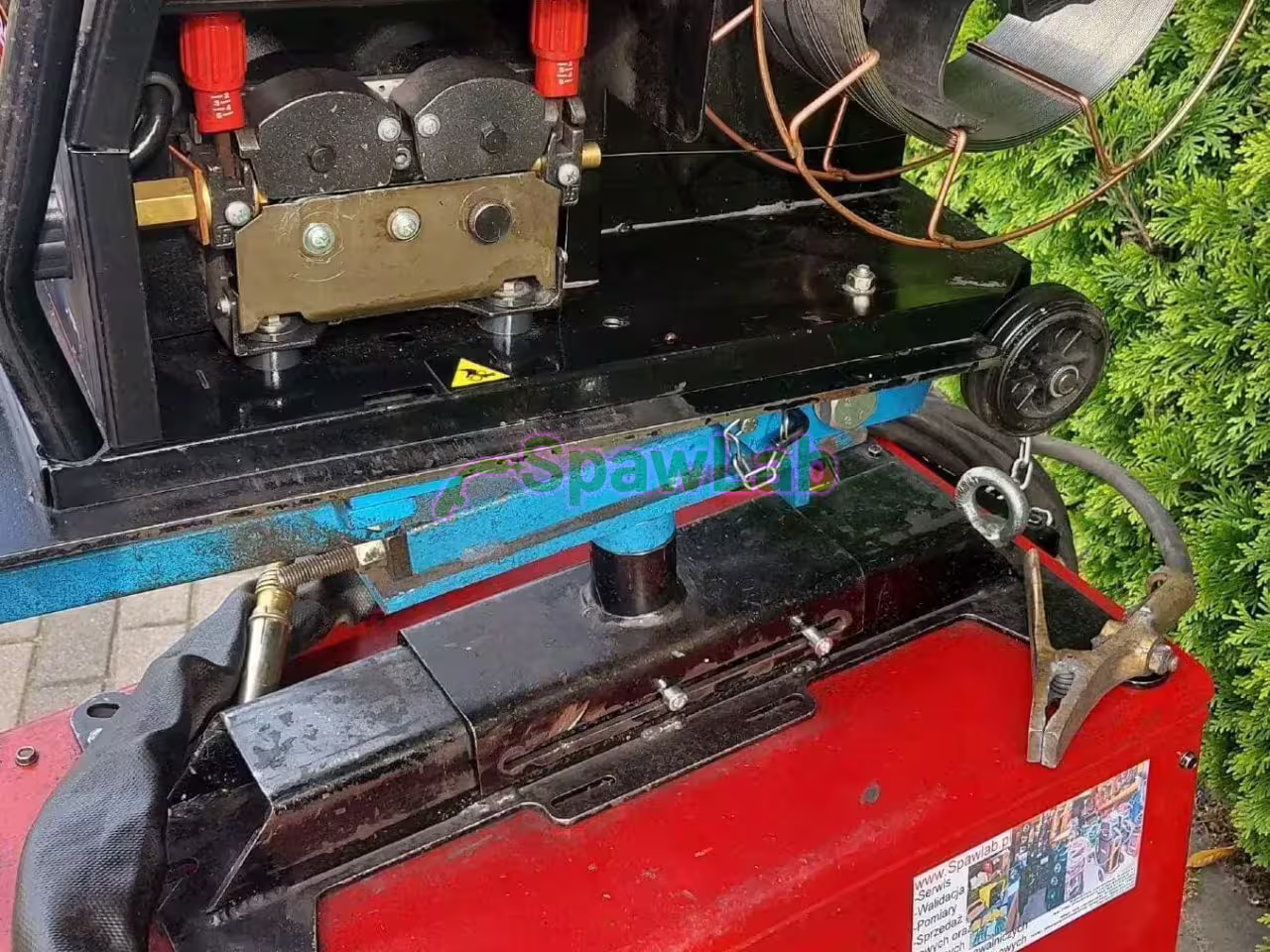

- Four roll feeder: it leads the wire without slip with a longer liner.
Technical data
| Brand | Lincoln Electric |
|---|---|
| Type | MIG/MAG welder |
| Lowest welding current | 30 A |
| Highest welding current | 420 A |
| Current at a 40% duty cycle | 420 A |
| Current at a 100% duty cycle | 265 A |
| Welding current given on the record | up to 500 A |
| Supply voltage | 400 V |
| Cooling | gas |
| Wire feeder | four roll |
| Torch in the set | 4 m for 300 A, gas cooled |
| Earth cable | 3 m |
| Power supply cable | 3 m |
What you get
- welding lead 4 m for 300 A, gas cooled
- earth cable 3 m
- power supply cable 3 m
What to watch out for
The record gives a welding current up to 500 A and the source description 420 A at a 40% duty cycle, so confirm the value on the rating plate. The torch from the set has a load capacity of 300 A, and on longer work above that value the grip heats up. A 400 V supply means a three phase socket. Stepped control gives fixed steps of voltage, and the choice of values in between stays with the welder.
