Description

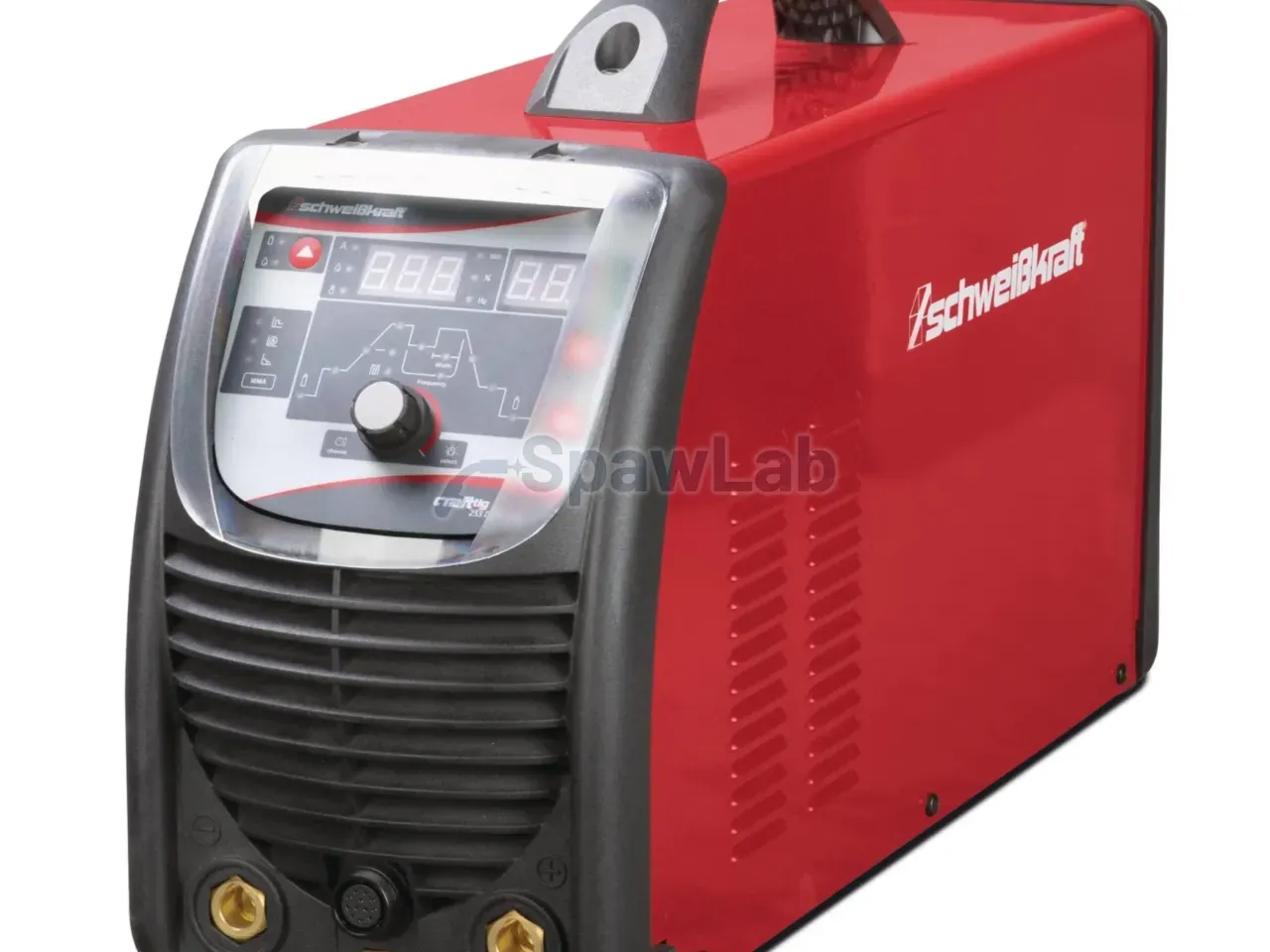

CRAFT-TIG 253 DC PULSE
For workshop and mobile applications
- Built with modern inverter technology
- Ideally suited for assembly work due to its IP 21S rating, generally also for outdoor work
- Universal application for welding all common types of electrodes
- TIG pulsation allows welding with reduced heat input
- High frequency HF ignition ignites during TIG welding without touching the workpiece
- Nine programs can be saved
- Quiet running fans ensure good heat dissipation and high duty cycle
- Time-controlled fan with standby mode
- Precise setting and display of welding parameters on the LC display
- Suitable for use on a generator, for example in workshops, schools, metal structures, construction sites or for farmers
- Adjustable welding curve
- MMA mode with hot start and Arc-force control
- Water cooling available as an accessory
BASIC PROPERTIES
Plate thickness
0,5 – 12 mm
SPECIFICATIONS
Dimensions and weights
Length (product) approx.
480mm
Width/depth (product) approx.
190mm
Height (product) approx.
350mm
Weight (net) approx.
15,1kg
Range of adjustment
TIG setting range
5-250A
Adjustment range electrode
5-250A
Work cycle
Duty cycle at max current 40°C TIG
60%
Duty cycle at max current 40°C Electrode
60%
Current at ED 100% 40°C TIG
195A
Current at ED 100% 40°C Electrode
195A
Electrical data
Supply voltage
400±10%V
Network frequency
50/60Hz
Power factor
0,67cos phi
Total production
10.6/7.7kVA
TIG DC power consumption
13,5A
DC power consumption electrode
18,6A
Device data
Pulse indicator
0,5 – 200Hz
Ignition
high frequency
Flashlight cooling
Gas / water
Energy consumption
TIG energy consumption
5kVA
Power consumption electrode
7,1kVA
Electrical connection
Generator power required
>10,6kVA
Positive line voltage tolerance
10%
Negative line voltage tolerance
10%
Open circuit voltage
MMA 70,5 / TIG 60,5V
Connection cable length
2,2m
DELIVERY CONTENTS
- 3 m grounding cable 25 mm² with grounding clamp
- 4 m gas hose with quick-connect coupling
- Hose clamp
