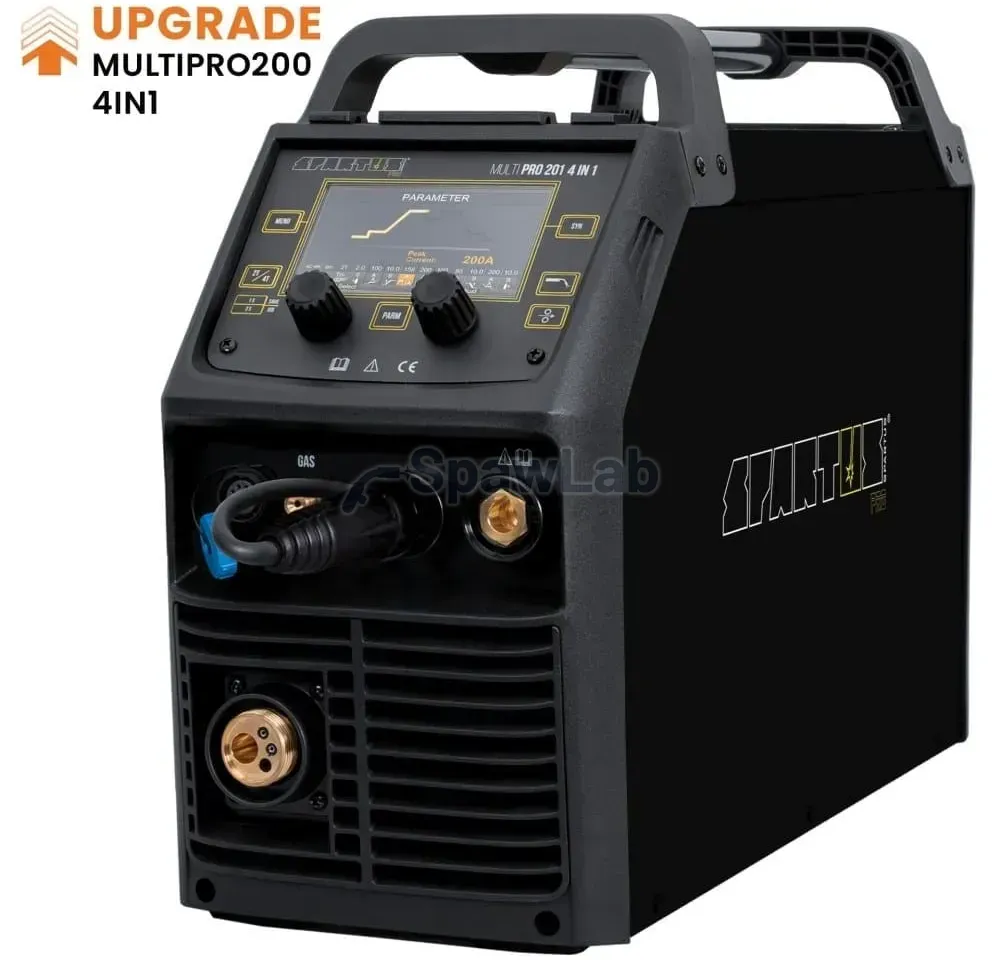

MultiPro 201 4in1 - MULTIPROCESS WELDING INVERTER
SPARTUS® MultiPro 201 4in1 is a multiprocess inverter welder built around PWM technology and high grade IGBT transistors. It welds in the MIG / TIG AC / TIG DC and MMA AC / MMA DC processes with a maximum current of 200A. It runs from a single phase 230V mains. Thanks to its broad configuration options, the machine suits many different metal joining techniques.
MIG WELDING
MultiPro 201 4in1 is fitted with a synergic MIG/MAG welding system that offers programs for steel, stainless steel and aluminium, welding with self shielded wire and braze welding. Parameters can be corrected by hand, with automatic hints for material thickness and wire feed speed.
| Material | Wire diameter [mm] | Shielding gas |
| Fe | 0.6 / 0.8 / 1.0 | 80%Ar + 20%CO2 |
| Fe | 0.6 / 0.8 / 1.0 | 100%CO2 |
| Flux c.w. Fe | 0.8 / 1.0 | 100%CO2 |
| SS | 0.8 / 1.0 | 98%Ar + 2%CO2 |
| Al | 0.8 / 1.0 | 100% argon |
| CuSi3 | 0.8 / 1.0 | 100% argon |
MultiPro 201 4in1 also runs in manual mode. It lets you set every welding parameter to your own requirements.
The machine has built in functions that support MIG/MAG welding:
- Burn Back, control of the wire burn back time, removes the risk of the welding wire sticking to the contact tip. It also makes short MIG/MAG joints easier to run.
- Slow Feed, a soft start of the wire feeder. A helpful function at high wire feed speeds. The arc strikes steadily from the moment welding begins, so the risk of weld defects at the start of the bead is kept to a minimum.
- Inductance control
- Welding in two modes: 2T/4T.
MultiPro 201 4in1 also welds with SPOOL GUN torches that carry a built in wire feeder. This takes load off the machine and extends its reach, allowing work with torches longer than 5 metres.
TIG WELDING
Thanks to its advanced functions, MultiPro 201 4in1 covers TIG AC and TIG DC welding with HF or Lift arc striking. It handles pulsed current welding, which suits precise work on thin sheet and aluminium. The machine offers functions that support the TIG process, such as:
- AC waveform selection: three options are available, square, sine and triangular, so welding parameters can be matched to the material in hand.
- Adjustment of AC balance, current and pulse frequency, pulse width and pulse current, which gives close control over the welding process.
- Adjustment of current slope down and slope up: this optimises the dynamics of the welding arc, which is the key point on difficult joints.
- SPOT welding: this option allows accurate spot welds for precision work in industry.
- 2T/4T operating mode: easier control and better comfort on both short and long welding jobs.
With these advanced functions, SPARTUS® MultiPro 201 4in1 becomes a valuable tool for professionals who expect top quality and adaptation to varied working conditions.
MMA WELDING
MultiPro 201 4in1 offers MMA welding in AC and in DC mode alike, which makes it a sound choice for varied applications. The machine carries support functions that make the welding process easier and better controlled:
- Hot Start: it eases the initial striking of the electrode, which helps in particular on harder materials, giving a smooth start and a stable arc from the outset.
- Arc Force (arc dynamics control): it adjusts the intensity of the welding arc automatically, which helps when welding in tight spots or out of position. You keep more control over the process and lower the risk of weld defects.
These functions, built into SPARTUS® MultiPro 201 4in1, deliver better weld quality along with comfort and ease of use, even on the most demanding welding tasks.
MEMORY CHANNELS
SPARTUS® MultiPro 201 4in1 is fitted with 10 memory channels, a key tool for any professional, allowing quick and effective handling of the welding process. The welder can store and instantly recall the settings used most often, which speeds up work and saves time when parameters change between projects or materials.
WARRANTY
The warranty period for SPARTUS® Pro series machines is up to 36 months.
The modern design, the functional LCD panel and the advanced components make SPARTUS® MultiPro 201 4in1 one of the best machines in its class on the market. It is a professional tool from the SPARTUS® Pro series that works both in the production sector and in industry.
