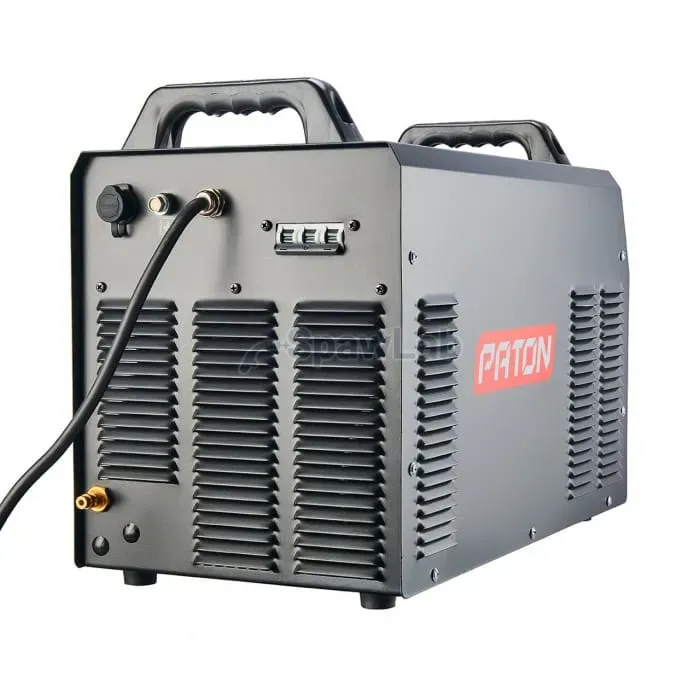

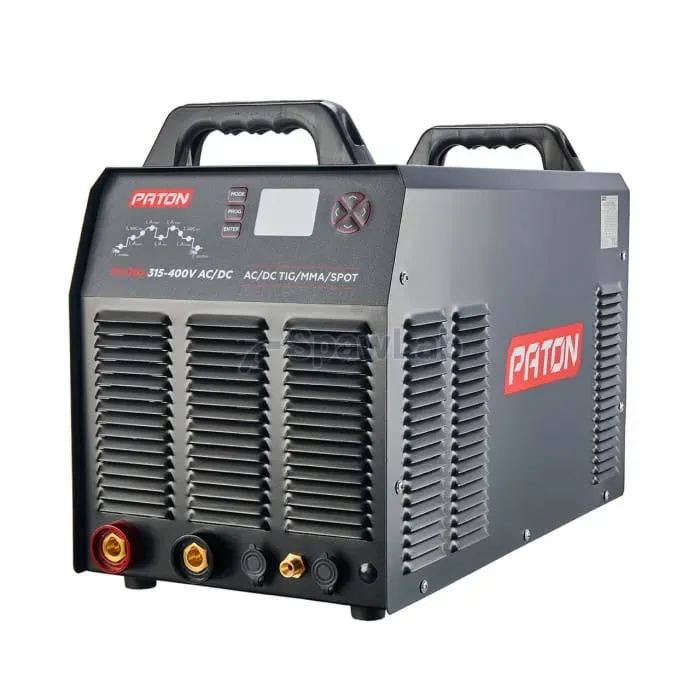

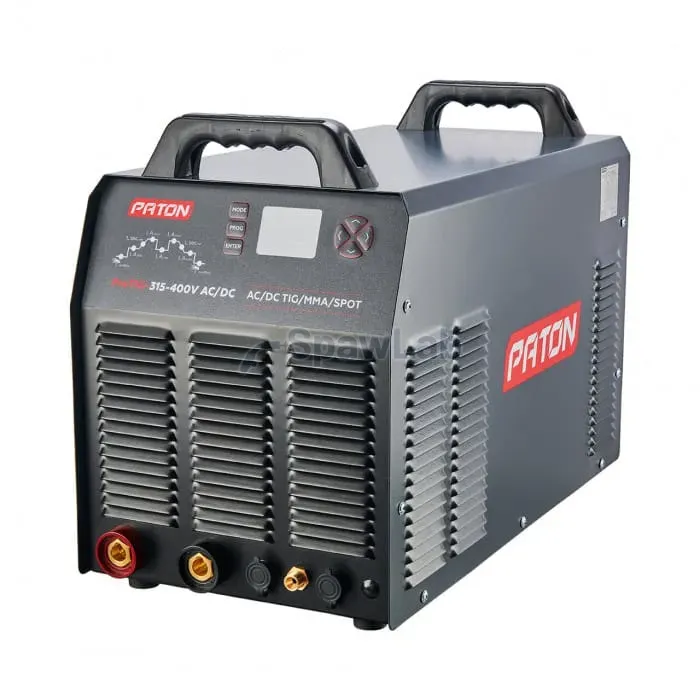

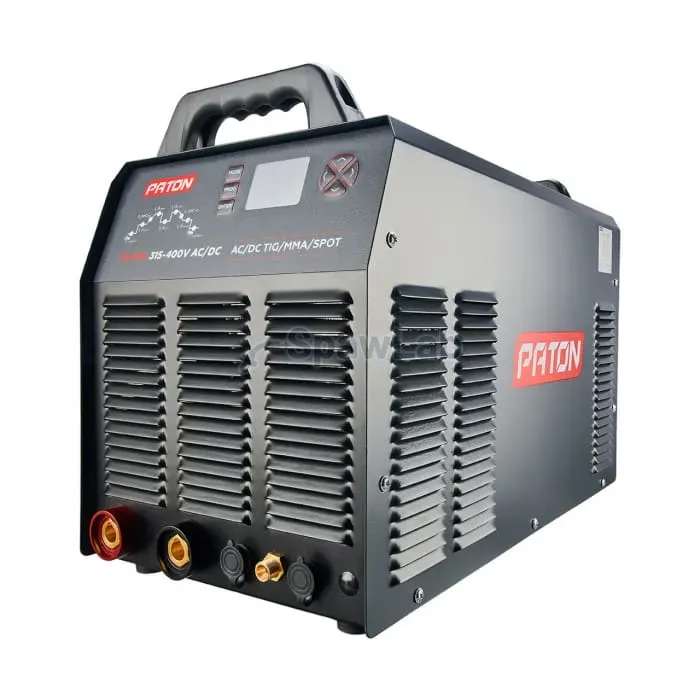

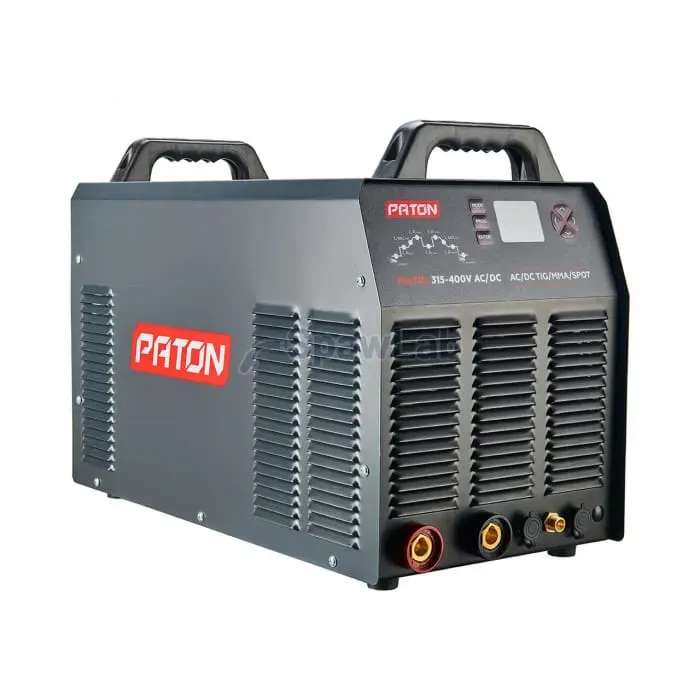

Paton ProTIG-315 AC DC TIG welder, key data
The PATON PPAC digital inverter welder is set up for gas shielded arc welding by the "TIG" method on direct or alternating current (AC/DC) and for manual arc welding with covered electrodes by the "MMA" method on direct current.
A unit from the "Professional" series, built for users who want a compact machine and a sound balance between portability and the work it can do at its full rated current.
It is a strong choice for DC and AC welding of many materials: aluminium and aluminium alloys (TIG AC mode), steel parts and stock, non-ferrous metals and copper alloys (TIG DC mode). The machine also welds with covered electrodes (MMA mode). The maker has additionally fitted this unit with the RIV (SPOT) function. The PATON ProTIG 315 inverter welder gives clean non-contact arc striking, a steady arc, good weld quality and easy handling. The unit has a protection module against supply voltage that is too low or too high. Raising the frequency of the input voltage that feeds the transformer makes the transformer several times smaller, so the machine weighs several times less and takes up less room at the same output parameters as other units of a similar rating.
The Paton ProTIG-315 AC DC TIG welder is intended for welding in:
- TIG AC/DC (direct / alternating current)
- MMA (direct current)
- RIV (rivet spot welding mode)
MAIN ADVANTAGES OF PATON MACHINES:
- European production
- Electronic thermal protection system that keeps every heat generating part from overheating
- Reliability based on IGBT technology
- Runs on long extension leads and on a generator
- Welding with pulsed current (PULSE function)
- Improved arc stability
-
2T and 4T mode switching, gas purge from the feeder function
- The machines have protection against voltage surges and a stabilising circuit, so they work correctly over a supply range from 160V to 260V
- Half the electricity demand compared with conventional power sources
- Sound penetration and correct bead shape in any welding position
2 year manufacturer warranty for private and business customers
The build quality is backed by a 2 year DOOR-to-DOOR manufacturer warranty. Models from the ADI Standard series have a compact design that uses a set of technical solutions raising the failure resistance of the units. Inverter reliability in dusty and humid conditions was improved by moving the electronics into a separate chamber, and the electronic parts are coated with a high grade varnish.
The set you buy contains:
- Paton ProTIG-315 AC DC TIG welder
- Earth clamp lead 3m
- Cardboard box
- Carrying strap
- User manual
- Gas quick coupling
If you select a TIG torch, that torch is added to the set.
