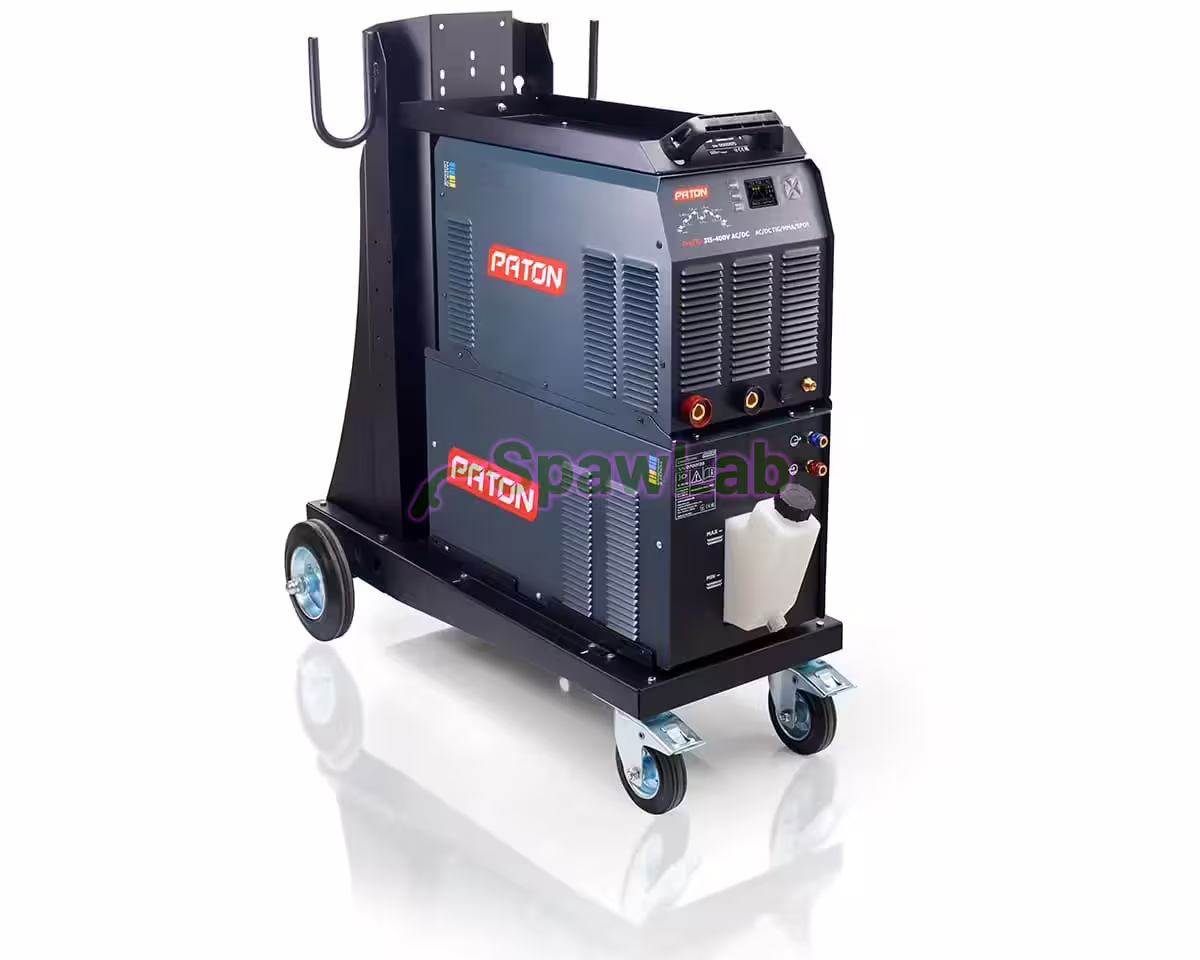

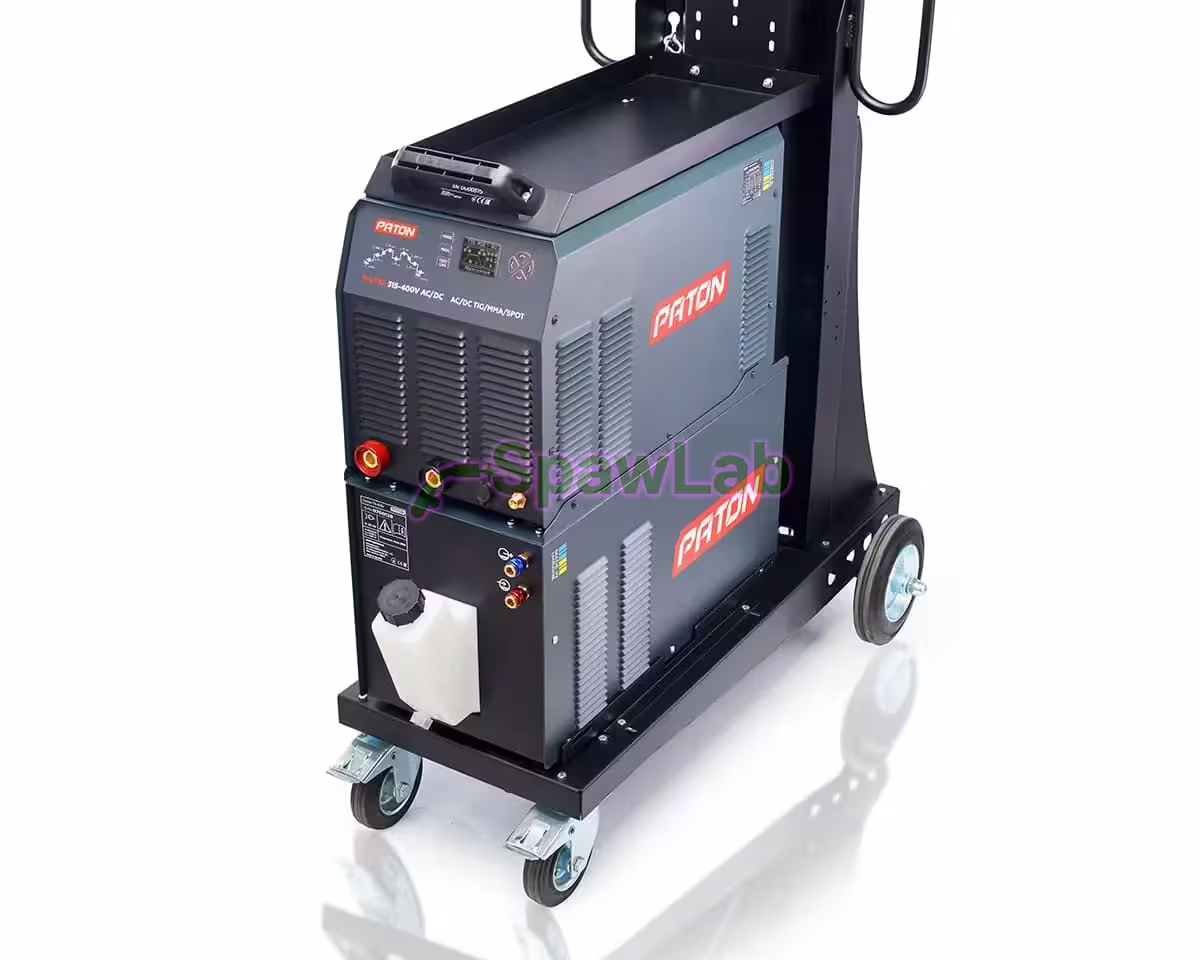

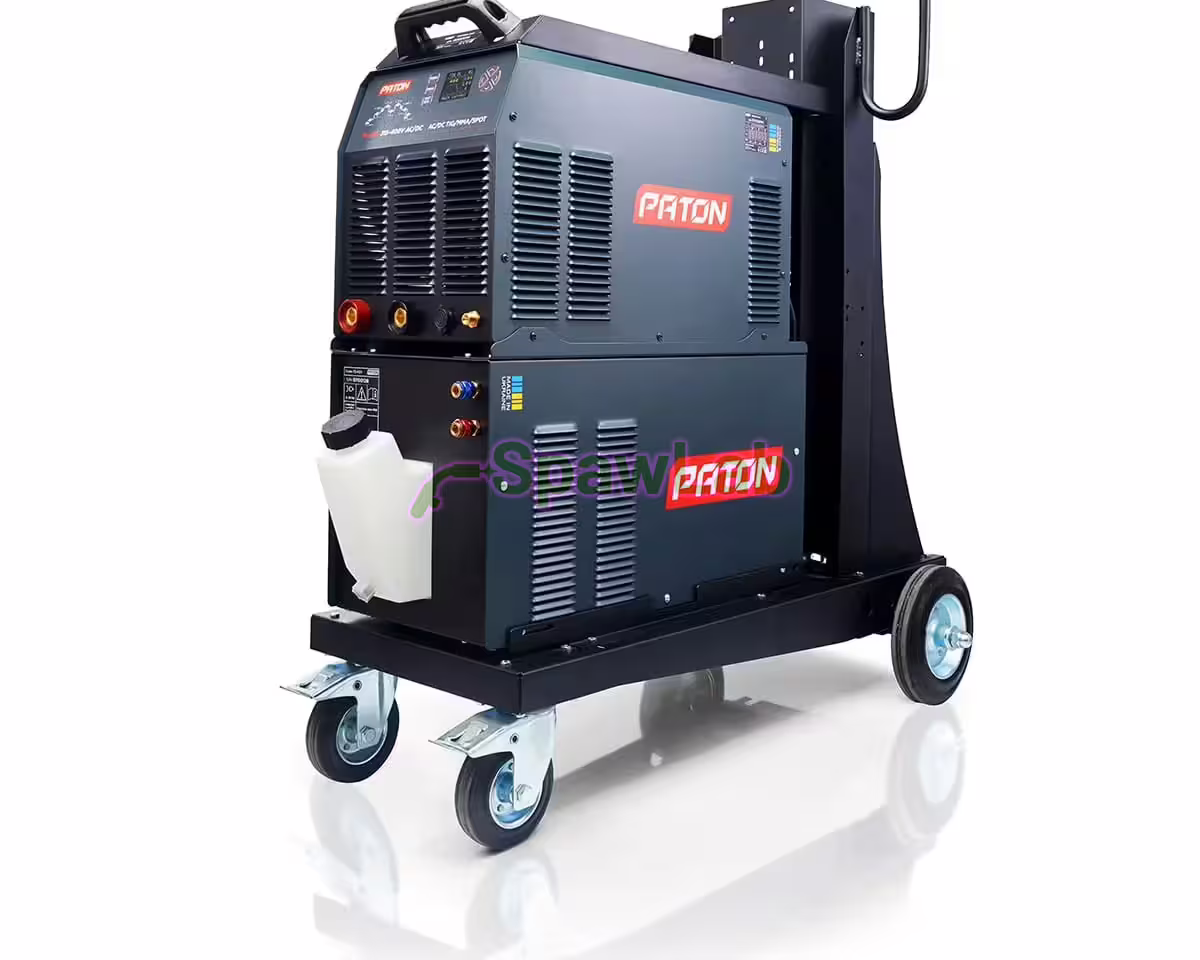

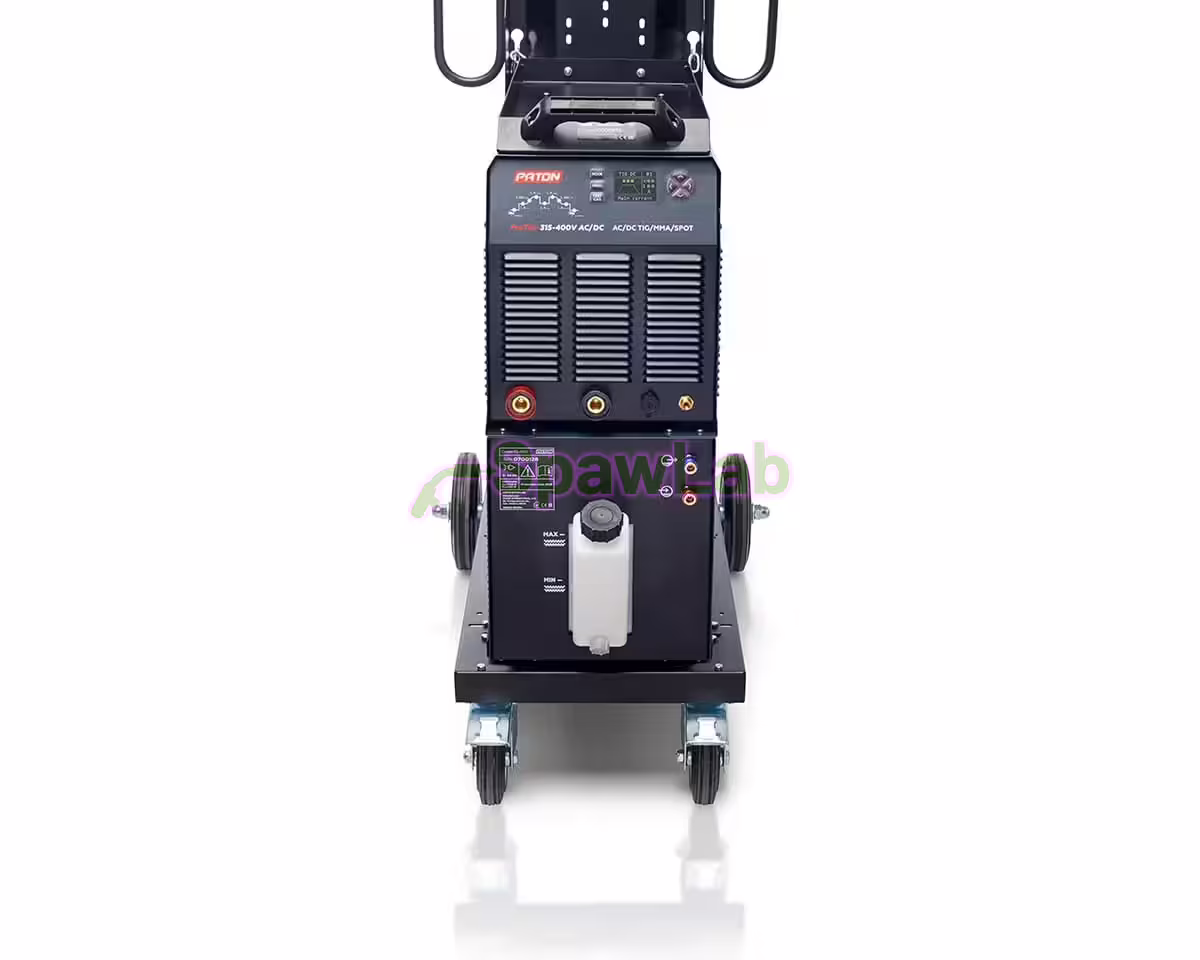

Paton ProTIG-315 TIG AC DC welder with cooling
The digital inverter welder PATON ProTIG-315 is built for gas shielded arc welding in „TIG” mode with direct or alternating current (AC/DC) and for manual arc welding with covered electrodes in „MMA” mode with direct current.
The unit of the „Professional” series was designed for users who need a compact build and a good balance between portability and function at its full rated current.
The best answer for welding a broad spectrum of materials with direct and alternating current: aluminium and aluminium alloys (TIG AC mode), parts and materials of steel, non ferrous metals and copper alloys (TIG DC mode). The unit can also be used for welding with covered electrodes (MMA mode). The maker also gave this unit the RIV (SPOT) function. The inverter welder PATON ProTIG 315 gives clean non contact striking, a steady and stable arc, high weld quality and easy handling. The unit has a protection module against supply voltage that is too low or too high. Raising the frequency of the input voltage that feeds the transformer makes it several times smaller, so the unit has several times lower weight and smaller dimensions at the same output parameters compared with other units of similar rating.
The Paton ProTIG-315 TIG AC DC welder is intended for welding:
- TIG AC/DC (direct / alternating current)
- MMA (direct current)
- RIV (rivet spot mode)
MAIN ADVANTAGES OF PATON UNITS:
- European production
- Electronic thermal protection system that keeps every heat generating component from overheating
- Reliable IGBT technology
- Works on long extension leads and with a generator
- Welding with pulsed current (PULSE function)
- Improved arc stability
-
2T and 4T mode switching, gas purge from the feeder function
- The units have surge protection and a working stabilisation circuit, so they run correctly across a voltage range from 160V to 260V
- Half the electrical power demand compared with conventional power sources
- Good penetration and correct bead shape in any welding position
1 year manufacturer warranty for consumers and for companies
Build quality confirmed by a 1 year DOOR-to-DOOR manufacturer warranty. Models in the ProTIG series have a compact design with a number of technical solutions that raise reliability. Inverter durability in dusty and humid environments was improved by moving the electronics into a separate compartment, and the electronic parts were coated with high grade varnish.
The purchased set contains:
- Paton ProTIG-315 TIG AC DC welder
- PATON 7S 400V cooler
- PATON welding trolley
- PATON WCP-321 foot pedal
- TIG torch ABICOR BINZEL ABITIG 18 4m
- Earth clamp 4m
- Cardboard packaging
- User manual
- Gas quick coupling
