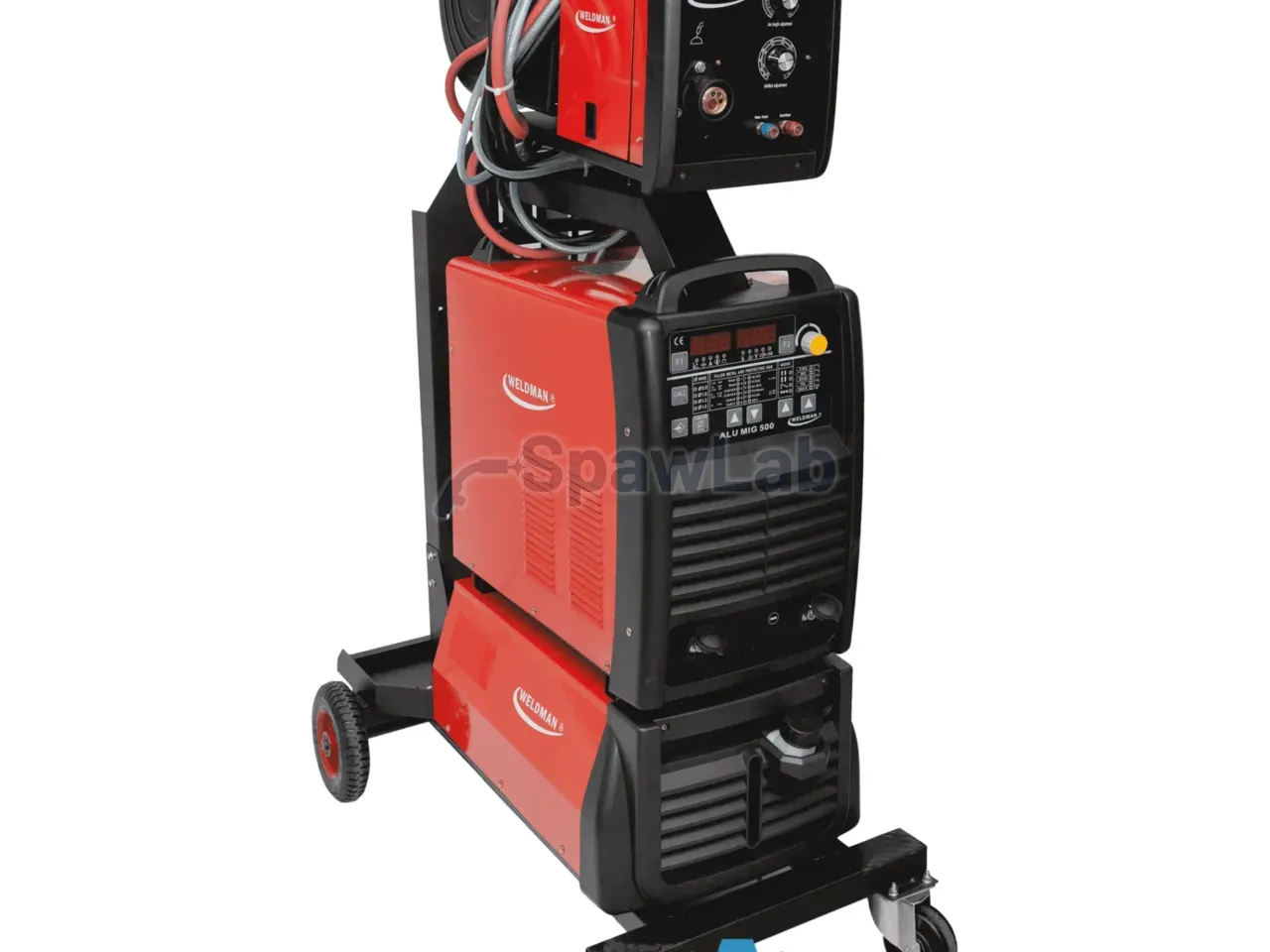

Weldman ALU MIG 500 4×4 Aqua with double pulse
Weldman

Weldman ALU MIG 500 4×4 Aqua with double pulse

manufacturer warranty service with us
3,147.85 EURnet
3,871.86 EURgross

We ship within 2 to 3 working days.

International shipping: calculate the cost

Price for 1 unit, based on the carrier's price list. In the cart we calculate the exact cost for the whole order.

Pallet in Poland and abroadin Poland EUR 69.77 net, dispatch within 2 to 3 working days
Service in Polandrepairs and parts with us
14 days to returnfor consumers
We help you choose+48 669 162 833
Ask us to help you choose
Description Specifications Complete your purchase Similar
Description

Who this machine is for

The ALU MIG 500 4×4 is a three phase MIG/MAG welder built with IGBT inverter technology for MIG/MAG welding (under CO2, Ar, CO2+Ar, CO2+O and other shielding gases), pulsed MIG/MAG, double pulse MIG/MAG, braze welding and welding with stick electrodes on direct current (DC).

It is intended for welding with filler wires 0.8-1.6 mm in diameter, self shielded wires 0.9 mm and stick electrodes up to 5 mm in diameter, on low carbon and low alloy steel (MAG), alloy steel (MIG), aluminium and cast iron.
Maximum spool 15 kg D300.

It has a professional external 4 roll wire feeder and an integrated liquid cooling unit for the welding torch, with inlet and outlet on Rectus type 21 mini couplings. Electronically controlled stepless adjustment of the welding current and of the wire feed speed. Torch modes 2 stroke and 4 stroke.

The welder has two digital displays of the welding current parameters (voltmeter, ammeter). A soft panel separates the material being welded and the wire diameter in the programs for welding low carbon steel and aluminium. Built in synergic programs with the option of manual correction of the selected program. Choice of shielding gas mixtures.

Inductance and ARC FORCE adjustment.
Welding parameters can be stored in memory.
Fitted with a euro connector, a detachable earth cable and an MMA welding cable.
Thermal protection.
Intended for industrial use.

Equipment

Standard equipment includes:
welding torch MB 501 3 m
welding cable 2 m with a 500A electrode holder
earth cable 2 m with a 500A clamp
cable extension to the external feeder 4.5 m

Technical data

Code 103 127
Machine type ALU MIG 500
Supply voltage [V] 400
Open circuit voltage [V] 80
Welding current range [A] MIG, 60-500
MMA, 20-500
Max duty at 40°C
EN 60974-1		 500A@60%
387A@100%
Wire diameter [mm] 1.2-1.6
Max spool weight [kg] 15
Protection rating [IP] 21S
Dimensions [cm] 105x67x148
Weight [kg] 114
