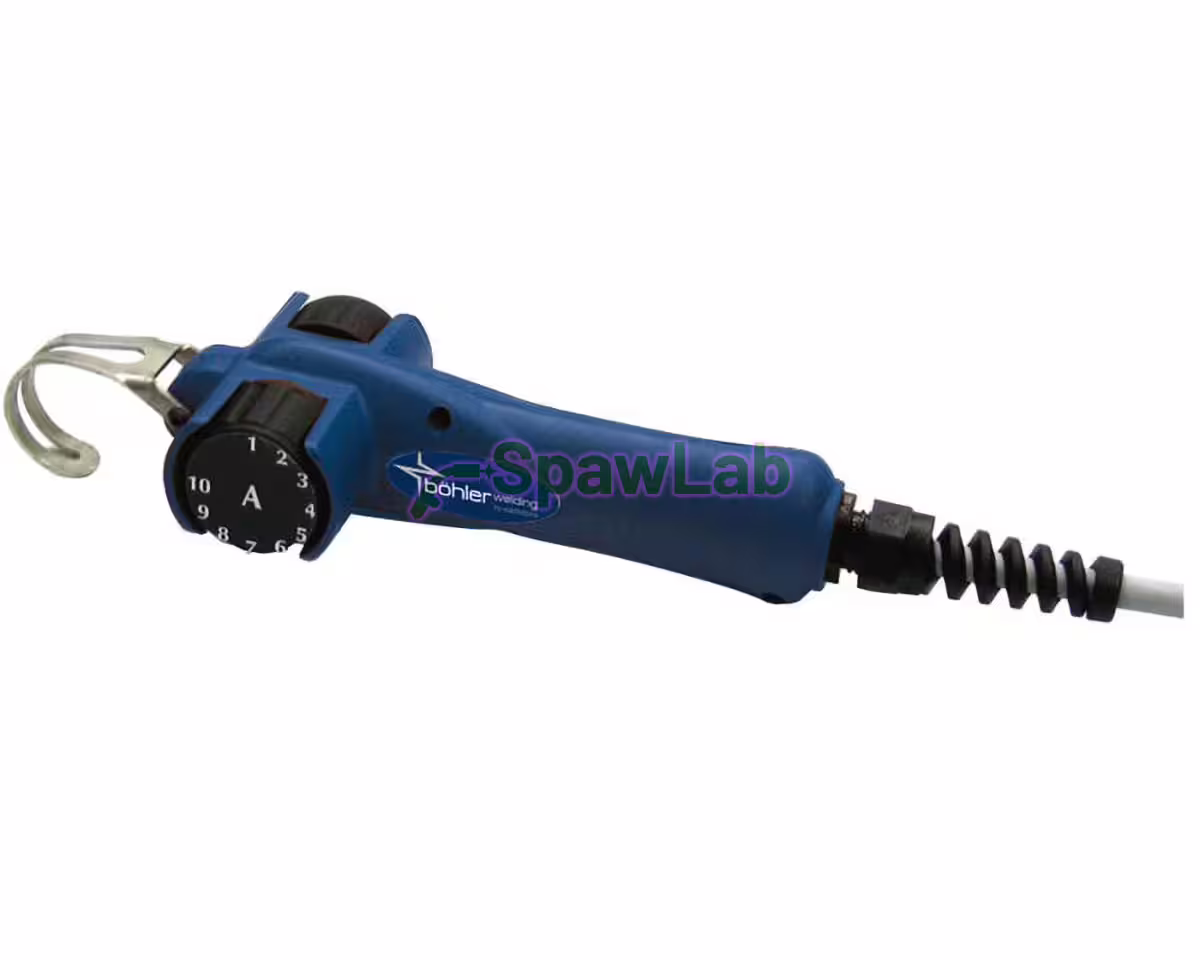

The RC 190 is a Böhler Welding remote control with digital CAN bus communication and a 6 m cable. According to the Böhler selection guide it adjusts welding current and voltage, offers digital parameter adjustment and has a hanging device. It has no display.
What it is for
The RC 190 suits a MIG/MAG welder who wants to correct current and voltage at the joint and checks the values on the machine. The price list names it only for machines with the MIG/MAG process: TERRA NX SMC, MSE, PMC, PME and URANOS NX PMC, MTE, GSM. On machines with a separate wire feeder you can connect the remote at the feeder using a kit from the list below. The cable is 6 m long; the price list gives no other length.
| Part number | 71.02.211 |
|---|---|
| Brand | Böhler Welding |
| Model | RC 190 |
| Type | remote control |
| Communication | digital, CAN bus |
| Cable length | 6 m |
| Dimensions | 160 x 40 x 70 mm |
| Weight | 0.7 kg |
| Functions | welding current adjustment, welding voltage adjustment, digital parameter adjustment |
| Display | none |
| Mounting | hanging device |
| Pack quantity | 1 pc |
Fits
According to the Böhler price list 2026/27:
- MIG/MAG: TERRA NX 320/400 SMC, TERRA NX 400/500 MSE
- pulsed MIG/MAG: TERRA NX 320 PME, TERRA NX 320/400 PMC, TERRA NX 400 PMC DualFeeder, TERRA NX 400/500 PME, URANOS NX 2200 PMC, URANOS NX 2700 PMC
- multi-process: URANOS NX 2200 MTE, URANOS NX 2700 MTE, URANOS NX 3200 GSM, URANOS NX 4000/5000 GSM
Also order
For connecting the remote at the wire feeder:
- Remote control wiring kit for WF NX 330 and WF NX 430 SteelDrive: for TERRA NX 320 PME, 400/500 PME and 400/500 MSE
- Remote control upgrade kit for WF NX 430 Smart: for the WF NX 430 Smart feeder
FAQ
What is the difference between RC 190 and RC 200?
Both adjust current and voltage. The RC 200 also has an LCD, current and voltage reading, a set-up menu and a magnetic hanging device, and the price list names it for 20 machines, including TIG and MMA. The RC 190 has no display and comes only with a 6 m cable.
Does the RC 190 fit TIG machines?
The price list does not name it for TERRA NX TLH, URANOS NX TLH or URANOS NX AC/DC. For TIG choose for example the RC 200 or the RC 120 pedal.
What is the difference between RC 190 and RC 180?
Both communicate via CAN bus and weigh 0.7 kg. The RC 190 measures 160 x 40 x 70 mm, the RC 180 160 x 40 x 50 mm. The RC 180 is not described in the selection guide; the price list names it for 20 machines, the RC 190 for 12.
