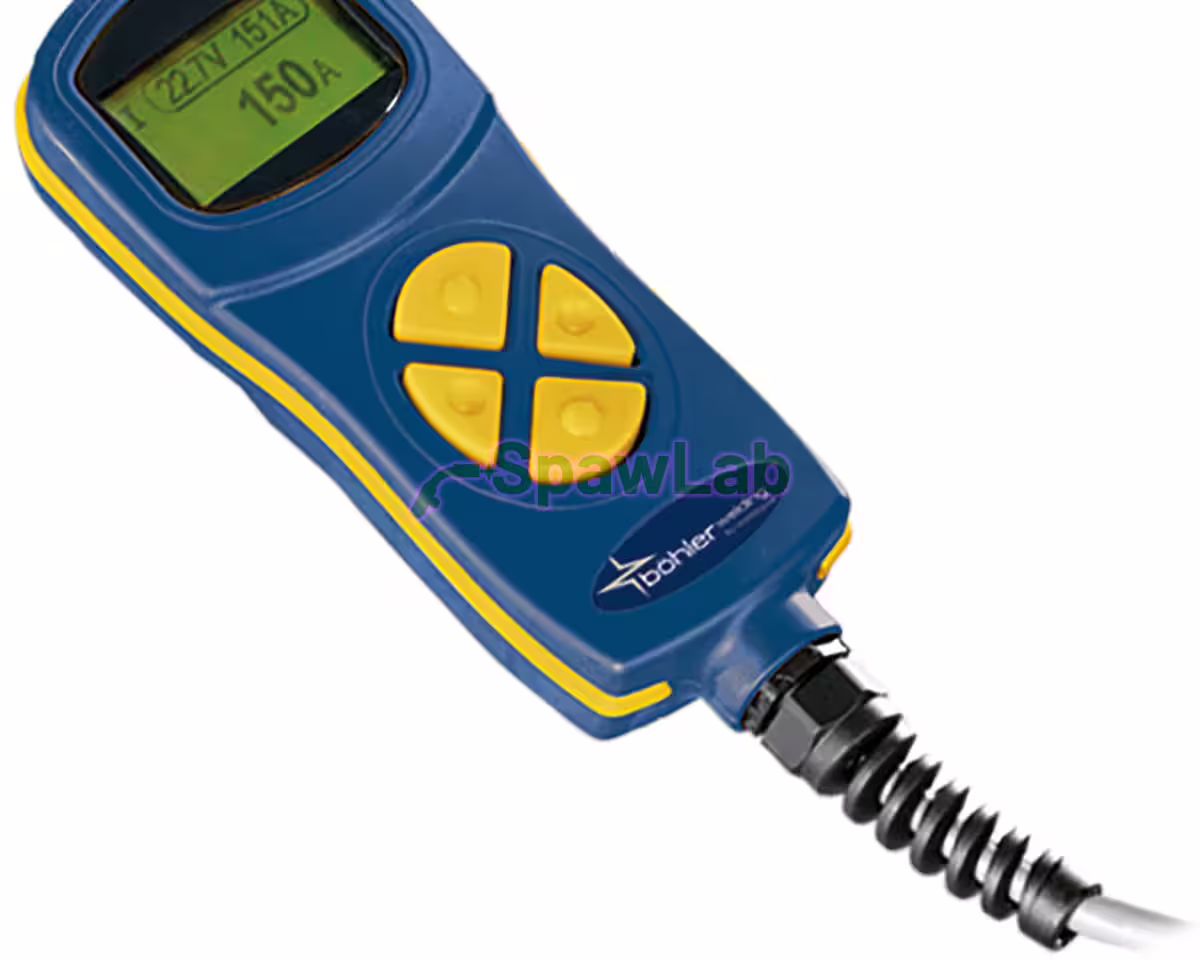

The RC 200 is a Böhler Welding remote control with LCD display, digital CAN bus communication and a 15 m cable. According to the Böhler selection guide it adjusts welding current and voltage, shows both values and gives access to set-up.
What it is for
Choose the RC 200 when you want to change both values at the joint: current and voltage. This is especially useful for MIG/MAG. The 15 m version suits a cable route from the machine to your workplace of up to 15 m.
| Part number | 71.02.19902 |
|---|---|
| Brand | Böhler Welding |
| Model | RC 200 |
| Type | remote control |
| Communication | digital, CAN bus |
| Cable length | 15 m |
| Dimensions | 170 x 70 x 35 mm |
| Weight | 0.7 kg |
| Functions | welding current adjustment, welding voltage adjustment, digital parameter adjustment, digital display of welding parameters, current reading, voltage reading, set-up menu |
| Display | LCD |
| Mounting | magnetic hanging device |
| Pack quantity | 1 pc |
Fits
According to the Böhler price list 2026/27:
- MMA: TERRA 270/350 RC, TERRA 500 RC
- MIG/MAG: TERRA NX 320/400 SMC, TERRA NX 400/500 MSE
- pulsed MIG/MAG: TERRA NX 320 PME, TERRA NX 320/400 PMC, TERRA NX 400 PMC DualFeeder, TERRA NX 400/500 PME, URANOS NX 2200 PMC, URANOS NX 2700 PMC
- multi-process: URANOS NX 2200 MTE, URANOS NX 2700 MTE, URANOS NX 3200 GSM, URANOS NX 4000/5000 GSM
- TIG DC: TERRA NX 270 TLH, TERRA NX 320/400 TLH, URANOS NX 2200 TLH
- TIG AC/DC: URANOS NX 2200 AC/DC, URANOS NX 2700/3200 AC/DC, URANOS NX 4000/5000 AC/DC
Also order
For connecting the remote at the wire feeder:
- Remote control wiring kit for WF NX 330 and WF NX 430 SteelDrive: for TERRA NX 320 PME, 400/500 PME and 400/500 MSE
- Remote control upgrade kit for WF NX 430 Smart: for the WF NX 430 Smart feeder
FAQ
What is the difference between RC 200 and RC 100?
According to the selection guide the RC 200 adds voltage adjustment and a set-up menu, and has an LCD instead of a 7-segment LED display. Both weigh 0.7 kg and have a magnetic hanging device; the RC 100 measures 130 x 85 x 60 mm.
Does the 15 m version fit the same machines as the 6 m one?
It is the same remote with a longer cable, but the machine accessory pages in the price list only name the 6 m version. If you want to be sure, send us the machine model and serial number before ordering.
Is the RC 200 suitable for TIG welding?
Yes, the price list names it for TIG machines: TERRA NX TLH, URANOS NX 2200 TLH and URANOS NX AC/DC. For foot control there is the RC 120 pedal.
