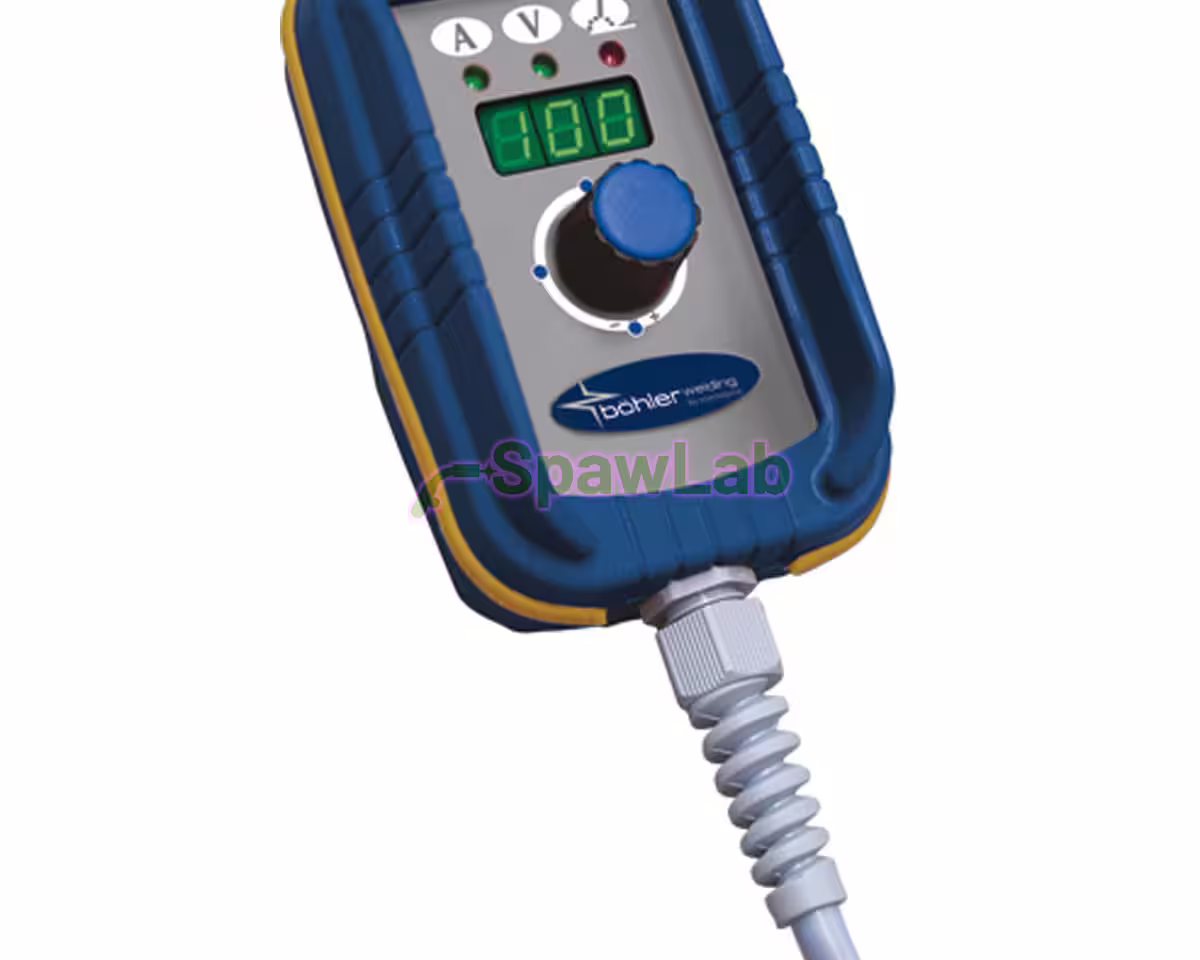

The RC 100 is a Böhler Welding remote control with digital CAN bus communication and a 6 m cable. According to the Böhler selection guide you set the welding current on it and read current and voltage without walking back to the machine.
What it is for
The remote moves current adjustment from the machine panel to your workplace. It helps when the power source stands several metres away from the joint: on large structures, inside tanks, on scaffolding. The magnetic hanging device lets you attach the remote to a steel part next to the joint. The 6 m version suits a cable route from the machine to your workplace of up to 6 m.
| Part number | 71.02.196 |
|---|---|
| Brand | Böhler Welding |
| Model | RC 100 |
| Type | remote control |
| Communication | digital, CAN bus |
| Cable length | 6 m |
| Dimensions | 130 x 85 x 60 mm |
| Weight | 0.7 kg |
| Functions | welding current adjustment, digital parameter adjustment, digital display of welding parameters, current reading, voltage reading |
| Display | 7-segment LED |
| Mounting | magnetic hanging device |
| Pack quantity | 1 pc |
Fits
According to the Böhler price list 2026/27:
- MMA: TERRA 270/350 RC, TERRA 500 RC
- MIG/MAG: TERRA NX 320/400 SMC, TERRA NX 400/500 MSE
- pulsed MIG/MAG: TERRA NX 320 PME, TERRA NX 320/400 PMC, TERRA NX 400 PMC DualFeeder, TERRA NX 400/500 PME, URANOS NX 2200 PMC, URANOS NX 2700 PMC
- multi-process: URANOS NX 2200 MTE, URANOS NX 2700 MTE, URANOS NX 3200 GSM, URANOS NX 4000/5000 GSM
- TIG DC: TERRA NX 270 TLH, TERRA NX 320/400 TLH, URANOS NX 2200 TLH
- TIG AC/DC: URANOS NX 2200 AC/DC, URANOS NX 2700/3200 AC/DC, URANOS NX 4000/5000 AC/DC
Also order
For connecting the remote at the wire feeder:
- Remote control wiring kit for WF NX 330 and WF NX 430 SteelDrive: for TERRA NX 320 PME, 400/500 PME and 400/500 MSE
- Remote control upgrade kit for WF NX 430 Smart: for the WF NX 430 Smart feeder
FAQ
What is the difference between RC 100 and RC 100 MP?
According to the price list both have the same functions, dimensions and weight. The RC 100 has a fixed cable length, while for the RC 100 MP you order a 6, 10 or 25 m CAN bus cable separately.
Does the RC 100 adjust welding voltage?
No. According to the selection guide, voltage adjustment is available on the RC 190, RC 200 and RC 350 MP. If you want to change both values on the remote for MIG/MAG, choose the RC 200.
Which cable length should I choose?
Measure the cable route from the machine to your workplace and add a reserve. The RC 100 comes in four versions: 6 m (71.02.196), 10 m (71.02.19601), 25 m (71.02.19604) and 40 m (71.02.19607).
