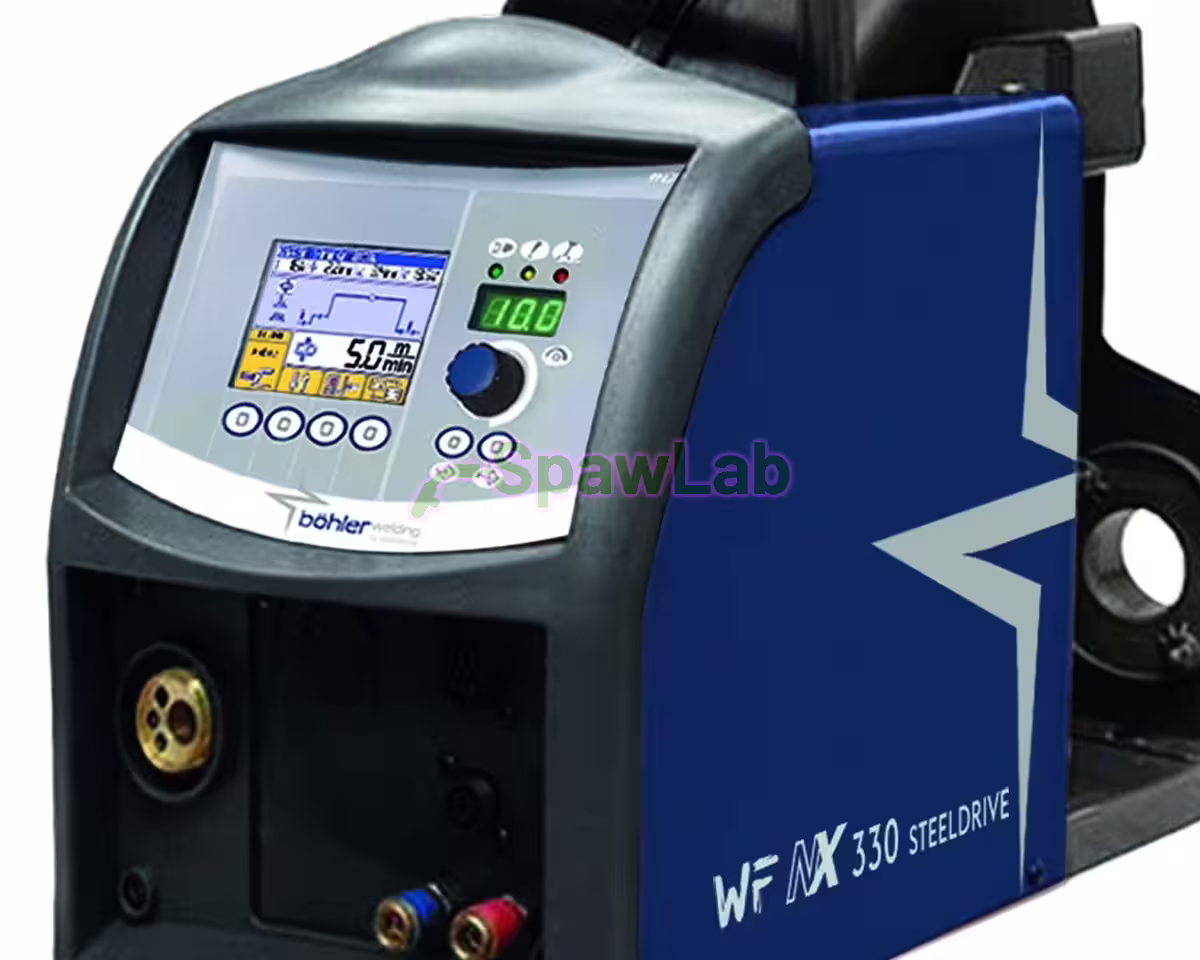

WF NX 330 SteelDrive is an external wire feeder for the Böhler Welding TERRA NX 320 PME, 400/500 PME and 400/500 MSE power sources. The SL 4R-4T drive has four rolls, all of them driven, the motor is rated at 120 W and wire speed is 0.5 to 22 m/min. Parameters are set on an LCD graphic display.
What it is for
- The power source stays on the trolley and the feeder stands at the workplace: the distance is set by the interconnection cable, 1.5 to 30 m in the price list.
- The Euro connection takes a MIG/MAG torch and a U/D torch that changes parameters from the handle.
- Push-pull torches, liquid cooled torches and a remote control can be connected.
| Part number | 71.01.078 |
|---|---|
| Brand | Böhler Welding |
| Type | external MIG/MAG wire feeder |
| Drive | SL 4R-4T, 4 rolls (4 driven) |
| Motor power | 120 W |
| Wire feed speed | 0.5 to 22 m/min |
| Wire spool | 200 mm or 300 mm |
| Rolls included | 1.0 to 1.2 mm |
| Range with optional rolls | solid wire 0.6 to 1.6 mm, aluminium 0.8 to 1.6 mm, cored wire 0.9 to 1.6 mm |
| Torch connection | Euro (MIG/MAG), Euro for U/D torch |
| Control panel | digital parameter setting, LCD graphic display, wire inch button, gas test button |
| Link to power source | CAN bus |
| Dimensions | 660 x 280 x 390 mm |
| Weight | 13.0 kg |
| Protection class | IP23S |
| Pack quantity | 1 pc |
Fits
- Böhler TERRA NX 320 PME: gas or water set (WU 230), GT 400 WF trolley
- Böhler TERRA NX 400/500 PME: water set (WU 430), GT 500 WF trolley
- Böhler TERRA NX 400/500 MSE: water set (WU 230), GT 400 WF trolley
Also order
- cable: liquid cooled 70 mm² 4 m, gas cooled 70 mm² 4 m
- torch MT 440 W U/D 4 m or PP Plus 401 D 4 m with push-pull kit
- torch holder, 125 mm wheels, remote control wiring kit
FAQ
What do four driven rolls give me?
Both pairs of rolls push the wire, not just one. On the Smart version (SL 4R-2T) two of four rolls are driven and the motor has 90 W instead of 120 W. Wire speed is the same: 0.5 to 22 m/min.
WF NX 330 SteelDrive or WF NX 430 SteelDrive?
Drive, power and LCD are the same. The 330 weighs 13.0 kg (660 x 280 x 390 mm) and takes torch holder 73.12.039. The 430 weighs 19.0 kg (640 x 250 x 460 mm) and takes feeder holder kit 73.10.075.
Which cable for TERRA NX 320 PME?
For the gas set a gas cooled one, for the set with cooling unit a liquid cooled one, both 70 mm², 1.5 to 30 m.
Spawlab is an authorised Böhler Welding distributor and service partner in Poland. We order this item from the manufacturer for you, issue a VAT invoice and ship from Krotoszyn, also to EU countries.
