Böhler Welding interconnection cable bundle, 70 mm², 4 m long, liquid cooled. It connects the power source to the wire feeder in MIG/MAG setups with a separate feeder; the price list gives it for 6 TERRA NX and URANOS NX machine families, listed below.
What it is for
The 4 m length is the standard in the manufacturer's configurations: this bundle is part of the water-cooled sets of TERRA NX 320 PME, TERRA NX 400/500 MSE and PME, TERRA NX 400 PMC DualFeeder and URANOS NX 3200 and 4000/5000 GSM. Buy it to replace the original or for a second set.
Choose the liquid-cooled version for sets with a cooling unit and a liquid-cooled MIG/MAG torch, such as MT 440 W or MT 540 W. All of the manufacturer's water-cooled configurations for these machines are built this way.
| Part number | 71.06.327 |
|---|---|
| Brand | Böhler Welding |
| Cross-section | 70 mm² |
| Length | 4 m |
| Cooling | liquid cooled |
| Connects | power source and wire feeder |
| Price list designation | WATER COOLED CABLE BUNDLE - 70mm² - 4m |
| Pack quantity | 1 pc. |
Fits
- Böhler TERRA NX 320 PME with wire feeder WF NX 330 SteelDrive or WF NX 430 SteelDrive
- Böhler TERRA NX 400 PMC DualFeeder with wire feeder WF NX 330 DualFeeder
- Böhler TERRA NX 400/500 MSE with wire feeder WF NX 330 Smart, WF NX 330 SteelDrive, WF NX 430 Smart or WF NX 430 SteelDrive
- Böhler TERRA NX 400/500 PME with wire feeder WF NX 330 SteelDrive or WF NX 430 SteelDrive
- Böhler URANOS NX 3200 GSM with wire feeder WF NX 4000 Smart
- Böhler URANOS NX 4000/5000 GSM with wire feeder WF NX 4000 Smart
Also order
- Cooling unit WU 230: for TERRA NX 320 PME and 400/500 MSE
- Cooling unit WU 430: for TERRA NX 400/500 PME
- Cooling unit WU 430 DualFeeder: for TERRA NX 400 PMC DualFeeder
- Cooling unit WU 2000: for URANOS NX 3200 GSM
- Cooling unit WU 3000: for URANOS NX 4000/5000 GSM
- Coolant CL10, 10 kg
FAQ
Is the bundle included in the TERRA NX 400 PME or 500 PME Kit-Set?
No. The manufacturer states that the ready Kit-Set packages of TERRA NX 400 PME and 500 PME do not include a liquid-cooled cable bundle; it has to be ordered separately. This 4 m bundle is on the list of bundles for these packages.
70 or 95 mm²?

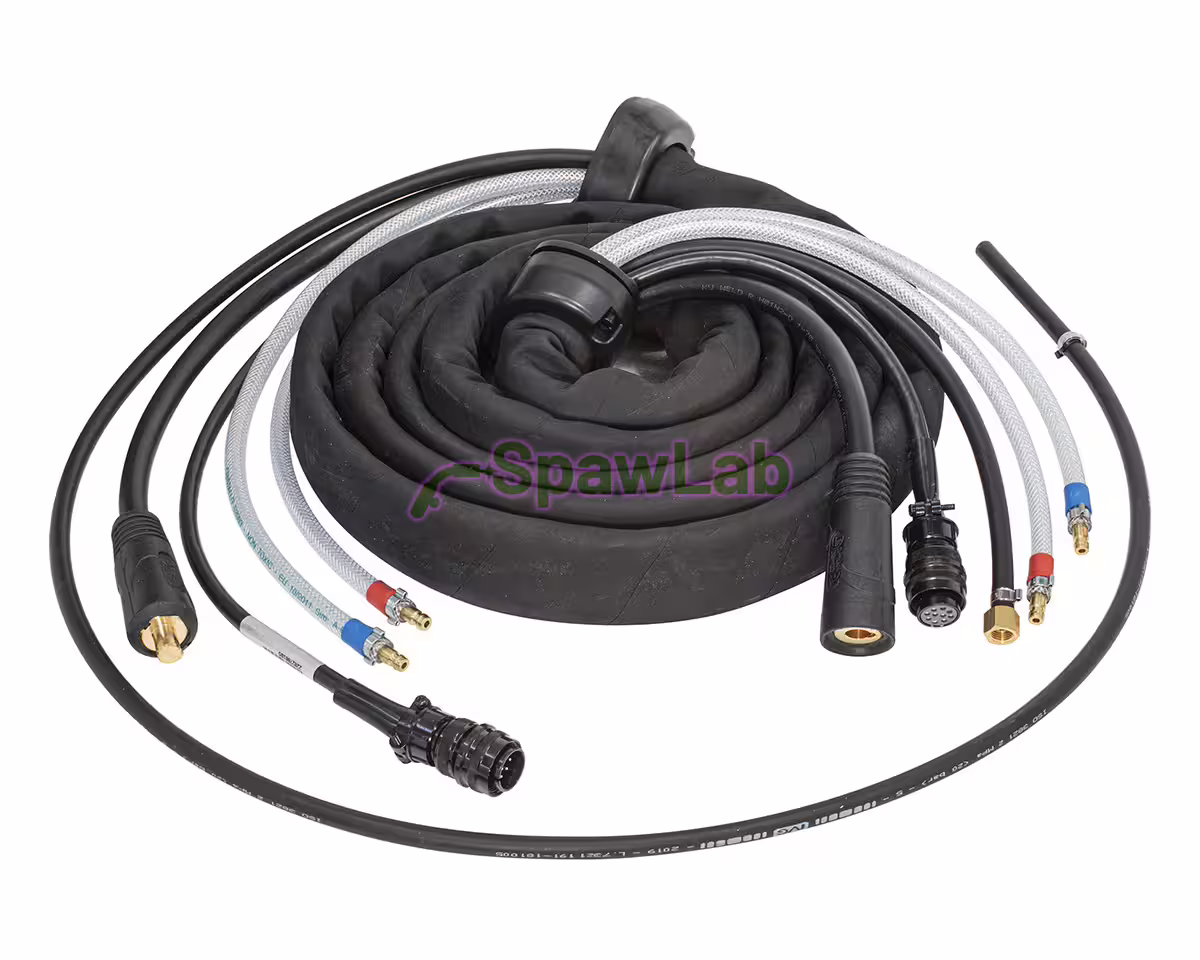

For TERRA NX 320 PME and URANOS NX 3200 GSM the price list gives only 70 mm² bundles. For the 400 and 500 A machines you can choose 70 or 95 mm²; the factory configurations use 70 mm². The 95 mm² version in 4 m is Böhler Welding interconnection cable 95 mm², 4 m, liquid cooled.
Which length should I choose?
Measure how far you want the feeder from the power source and add some slack for routing the bundle. The manufacturer offers 1.5, 4, 10, 15, 20 and 30 m and uses 4 m in its factory configurations. This bundle is 4 m long.
Spawlab is an authorised Böhler Welding distributor and service partner in Poland: you get a VAT invoice, and we ship by courier from Krotoszyn, also to EU countries.
