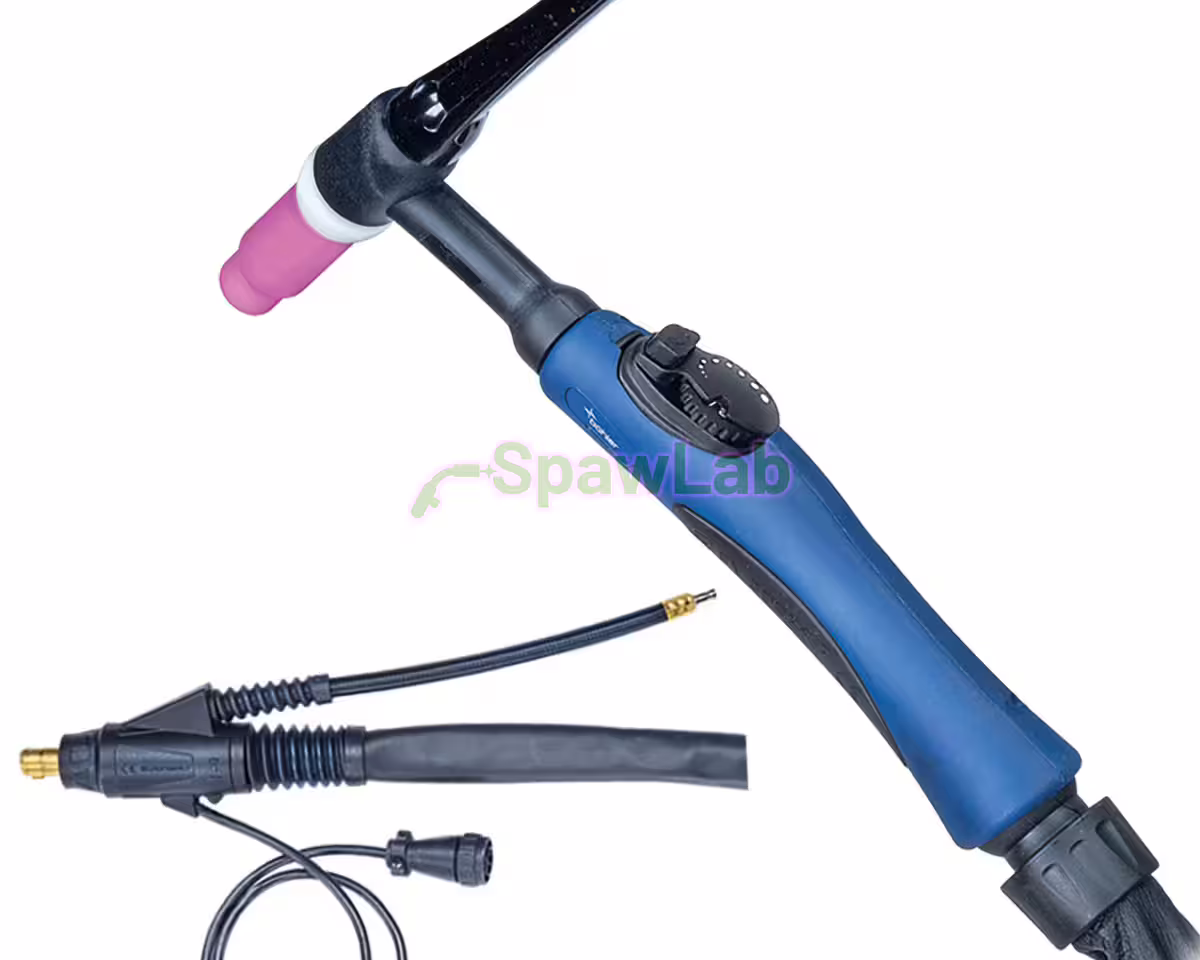

The BT17 with potentiometer is a gas-cooled TIG torch, 8 m long. The potentiometer on the handle provides remote current control. Electrodes from 1.0 to 3.2 mm, rating 150 A DC or 105 A AC at 35% duty cycle; machine according to the Böhler Welding price list: CORE 185 TIG.
What it is for
When you want to set the current on the CORE 185 TIG with the potentiometer on the torch instead of on the machine panel. The potentiometer trigger is available separately as a spare part. Connection kits for CORE machines are listed below under Also order.
| Part number | 81.35.007 |
|---|---|
| Brand | Böhler Welding |
| Model | BT17 with potentiometer |
| Version | with potentiometer for current control |
| Cooling | gas |
| Length | 8 m |
| Electrode diameter | 1.0 to 3.2 mm |
| DC rating | 150 A at 35% duty cycle |
| AC rating | 105 A at 35% duty cycle |
| Consumables | standard (17/18/26 series) |
| Pack quantity | 1 pc |
Fits
- CORE 185 TIG
Also order
- Collets (3 pcs): 1.0 mm, 1.6 mm, 2.4 mm, 3.2 mm
- Collet bodies (3 pcs): 0.5 to 1.2 mm, 1.6 mm, 2.4 mm, 3.2 mm
- Ceramic nozzles (10 pcs): No. 4, No. 5, No. 6, No. 7, No. 8, No. 10, No. 12
- Back caps (3 pcs): long and short
- Torch connection kit: CORE 185 TIG and CORE 210 TIG
- Spare part: Potentiometer trigger for remote current control, BT17 and BT26
FAQ
Potentiometer or U/D?
Both versions control the current from the torch and have the same ratings. On the BT17 U/D 8 m you change the current with up/down buttons, here you set it with the potentiometer. The spare triggers are separate items: 82.10.481 (U/D) and 82.10.482 (potentiometer).
Does it fit the CORE 210 TIG?
The price list assigns the BT17 with potentiometer to the CORE 185 TIG only. For the CORE 210 TIG choose the BT26 with potentiometer 8 m.
Which consumables fit the BT17 with potentiometer?
Standard 17/18/26 series parts: collets 1.0 to 3.2 mm, collet bodies in the same sizes, ceramic nozzles from No. 4 (6.4 mm) to No. 12 (19 mm) and a long or short back cap. Match the collet and collet body to the electrode diameter.
4 m or 8 m?
The 8 m length gives you reach when you weld away from the machine, for example on a large structure, without moving it. For bench work the BT17 with potentiometer 4 m is enough.
