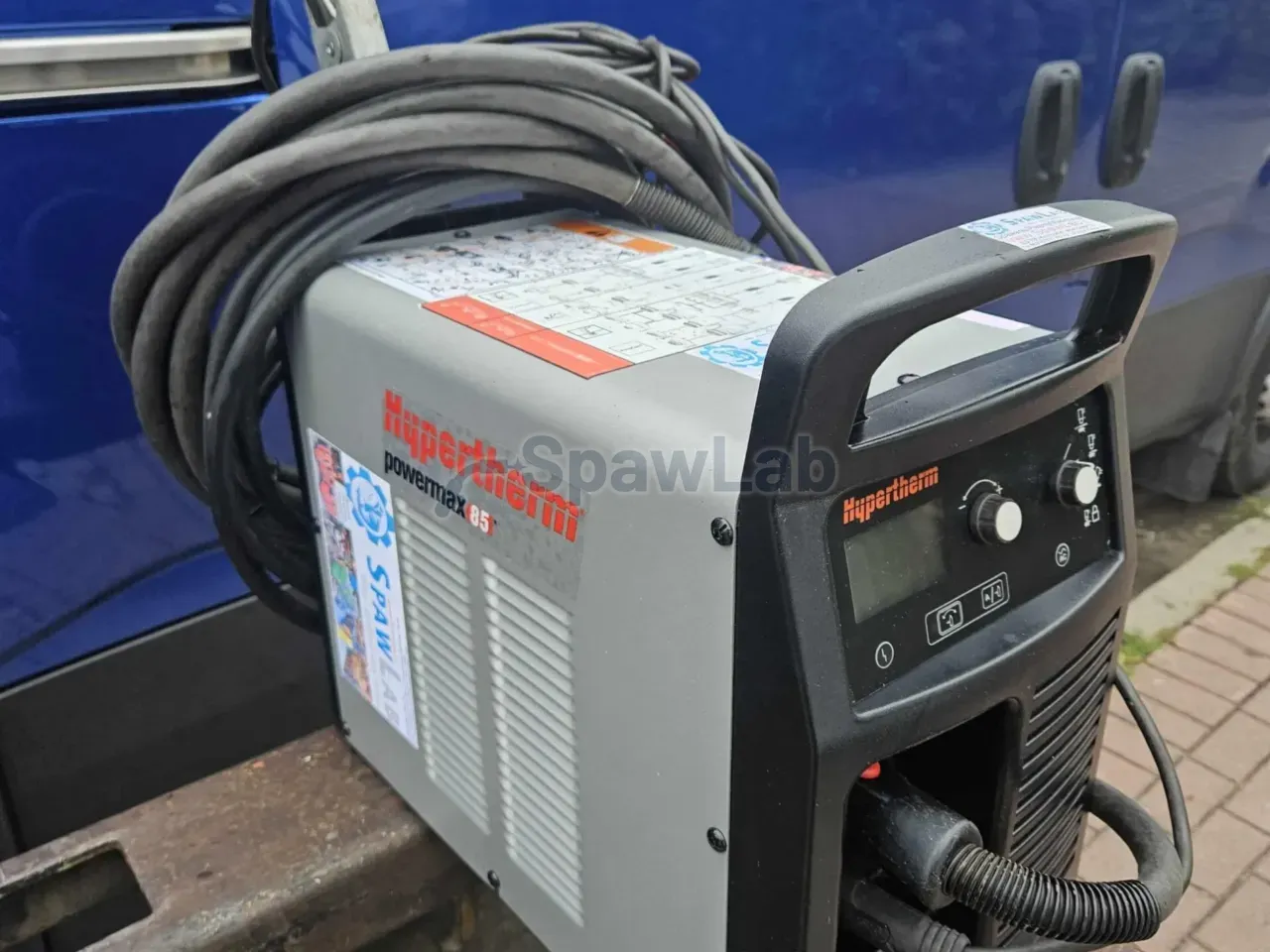

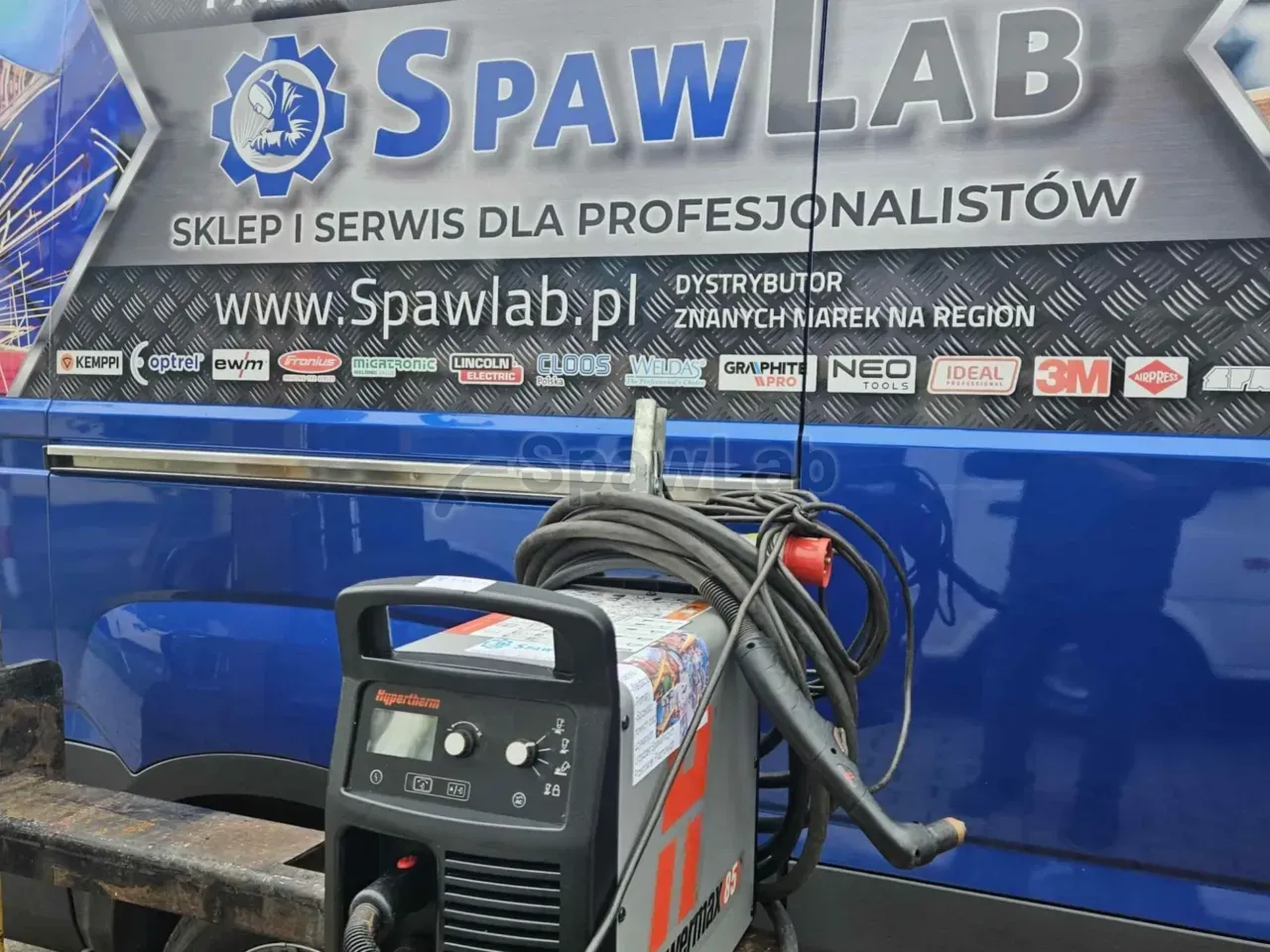

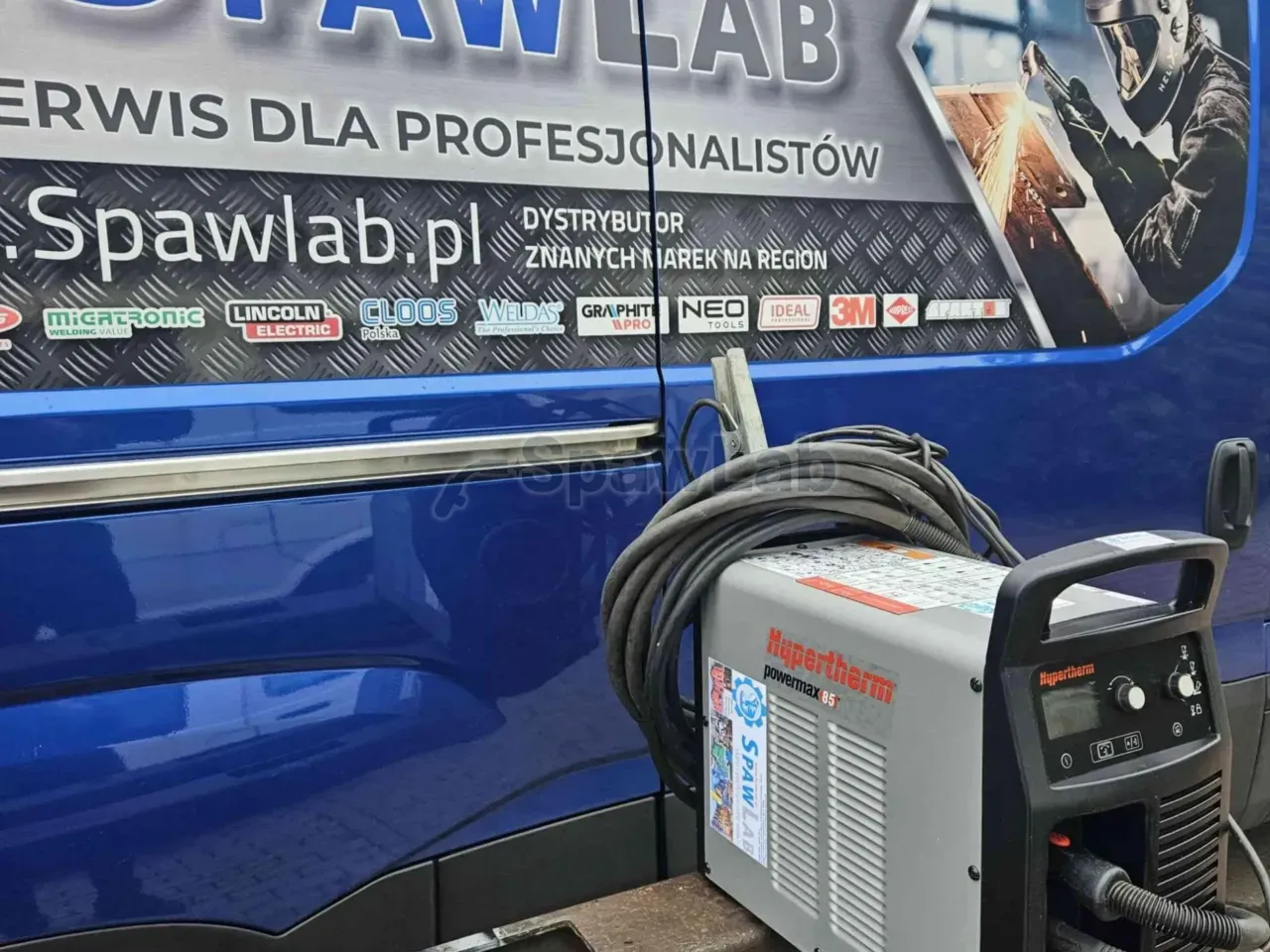

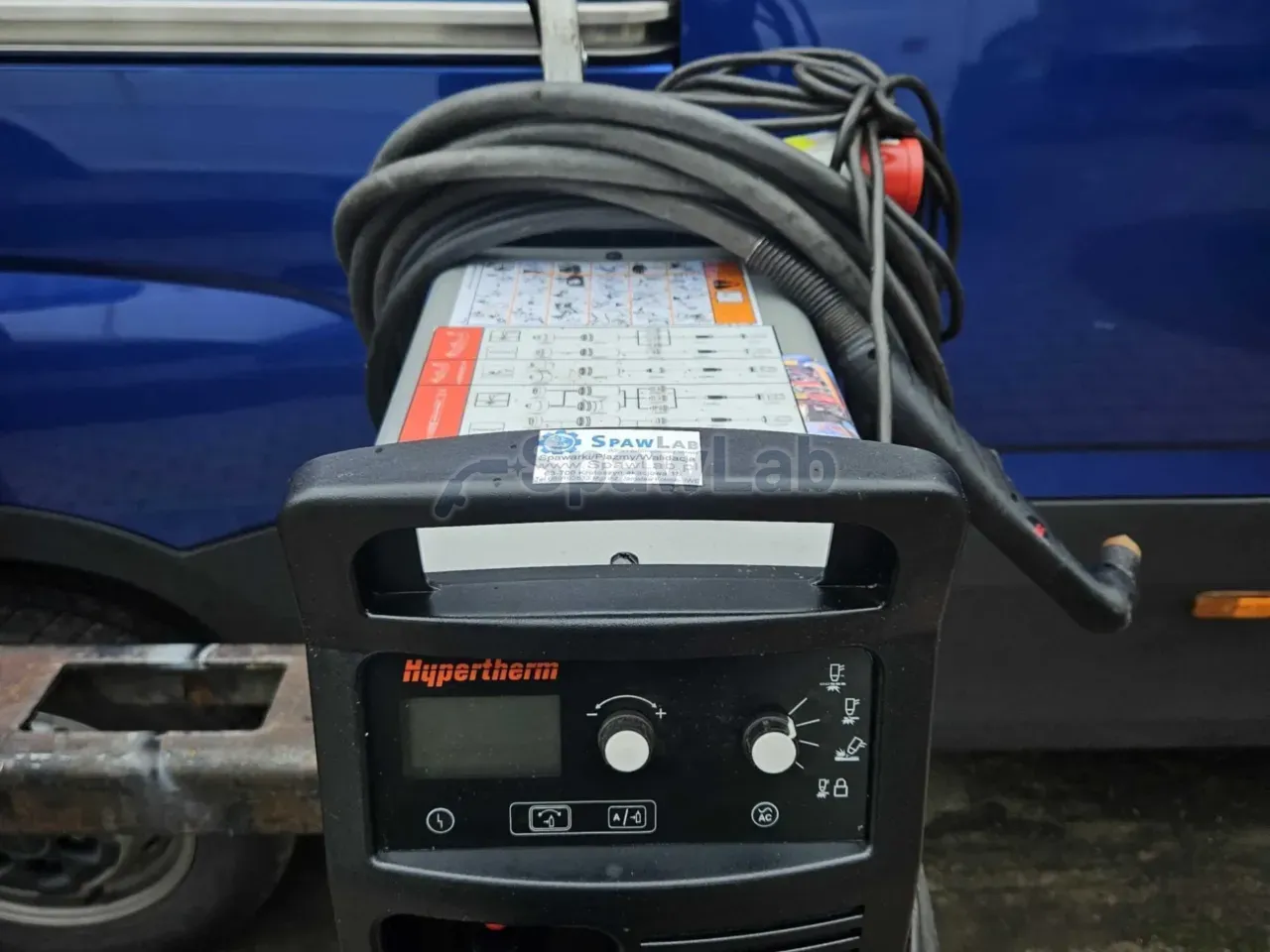

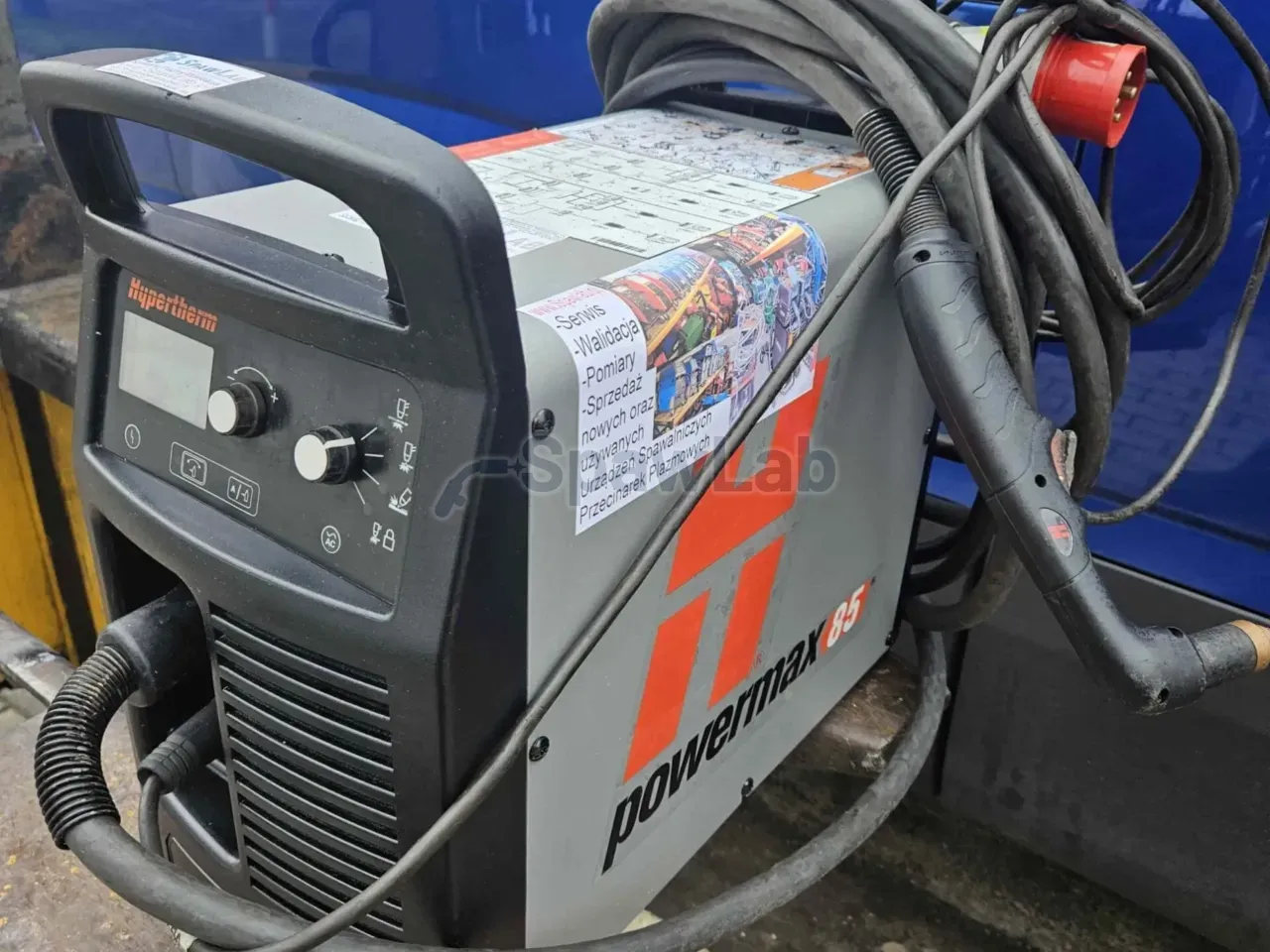

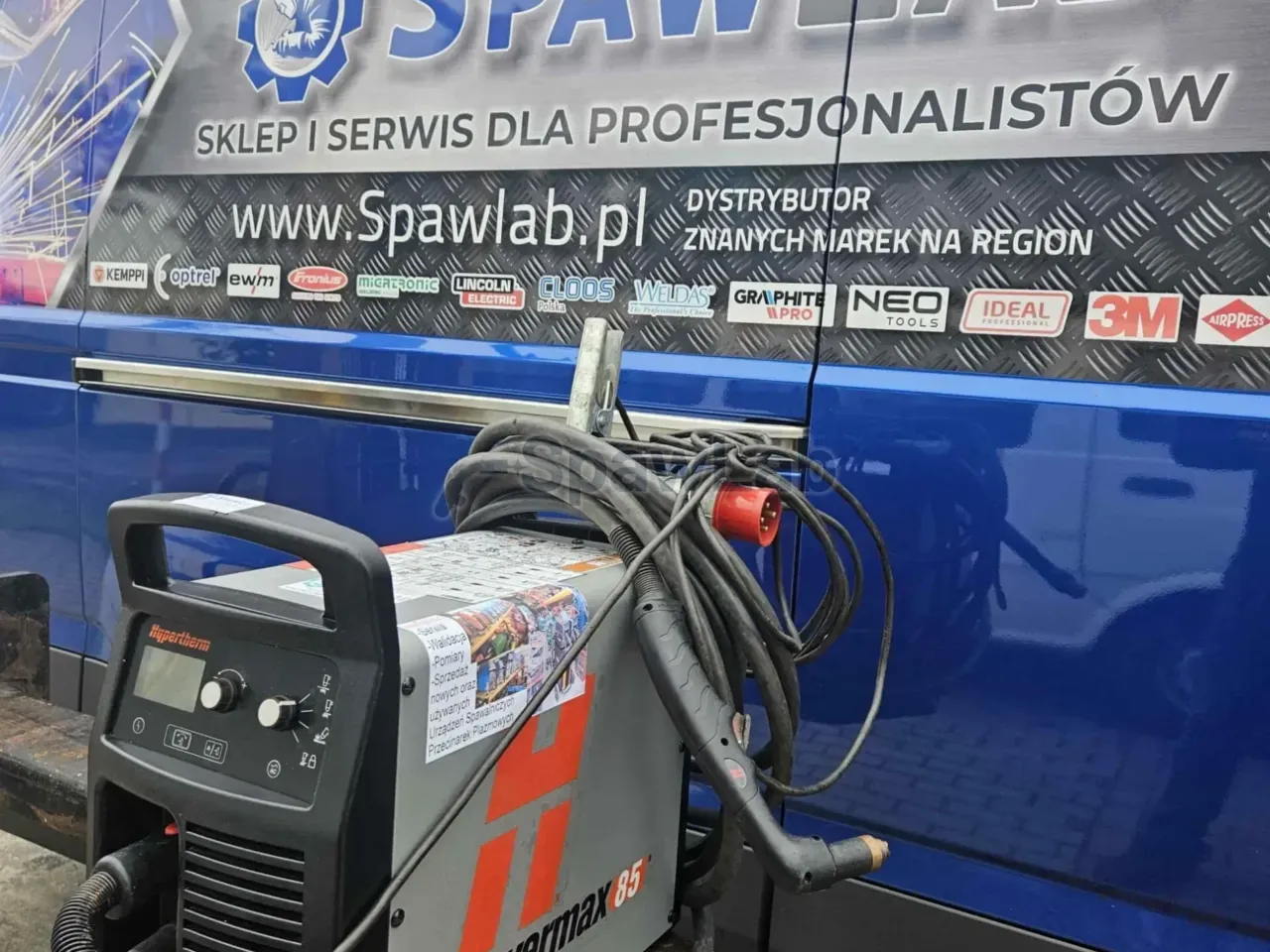

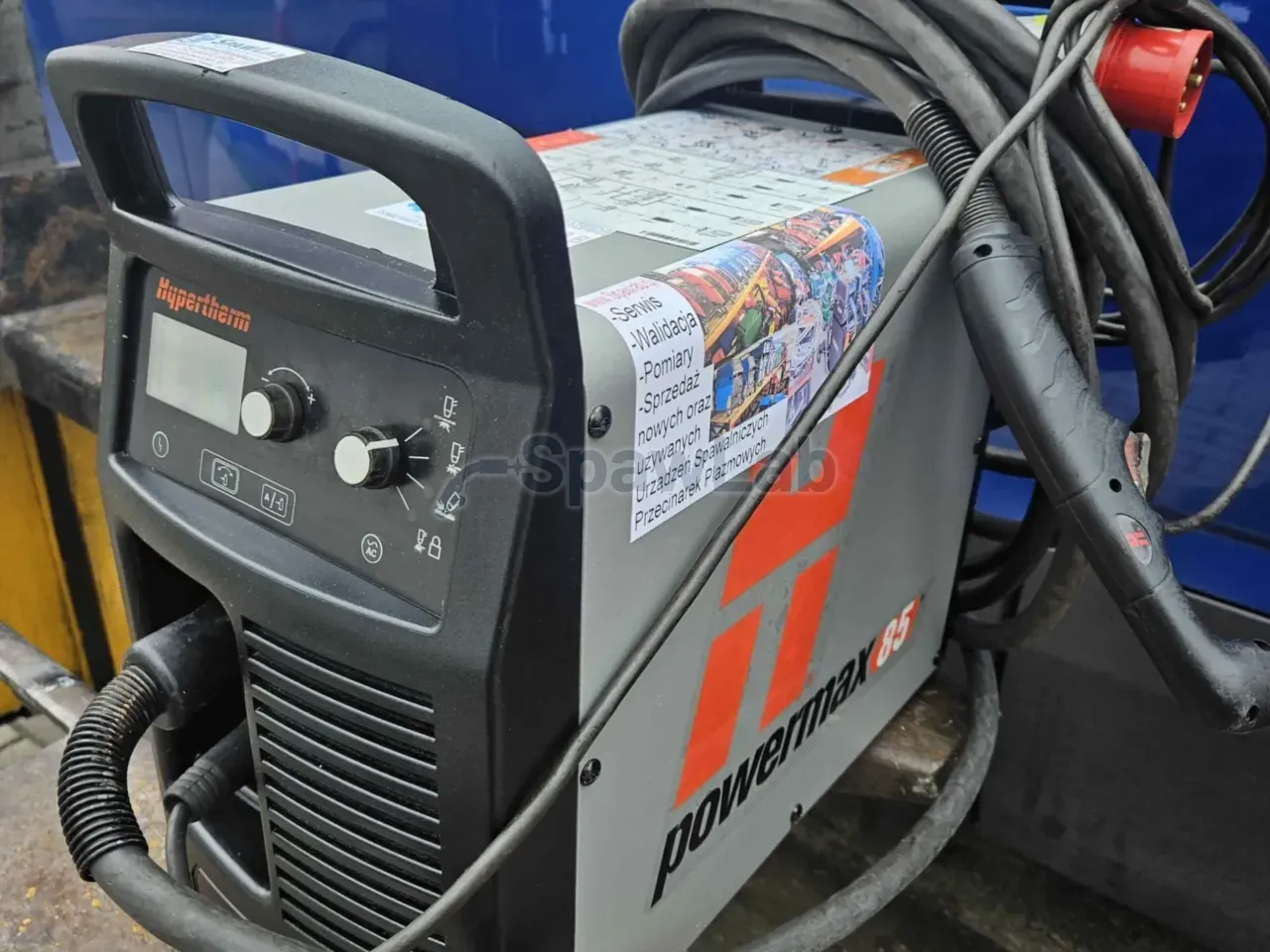

The Hypertherm 85 is an inverter plasma cutter with a gas cooled torch. You set the cutting current from 25 A to 85 A, and the documentation gives 85 A at a duty cycle of 60% and 66 A at continuous load 100%. The data sheet of this unit puts the machine in the range up to 100 A.
What this machine is for
Apart from continuous cutting the machine has a mesh cutting mode and a gouging mode. Mesh cutting holds the arc on interrupted material, that is on gratings and perforated sheet. Plasma gouging removes a faulty weld or prepares a groove for a new joint.

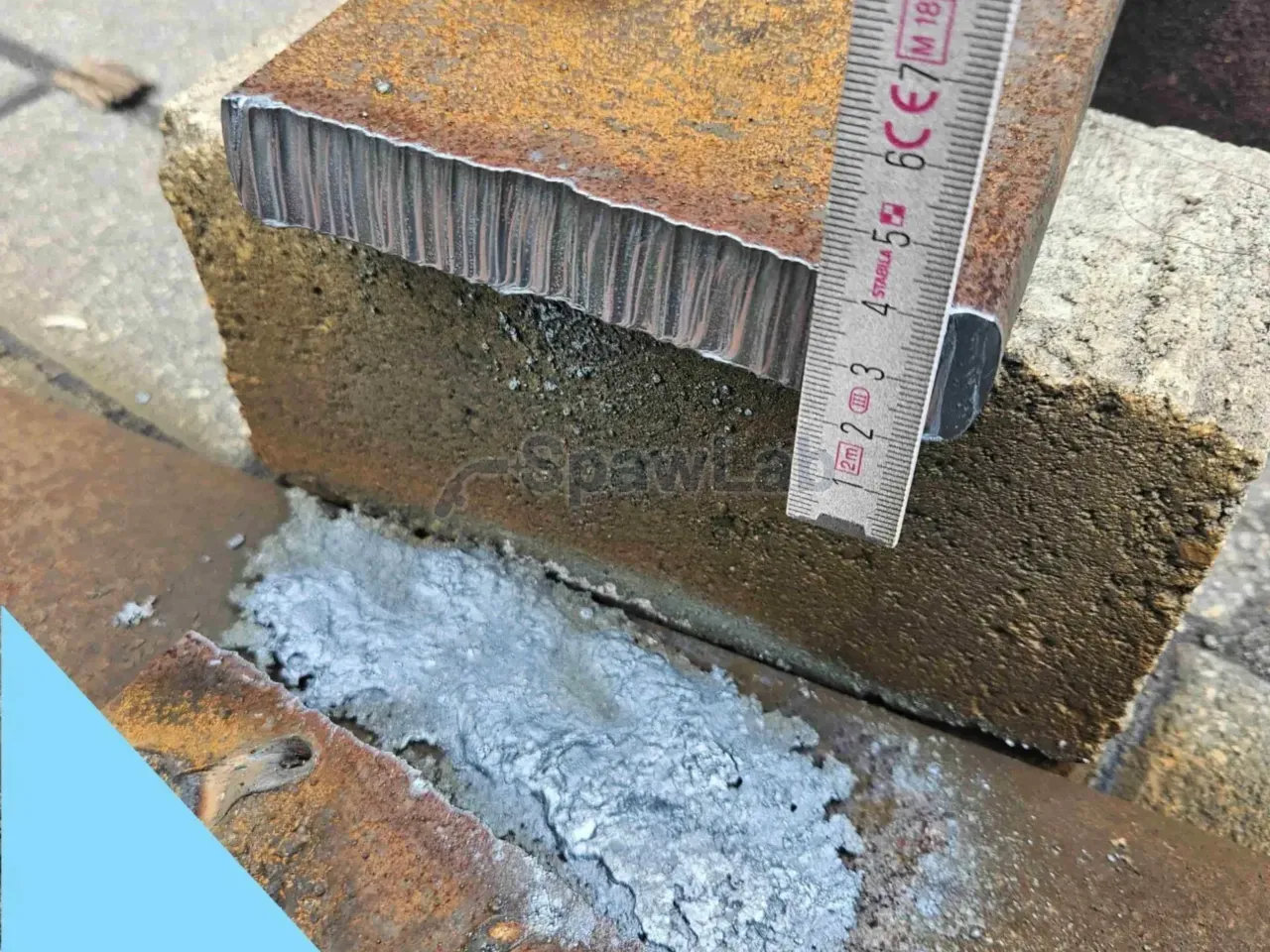

The documentation gives the output of the hand torch: a recommended thickness of 25 mm at 500 mm/min, 32 mm at 250 mm/min and parting of the material at 38 mm at 125 mm/min. In gouging you remove 8.8 kg of metal per hour, and the groove has a profile of 5.8 mm by 7.1 mm. On a guide rail the figures will be different.
Features and equipment
- Inverter power source: lower weight than in transformer cutters.
- Cutting current setting from 25 A to 85 A: you go down to thin sheet with one knob.
- Mesh cutting mode: the arc holds on interrupted material.
- Gouging mode: an output of 8.8 kg of metal per hour.
Technical data
| Brand | Hypertherm |
|---|---|
| Type | inverter plasma cutter |
| Cutting current as in the product data sheet | up to 100 A |
| Cutting current at a duty cycle of 60% | 85 A |
| Cutting current at continuous load 100% | 66 A |
| Current setting range | from 25 A to 85 A |
| Recommended thickness | 25 mm at 500 mm/min |
| Greater thickness | 32 mm at 250 mm/min |
| Parting | 38 mm at 125 mm/min |
| Gouging output | 8.8 kg per hour |
| Groove profile in gouging | 5.8 mm by 7.1 mm |
| Cooling | gas |
| Work modes | continuous cutting, mesh cutting, gouging |
What you get
- plasma torch
- earth cable
- supply cable
What to watch out for
A duty cycle of 85 A at 60% means cutting with breaks, and with no breaks the machine gives 66 A, so plan the pace from that figure. Plasma cuts with compressed air, so you need a compressor with a filter and a dryer, because moisture and oil shorten the life of the nozzle. The data sheet gives neither the supply voltage nor the weight, so check the rating plate before you start it.
This unit is sold
This machine has already gone to a customer. Similar units are listed below, and if you want the same model, leave your contact details in the form and we will let you know when the next one arrives.
