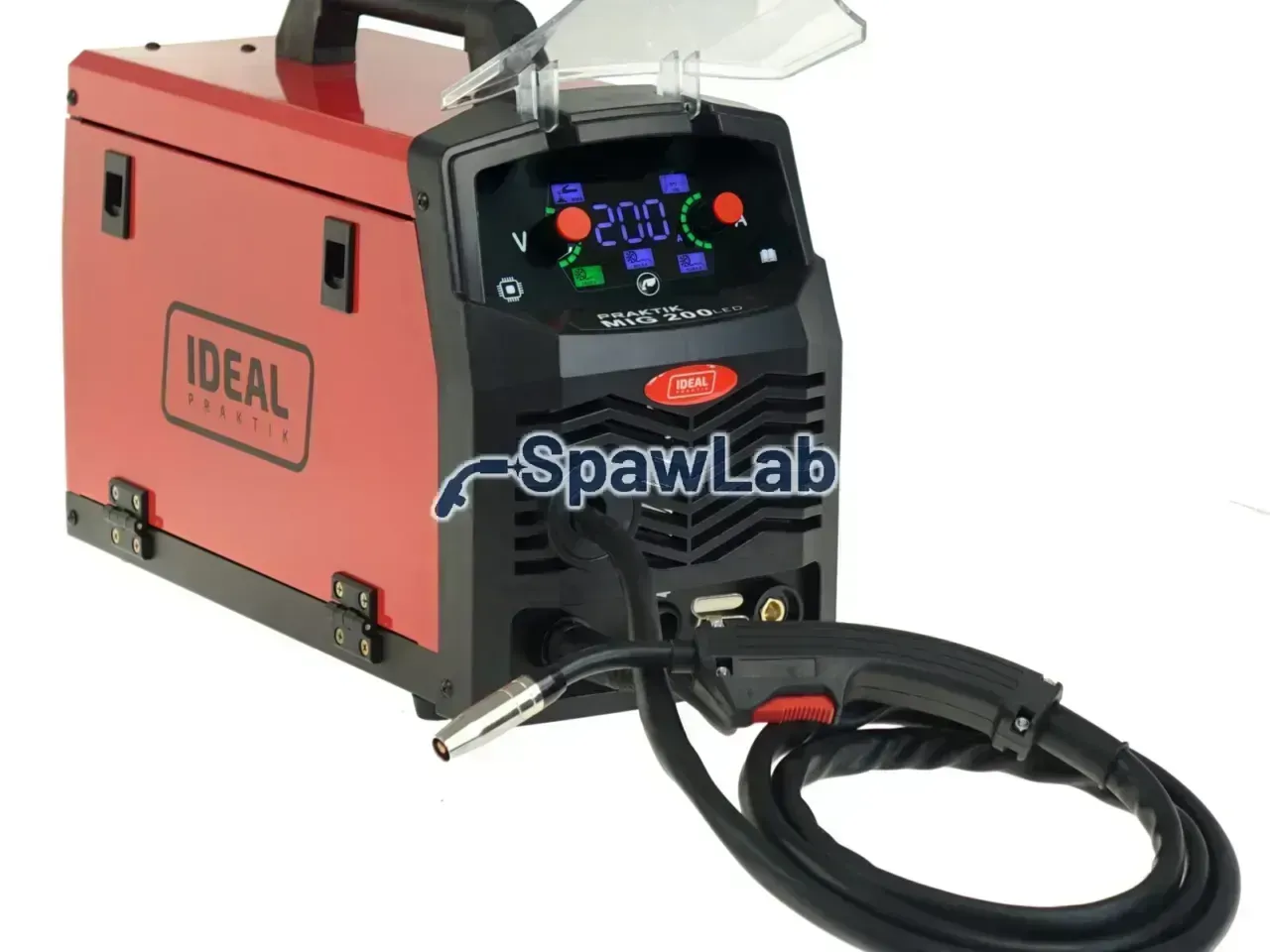

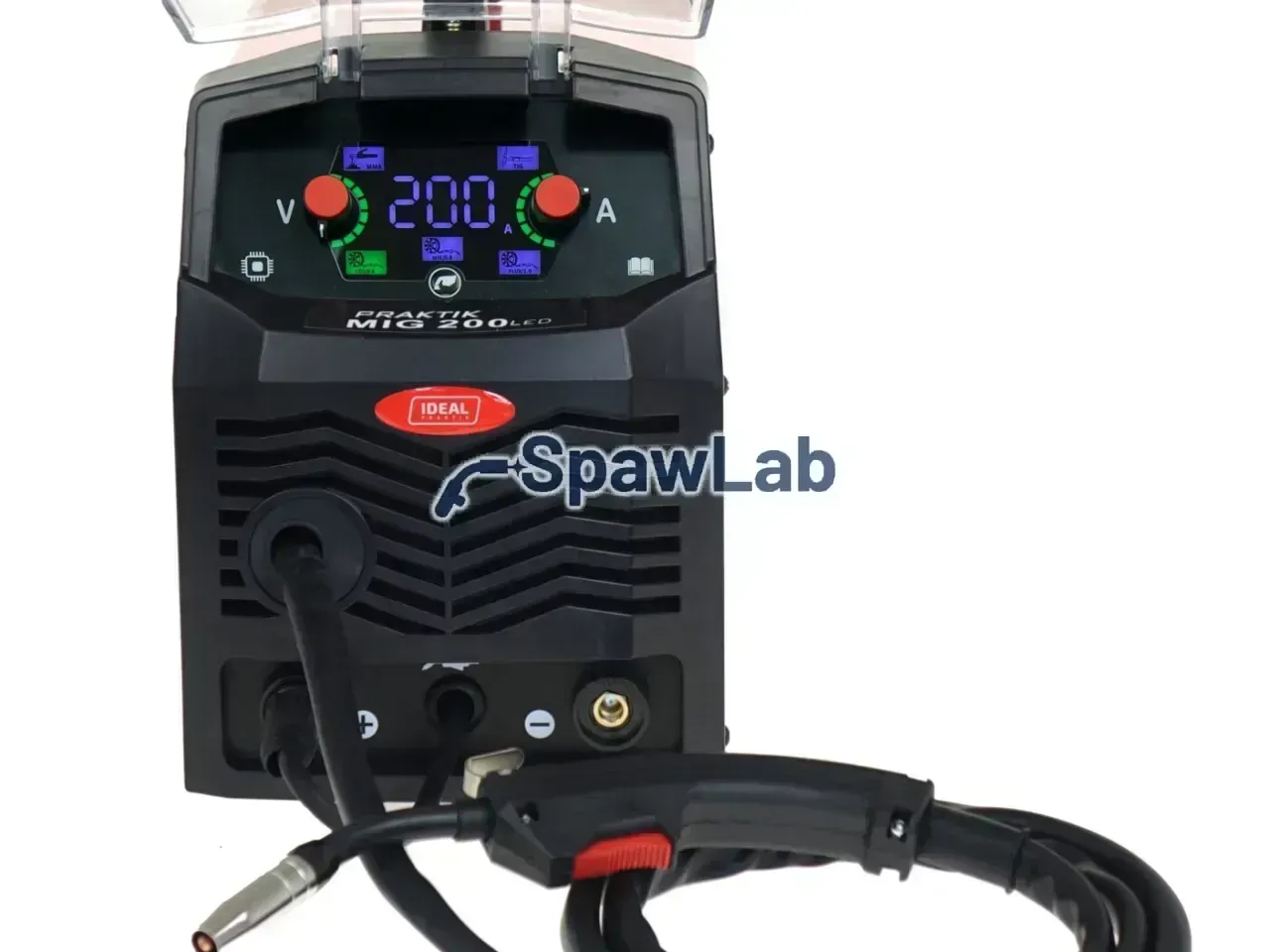

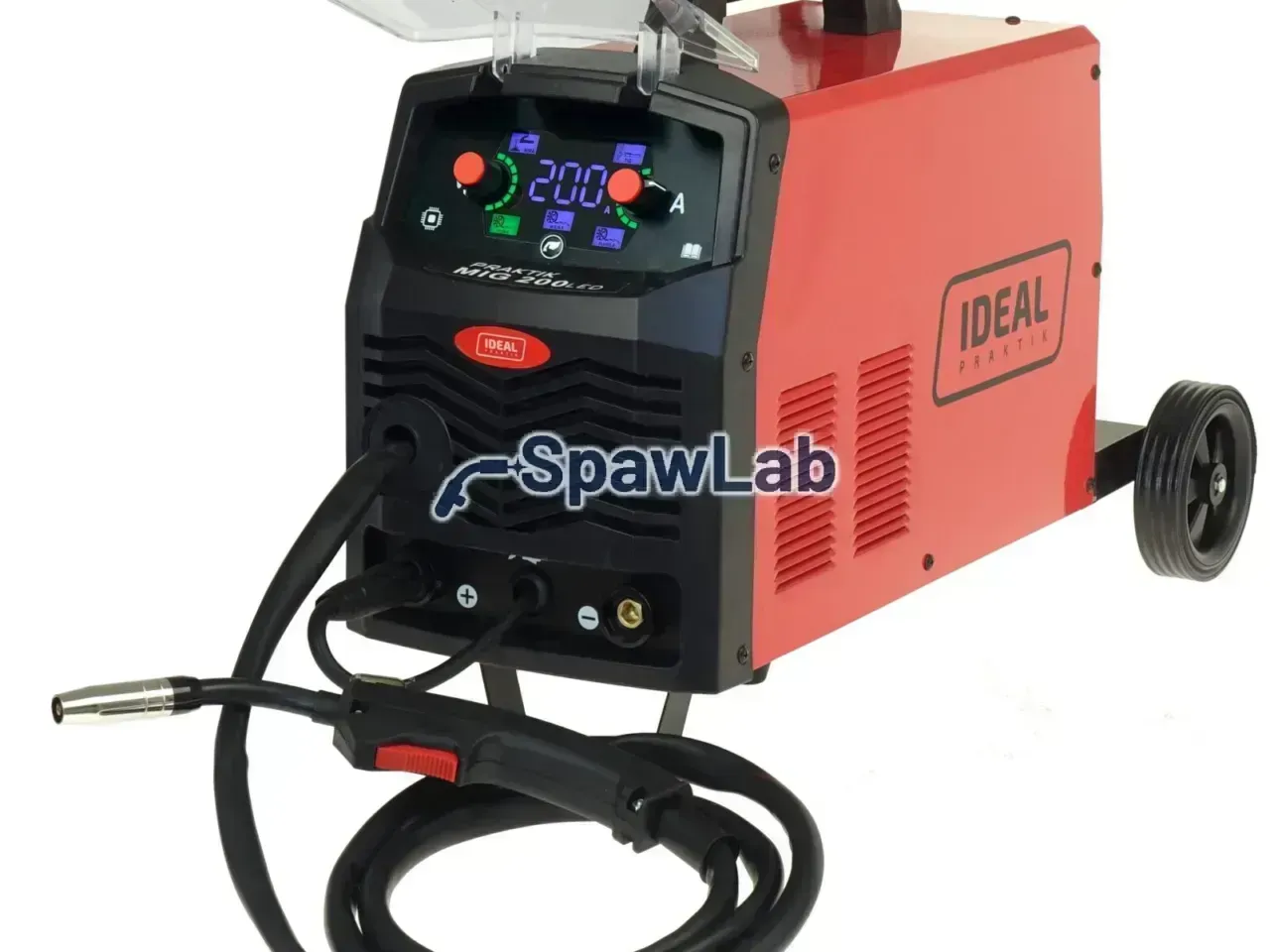

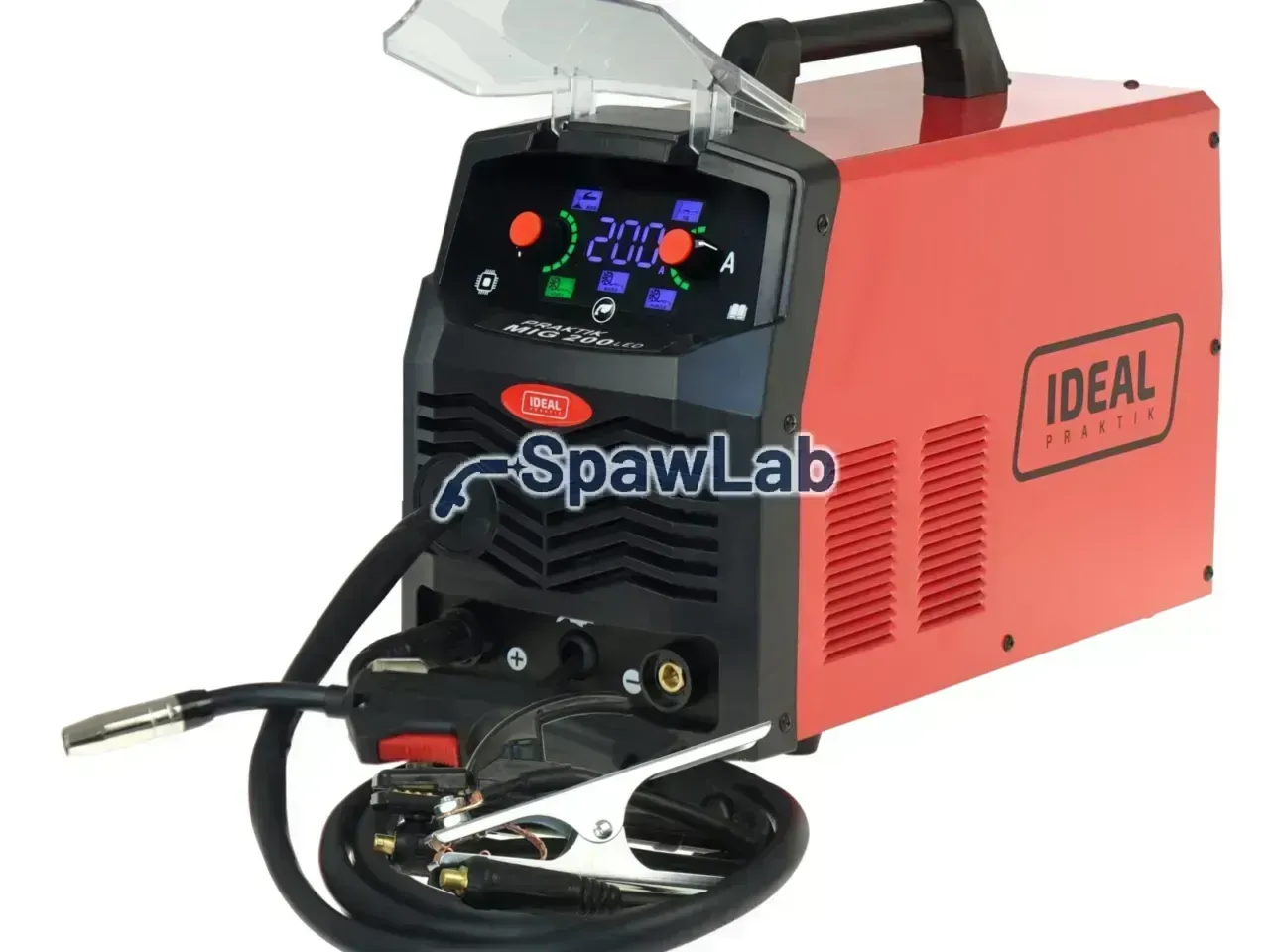

Praktik MIG 200 Synergic LED is a synergic 230 V inverter MIG welder. It welds MIG/MAG, self-shielded wire (FLUX), coated electrode (MMA) and TIG LIFT. It gives up to 200 A in MIG and up to 170 A in MMA. The manufacturer intends it for carbon and low-alloy steel, from maintenance work to car body repairs.
Specifications
- Power supply: 230 V, 50 Hz, single-phase, with plug
- Mains protection: C25A
- Power: 5.5 kW
- Welding current range: MIG 35 to 200 A, TIG 15 to 200 A, MMA 20 to 170 A
- Current at 60% duty cycle: MIG 200 A, MMA 170 A
- Current at 100% duty cycle: MIG 155 A, MMA 133 A
- Open-circuit voltage: 62 V
- Steel wire: 0.6 to 0.8 mm
- Stainless steel wire: 0.8 mm
- Self-shielded wire: 0.8 to 1.0 mm
- Wire feeder: 2-roll
- MMA electrode: 1.6 to 4.0 mm
- Wire spool: D100 (0.45 kg and 1 kg), D200 (2 kg and 5 kg)
- Protection rating: IP21S
- Weight: 16 kg
- Dimensions (L x W x H): 470 x 225 x 335 mm
- Packaging dimensions: 570 x 245 x 355 mm
Features
Three synergic programs

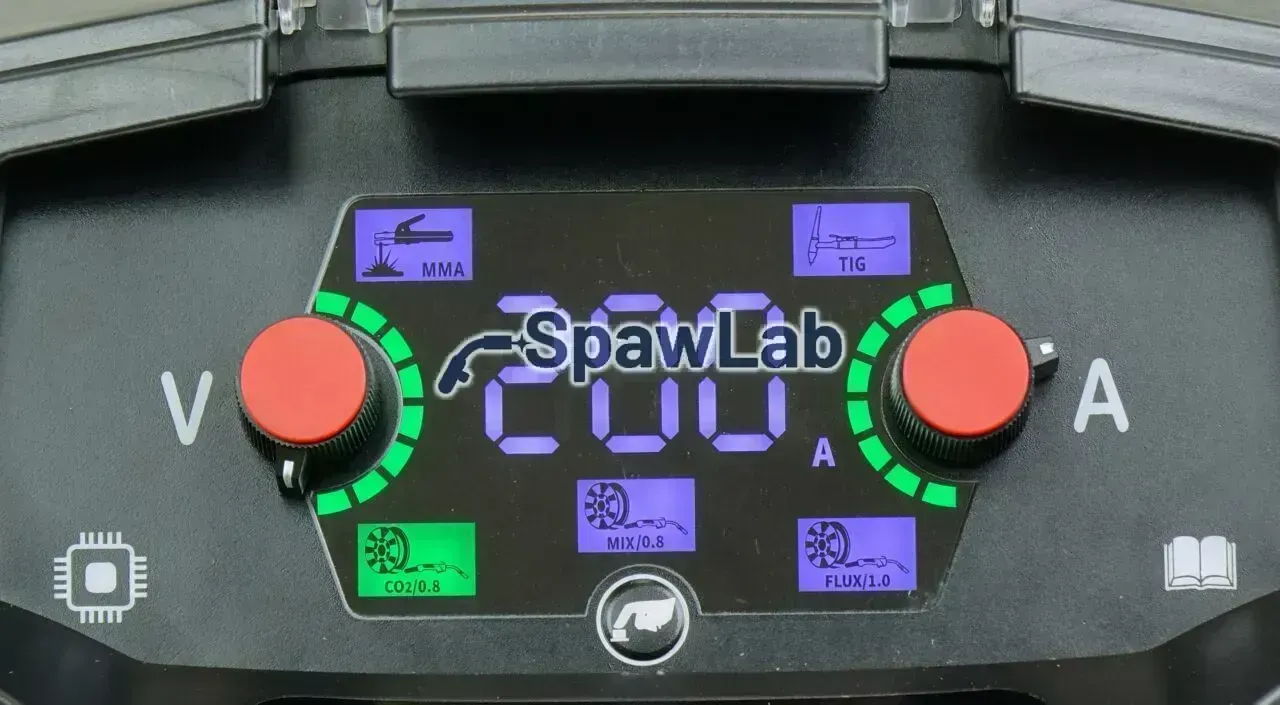

On the clear panel you choose one of three programs: CO₂ with 0.8 mm wire, Ar+CO₂ with 0.8 mm wire, or FLUX. The synergic program links the welding parameters to the chosen gas and wire.
Shielding gas or self-shielded wire
You weld MIG/MAG under inert gas, active gas or a mixture. Self-shielded wire works without gas, on reverse polarity. Inside the machine you fit a D100 spool (0.45 kg or 1 kg) or a D200 spool (2 kg or 5 kg).
MMA and TIG LIFT
You weld with 1.6 to 4.0 mm coated electrodes at 20 to 170 A. You set TIG with contact ignition (LIFT) in a range of 15 to 200 A. A TIG torch is not included.
Cooling and protection
A fan cools the inside. The welder also has overload protection.
In the box
- Fixed MIG welding torch
- Earth cable, 2 m
- Electrode cable, 2 m
12-month warranty for professional use, door-to-door service with no transport costs on your side.
