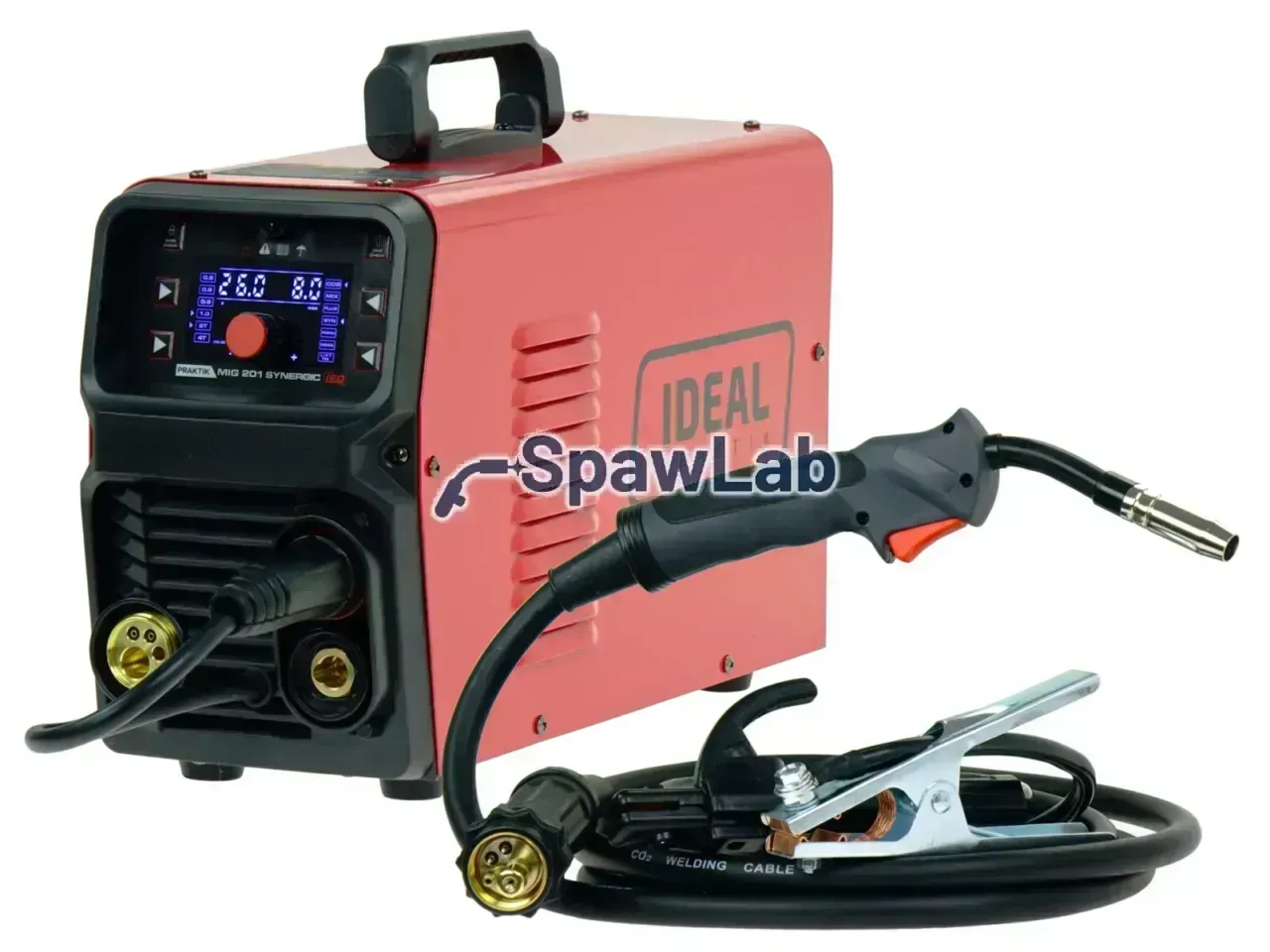

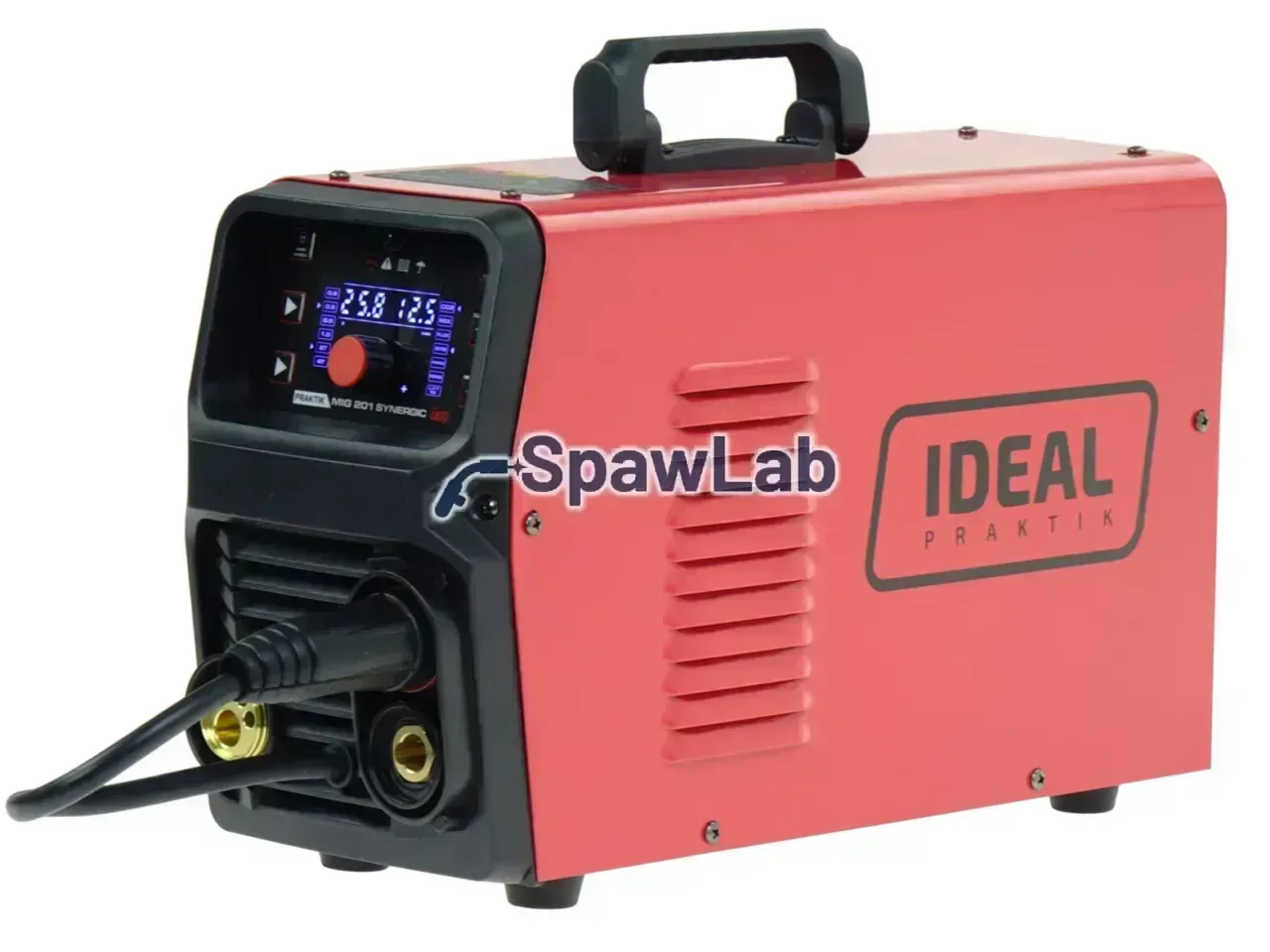

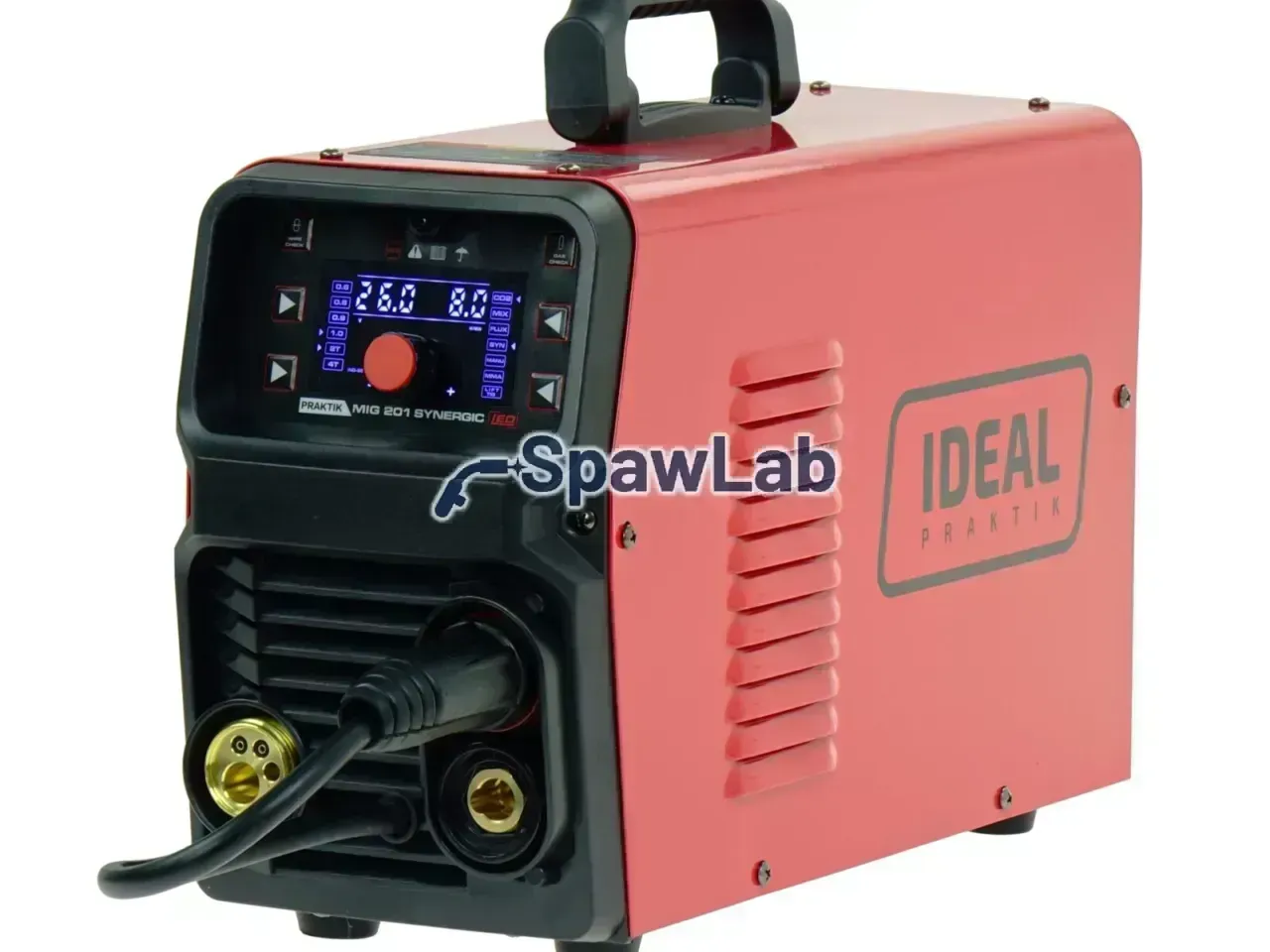

Praktik MIG 201 Synergic LED is a synergic 230 V inverter MIG welder for MIG/MAG, self-shielded wire (FLUX), coated electrode (MMA) and TIG LIFT welding. It is designed for carbon steel, welded under active gas or a mixture, or without gas using self-shielded wire. The manufacturer lists maintenance work and car body repairs. It holds a D200 spool (5 kg) and itself weighs 10 kg.
Specifications
- Power supply: 230 V, 50 Hz, single-phase, with plug
- Mains protection: C20 A
- Power: 6.6 kW
- Welding current range: MIG/MAG 50 to 200 A, TIG 10 to 200 A, MMA 10 to 160 A
- Current at 60% duty cycle: MIG/TIG 200 A, MMA 160 A
- Current at 100% duty cycle: MIG/TIG 77 A, MMA 62 A
- Open-circuit voltage: 50 V
- Steel wire: 0.6 to 1.0 mm
- Self-shielded wire: 0.8 to 1.0 mm
- Wire feeder: 2-roll
- MMA electrode: 1.6 to 4.0 mm
- Wire spool: D200 (5 kg)
- Protection rating: IP21S
- Weight of machine / set: 10 / 12 kg
- Dimensions (L x W x H): 420 x 155 x 270 mm
- Packaging dimensions: 490 x 270 x 310 mm
Features
Torch trigger in 2T and 4T
In MIG/MAG you choose how the trigger works. In 2T you weld as long as you hold it. In 4T the trigger latches, which makes long welds easier.

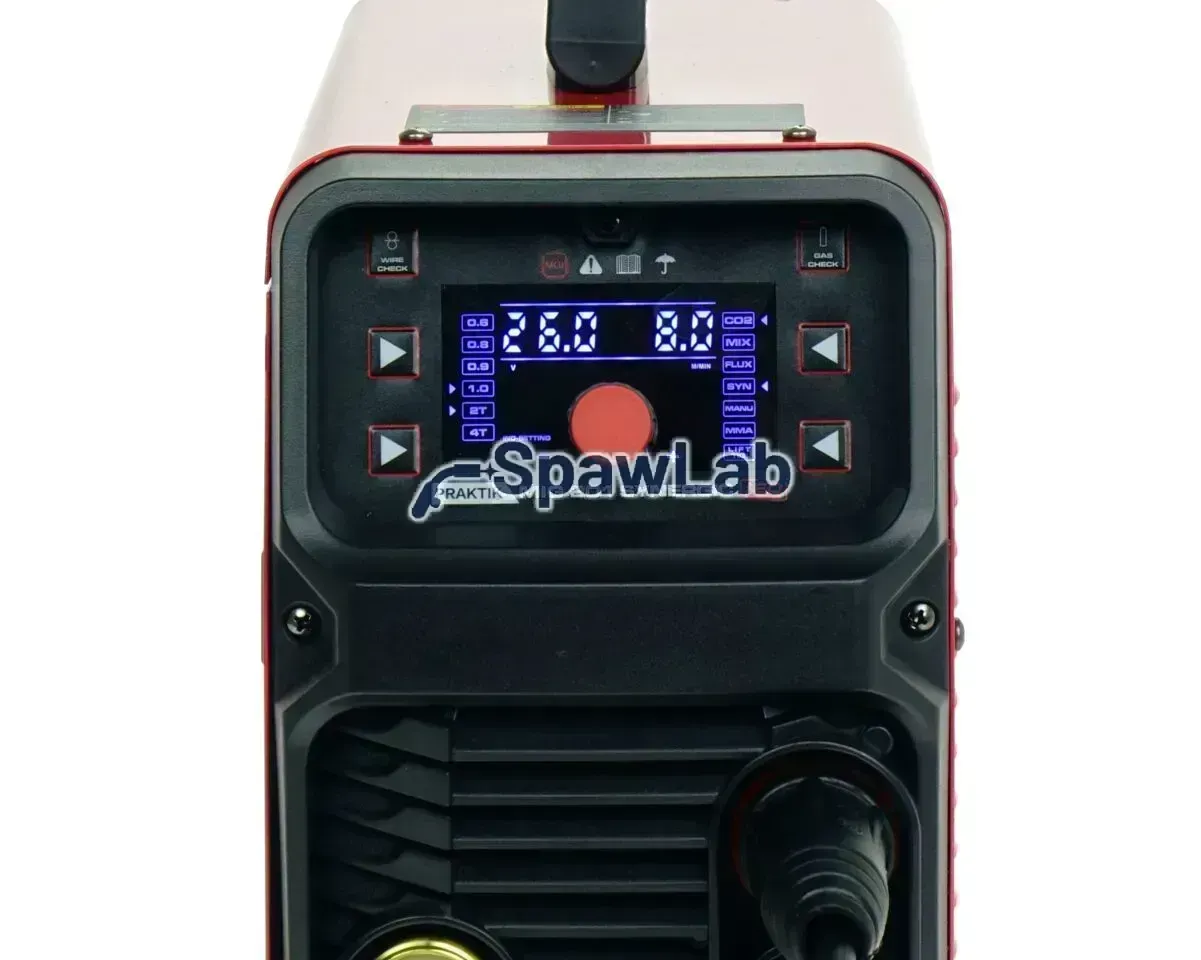

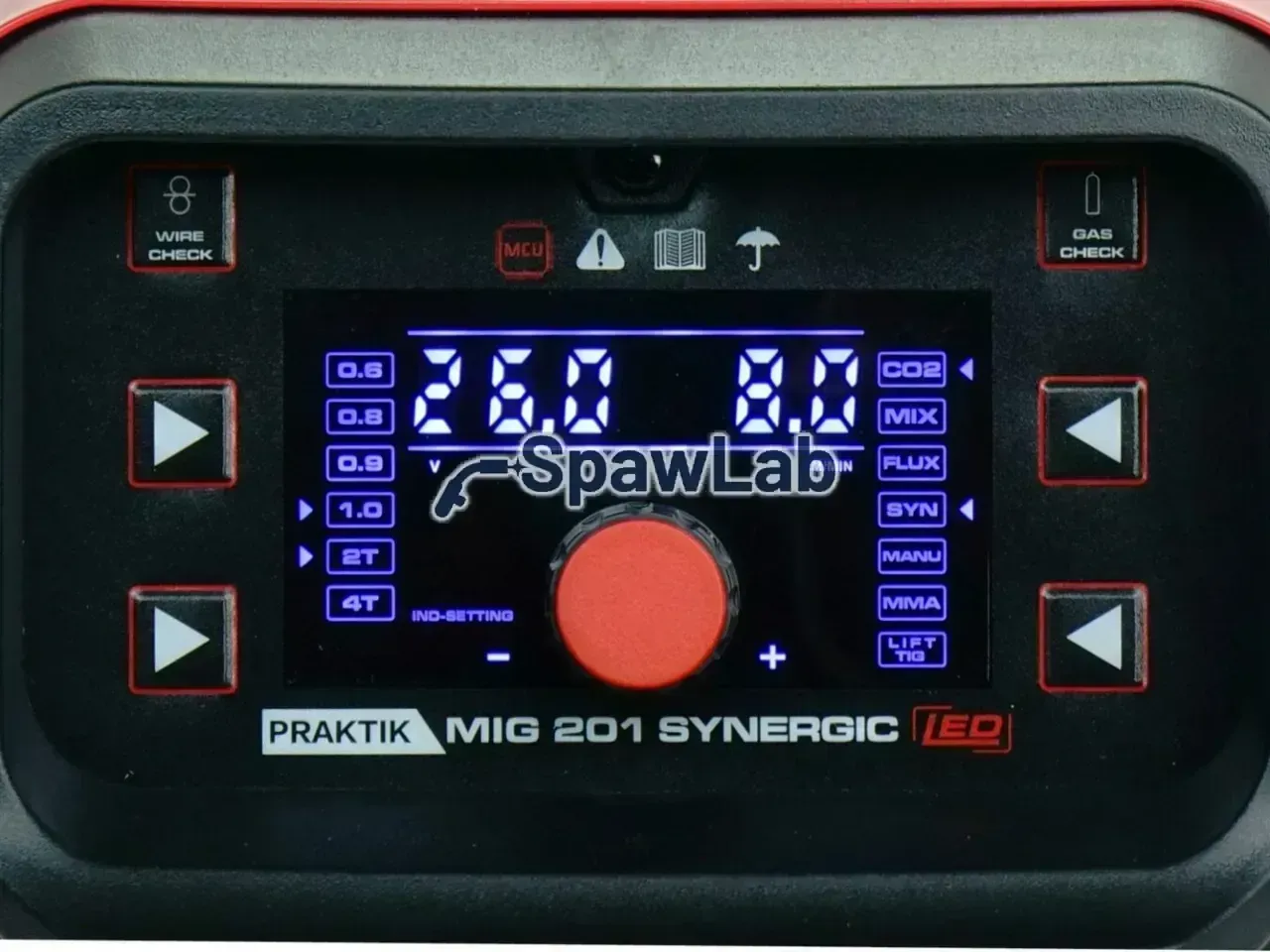

LED display and inductance
The LED display is readable even in very bright light, so you can set parameters precisely. The welder also has inductance adjustment, which lets you match the arc to the wire and sheet.
MMA and TIG LIFT
You weld with 1.6 to 4.0 mm coated electrodes at 10 to 160 A. You set TIG with contact ignition (LIFT) in a range of 10 to 200 A. A TIG torch is not included.
Cooling and protection
A fan cools the inside. The machine has overload protection.
In the box
- MIG 15 welding torch, 3 m
- Earth cable, 1.5 m
- Electrode cable, 1.5 m
- Feed roll 0.8 to 1.0 mm
12-month warranty for professional use, door-to-door service with no transport costs on your side.
